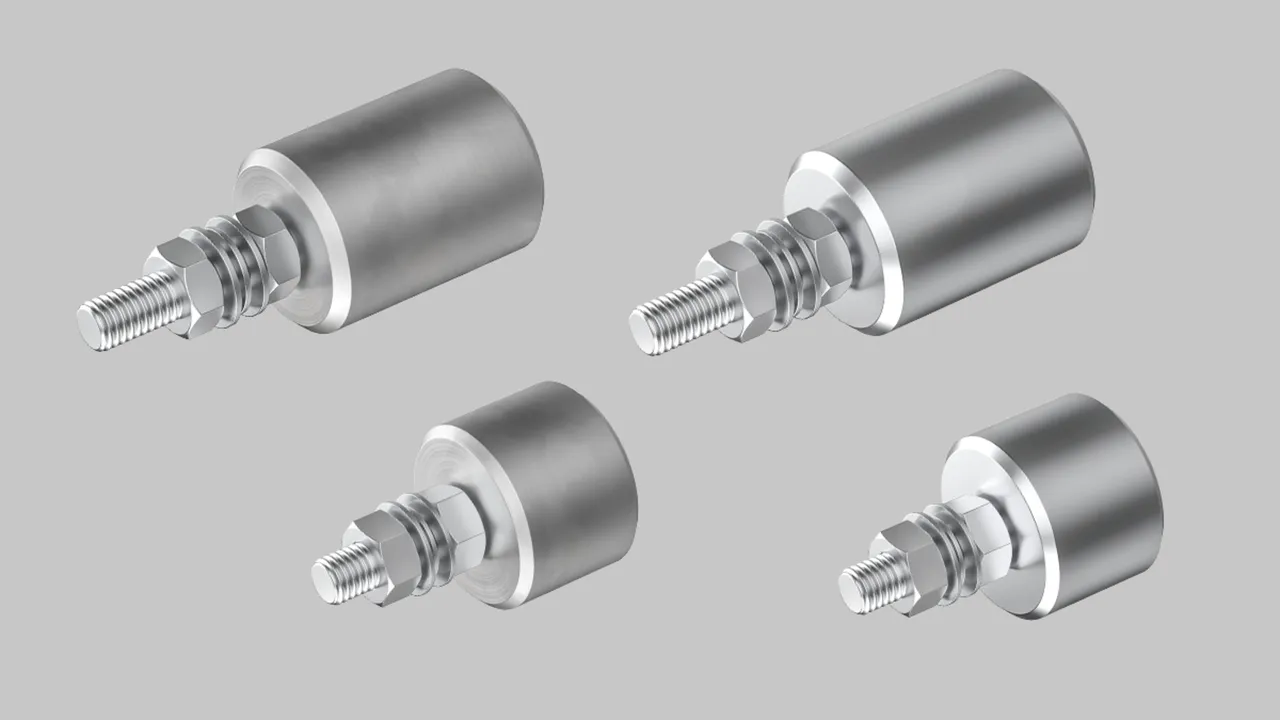

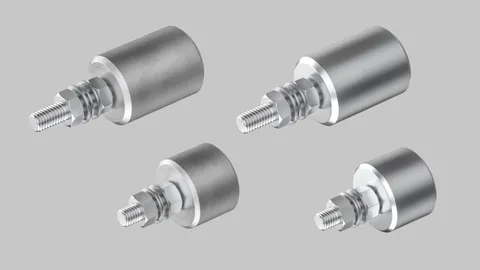

Earth Boss

Earth Bosses are designed to provide a connection point between steel structures and the Lightning Protection and/or Earthing System. The Earth Bosses are welded onto steel structures, tanks and vessels and are wrapped with DEHN Anti-Corrosion Tape.

Stainless Steel for Flat Conductors

Earth Bosses are designed to provide an earth connection point on a steel structure. The bosses are welded onto the steel structures, tanks, vessels and the connections are wrapped with DEHN anti-corrosion tape.

118598 is expected to be available for delivery in Q2/2025

3 Products

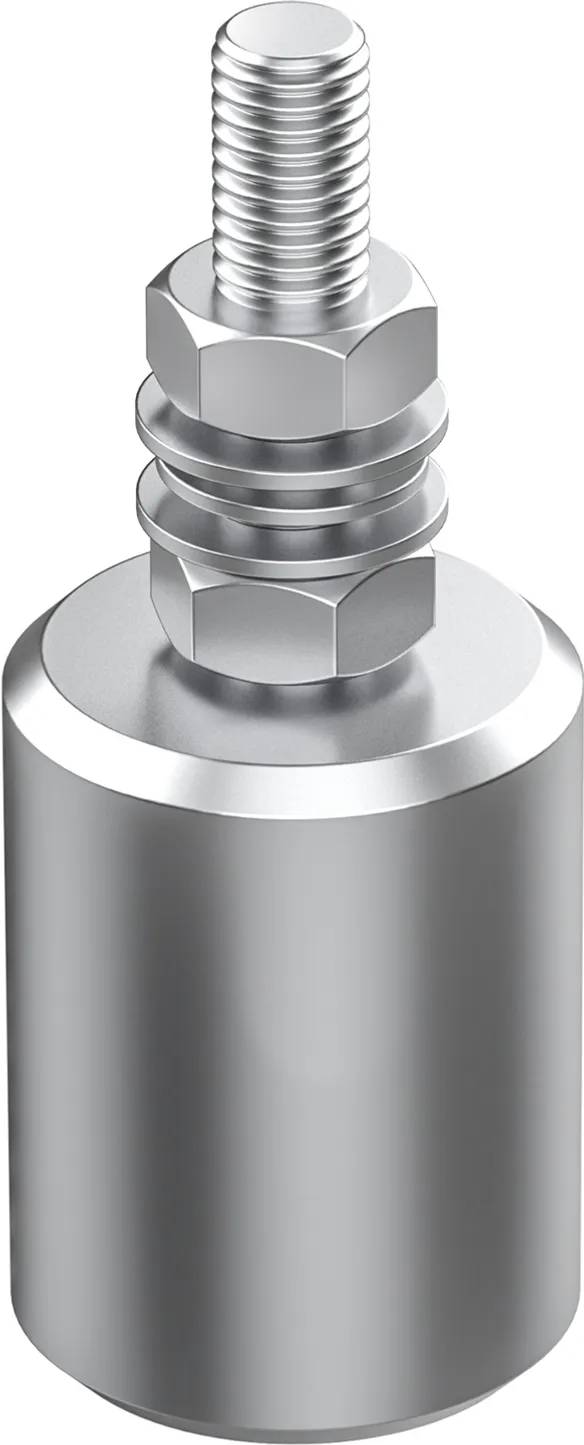

Part No. 118591 EBOSS M8 D30 L40 STST

GTIN 4013364536647, Customs tariff No. (EU): 85359000, Gross weight: 230.00 g, PU: 1.00 pc(s)

Images

Additional information

Certificates



Technical data

Material Stainless Steel
Conductor Material Copper
Clamping range Fl 25 x 3 mm
Clamp Fixings Bolt, Nut & Washer M8
Material of screw Stainless Steel
Tightening Torque 15 Nm
Recommended Fixings Welding to Structure
Nominal Diameter D 30 mm
Length L 40 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: Other Diameters, Lengths, Thread Sizes are available on special request.

Product 118591 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

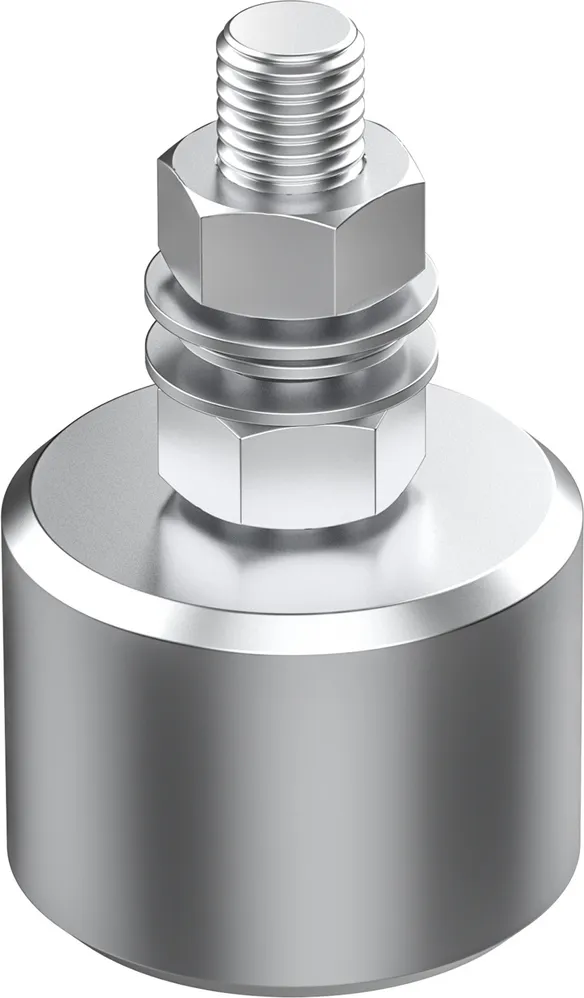

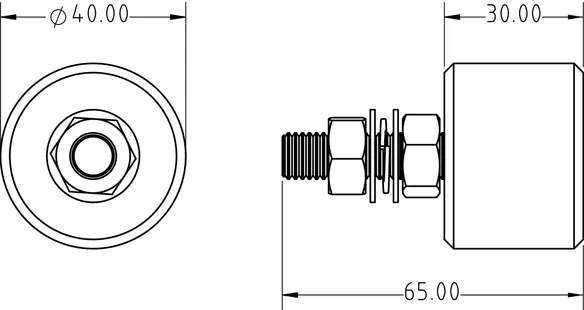

Part No. 118593 EBOSS M10 D40 L30 STST

GTIN 4013364475663, Customs tariff No. (EU): 85359000, Gross weight: 340.00 g, PU: 1.00 pc(s)

Images

Additional information

Certificates



Technical data

Material Stainless Steel
Conductor Material Copper
Clamping range Fl 25 x 3 mm
Clamp Fixings Bolt, Nut & Washer M10
Material of screw Stainless Steel
Tightening Torque 20 Nm
Recommended Fixings Welding to Structure
Nominal Diameter D 40 mm
Length L 30 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: Other Diameters, Lengths, Thread Sizes are available on special request.

Product 118593 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

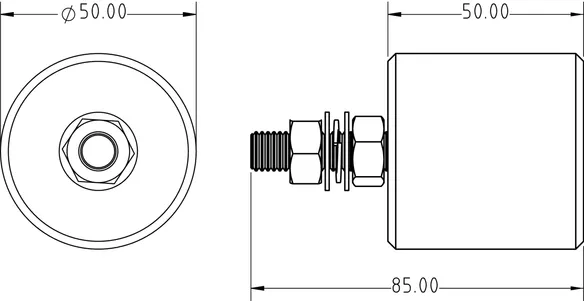

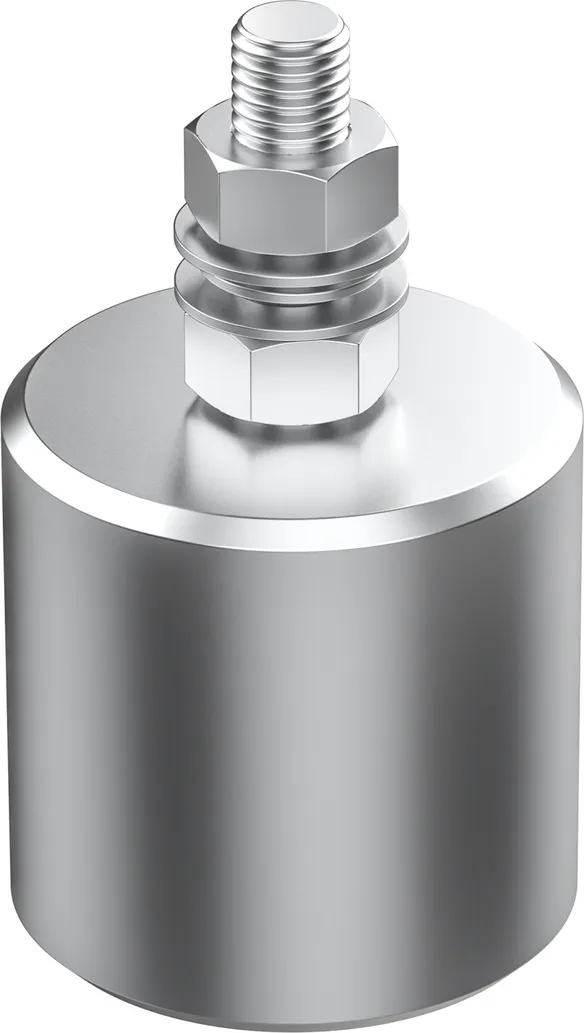

Part No. 118598 EBOSS M10 D50 L50 STST

GTIN 4013364536654, Customs tariff No. (EU): 85359000, Gross weight: 820.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Stainless Steel
Conductor Material Copper
Clamping range Fl 25 x 3 mm
Clamp Fixings Bolt, Nut & Washer M10
Material of screw Stainless Steel
Tightening Torque 20 Nm
Recommended Fixings Welding to Structure
Nominal Diameter D 50 mm
Length L 50 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: Other Diameters, Lengths, Thread Sizes are available on special request.

Product 118598 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Mild Steel for Flat Conductors

Earth Bosses are designed to provide an earth connection point on a steel structure. The bosses are welded onto the steel structures, tanks, vessels and the connections are wrapped with DEHN anti-corrosion tape.

118587 is expected to be available for delivery in Q2/2025.

3 Products

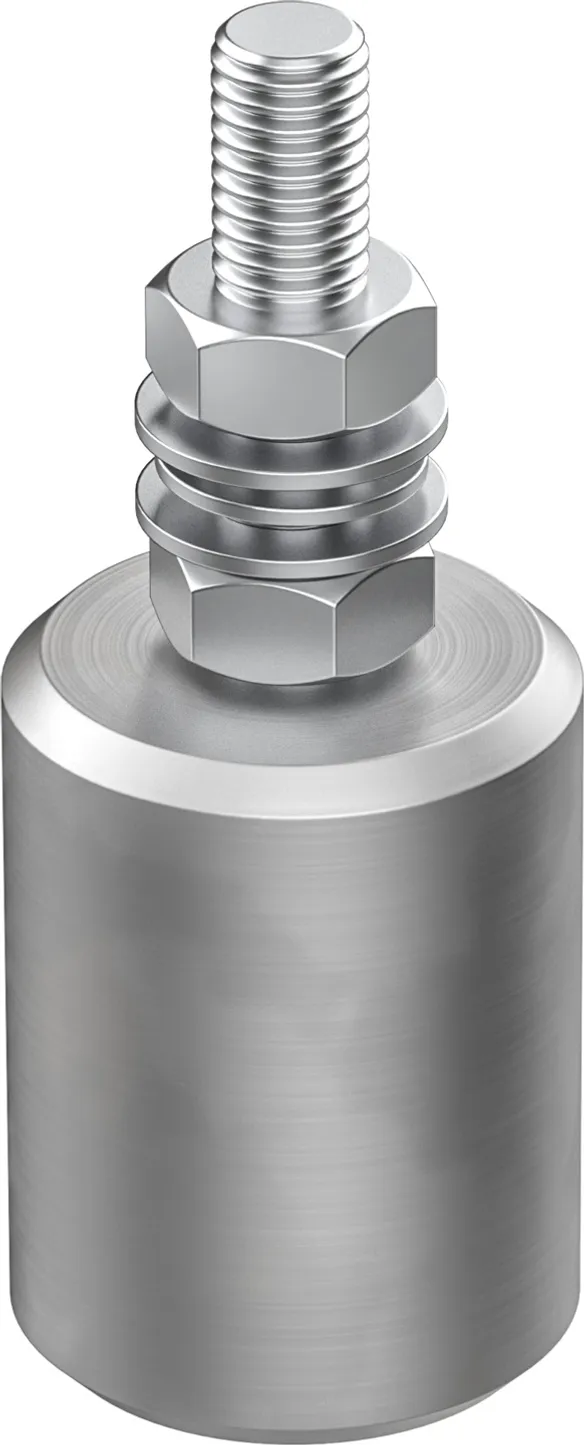

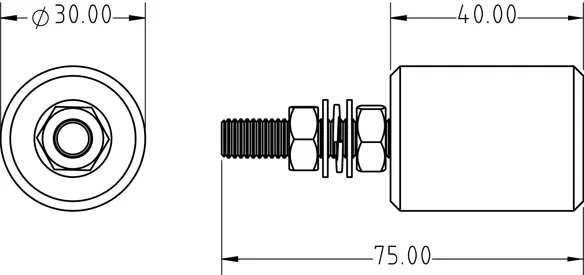

Part No. 118571 EBOSS M8 D30 L40 St/bare

GTIN 4013364536579, Customs tariff No. (EU): 85359000, Gross weight: 225.00 g, PU: 1.00 pc(s)

Images

Additional information

Certificates



Technical data

Material Mild Steel
Conductor Material Copper
Clamping range Fl 25 x 3 mm
Clamp Fixings Bolt, Nut & Washer M8
Material of screw Stainless Steel
Tightening Torque 15 Nm
Recommended Fixings Welding to Structure
Nominal Diameter D 30 mm
Length L 40 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 118571 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

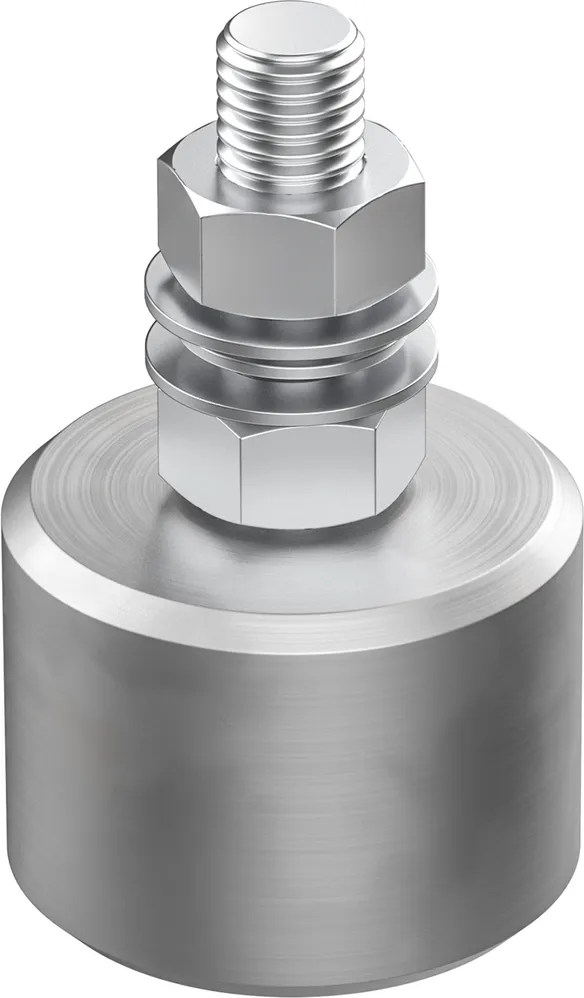

Part No. 118574 EBOSS M10 D40 L30 St/bare

GTIN 4013364536067, Customs tariff No. (EU): 85359000, Gross weight: 310.00 g, PU: 1.00 pc(s)

Images

Additional information

Certificates



Technical data

Material Mild Steel
Conductor Material Copper
Clamping range Fl 25 x 3 mm
Clamp Fixings Bolt, Nut & Washer M10
Material of screw Stainless Steel
Tightening Torque 20 Nm
Recommended Fixings Welding to Structure
Nominal Diameter D 40 mm
Length L 30 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 118574 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

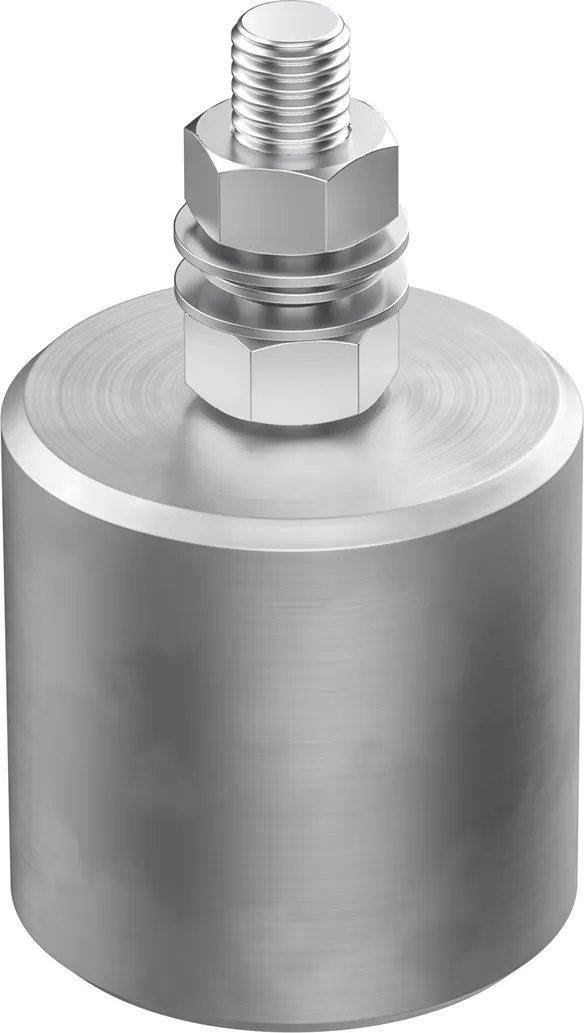

Part No. 118587 EBOSS M10 D50 L50 St/bare

GTIN 4013364536074, Customs tariff No. (EU): 85359000, Gross weight: 820.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Mild Steel
Conductor Material Copper
Clamping range Fl 25 x 3 mm
Clamp Fixings Bolt, Nut & Washer M10
Material of screw Stainless Steel
Tightening Torque 20 Nm
Recommended Fixings Welding to Structure
Nominal Diameter D 50 mm
Length L 50 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
