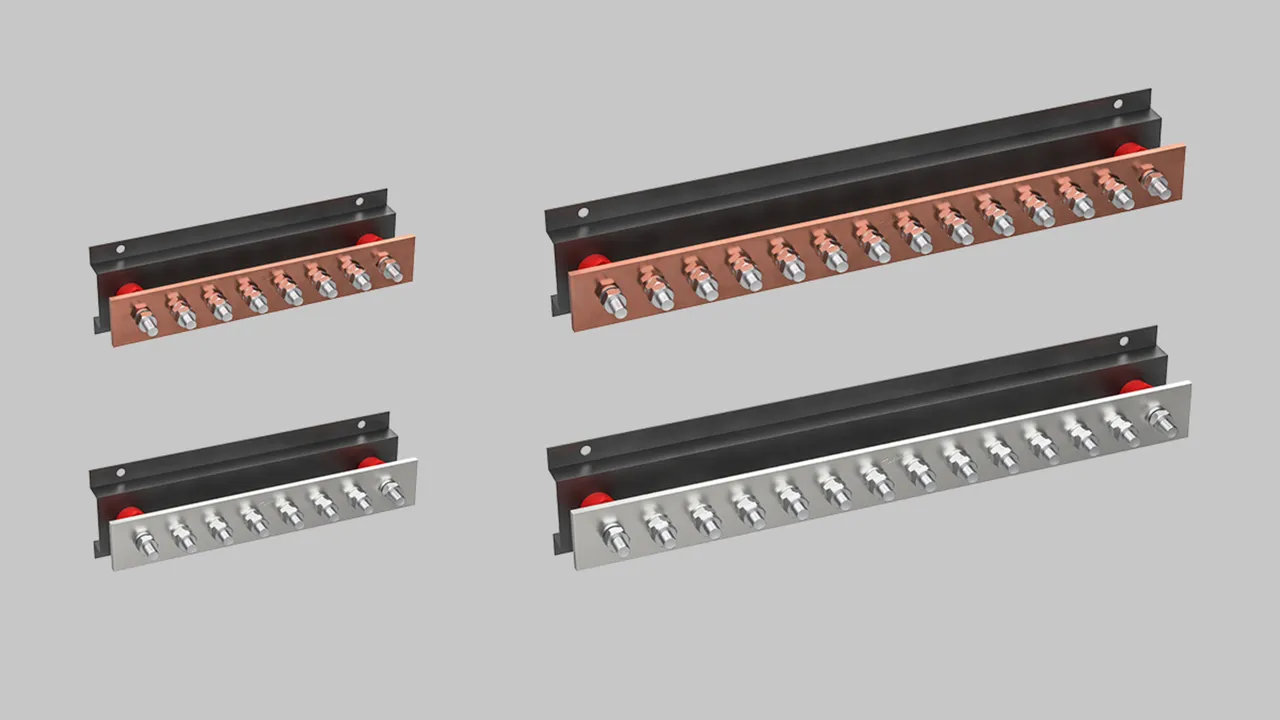

Earth Bars without disconnecting link

DEHN offers a range of Earth Bars Tested and Certified in accordance with the latest IEC EN 62561-1 standard and are in compliance with IEC 60364 – 5 - 54 standards and BS 7430.DEHN Earth Bars provides a common earthing point for multiple electrical installations and are a key component in both Earthing, Equipotential Bonding and Lightning Protection which helps to eliminate the risk of earth potential loops. DEHN Earth Bars are available with Single and Double Disconnecting link options which allows for quick and easy temporary disconnection from the earthing and lightning protection system to facilitate the testing of the earthing grid/rods in isolation.Features of DEHN Earth Bars
  • Provides a convenient, single-point grounding and bonding location
  • Busbars with single and double disconnecting links allow for convenient testing of the earth termination system.
  • High conductivity, hard drawn copper to EN 13601.
  • Includes insulators, stainless steel (EN 1.4401) hardware and a powder coated steel mounting base.
  • Cross-section 300mm²
  • Number of connections ranging from 2 Way to 30 Ways
  • Halogen-free polyamide insulators, stainless steel (V4A) M10 Fittings
  • Black Powder Coated Steel Base (Hot Dipped Galvanized Base Option can also be supplied)
  • Pre-drilled fixing holes for ease of installation

Copper

15 ??store.products_de??

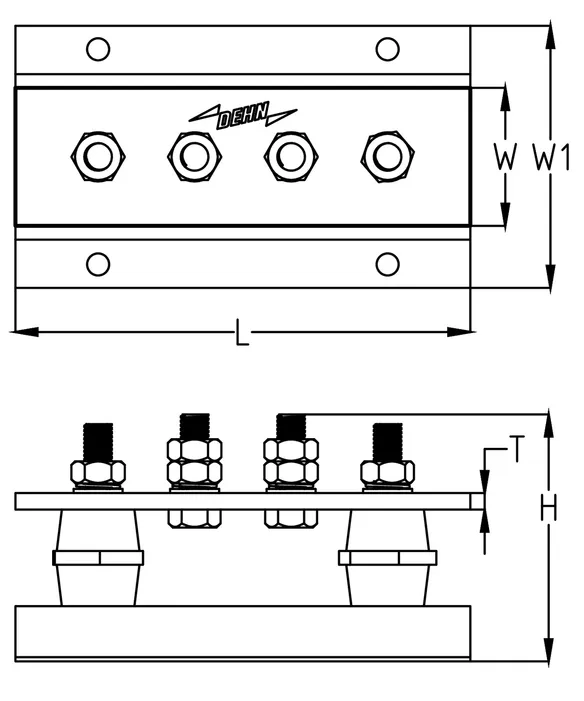

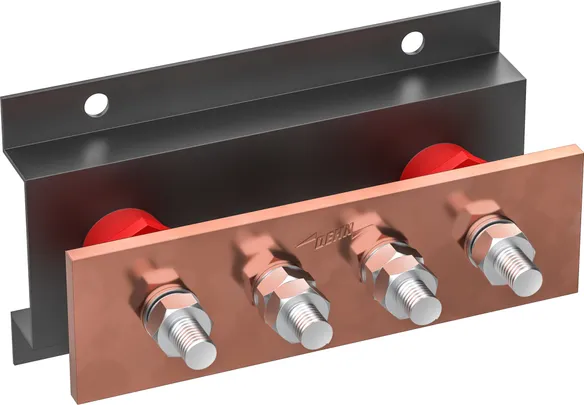

??store.product.number.short_de?? 118900 EB 2W M10 50X6 CU

??store.product.gtin_de?? 4013364472150, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.08 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 2

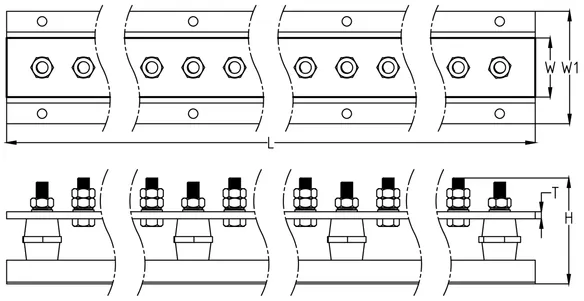

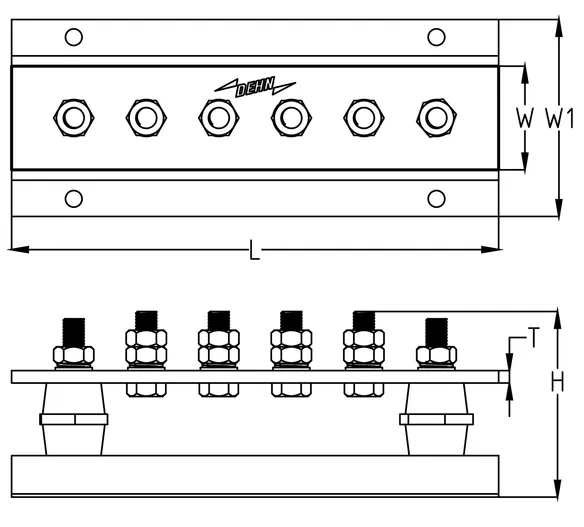

Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 165 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 118901 EB 4W M10 50X6 CU

??store.product.gtin_de?? 4013364472167, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.46 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 4
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 235 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

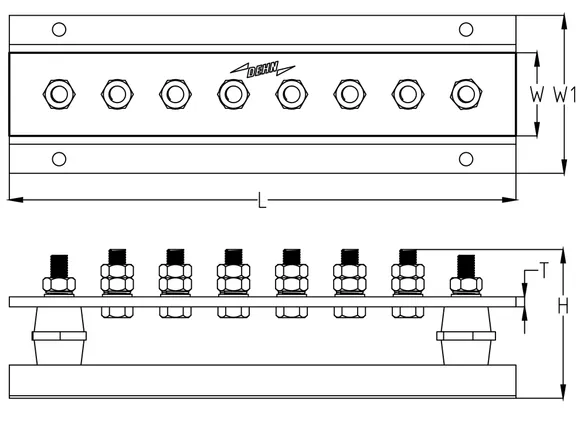

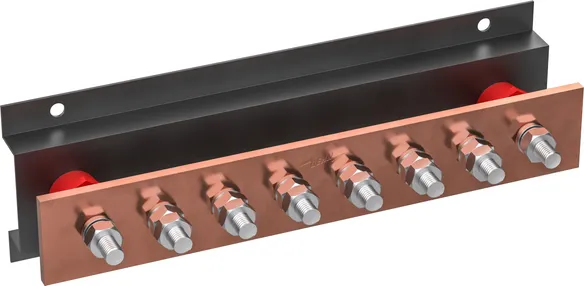

??store.product.number.short_de?? 118350 EB 6W M10 50X6 CU

??store.product.gtin_de?? 4013364299405, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.90 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 6
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 305 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

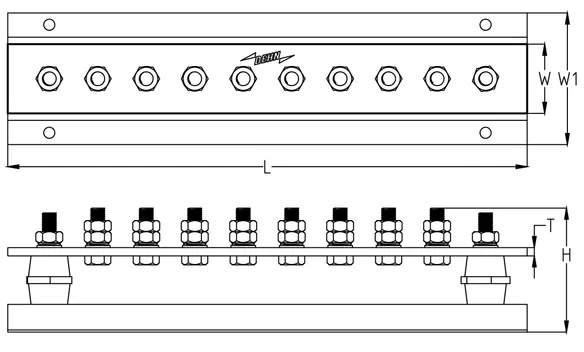

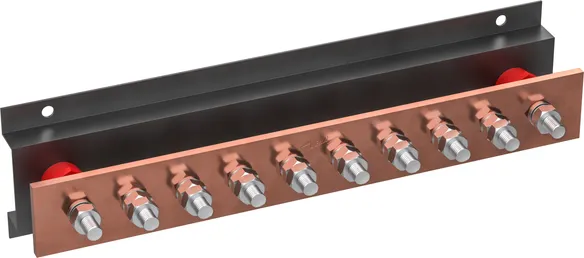

??store.product.number.short_de?? 118351 EB 8W M10 50X6 CU

??store.product.gtin_de?? 4013364299412, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.33 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 8
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 375 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

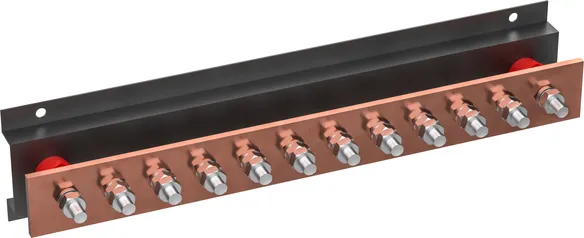

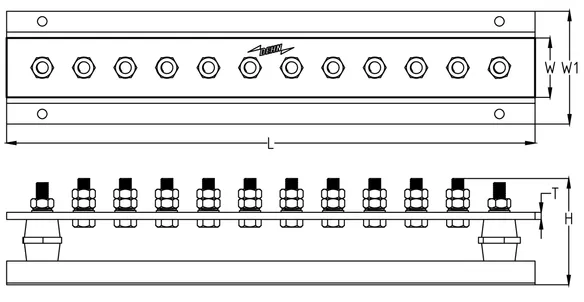

??store.product.number.short_de?? 118352 EB 10W M10 50X6 CU

??store.product.gtin_de?? 4013364299429, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.77 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 10
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 445 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

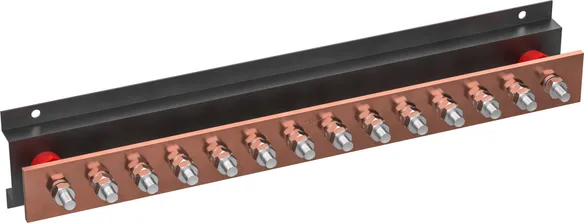

??store.product.number.short_de?? 118353 EB 12W M10 50X6 CU

??store.product.gtin_de?? 4013364299436, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.50 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 12
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 515 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

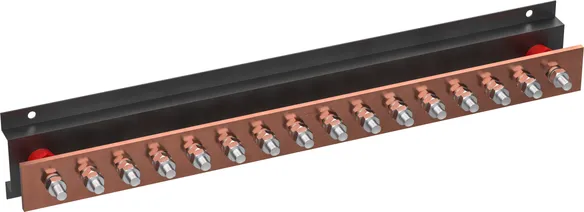

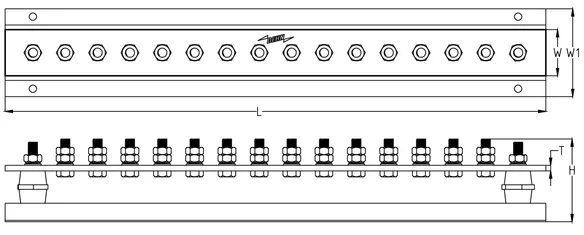

??store.product.number.short_de?? 118354 EB 14W M10 50X6 CU

??store.product.gtin_de?? 4013364299443, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.94 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 14
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 585 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

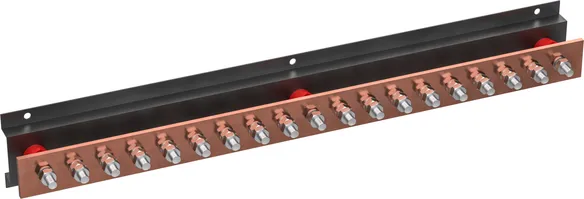

??store.product.number.short_de?? 118907 EB 16W M10 50X6 CU

??store.product.gtin_de?? 4013364472174, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 16

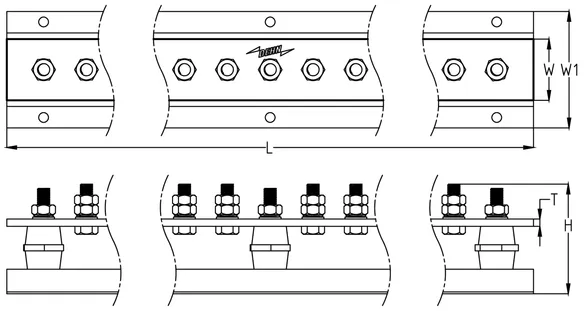

Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 690 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

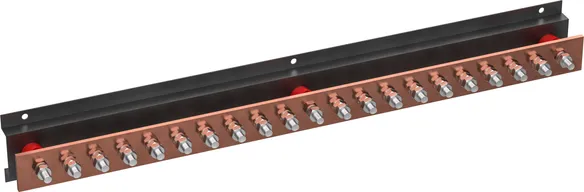

??store.product.number.short_de?? 118908 EB 18W M10 50X6 CU

??store.product.gtin_de?? 4013364472181, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.21 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 18
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 760 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

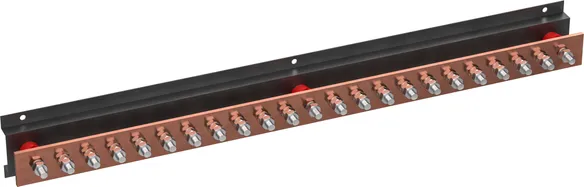

??store.product.number.short_de?? 118909 EB 20W M10 50X6 CU

??store.product.gtin_de?? 4013364472198, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.69 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 20
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 830 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

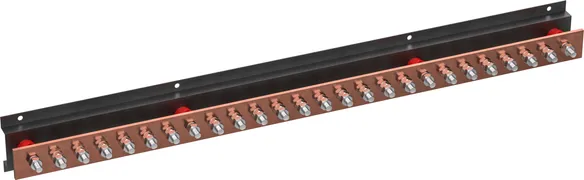

??store.product.number.short_de?? 118910 EB 22W M10 50X6 CU

??store.product.gtin_de?? 4013364472204, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.47 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 22
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 935 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

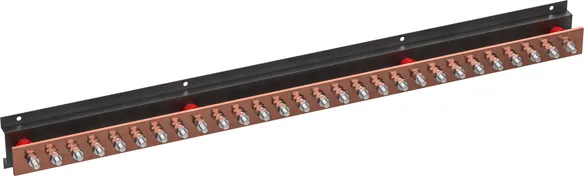

??store.product.number.short_de?? 118911 EB 24W M10 50X6 CU

??store.product.gtin_de?? 4013364472211, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.95 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 24
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1005 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

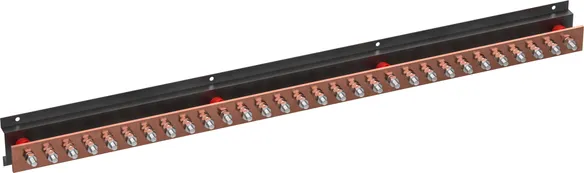

??store.product.number.short_de?? 118912 EB 26W M10 50X6 CU

??store.product.gtin_de?? 4013364472228, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.42 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 26
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1075 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 118913 EB 28W M10 50X6 CU

??store.product.gtin_de?? 4013364472235, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.90 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 28
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1145 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 118914 EB 30W M10 50X6 CU

??store.product.gtin_de?? 4013364472242, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 30
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1215 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Tinned Copper

15 ??store.products_de??

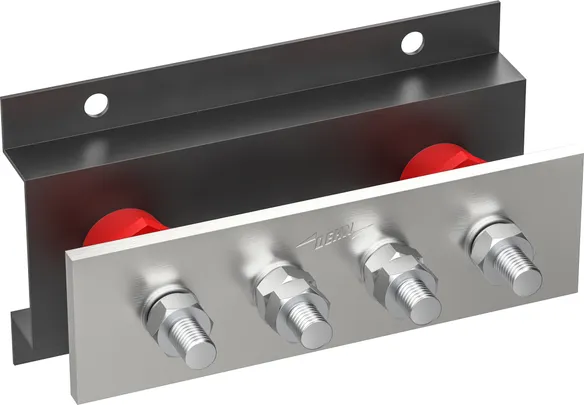

??store.product.number.short_de?? 119900 EB 2W M10 50X6 SNCU

??store.product.gtin_de?? 4013364472457, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.08 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 165 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

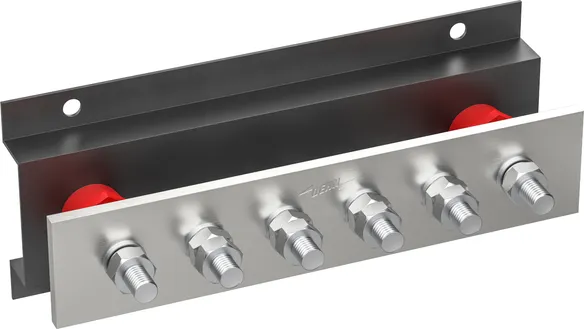

??store.product.number.short_de?? 119901 EB 4W M10 50X6 SNCU

??store.product.gtin_de?? 4013364472464, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.46 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 4
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 235 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

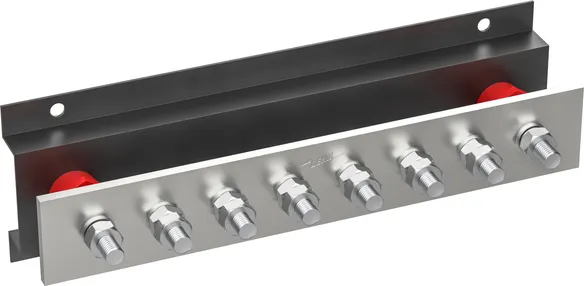

??store.product.number.short_de?? 119350 EB 6W M10 50X6 SNCU

??store.product.gtin_de?? 4013364474277, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.90 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 6
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 305 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

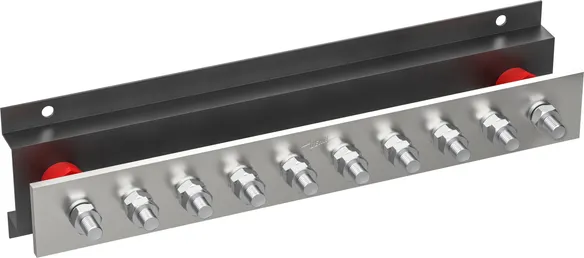

??store.product.number.short_de?? 119351 EB 8W M10 50X6 SNCU

??store.product.gtin_de?? 4013364474284, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.33 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 8
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 375 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

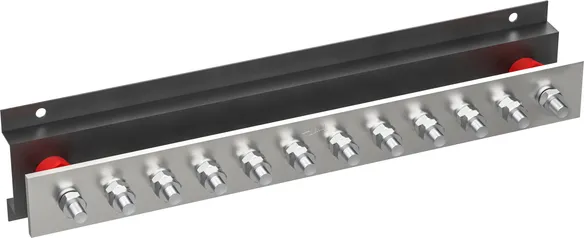

??store.product.number.short_de?? 119352 EB 10W M10 50X6 SNCU

??store.product.gtin_de?? 4013364474291, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.77 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 10
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 445 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

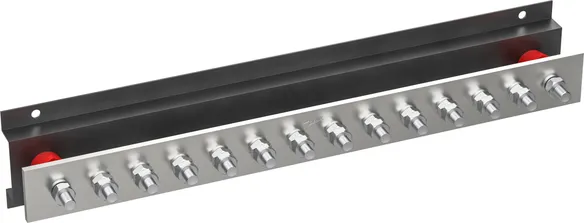

??store.product.number.short_de?? 119353 EB 12W M10 50X6 SNCU

??store.product.gtin_de?? 4013364474307, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.50 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 12
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 515 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

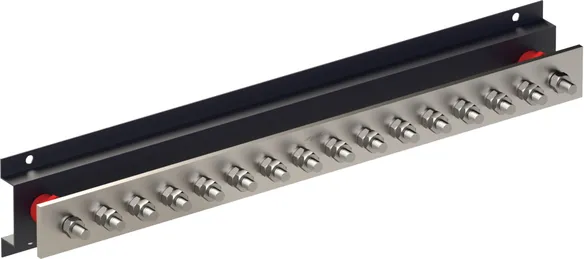

??store.product.number.short_de?? 119354 EB 14W M10 50X6 SNCU

??store.product.gtin_de?? 4013364474314, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.94 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 14
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 585 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

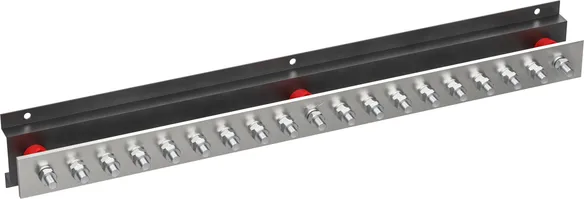

??store.product.number.short_de?? 119907 EB 16W M10 50X6 SNCU

??store.product.gtin_de?? 4013364472471, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 16
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 690 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

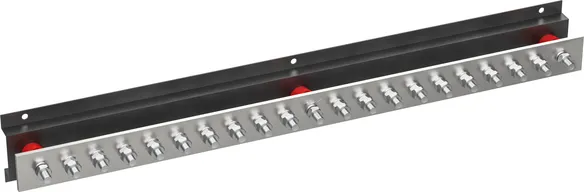

??store.product.number.short_de?? 119908 EB 18W M10 50X6 SNCU

??store.product.gtin_de?? 4013364472488, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.21 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 18
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 760 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

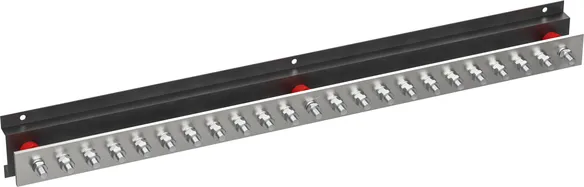

??store.product.number.short_de?? 119909 EB 20W M10 50X6 SNCU

??store.product.gtin_de?? 4013364472495, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.69 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 20
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 830 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

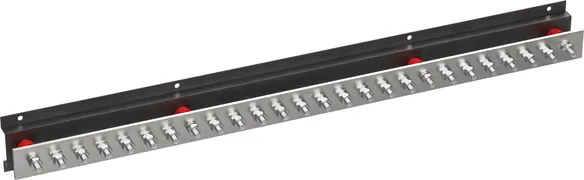

??store.product.number.short_de?? 119910 EB 22W M10 50X6 SNCU

??store.product.gtin_de?? 4013364472501, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.47 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 22
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 935 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

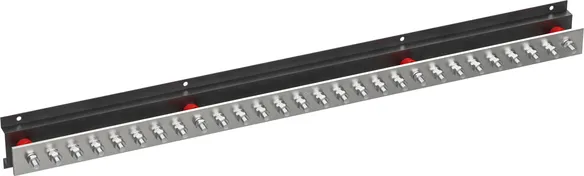

??store.product.number.short_de?? 119911 EB 24W M10 50X6 SNCU

??store.product.gtin_de?? 4013364472518, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.95 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 24
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1005 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

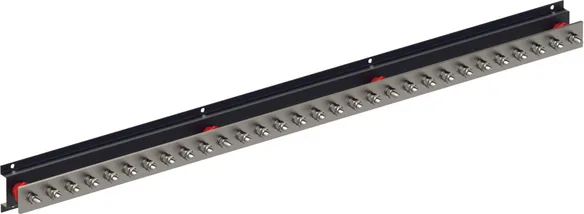

??store.product.number.short_de?? 119912 EB 26W M10 50X6 SNCU

??store.product.gtin_de?? 4013364472525, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.42 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 26
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1075 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119913 EB 28W M10 50X6 SNCU

??store.product.gtin_de?? 4013364472532, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.90 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 28
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1145 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119914 EB 30W M10 50X6 SNCU

??store.product.gtin_de?? 4013364472549, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 30
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1215 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
back to top
