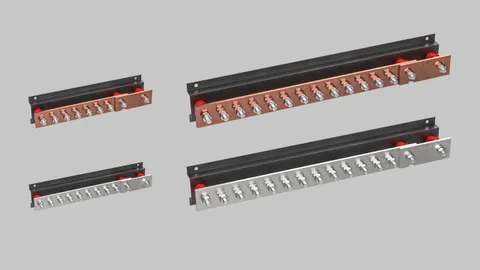

Earth Bars with single disconnecting link

DEHN offers a range of Earth Bars Tested and Certified in accordance with the latest IEC EN 62561-1 standard and are in compliance with IEC 60364 – 5 - 54 standards and BS 7430.DEHN Earth Bars provides a common earthing point for multiple electrical installations and are a key component in both Earthing, Equipotential Bonding and Lightning Protection which helps to eliminate the risk of earth potential loops. DEHN Earth Bars are available with Single and Double Disconnecting link options which allows for quick and easy temporary disconnection from the earthing and lightning protection system to facilitate the testing of the earthing grid/rods in isolation.Features of DEHN Earth Bars
  • Provides a convenient, single-point grounding and bonding location
  • Busbars with single and double disconnecting links allow for convenient testing of the earth termination system.
  • High conductivity, hard drawn copper to EN 13601.
  • Includes insulators, stainless steel (EN 1.4401) hardware and a powder coated steel mounting base.
  • Cross-section 300mm²
  • Number of connections ranging from 2 Way to 30 Ways
  • Halogen-free polyamide insulators, stainless steel (V4A) M10 Fittings
  • Black Powder Coated Steel Base (Hot Dipped Galvanized Base Option can also be supplied)
  • Pre-drilled fixing holes for ease of installation

Copper

15 ??store.products_de??

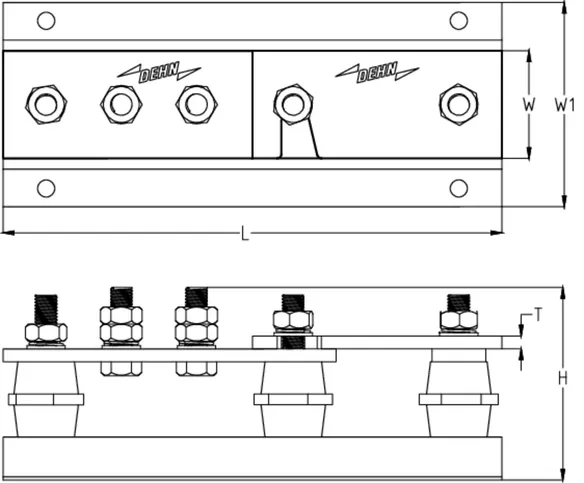

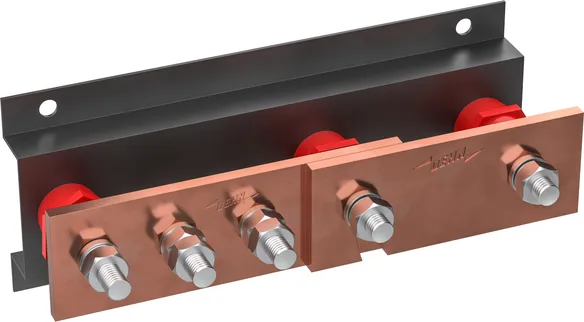

??store.product.number.short_de?? 118915 EB 2W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364472259, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.61 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 2
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 232 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

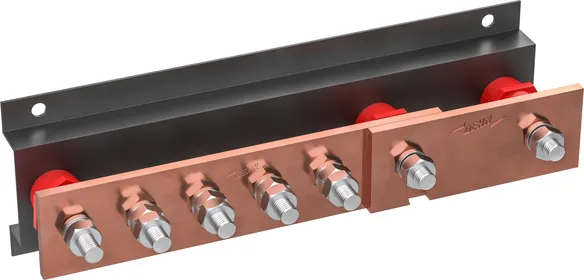

??store.product.number.short_de?? 118916 EB 4W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364472266, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.05 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 4
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 302 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

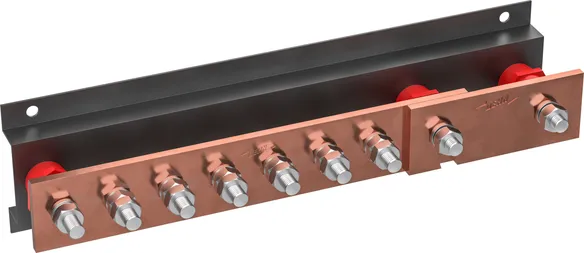

??store.product.number.short_de?? 118360 EB 6W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364299450, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.49 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 6
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 372 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

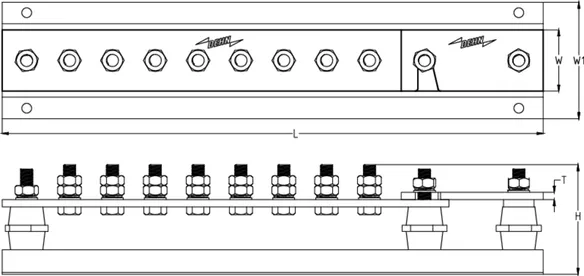

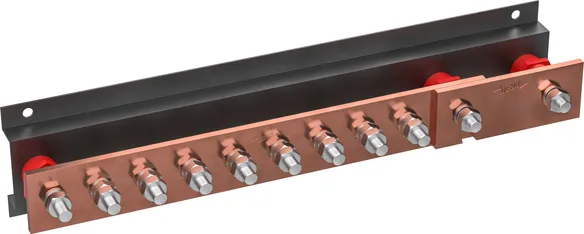

??store.product.number.short_de?? 118361 EB 8W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364299467, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.93 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 8
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 442 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

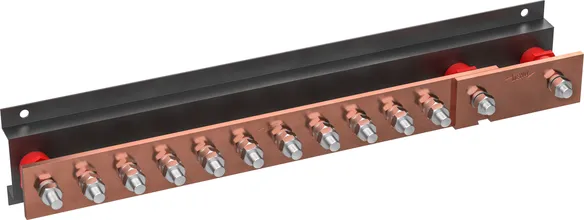

??store.product.number.short_de?? 118362 EB 10W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364299474, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.36 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 10
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 512 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 118363 EB 12W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364299481, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.09 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 12
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 582 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

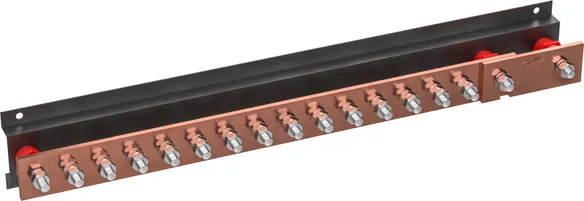

??store.product.number.short_de?? 118364 EB 14W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364299498, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.52 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 14
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 685 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

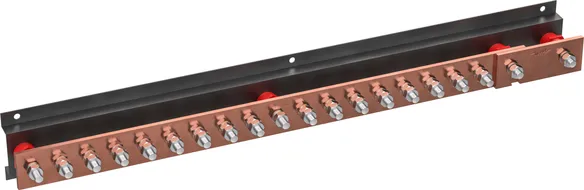

??store.product.number.short_de?? 118922 EB 16W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364472273, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 16
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 757 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

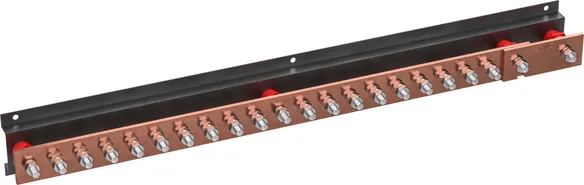

??store.product.number.short_de?? 118366 EB 18W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364472280, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.85 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 18
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 827 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 118924 EB 20W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364472297, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.32 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 20
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 897 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

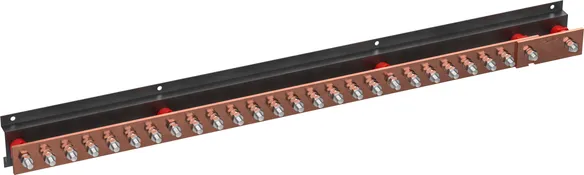

??store.product.number.short_de?? 118925 EB 22W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364472303, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.10 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 22
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1002 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 118926 EB 24W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364472310, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.57 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 24
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1072 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

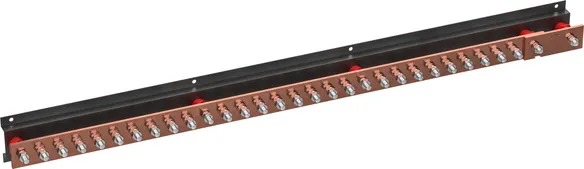

??store.product.number.short_de?? 118927 EB 26W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364472327, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.09 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 26
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1142 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 118928 EB 28W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364472334, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.52 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 28
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1212 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

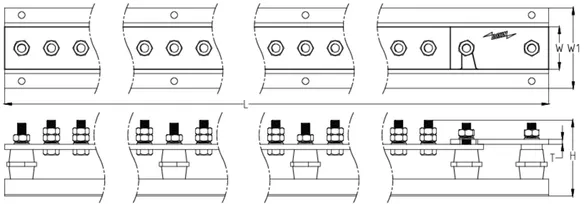

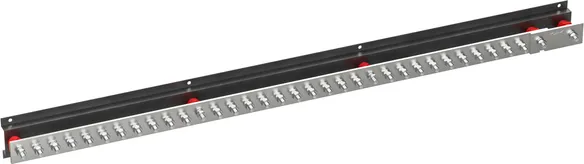

??store.product.number.short_de?? 118929 EB 30W 1DL M10 50X6 CU

??store.product.gtin_de?? 4013364472341, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 9.01 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 30
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1282 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Tinned Copper

15 ??store.products_de??

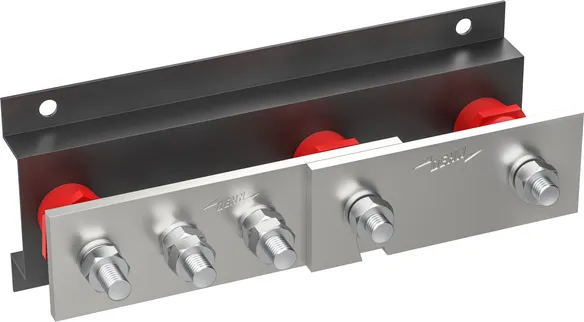

??store.product.number.short_de?? 119915 EB 2W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472556, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.61 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 2
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 232 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

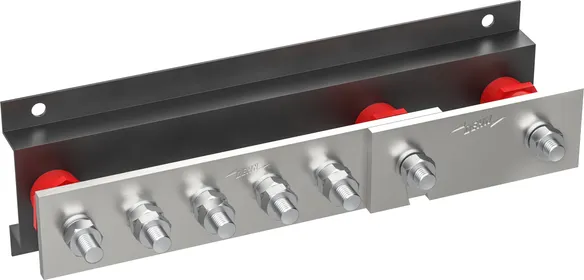

??store.product.number.short_de?? 119916 EB 4W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472563, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.05 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 4
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 302 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

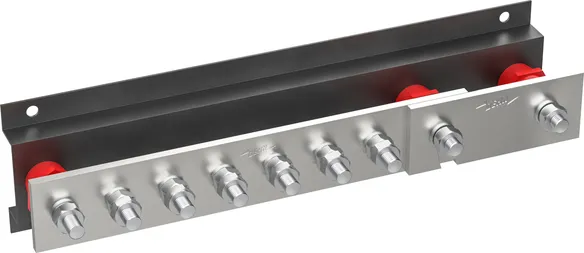

??store.product.number.short_de?? 119360 EB 6W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364474222, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.49 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 6
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 372 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

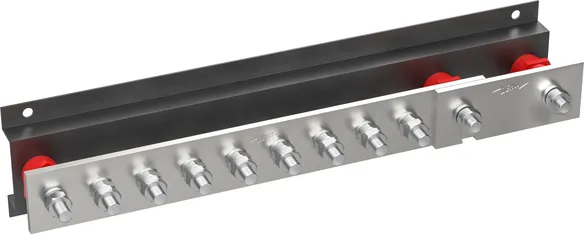

??store.product.number.short_de?? 119361 EB 8W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364474239, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.93 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 8
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 442 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

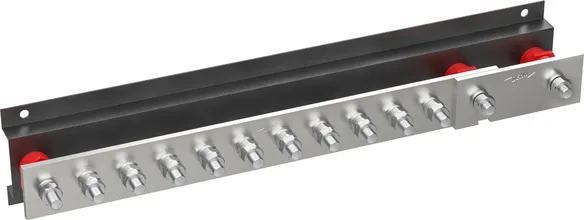

??store.product.number.short_de?? 119362 EB 10W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364474246, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.36 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 10
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 512 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

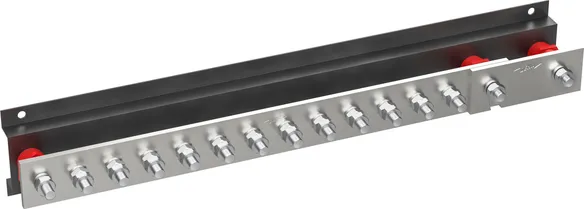

??store.product.number.short_de?? 119363 EB 12W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364474253, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.09 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 12
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 582 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

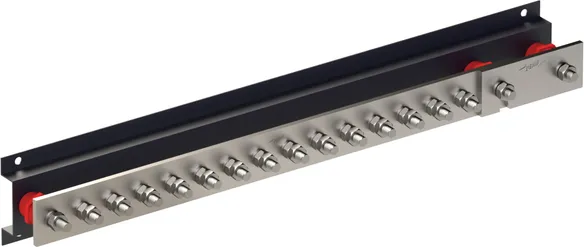

??store.product.number.short_de?? 119364 EB 14W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364474260, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.52 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 14
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 652 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

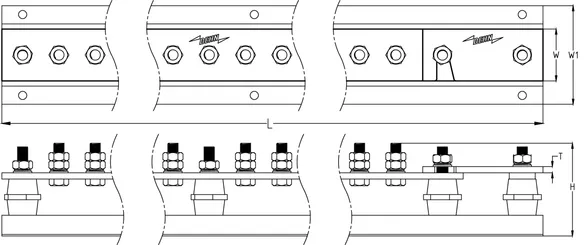

??store.product.number.short_de?? 119922 EB 16W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472570, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 16
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 757 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

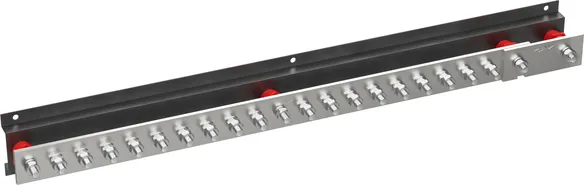

??store.product.number.short_de?? 119366 EB 18W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364474215, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.85 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 18
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 827 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119924 EB 20W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472587, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.32 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 20
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 897 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119925 EB 22W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472594, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.10 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 22
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1002 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119926 EB 24W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472600, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.57 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 24
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1072 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

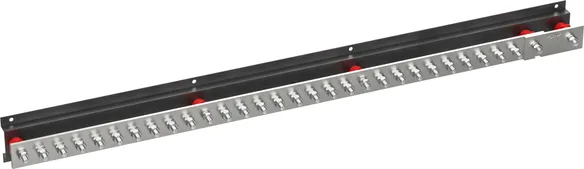

??store.product.number.short_de?? 119927 EB 26W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472617, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.09 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 26
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1142 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119928 EB 28W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472624, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.52 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 28
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1212 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119929 EB 30W 1DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472631, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 9.01 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 30
Number of Disconnecting Links 1
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1282 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
back to top
