??store.product.number.short_de?? 840008 RD 8 ALMGSI HH R148M

??store.product.gtin_de?? 4013364018730, ??store.product.customsTariffNumber_de??: 76052100, ??store.product.grossWeight_de??: 135.00 g/m, ??store.product.packaging_de??: 148.00 m

??store.product.slides_de??

??store.product.additional_de??

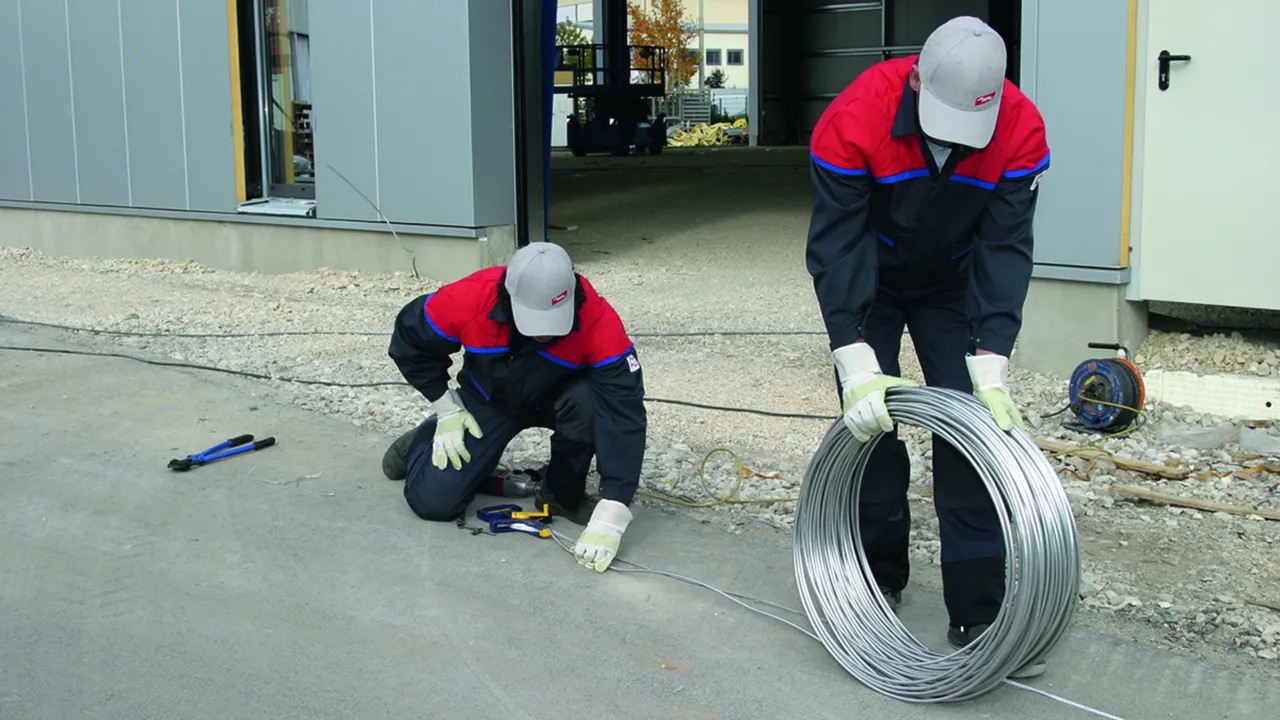

Round wire - DEHNalu wire, 8 mm / 50 mm², AlMgSi, semi-rigid
Round wire according to EN 62561-2
for use as air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: AlMgSi
Characteristics: semi-rigid
Standard: EN 62561-2

Brand: DEHN
Type: RD 8 ALMGSI HH R148M
Part No.: 840008
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	semi-rigid
Standard	EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	semi-rigid
Standard	EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 840108 RD 8 ALMGSI HH R21M

??store.product.gtin_de?? 4013364080423, ??store.product.customsTariffNumber_de??: 76052100, ??store.product.grossWeight_de??: 135.00 g/m, ??store.product.packaging_de??: 21.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wire - DEHNalu wire, 8 mm / 50 mm², AlMgSi, semi-rigid
Round wire according to EN 62561-2
for use as an air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: AlMgSi
Characteristics: semi-rigid
Standard: EN 62561-2

Brand: DEHN
Type: RD 8 ALMGSI HH R21M
Part No.: 840108
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	semi-rigid
Standard	EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	semi-rigid
Standard	EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 840018 RD 8 ALMGSI WEI R148M

??store.product.gtin_de?? 4013364035706, ??store.product.customsTariffNumber_de??: 76052100, ??store.product.grossWeight_de??: 135.00 g/m, ??store.product.packaging_de??: 148.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wire - DEHNalu wire, 8 mm / 50 mm², AlMgSI, soft, twistable
Round wire according to EN 62561-2
for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: AlMgSi
Characteristics: soft, twistable
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 8 ALMGSI WEI R148M
Part No.: 840018
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	soft, twistable
Standard	based on EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	soft, twistable
Standard	based on EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 840028 RD 8 ALMGSI WEI R21M

??store.product.gtin_de?? 4013364131163, ??store.product.customsTariffNumber_de??: 76052100, ??store.product.grossWeight_de??: 135.00 g/m, ??store.product.packaging_de??: 21.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wire - DEHNalu wire, 8 mm / 50 mm², AlMgSi, soft, twistable
Round wire according to EN 62561-2 for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: AlMgSi
Characteristics: soft, twistable
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 8 ALMGSI WEI R21M
Part No.: 840028
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	soft, twistable
Standard	based on EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	soft, twistable
Standard	based on EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 840010 RD 10 Al WEI R100M

??store.product.gtin_de?? 4013364018747, ??store.product.customsTariffNumber_de??: 76051100, ??store.product.grossWeight_de??: 210.00 g/m, ??store.product.packaging_de??: 100.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wire - DEHNalu wire, 10 mm / 78 mm², Al, soft, twistable
Round wire according to EN 62561-2
for use as an air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: Al
Characteristics: soft, twistable
Standard: EN 62561-2

Brand: DEHN
Type: RD 10 Al WEI R100M
Part No.: 840010
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	Al
Characteristics	soft, twistable
Standard	EN 62561-2
Conductivity	≥ 35.71 m / Ohm mm²
Resistivity	≤ 0.028 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	10 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	Al
Characteristics	soft, twistable
Standard	EN 62561-2
Conductivity	≥ 35.71 m / Ohm mm²
Resistivity	≤ 0.028 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	10 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 840118 RD 8 ALMGSI WE KM R100M

??store.product.gtin_de?? 4013364071483, ??store.product.customsTariffNumber_de??: 76052100, ??store.product.grossWeight_de??: 200.00 g/m, ??store.product.packaging_de??: 100.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wire - DEHNalu wire w. plastic sheath, 8 mm / 50 mm², AlMgSi, soft
Round wire with plastic sheath according to EN 62561-2
for use as a down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: AlMgSi
Characteristics: soft
Standard: based on EN 62561-2
Outside diameter Ø : 11 mm
RAL colour tone: Light grey – 7035

Brand: DEHN
Type: RD 8 ALMGSI WE KM R100M
Part No.: 840118
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	soft
Standard	based on EN 62561-2
Outside diameter Ø	11 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	soft
Standard	based on EN 62561-2
Outside diameter Ø	11 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 840128 RD 8 AL WE KM R100M

??store.product.gtin_de?? 4013364160002, ??store.product.customsTariffNumber_de??: 76052100, ??store.product.grossWeight_de??: 200.00 g/m, ??store.product.packaging_de??: 100.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wire - DEHNalu wire with plastic sheath, 8 mm / 50 mm², Al, soft
Round wire with plastic sheath according to EN 62561-2
for use as a down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: Al
Characteristics: soft
Standard: EN 62561-2
Outside diameter Ø : 11 mm
RAL colour tone: Light grey – 7035

Brand: DEHN
Type: RD 8 AL WE KM R100M
Part No.: 840128
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Al
Characteristics	soft
Standard	EN 62561-2
Outside diameter Ø	11 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Al
Characteristics	soft
Standard	EN 62561-2
Outside diameter Ø	11 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 833008 RD 8 AL CU WEI R110M

??store.product.gtin_de?? 4013364151987, ??store.product.customsTariffNumber_de??: 76051100, ??store.product.grossWeight_de??: 182.00 g/m, ??store.product.packaging_de??: 110.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wire - DEHNcupal wire 8 mm / 50 mm² Al/Cu, soft, twistable
Round wire according to EN 62561-2
for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: Al / Cu
Characteristics: soft, twistable
Standard: based on EN 62561-2
Cu sheath: min. 0.26 mm

Brand: DEHN
Type: RD 8 AL CU WEI R110M
Part No.: 833008
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Al / Cu
Characteristics	soft, twistable
Standard	based on EN 62561-2
Cu sheath	min. 0.26 mm
Conductivity	≥ 27.77 (Al) m / Ohm mm²
Resistivity	≤ 0.036 (Al) Ohm mm²/ m
Length tolerance	+/- 5%
Note: DEHNcupal wire can be twisted or straightened using a wire straightening device.

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Al / Cu
Characteristics	soft, twistable
Standard	based on EN 62561-2
Cu sheath	min. 0.26 mm
Conductivity	≥ 27.77 (Al) m / Ohm mm²
Resistivity	≤ 0.036 (Al) Ohm mm²/ m
Length tolerance	+/- 5%
Note: DEHNcupal wire can be twisted or straightened using a wire straightening device.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 830008 RD 8 CU F20 WEI R100M

??store.product.gtin_de?? 4013364018785, ??store.product.customsTariffNumber_de??: 74081100, ??store.product.grossWeight_de??: 448.00 g/m, ??store.product.packaging_de??: 100.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wire - Copper wire, 8 mm / 50 mm², Cu, soft, F20
Round wire according to EN 62561-2
for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: Cu
Characteristics: soft F20
Standard: EN 62561-2

Brand: DEHN
Type: RD 8 CU F20 WEI R100M
Part No.: 830008
or equivalent.

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	soft F20
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	soft F20
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 830108 RD 8 CU F20 WEI R20M

??store.product.gtin_de?? 4013364080430, ??store.product.customsTariffNumber_de??: 74081100, ??store.product.grossWeight_de??: 448.00 g/m, ??store.product.packaging_de??: 20.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Copper wire, 8 mm / 50 mm², Cu, soft, F20
Round wire according to EN 62561-2 for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: Cu
Characteristics: soft F20
Standard: EN 62561-2

Brand: DEHN
Type: RD 8 CU F20 WEI R20M
Part No.: 830108
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	soft F20
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	soft F20
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 830038 RD 8 CU F25 HH R100M

??store.product.gtin_de?? 4013364035690, ??store.product.customsTariffNumber_de??: 74081100, ??store.product.grossWeight_de??: 448.00 g/m, ??store.product.packaging_de??: 100.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Copper wire, 8 mm / 50 mm², Cu, semi-rigid F25
Round wire according to EN 62561-2 for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: Cu
Characteristics: semi-rigid F25
Standard: EN 62561-2

Brand: DEHN
Type: RD 8 CU F25 HH R100M
Part No.: 830038
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	semi-rigid F25
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	semi-rigid F25
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 830058 RD 8 CU F20 WEI R56M

??store.product.gtin_de?? 4013364524347, ??store.product.grossWeight_de??: 2.22 m/kg, ??store.product.packaging_de??: 1.00 kg

??store.product.slides_de??

??store.product.additional_de??

Round wire - Copper wire, 8 mm / 50 mm², Cu, soft, F20
Round wire according to EN 62561-2
for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: Cu
Characteristics: soft F20
Standard: EN 62561-2

Brand: DEHN
Type: RD 8 CU F20 WEI R56M
Part No.: 830058
or equivalent.

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	soft F20
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	soft F20
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 830109 RD 8 CU HH F25 S6M

??store.product.gtin_de?? 4013364524361, ??store.product.grossWeight_de??: 2.22 m/kg, ??store.product.packaging_de??: 1.00 kg

??store.product.slides_de??

??store.product.additional_de??

Round wires - Copper wire, 8 mm / 50 mm², Cu, soft, F20
Round wire according to EN 62561-2 for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: Cu
Characteristics: soft F20
Standard: EN 62561-2

Brand: DEHN
Type: RD 8 CU HH F25 S6M
Part No.: 830109
or equivalent.

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	soft F20
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	soft F20
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 800008 RD 8 STTZN R127M

??store.product.gtin_de?? 4013364018716, ??store.product.customsTariffNumber_de??: 72172030, ??store.product.grossWeight_de??: 394.00 g/m, ??store.product.packaging_de??: 127.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Steel wire, 8 mm / 50 mm², St/tZn
Round wire according to DIN EN 62561-2 (VDE 0185 Part 202)
for use as air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 8 STTZN R127M
Part No.: 800008
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	3.5 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	3.5 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 800028 RD 8 STTZN R50M

??store.product.gtin_de?? 4013364508446, ??store.product.customsTariffNumber_de??: 72172030, ??store.product.grossWeight_de??: 394.00 g/m, ??store.product.packaging_de??: 50.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Steel wire, 8 mm / 50 mm², St/tZn
Round wire according to DIN EN 62561-2 (VDE 0185 Part 202)
for use as air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 8 STTZN R50M
Part No.: 800028
or equivalent.

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	3.5 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	3.5 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 800010 RD 10 STTZN R81M

??store.product.gtin_de?? 4013364018723, ??store.product.customsTariffNumber_de??: 72172030, ??store.product.grossWeight_de??: 617.00 g/m, ??store.product.packaging_de??: 81.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Steel wire, 10 mm / 78 mm², St/tZn
Round wire according to DIN EN 62561-2 (VDE 0185 Part 202)
for use in lightning protection or earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 STTZN R81M
Part No.: 800010
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 800310 RD 10 STTZN R30M

??store.product.gtin_de?? 4013364131064, ??store.product.customsTariffNumber_de??: 72172030, ??store.product.grossWeight_de??: 617.00 g/m, ??store.product.packaging_de??: 30.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - steel wire, 10 mm / 78 mm², St/tZn
Round wire according to DIN EN 62561-2 (VDE 0185 Part 202) for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 STTZN R30M
Part No.: 800310
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 870008 RD 8 STCU R100M

??store.product.gtin_de?? 6942299509724, ??store.product.customsTariffNumber_de??: 74081100, ??store.product.grossWeight_de??: 400.00 g/m, ??store.product.packaging_de??: 100.00 m

??store.product.slides_de??

??store.product.additional_de??

Copper coated steel round wire, 8 mm / 50 mm²,
Round wire according to IEC 62561-2-2012，DL/T 131 2-2013
For use as an air-termination system, down conductor or earthing system.
Standard: IEC 62561-2-2012, DL/T 131 2-2013
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: St / Cu
Characteristics: torsion-soft
Standard: IEC 62561-2-2012, DL/T 131 2-2013
Cu sheath: ≥ 0.25 mm

Brand: DEHN
Type: RD 8 STCU R100M
Part No.: 870008
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St / Cu
Characteristics	torsion-soft
Standard	IEC 62561-2-2012, DL/T 131 2-2013
Cu sheath	≥ 0.25 mm
Length tolerance	+/- 5%
Note: DEHN copper coated round steel wire can be twisted or straightened with the wire straightening devices.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 870010 RD 10 STCU R100M

??store.product.gtin_de?? 6942299503586, ??store.product.customsTariffNumber_de??: 72173041, ??store.product.grossWeight_de??: 620.00 g/m, ??store.product.packaging_de??: 100.00 m

??store.product.slides_de??

??store.product.additional_de??

Copper coated steel round wire, 10 mm / 78 mm²,
Round wire according to IEC 62561-2-2012，DL/T 131 2-2013
For use as an air-termination system, down conductor or earthing system.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St / Cu
Characteristics: torsion-soft
Standard: IEC 62561-2-2012, DL/T 131 2-2013
Cu sheath: ≥ 0.25 mm

Brand: DEHN
Type: RD 10 STCU R100M
Part No.: 870010
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St / Cu
Characteristics	torsion-soft
Standard	IEC 62561-2-2012, DL/T 131 2-2013
Cu sheath	≥ 0.25 mm
Length tolerance	+/- 5%
Note: DEHN copper coated round steel wire can be twisted or straightened with the wire straightening devices.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 870013 RD 13 ST CU R100M

??store.product.gtin_de?? 6942299503609, ??store.product.customsTariffNumber_de??: 72173041, ??store.product.grossWeight_de??: 1060.00 g, ??store.product.packaging_de??: 100.00 m

??store.product.slides_de??

??store.product.additional_de??

Copper coated steel round wire, 13 mm / 133 mm²,
Round wire according to IEC 62561-2-2012，DL/T 131 2-2013
For use as an air-termination system, down conductor or earthing system.
Diameter Ø conductor: 13 mm
Cross-section: 133 mm2
Material: St / Cu
Characteristics: torsion-soft
Standard: IEC 62561-2-2012, DL/T 131 2-2013
Cu sheath: ≥ 0.25 mm

Brand: DEHN
Type: RD 13 ST CU R100M
Part No.: 870013
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	13 mm
Cross-section	133 mm²
Material	St / Cu
Characteristics	torsion-soft
Standard	IEC 62561-2-2012, DL/T 131 2-2013
Cu sheath	≥ 0.25 mm
Length tolerance	+/- 5%
Note: DEHN copper coated round steel wire can be twisted or straightened with the wire straightening devices.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 870014 RD 14 ST CU R100M

??store.product.gtin_de?? 6942299503616, ??store.product.customsTariffNumber_de??: 72173041, ??store.product.grossWeight_de??: 1220.00 g, ??store.product.packaging_de??: 100.00 m

??store.product.slides_de??

??store.product.additional_de??

Copper coated steel round wire, 14 mm / 150 mm²,
Round wire according to IEC 62561-2-2012，DL/T 131 2-2013
For use as an air-termination system, down conductor or earthing system.
Diameter Ø conductor: 14 mm
Cross-section: 150 mm2
Material: St / Cu
Characteristics: torsion-soft
Standard: IEC 62561-2-2012, DL/T 131 2-2013
Cu sheath: ≥ 0.25 mm

Brand: DEHN
Type: RD 14 ST CU R100M
Part No.: 870014
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	14 mm
Cross-section	150 mm²
Material	St / Cu
Characteristics	torsion-soft
Standard	IEC 62561-2-2012, DL/T 131 2-2013
Cu sheath	≥ 0.25 mm
Length tolerance	+/- 5%
Note: DEHN copper coated round steel wire can be twisted or straightened with the wire straightening devices.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 870016 RD 16 ST CU R100M

??store.product.gtin_de?? 6942299503623, ??store.product.customsTariffNumber_de??: 72173041, ??store.product.grossWeight_de??: 1580.00 g, ??store.product.packaging_de??: 100.00 m

??store.product.slides_de??

??store.product.additional_de??

Copper coated steel round wire, 16 mm / 200 mm²,
Round wire according to IEC 62561-2-2012，DL/T 131 2-2013
For use as an air-termination system, down conductor or earthing system.
Diameter Ø conductor: 16 mm
Cross-section: 200 mm2
Material: St / Cu
Characteristics: torsion-soft
Standard: IEC 62561-2-2012, DL/T 131 2-2013
Cu sheath: ≥ 0.25 mm

Brand: DEHN
Type: RD 16 ST CU R100M
Part No.: 870016
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	16 mm
Cross-section	200 mm²
Material	St / Cu
Characteristics	torsion-soft
Standard	IEC 62561-2-2012, DL/T 131 2-2013
Cu sheath	≥ 0.25 mm
Length tolerance	+/- 5%
Note: DEHN copper coated round steel wire can be twisted or straightened with the wire straightening devices.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 800906 RD 10 STTZN L1000

??store.product.gtin_de?? 4013364486829, ??store.product.customsTariffNumber_de??: 72149939, ??store.product.grossWeight_de??: 641.00 g, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Round wires - steel wire 10 mm / 78 mm², 1000 mm long, St/tZn
Round wire according to DIN EN 62561-2 (VDE 0185 Part 202) for
use in lightning protection and earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 STTZN L1000
Part No.: 800906
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	1 m
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	1 m
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 800908 RD 10 STTZN L2000

??store.product.gtin_de?? 4013364486836, ??store.product.customsTariffNumber_de??: 72149939, ??store.product.grossWeight_de??: 1.28 kg, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Round wires - steel wire 10 mm / 78 mm², 2000 mm long, St/tZn
Round wire according to DIN EN 62561-2 (VDE 0185 Part 202) for
use in lightning protection and earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 STTZN L2000
Part No.: 800908
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	2 m
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	2 m
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 800910 RD 10 STTZN L3000

??store.product.gtin_de?? 4013364253315, ??store.product.customsTariffNumber_de??: 72149939, ??store.product.grossWeight_de??: 1.85 kg, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Round wires - steel wire 10 mm / 78 mm², 3000 mm long, St/tZn
Round wire according to EN 62561-2
for use in lightning protection or earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 STTZN L3000
Part No.: 800910
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	3 m
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	3 m
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 800911 RD 10 STTZN L6000

??store.product.gtin_de?? 4013364273689, ??store.product.customsTariffNumber_de??: 72149939, ??store.product.grossWeight_de??: 4.10 kg/Stk, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Round wires - steel wire 10 mm / 78 mm², 6000 mm long, St/tZn
Round wire according to EN 62561-2
for use in lightning protection or earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 STTZN L6000
Part No.: 800911
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	6 m
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	6 m
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 800108 RD 8 KM STTZN R75M

??store.product.gtin_de?? 4013364018754, ??store.product.customsTariffNumber_de??: 72179020, ??store.product.grossWeight_de??: 440.00 g/m, ??store.product.packaging_de??: 75.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Steel wire with plastic sheath, 8 mm / 50 mm², St/tZn
Round wire with plastic sheath according to EN 62561-2
for use as a down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: St/tZn
Standard: based on EN 62561-2
Outside diameter Ø : 11 mm

Brand: DEHN
Type: RD 8 KM STTZN R75M
Part No.: 800108
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St/tZn
Standard	based on EN 62561-2
Outside diameter Ø	11 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	3.5 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St/tZn
Standard	based on EN 62561-2
Outside diameter Ø	11 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Design	UV-stabilised
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	3.5 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 800110 RD 10 KM STTZN R50M

??store.product.gtin_de?? 4013364018761, ??store.product.customsTariffNumber_de??: 72179020, ??store.product.grossWeight_de??: 680.00 g/m, ??store.product.packaging_de??: 50.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Steel wire with plastic sheath, 10 mm / 78 mm², St/tZn
Round wire with plastic sheath according to EN 62561-2
for use as a down conductor or connection lug in lightning protection systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2
Outside diameter Ø : 13 mm

Brand: DEHN
Type: RD 10 KM STTZN R50M
Part No.: 800110
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Outside diameter Ø	13 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Outside diameter Ø	13 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Design	UV-stabilised
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 860908 RD 8 V2A R125M

??store.product.gtin_de?? 4013364019362, ??store.product.customsTariffNumber_de??: 72210010, ??store.product.grossWeight_de??: 395.00 g/m, ??store.product.packaging_de??: 125.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Stainless steel wire, 8 mm / 50 mm², StSt
Round wire according to EN 62561-2
for use as an air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: StSt
Material No.: 1.4301 / 1.4303
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 8 V2A R125M
Part No.: 860908
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	1.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	1.9 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 860920 RD 10 V2A R20M

??store.product.gtin_de?? 4013364092679, ??store.product.customsTariffNumber_de??: 72210010, ??store.product.grossWeight_de??: 617.00 g/m, ??store.product.packaging_de??: 20.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Stainless steel wire, 10 mm / 78 mm², StSt
Round wire according to EN 62561-2
for use as an air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: StSt
Material No.: 1.4301 / 1.4303
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 V2A R20M
Part No.: 860920
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 860950 RD 10 V2A R50M

??store.product.gtin_de?? 4013364155596, ??store.product.customsTariffNumber_de??: 72210010, ??store.product.grossWeight_de??: 617.00 g/m, ??store.product.packaging_de??: 50.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - StSt wire, 10 mm / 78 mm², StSt
Round wire according to 62561-2
for use as an air-termination system or down
conductor in lightning protection systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: StSt
Material No.: 1.4301 / 1.4303
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 V2A R50M
Part No.: 860950
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 860910 RD 10 V2A R80M

??store.product.gtin_de?? 4013364019300, ??store.product.customsTariffNumber_de??: 72210010, ??store.product.grossWeight_de??: 617.00 g/m, ??store.product.packaging_de??: 80.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Stainless steel wire, 10 mm / 78 mm², StSt
Round wire according to EN 62561-2
for use as an air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: StSt
Material No.: 1.4301 / 1.4303
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 V2A R80M
Part No.: 860910
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 860008 RD 8 V4A R125M

??store.product.gtin_de?? 4013364018808, ??store.product.customsTariffNumber_de??: 72210010, ??store.product.grossWeight_de??: 395.00 g/m, ??store.product.packaging_de??: 125.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Stainless steel wire, 8 mm / 50 mm², StSt (V4A)
Round wire according to EN 62561-2
for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 8 V4A R125M
Part No.: 860008
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	1.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	1.9 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 860010 RD 10 V4A R80M

??store.product.gtin_de?? 4013364019997, ??store.product.customsTariffNumber_de??: 72210010, ??store.product.grossWeight_de??: 617.00 g/m, ??store.product.packaging_de??: 80.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Stainless steel wire, 10 mm / 78 mm², StSt (V4A)
Round wire according to EN 62561-2
for lightning protection and earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 V4A R80M
Part No.: 860010
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 860020 RD 10 V4A R20M

??store.product.gtin_de?? 4013364092662, ??store.product.customsTariffNumber_de??: 72210010, ??store.product.grossWeight_de??: 617.00 g/m, ??store.product.packaging_de??: 20.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - Stainless steel wire, 10 mm / 78 mm², StSt (V4A)
Round wire according to EN 62561-2
for lightning protection and earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 V4A R20M
Part No.: 860020
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 860050 RD 10 V4A R50M

??store.product.gtin_de?? 4013364139923, ??store.product.customsTariffNumber_de??: 72210010, ??store.product.grossWeight_de??: 617.00 g/m, ??store.product.packaging_de??: 50.00 m

??store.product.slides_de??

??store.product.additional_de??

Round wires - StSt wire, 10 mm / 78 mm², StSt (V4A)
Round wire according to EN 62561-2
for lightning protection and earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 V4A R50M
Part No.: 860050
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Round Wires

DEHNalu wire

??store.product.number.short_de?? 840008 RD 8 ALMGSI HH R148M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 840108 RD 8 ALMGSI HH R21M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 840018 RD 8 ALMGSI WEI R148M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 840028 RD 8 ALMGSI WEI R21M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 840010 RD 10 Al WEI R100M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

DEHNalu wire with plastic sheath

??store.product.number.short_de?? 840118 RD 8 ALMGSI WE KM R100M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 840128 RD 8 AL WE KM R100M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

DEHNcupal wire

??store.product.number.short_de?? 833008 RD 8 AL CU WEI R110M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

Copper wire

??store.product.number.short_de?? 830008 RD 8 CU F20 WEI R100M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 830108 RD 8 CU F20 WEI R20M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 830038 RD 8 CU F25 HH R100M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 830058 RD 8 CU F20 WEI R56M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 830109 RD 8 CU HH F25 S6M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

Steel wire

??store.product.number.short_de?? 800008 RD 8 STTZN R127M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 800028 RD 8 STTZN R50M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 800010 RD 10 STTZN R81M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 800310 RD 10 STTZN R30M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

Copper-bonded steel wire

??store.product.number.short_de?? 870008 RD 8 STCU R100M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 870010 RD 10 STCU R100M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 870013 RD 13 ST CU R100M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 870014 RD 14 ST CU R100M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 870016 RD 16 ST CU R100M

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

Steel wire, straightened, cut into bars

??store.product.number.short_de?? 800906 RD 10 STTZN L1000

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? 800908 RD 10 STTZN L2000

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??
