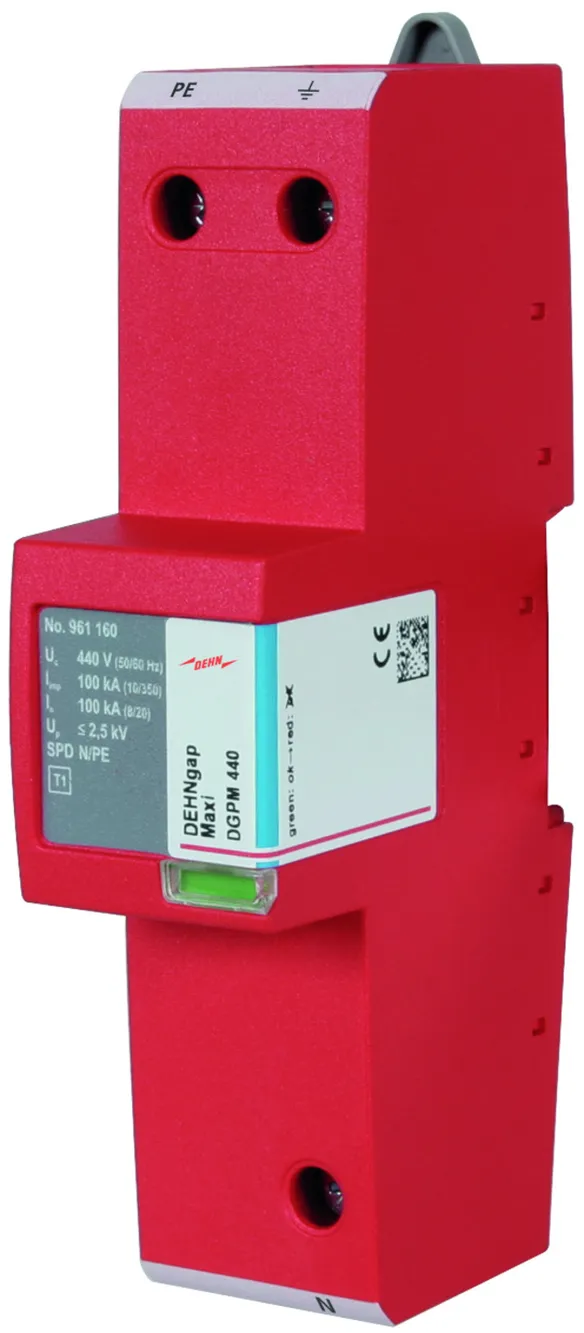

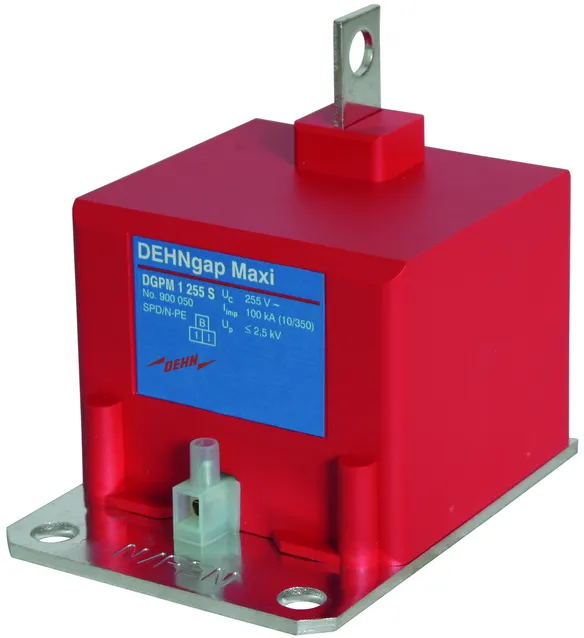

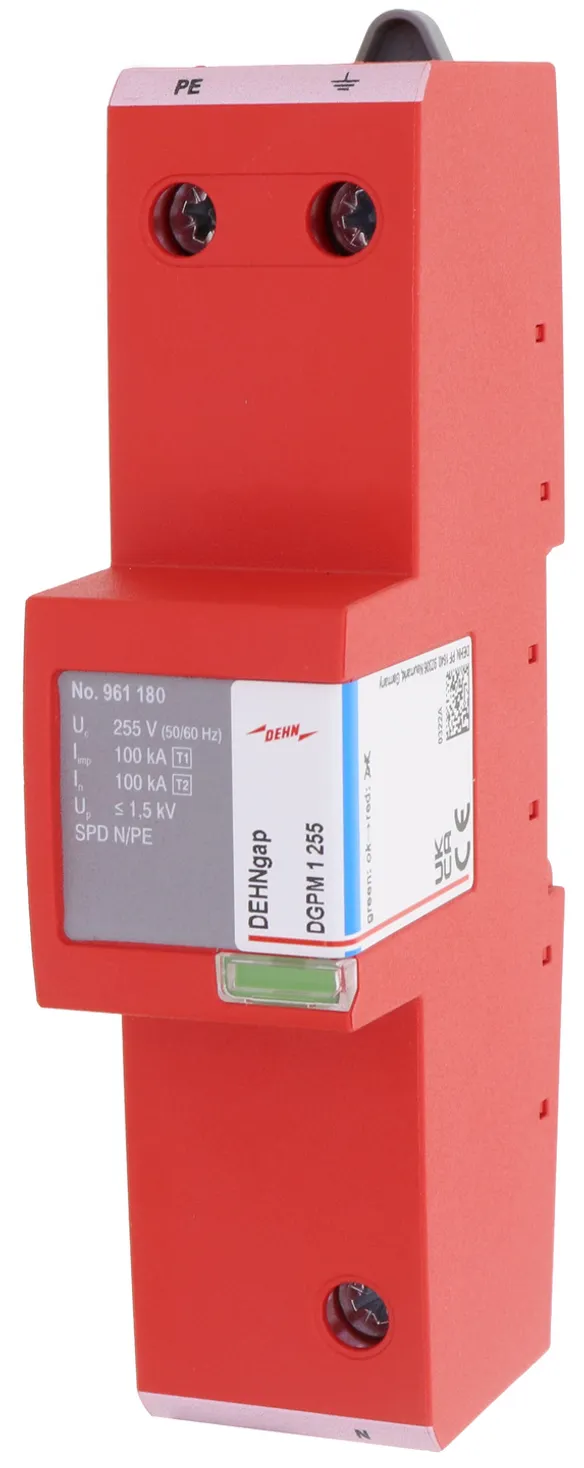

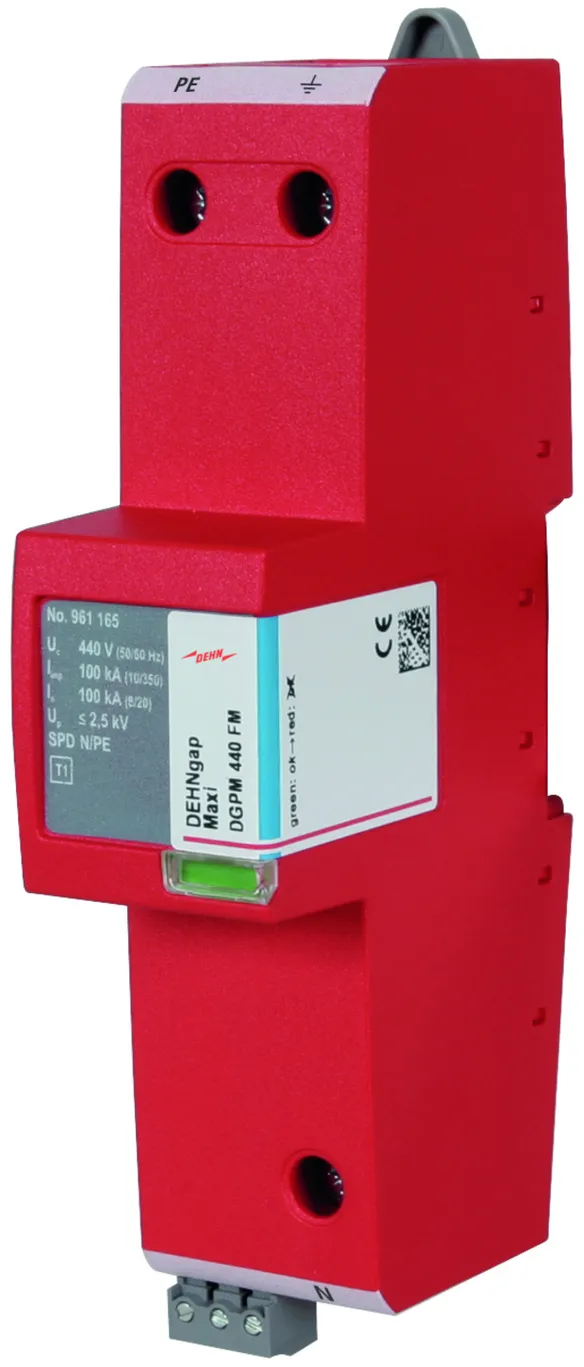

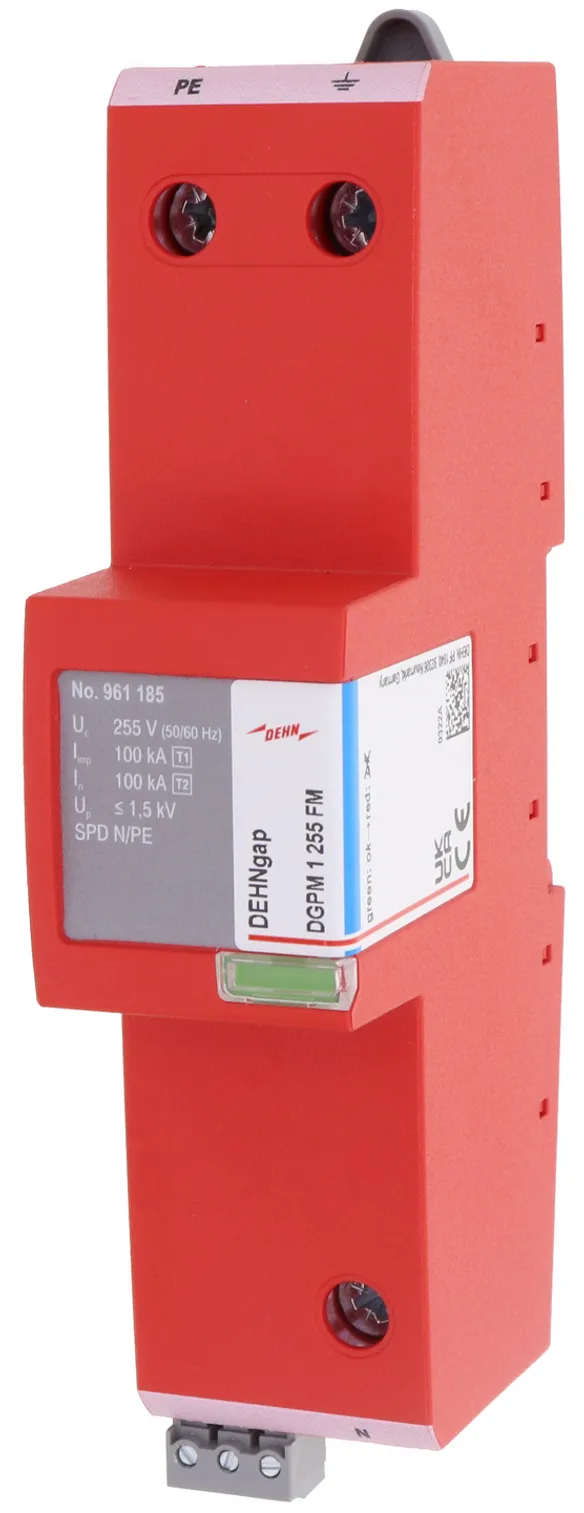

DEHNgap

Discharge capacity up to 100 kA (10/350 µs)
Total current arrester specifically designed for installation in 3+1 and 1+1 configurations of TT systems according to IEC 60364-5-53 between neutral conductor N and protective conductor PE
Creepage discharge spark gap technology
Operating state / fault indication by green / red indicator flag in the inspection window

Details

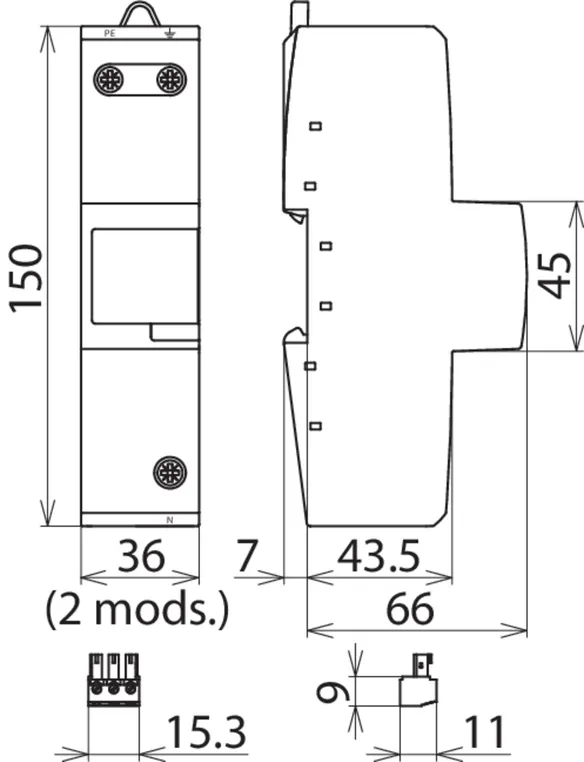

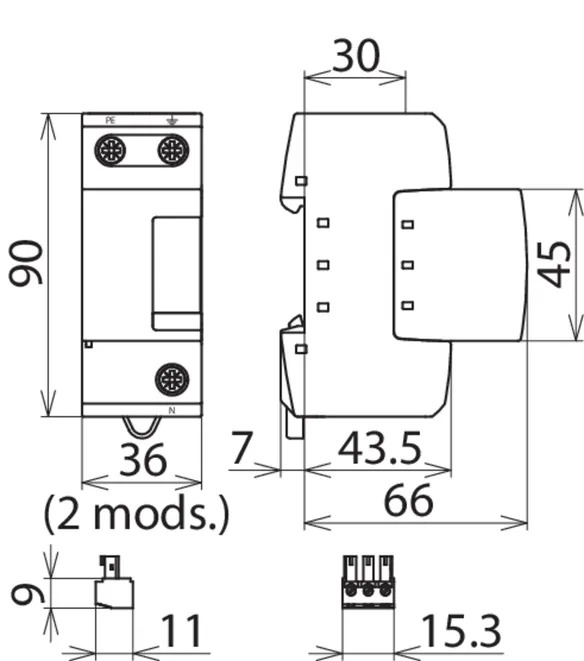

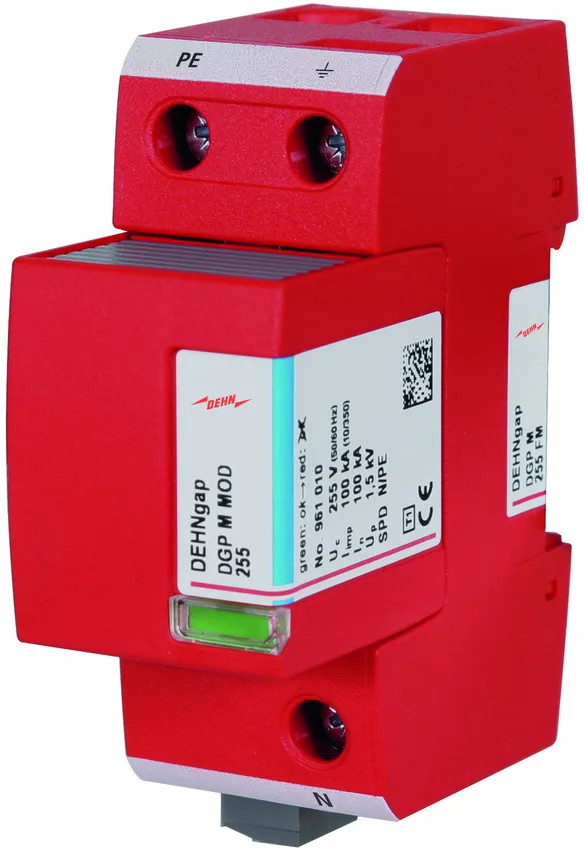

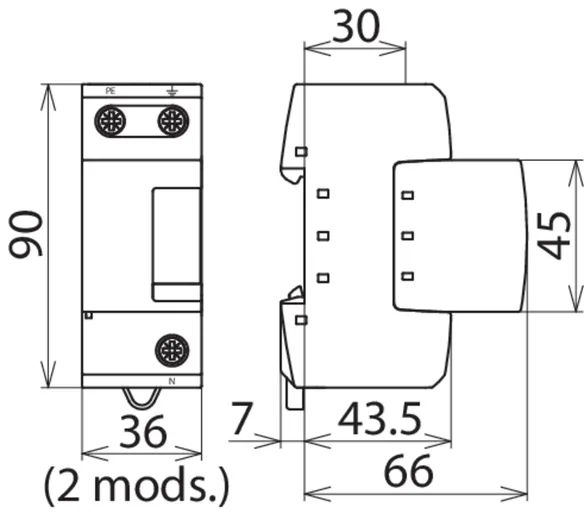

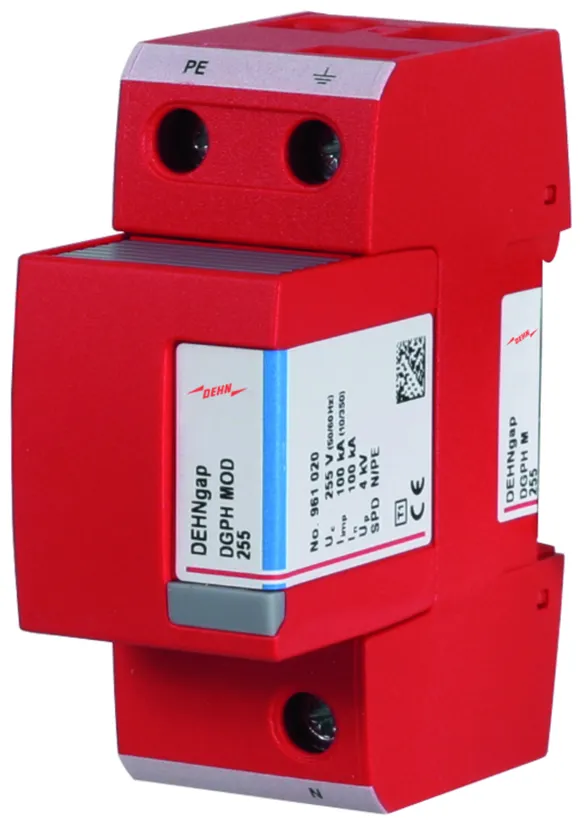

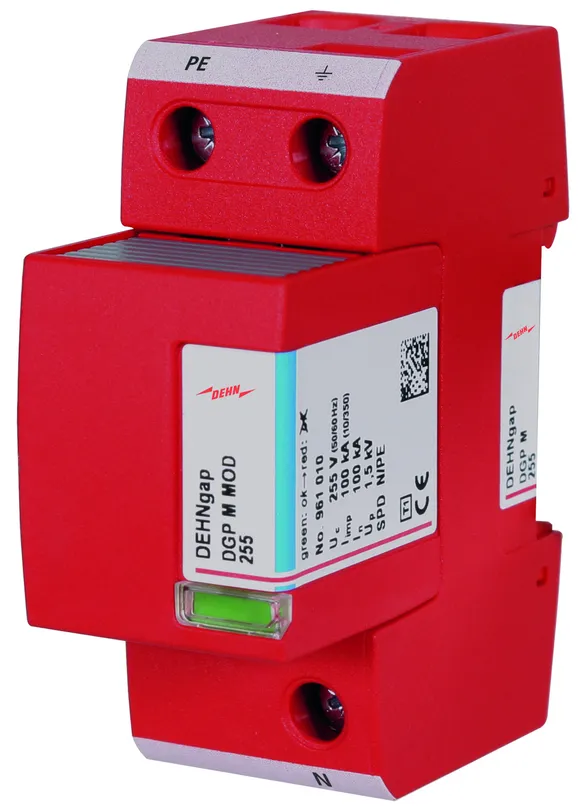

DEHNgap M 255 (FM)

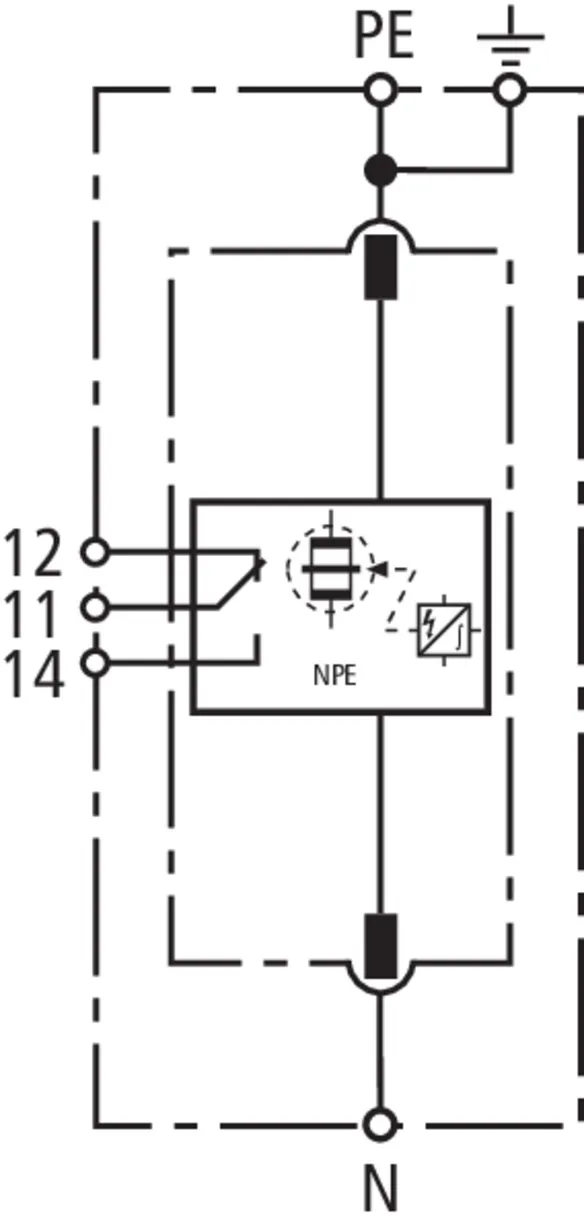

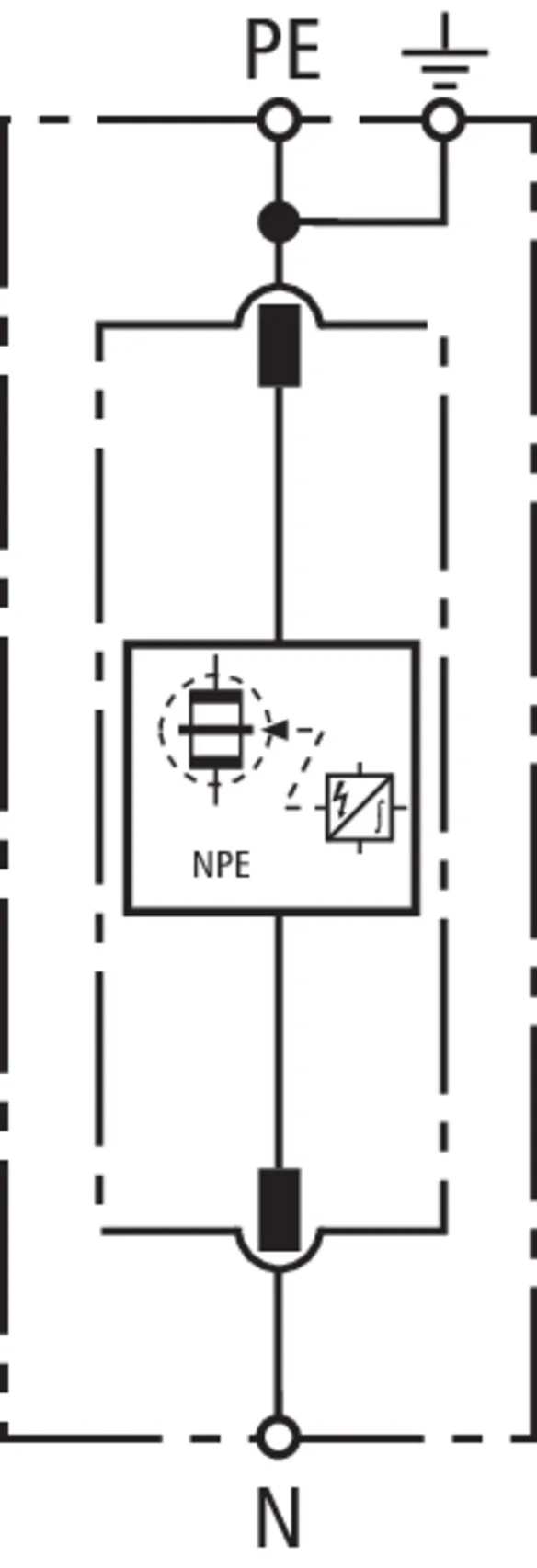

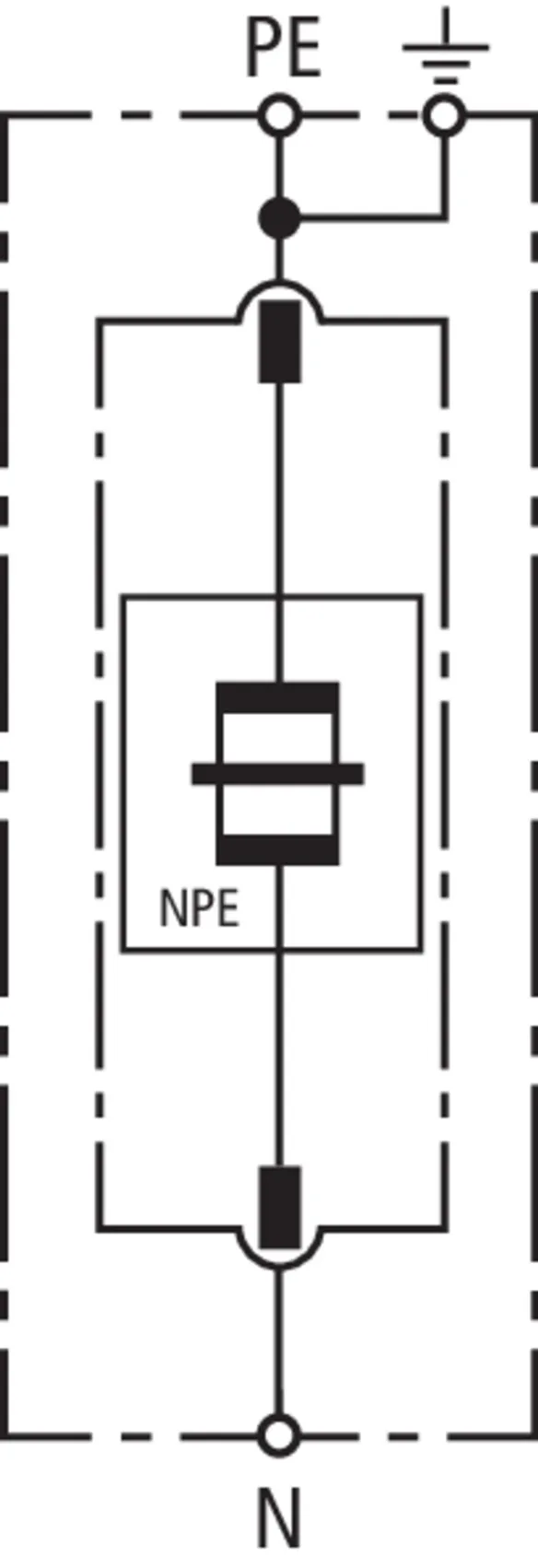

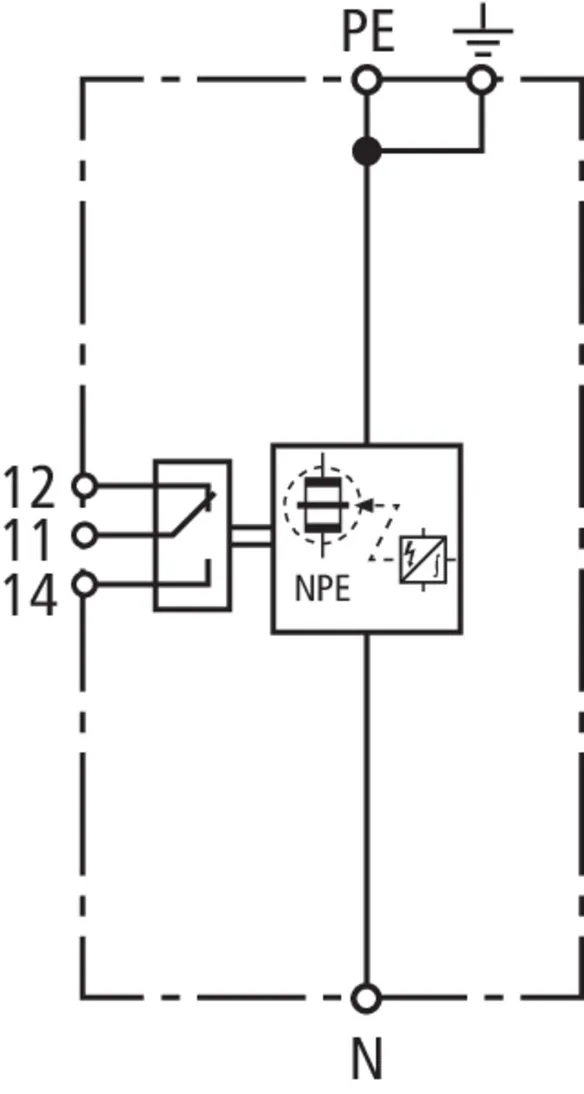

Single-pole, modular coordinated N-PE lightning current arrester for U_C= 255 V; optionally available with remote signalling contact for monitoring device (floating changeover contact).

2 ??store.products_de??

??store.product.number.short_de?? 961101 DGP M 255

??store.product.gtin_de?? 4013364118676, ??store.product.customsTariffNumber_de??: 85363030, ??store.product.grossWeight_de??: 331.00 g, ??store.product.packaging_de??: 1.00 pc(s)
