Earth Connecting Plates

  • Connecting plate with high short-circuit current carrying capacity
  • Single-pole connection of the phase arms
  • For connecting single-pole earthing and short-circuiting devices to transformers of overhead line masts or to fuse holders
  • For fixed ball points (Ø20 mm, Ø25 mm) or ring groove pins (Ø16 mm)

Details

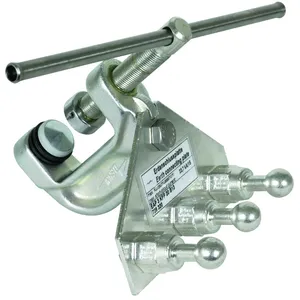

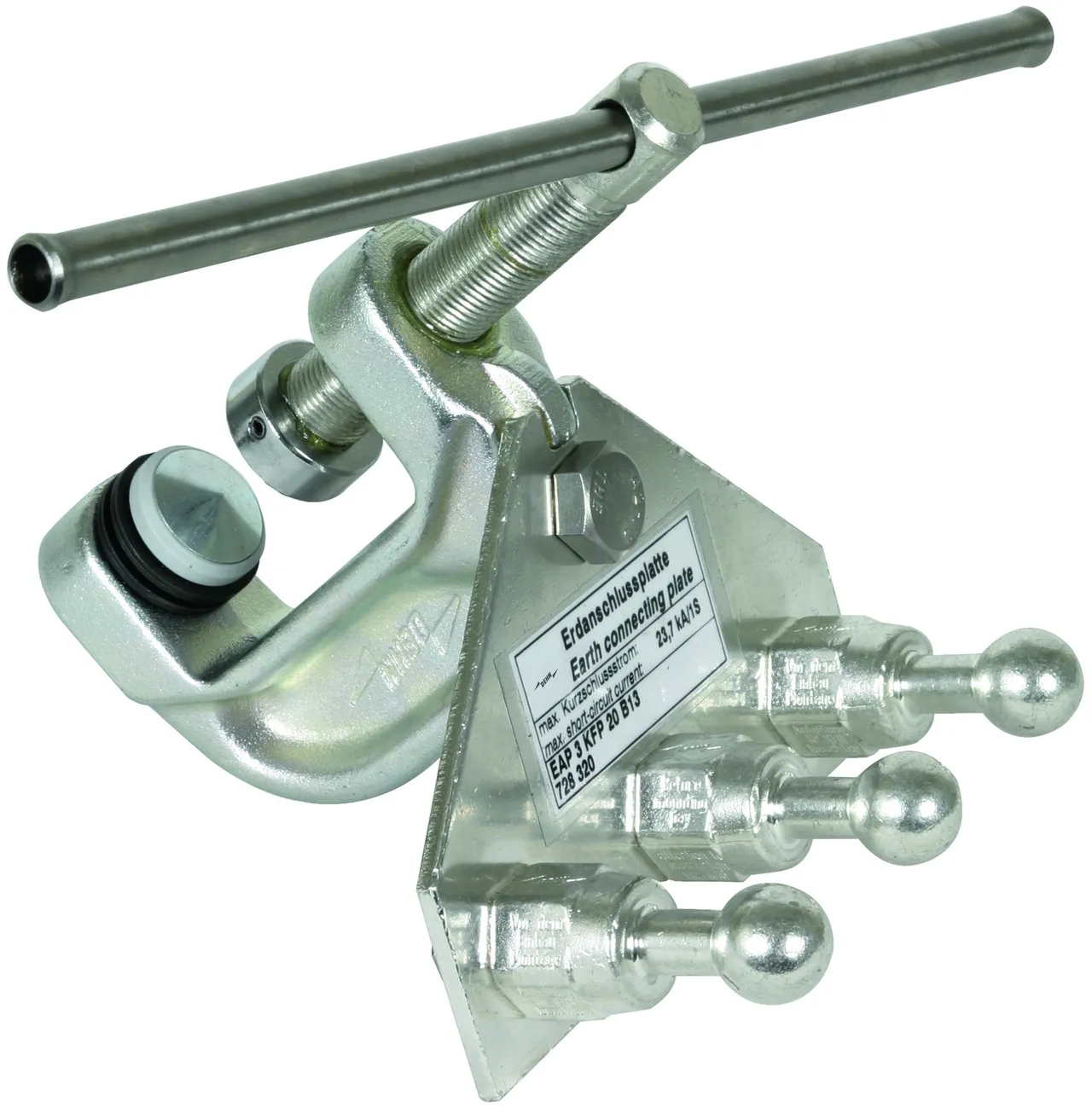

Anti-rotation earth milling clamp mounted on an earth connecting plate
lorem ipsum

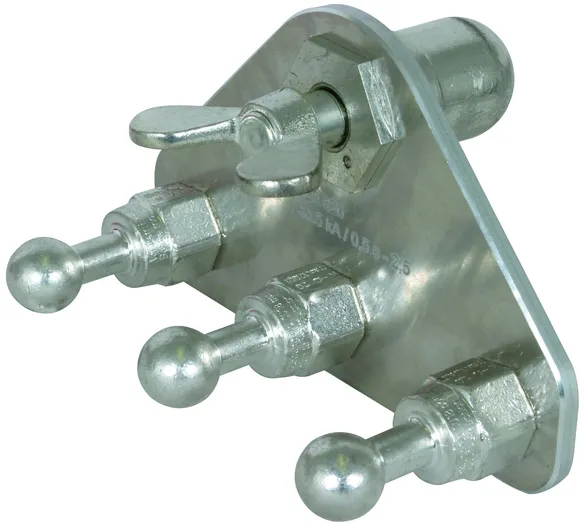

With three Fixed Ball Points and Ball Head Cap

2 Products

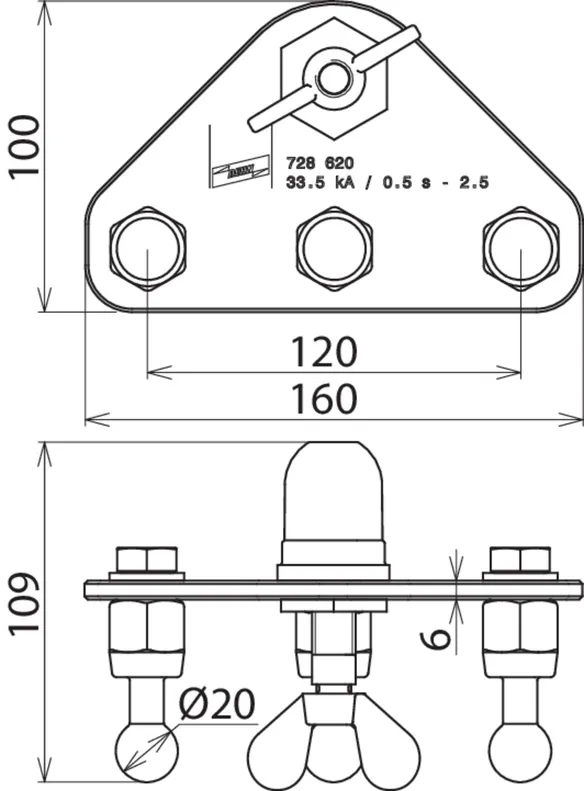

Part No. 728620 EAPA 3 KFP 20 KKH

GTIN 4013364147843, Customs tariff No. (EU): 85359000, Gross weight: 1085.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Fixed point Ø 20 mm
Max. cable cross-section Cu 120 mm²
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 728620 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

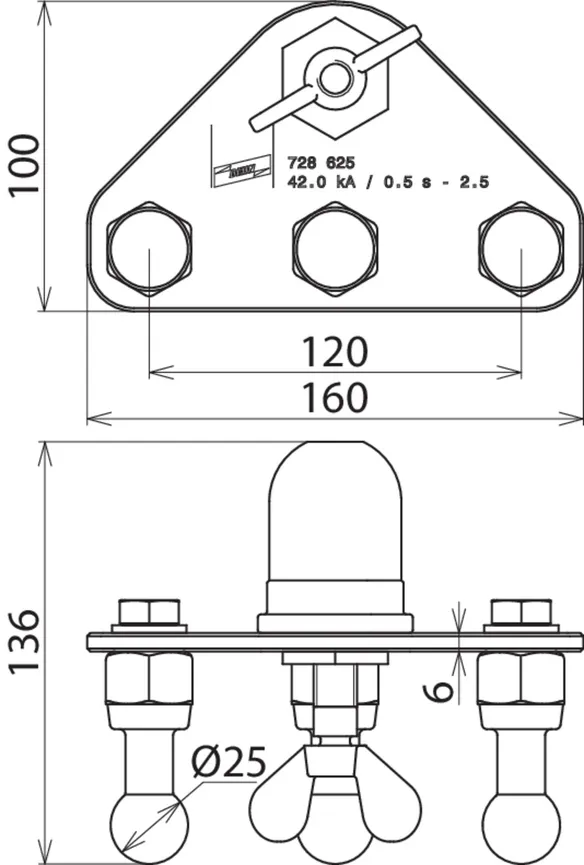

Part No. 728625 EAPA 3 KFP 25 KKH

GTIN 4013364147867, Customs tariff No. (EU): 85359000, Gross weight: 1084.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Fixed point Ø 25 mm
Max. cable cross-section Cu 150 mm²
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 728625 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

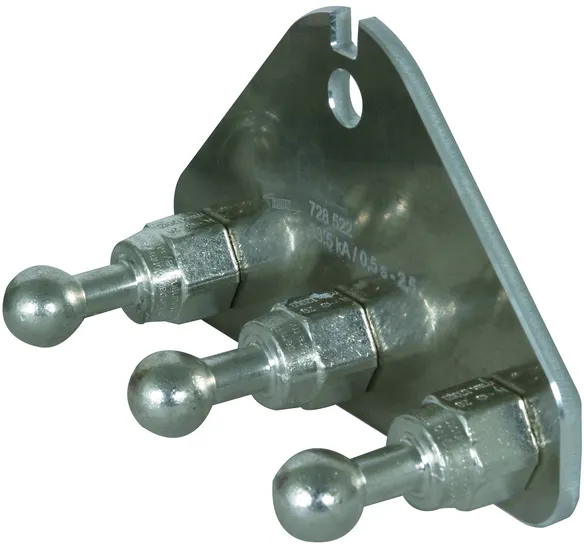

With three Fixed Ball Points

For mounting on earth connecting clamps with PK1 anti-rotation protection.

2 Products

Part No. 728522 EAPA 3 KFP 20 B13

GTIN 4013364147874, Customs tariff No. (EU): 85359000, Gross weight: 756.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Fixed point Ø 20 mm
Max. cable cross-section Cu 120 mm²
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 728522 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

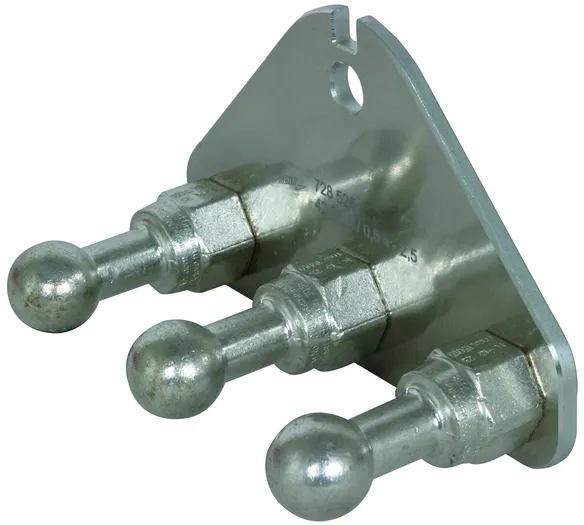

Part No. 728526 EAPA 3 KFP 25 B13

GTIN 4013364147881, Customs tariff No. (EU): 85359000, Gross weight: 1014.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Fixed point Ø 25 mm
Max. cable cross-section Cu 150 mm²
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product 728526 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

With three Ring Groove Fixed Points and Earth Bushing

1 Product

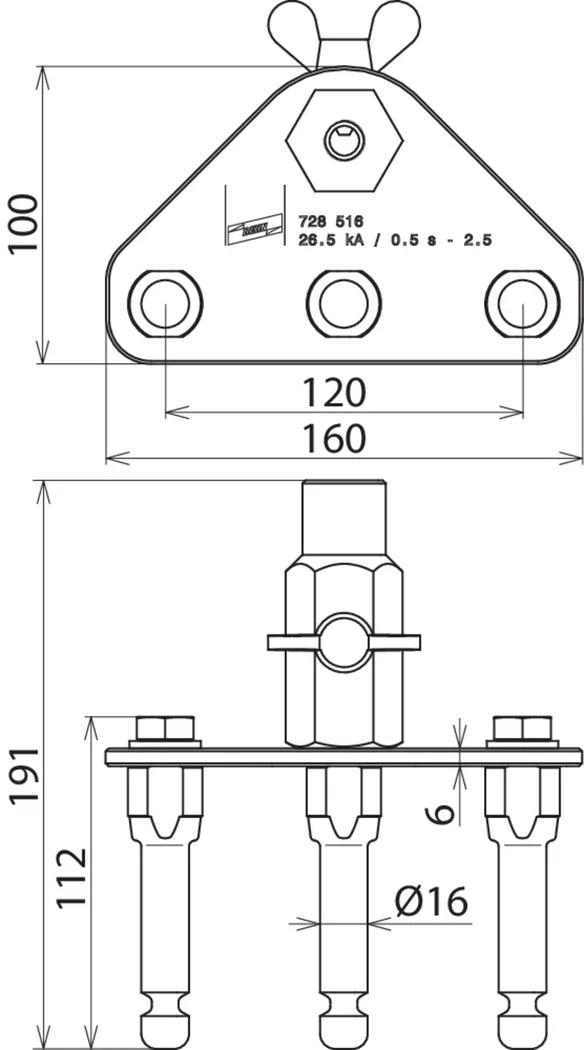

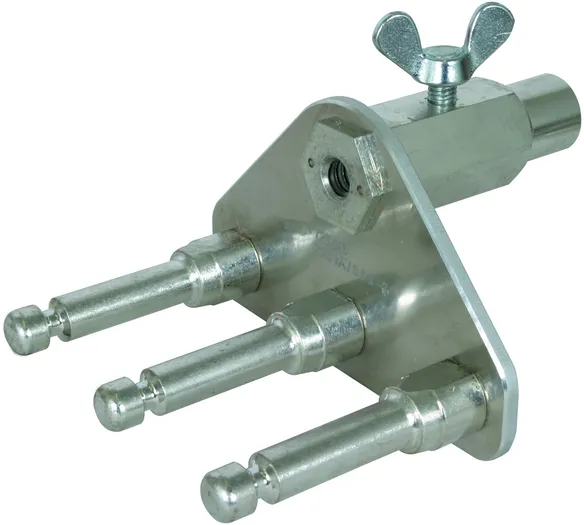

Part No. 728516 EAPA 3 RN 16 EAB

GTIN 4013364147898, Customs tariff No. (EU): 85359000, Gross weight: 1.54 kg, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Fixed point Ø 16 mm
Max. cable cross-section Cu 95 mm²
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product 728516 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

With two Fixed Ball Points and Ball Head Cap

With adjustable ball head cap (Ø25 mm) and plastic handle.
For connecting two single-pole earthing and short-circuiting devices to one fixed ball point (Ø25 mm).

1 Product

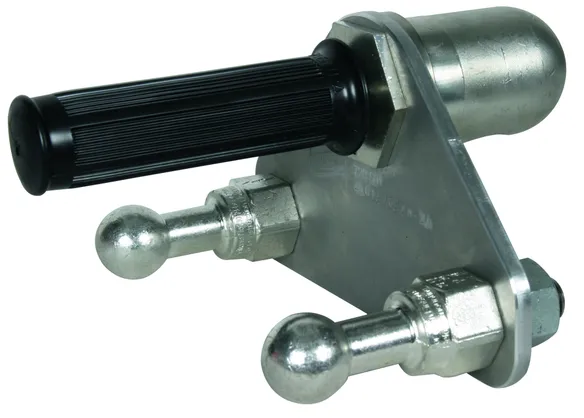

Part No. 728501 EAP 2 25 KKH HG

GTIN 4013364079618, Customs tariff No. (EU): 85359000, Gross weight: 1015.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Fixed point Ø 25 mm
DB drawing No. 3 Ebgw 01.66
DB material No. 157 540

Product 728501 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Terminal Lug with one Fixed Ball Point

For connection to a fuse holder.

1 Product

Part No. 728503 EAP 25 SIT US OL

GTIN 4013364079564, Customs tariff No. (EU): 85359000, Gross weight: 453.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Fixed point Ø 25 mm
DB drawing No. 4 Ebgw 01.60
DB material No. 157 545

Product 728503 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

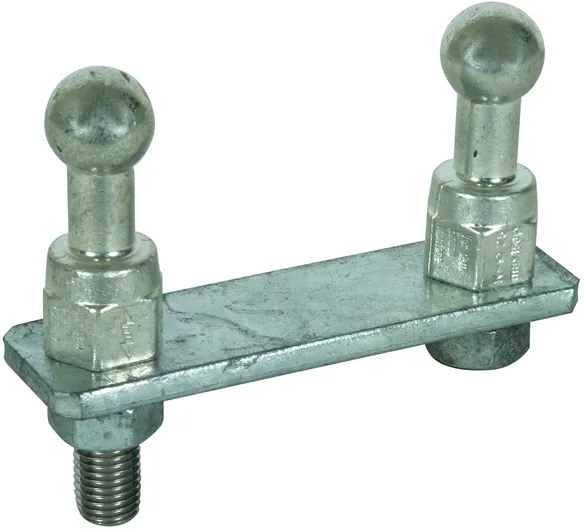

Terminal Lug with two Fixed Ball Points

For connection to the mast.

1 Product

Part No. 728502 EAP 2 25 MA US OL

GTIN 4013364079571, Customs tariff No. (EU): 85359000, Gross weight: 708.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Fixed point Ø 25 mm
DB drawing No. 3 Ebgw 01.61
DB material No. 157 548

Product 728502 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
