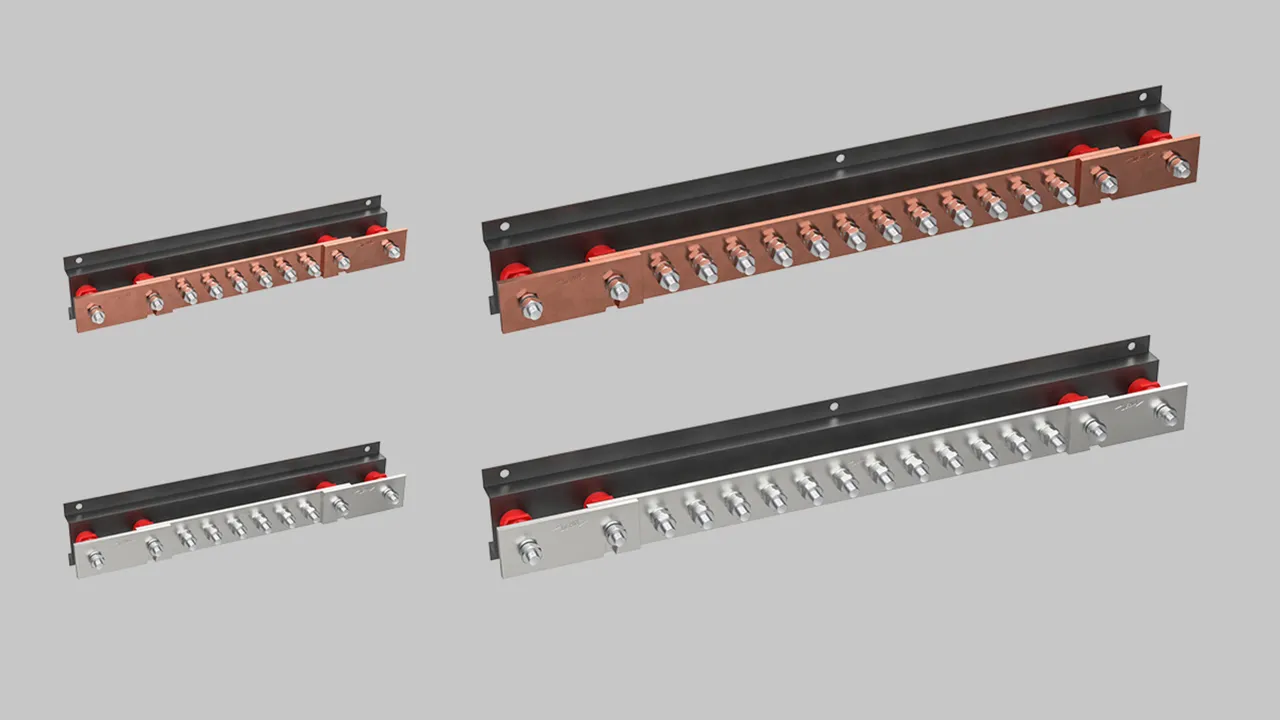

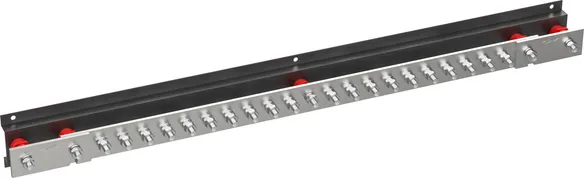

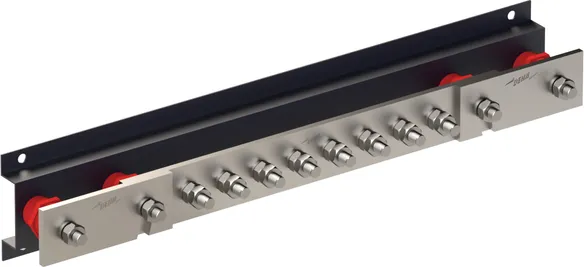

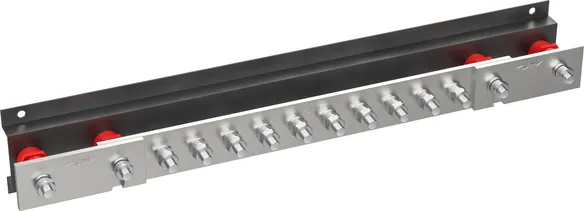

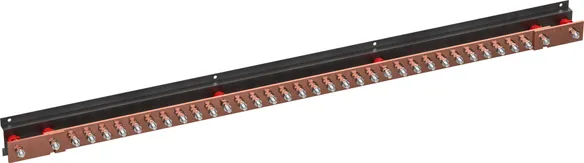

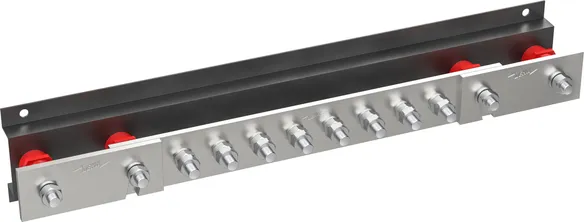

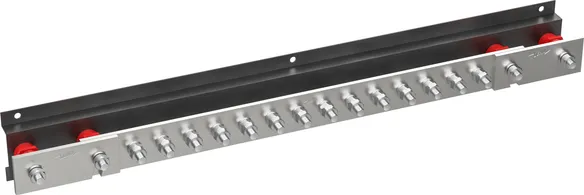

Earth Bars with double disconnecting links

DEHN offers a range of Earth Bars Tested and Certified in accordance with the latest IEC EN 62561-1 standard and are in compliance with IEC 60364 – 5 - 54 standards and BS 7430.DEHN Earth Bars provides a common earthing point for multiple electrical installations and are a key component in both Earthing, Equipotential Bonding and Lightning Protection which helps to eliminate the risk of earth potential loops. DEHN Earth Bars are available with Single and Double Disconnecting link options which allows for quick and easy temporary disconnection from the earthing and lightning protection system to facilitate the testing of the earthing grid/rods in isolation.Features of DEHN Earth Bars
  • Provides a convenient, single-point grounding and bonding location
  • Busbars with single and double disconnecting links allow for convenient testing of the earth termination system.
  • High conductivity, hard drawn copper to EN 13601.
  • Includes insulators, stainless steel (EN 1.4401) hardware and a powder coated steel mounting base.
  • Cross-section 300mm²
  • Number of connections ranging from 2 Way to 30 Ways
  • Halogen-free polyamide insulators, stainless steel (V4A) M10 Fittings
  • Black Powder Coated Steel Base (Hot Dipped Galvanized Base Option can also be supplied)
  • Pre-drilled fixing holes for ease of installation

Copper

15 ??store.products_de??

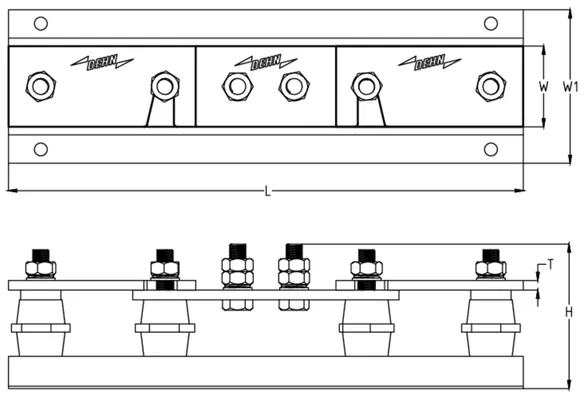

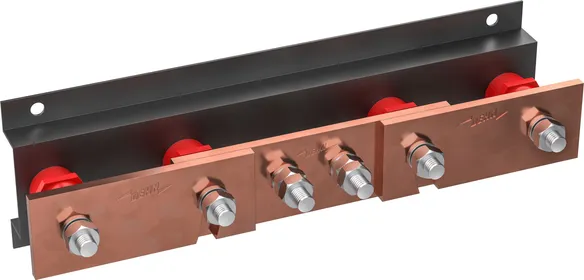

??store.product.number.short_de?? 118930 EB 2W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364472358, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.23 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 2
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 319 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

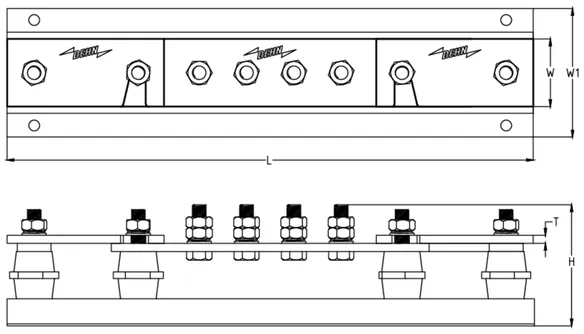

??store.product.number.short_de?? 118931 EB 4W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364472365, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.67 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 4
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 389 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

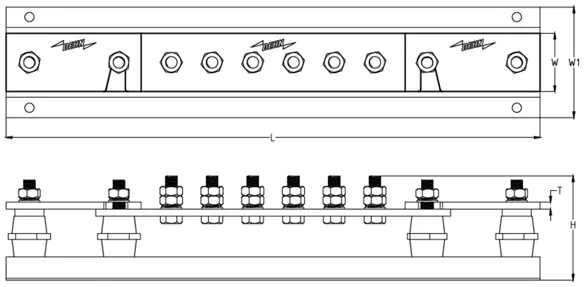

??store.product.number.short_de?? 118370 EB 6W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364299504, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.11 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 6
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 459 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

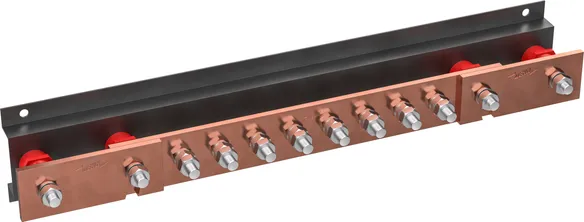

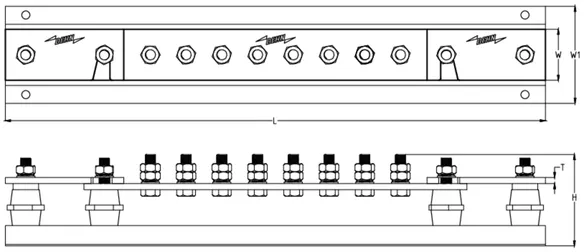

??store.product.number.short_de?? 118371 EB 8W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364309319, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.54 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 8
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 529 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

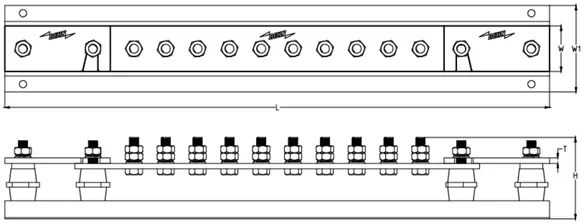

??store.product.number.short_de?? 118372 EB 10W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364309326, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.98 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 10
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 599 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

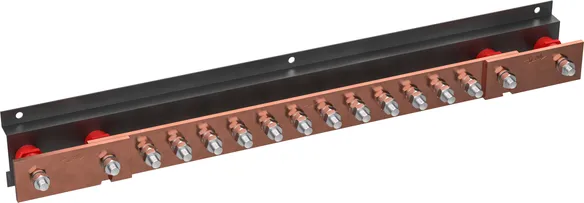

??store.product.number.short_de?? 118373 EB 12W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364309333, ??store.product.customsTariffNumber_de??: 85389000, ??store.product.grossWeight_de??: 4.70 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 12
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 669 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

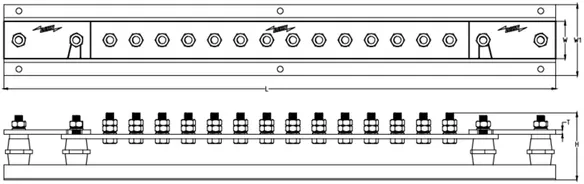

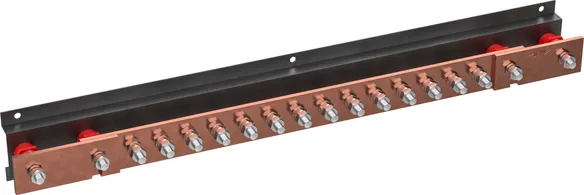

??store.product.number.short_de?? 118374 EB 14W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364357853, ??store.product.customsTariffNumber_de??: 85389000, ??store.product.grossWeight_de??: 5.55 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 14
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 739 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

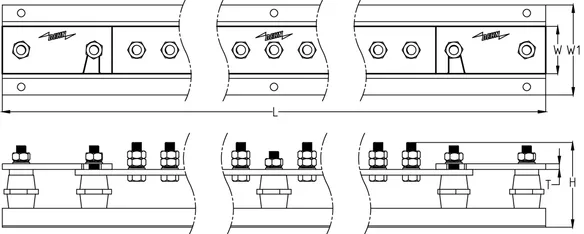

??store.product.number.short_de?? 118937 EB 16W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364472372, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.03 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 16
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 844 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

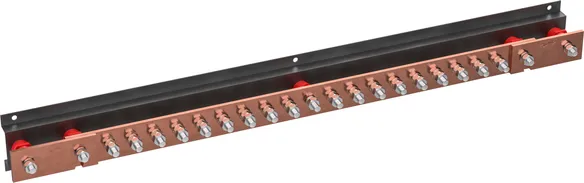

??store.product.number.short_de?? 118938 EB 18W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364472389, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.50 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 18
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 914 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 118939 EB 20W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364472396, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.98 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 20
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 984 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

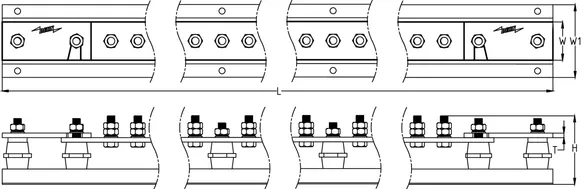

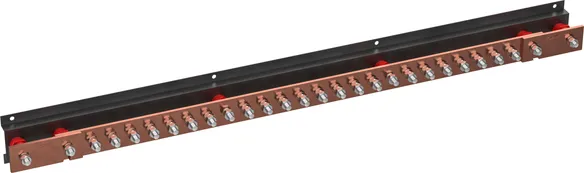

??store.product.number.short_de?? 118940 EB 22W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364472402, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.76 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 22
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1089 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

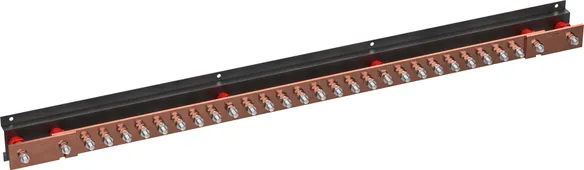

??store.product.number.short_de?? 118941 EB 24W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364472419, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.23 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 24
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1159 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 118942 EB 26W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364472426, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.71 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 26
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1229 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 118943 EB 28W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364472433, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 9.19 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 28
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1299 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 118944 EB 30W 2DL M10 50X6 CU

??store.product.gtin_de?? 4013364472440, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 9.66 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Copper
Number of Connections 30
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1369 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Tinned Copper

15 ??store.products_de??

??store.product.number.short_de?? 119930 EB 2W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472648, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.23 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 2
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 319 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

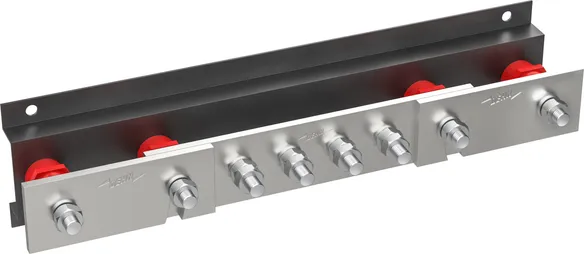

??store.product.number.short_de?? 119931 EB 4W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472655, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.67 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 4
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 389 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119370 EB 6W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364474321, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.11 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 6
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 459 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119371 EB 8W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364474338, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.54 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 8
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 529 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119372 EB 10W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364474345, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.98 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 10
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 599 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

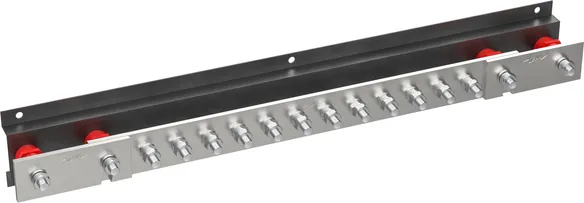

??store.product.number.short_de?? 119373 EB 12W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364488205, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.70 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 12
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 669 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119374 EB 14W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364474352, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.55 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 14
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 739 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119937 EB 16W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472662, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.03 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 16
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 844 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

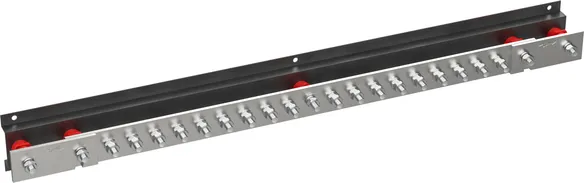

??store.product.number.short_de?? 119938 EB 18W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472679, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.50 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 18
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 914 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119939 EB 20W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472686, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.98 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 20
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 984 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

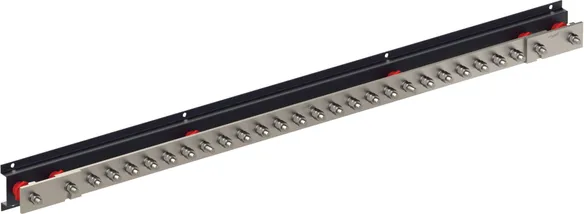

??store.product.number.short_de?? 119940 EB 22W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472693, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.76 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 22
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1089 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

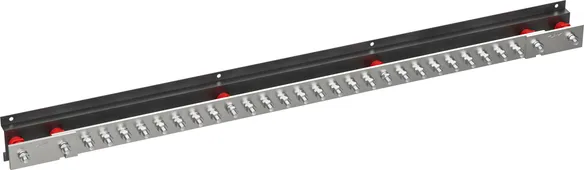

??store.product.number.short_de?? 119941 EB 24W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472709, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.23 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 24
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1159 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119942 EB 26W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472716, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.71 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 26
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1229 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119943 EB 28W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472723, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 9.19 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 28
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1299 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 119944 EB 30W 2DL M10 50X6 SNCU

??store.product.gtin_de?? 4013364472730, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 9.66 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material Tinned Copper
Number of Connections 30
Number of Disconnecting Links 2
Dimensions W x T 50 x 6 mm
Dimensions L x W1 x H 1369 x 95 x 90 mm
Thread size M10
Tightening Torque 20 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” No. 12 or M8 and No 12 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
back to top
