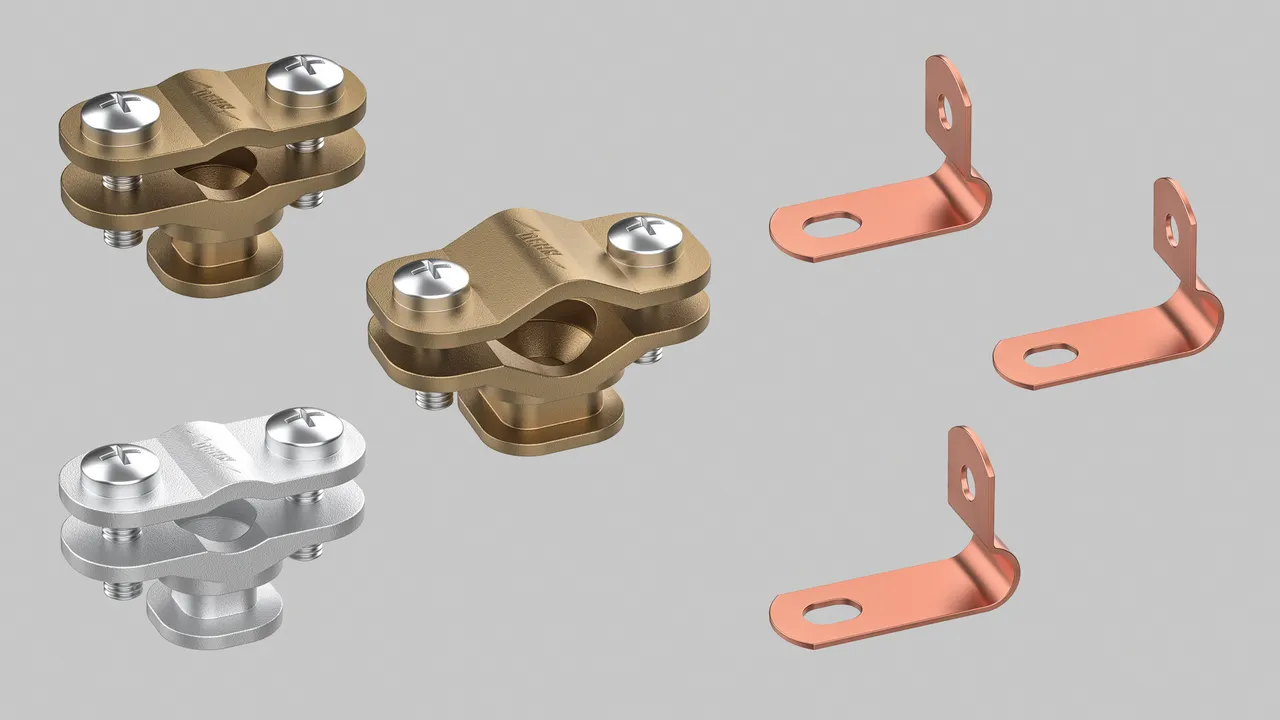

Round Conductor Holders

Round Conductor holders used for securing bare and PVC covered solid round and stranded cable conductors to building surfaces.

Round Conductor Holders

Holders for bare and PVC covered solid round and cable conductors.

118165 is expected to be available for delivery in Q2/2025.

4 ??store.products_de??

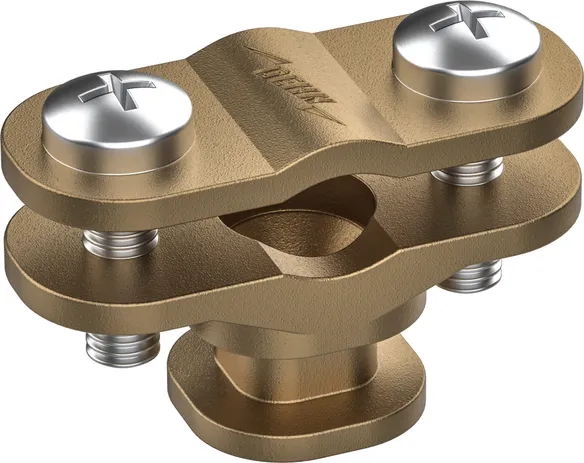

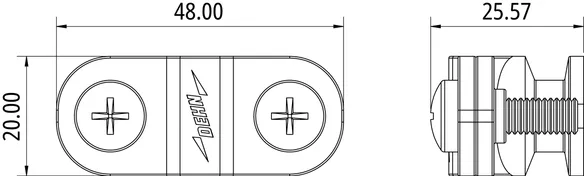

??store.product.number.short_de?? 118162 RCH BCCU 8.10/16.70 HCA

??store.product.gtin_de?? 4013364497139, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 70.00 g, ??store.product.packaging_de??: 50.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Bare and PVC covered copper
Clamping range (Stranded / Cable) 16 - 70 mm²
Clamping range Rd 8 - 10 mm
Tightening Torque 6 Nm
Standards IEC / EN / BS EN 62561-4
Classification Metallic, With screws, Clamp the conductor

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

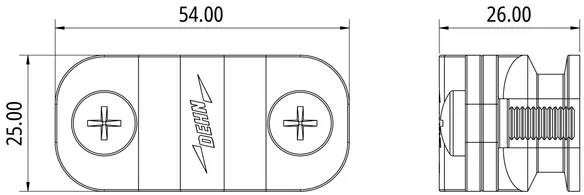

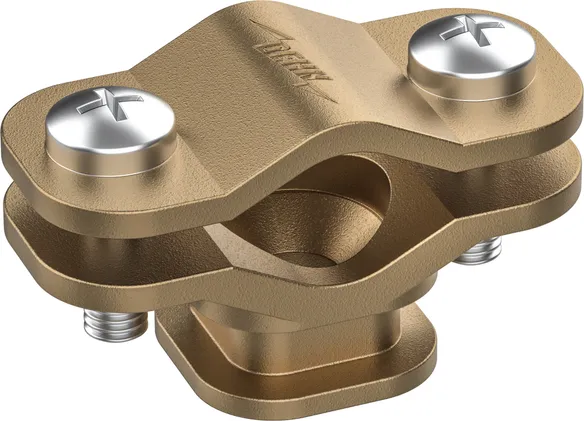

??store.product.number.short_de?? 118163 RCH BCCU 70.150 HCA

??store.product.gtin_de?? 4013364497177, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 95.00 g, ??store.product.packaging_de??: 50.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Bare and PVC covered copper
Clamping range (Stranded / Cable) 70 - 150 mm²
Tightening Torque 6 Nm
Standards IEC / EN / BS EN 62561-4
Classification Metallic, With screws, Clamp the conductor

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

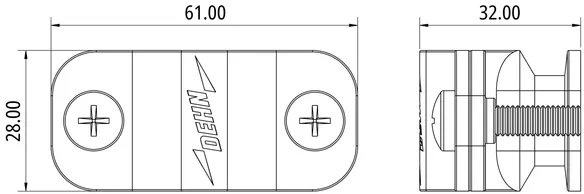

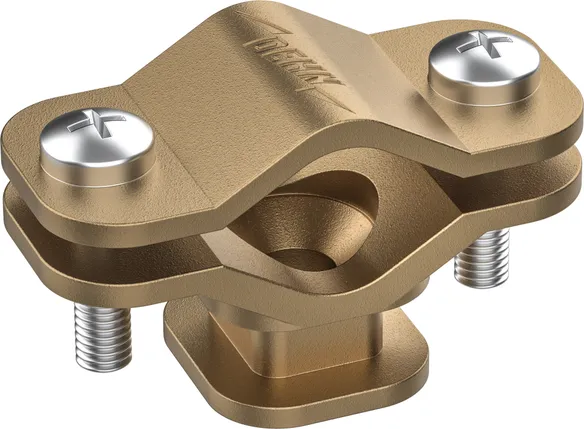

??store.product.number.short_de?? 118164 RCH BCCU 150.300 HCA

??store.product.gtin_de?? 4013364497184, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 125.00 g, ??store.product.packaging_de??: 50.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Bare and PVC covered copper
Clamping range (Stranded / Cable) 150 - 300 mm²
Tightening Torque 6 Nm
Standards IEC / EN / BS EN 62561-4
Classification Metallic, With screws, Clamp the conductor

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

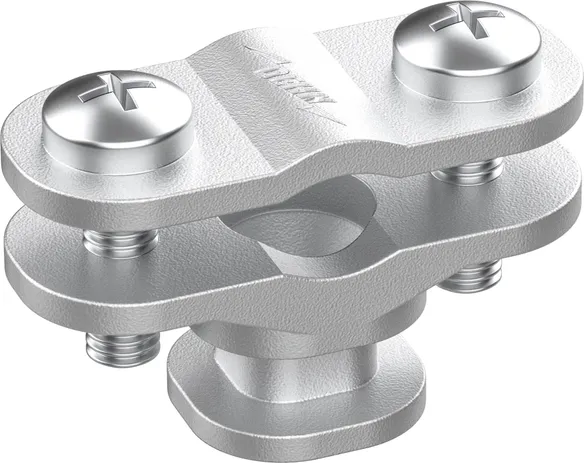

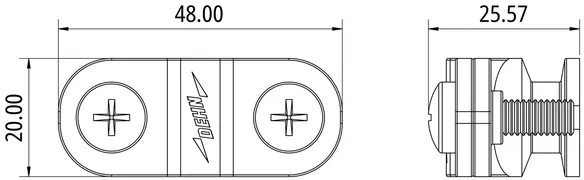

??store.product.number.short_de?? 118165 RCH BCCU 8.10/16.70 ALA

??store.product.gtin_de?? 4013364357822, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 28.00 g, ??store.product.packaging_de??: 50.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Material Aluminium Alloy
Conductor Material Bare and PVC covered aluminium
Clamping range Rd 8 - 10 mm
Tightening Torque 2 Nm
Standards IEC / EN / BS EN 62561-4
Classification Metallic, With screws, Clamp the conductor

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

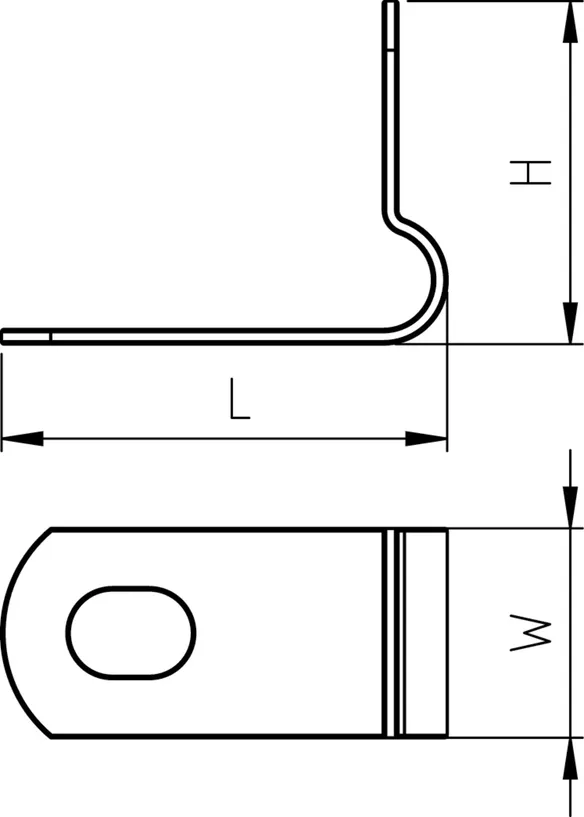

Stranded Cable Clips

These cable clips are an easy way to secure the stranded and solid round copper conductors to the building surface.

4 ??store.products_de??

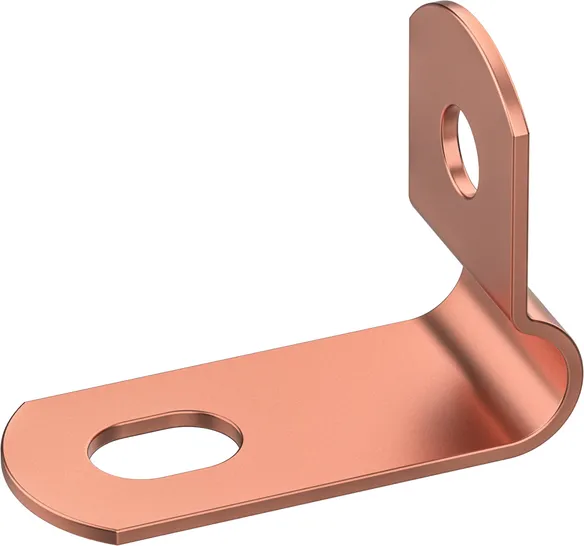

??store.product.number.short_de?? 117165 SCC BCU 50 CU

??store.product.gtin_de?? 4013364498242, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 g, ??store.product.packaging_de??: 50.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Material Copper
Conductor Material Bare Copper
Clamping range (Stranded / Cable) 50 mm²
Standards IEC / EN / BS EN 62561-4
Classification Metallic, With screws, Clamp the conductor

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

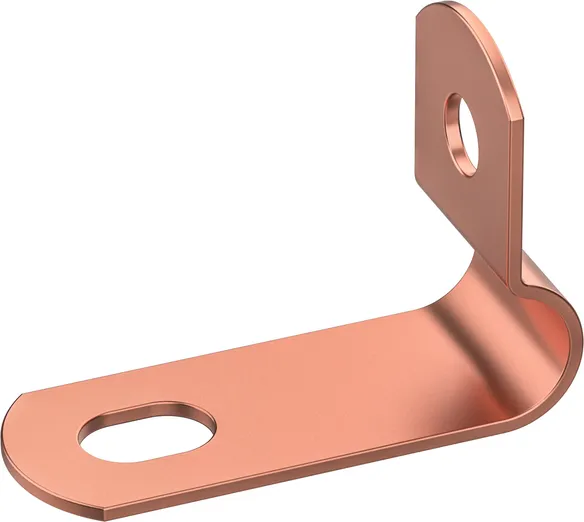

??store.product.number.short_de?? 117166 SCC BCU 70 CU

??store.product.gtin_de?? 4013364498259, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 g, ??store.product.packaging_de??: 50.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Material Copper
Conductor Material Bare Copper
Clamping range (Stranded / Cable) 70 mm²
Standards IEC / EN / BS EN 62561-4
Classification Metallic, With screws, Clamp the conductor

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

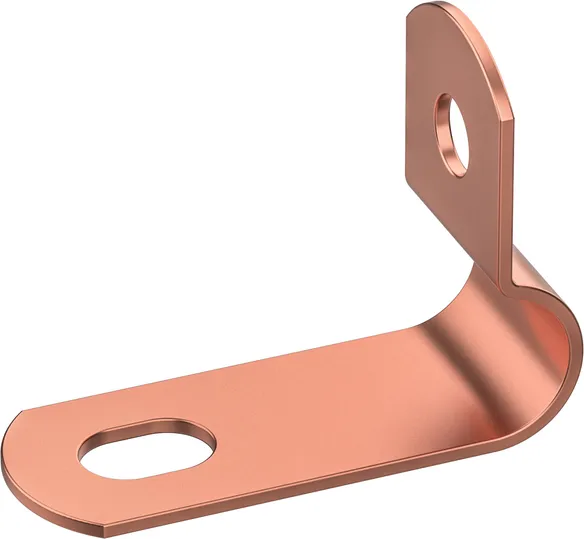

??store.product.number.short_de?? 117185 SCC CCU 50 CU

??store.product.gtin_de?? 4013364498174, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 g, ??store.product.packaging_de??: 50.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Material Copper
Conductor Material PVC Covered Copper
Clamping range (Stranded / Cable) 50 mm²
Standards IEC / EN / BS EN 62561-4
Classification Metallic, With screws, Clamp the conductor

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

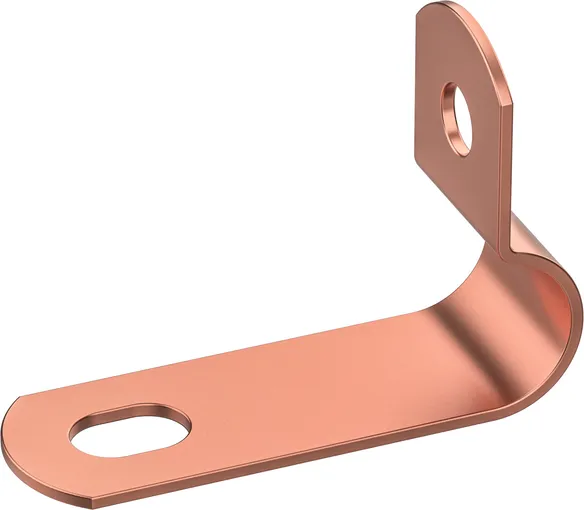

??store.product.number.short_de?? 117186 SCC CCU 70 CU

??store.product.gtin_de?? 4013364498181, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 13.00 g, ??store.product.packaging_de??: 50.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Material Copper
Conductor Material PVC Covered Copper
Clamping range (Stranded / Cable) 70 mm²
Standards IEC / EN / BS EN 62561-4
Classification Metallic, With screws, Clamp the conductor

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
