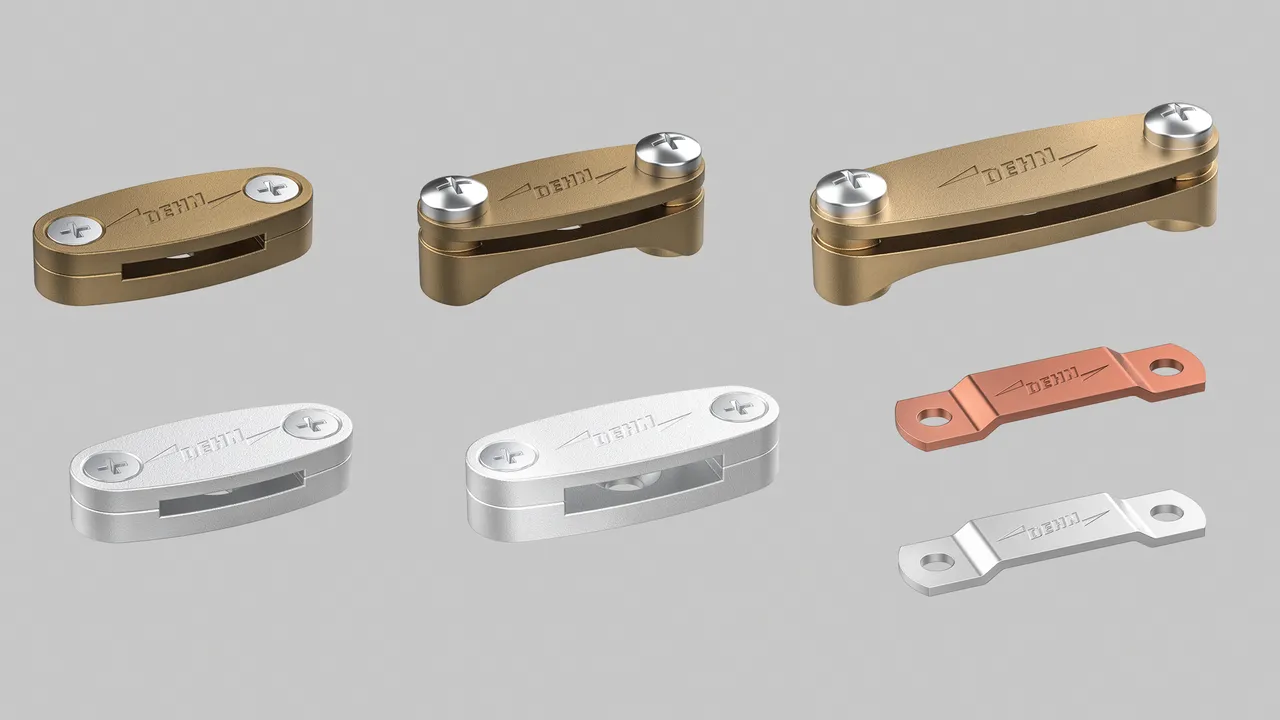

Tape Conductor Holders

Tape Conductor Holders used for securing bare and PVC covered flat conductors flush to building surfaces.

Tape Conductor Holders

Holders for bare and PVC covered flat conductors.

6 Products

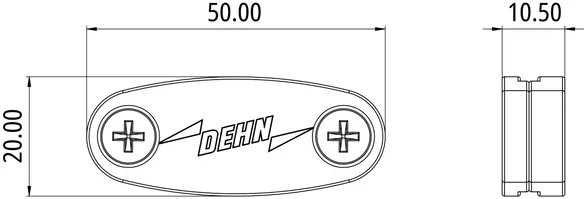

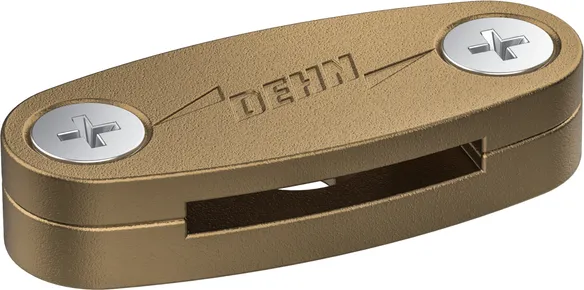

Part No. 118077 TCH BCU 25X3 HCA

GTIN 4013364476219, Customs tariff No. (EU): 85389099, Gross weight: 50.00 g, PU: 50.00 pc(s)

Predecessor

Images

Additional information

Certificates



Technical data

Material High Copper Alloy
Conductor Material Bare Copper
Clamping range Fl 25 x 3 mm
Clamping screw CSK M5 x 2 Nos
Material of screw Stainless Steel
Tightening Torque 6 Nm
Recommended Fixings Countersunk wood screws 1 ½” x 10 and no. 10 wall plugs (to be purchased separately)
Standards IEC / EN / BS EN 62561-4

Product 118077 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

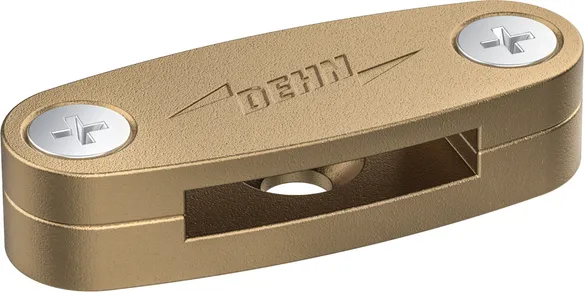

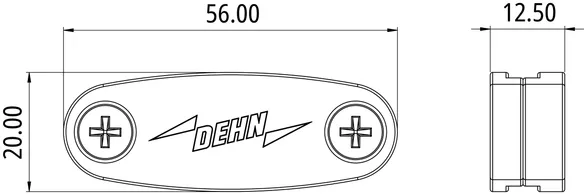

Part No. 118083 TCH CCU 25X3 HCA

GTIN 4013364476240, Customs tariff No. (EU): 85389099, Gross weight: 60.00 g, PU: 40.00 pc(s)

Predecessor

Images

Additional information

Certificates



Technical data

Material High Copper Alloy
Conductor Material PVC Covered Copper
Clamping range Fl 25 x 3 mm
PVC Covering Thickness approx. 1 mm
Clamping screw CSK M5 x 2 Nos
Material of screw Stainless Steel
Tightening Torque 6 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-4

Product 118083 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

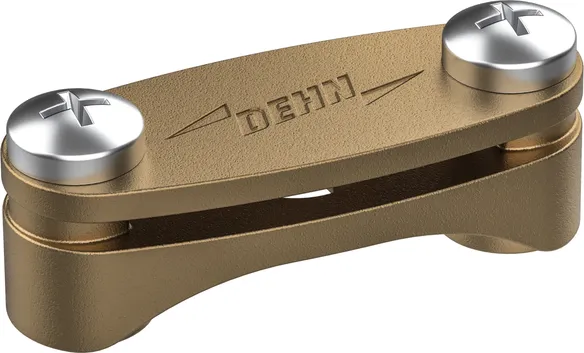

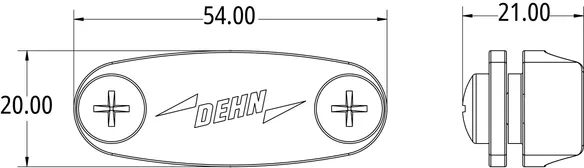

Part No. 118049 TCH BCCU 25.31X3.6 HCA

GTIN 4013364496842, Customs tariff No. (EU): 85389099, Gross weight: 75.00 g, PU: 50.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Bare and PVC Covered Copper
Clamping range Fl W (25 - 31 mm) x T (3 - 6 mm)
PVC Covering Thickness approx. 1 mm
Clamping screw Cross head M5 x 2 Nos
Material of screw Stainless Steel
Tightening Torque 6 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-4

Product 118049 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

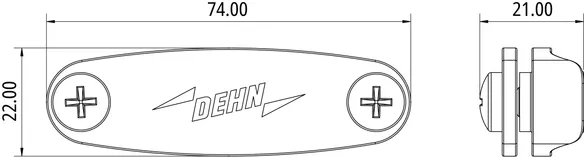

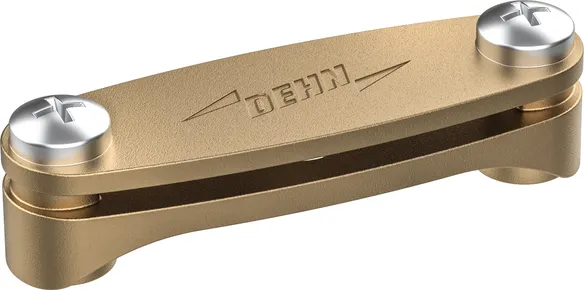

Part No. 118059 TCH BCCU 40.50X3.6 HCA

GTIN 4013364298965, Customs tariff No. (EU): 85389099, Gross weight: 115.00 g, PU: 30.00 pc(s)

Predecessor

Images

Additional information

Certificates



Technical data

Material High Copper Alloy
Conductor Material Bare and PVC Covered Copper
Clamping range Fl W (40 - 50 mm) x T (3 - 6 mm)
PVC Covering Thickness approx. 1 mm
Clamping screw Cross head M5 x 2 Nos
Material of screw Stainless Steel
Tightening Torque 6 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-4

Product 118059 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

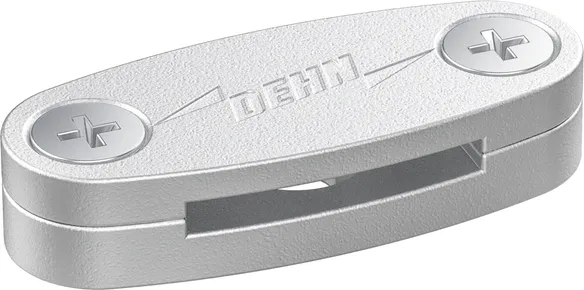

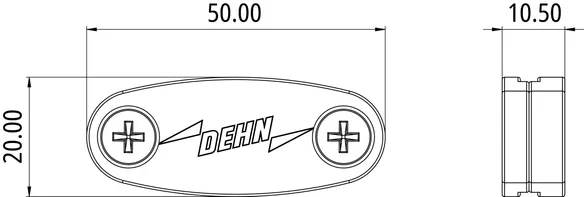

Part No. 118071 TCH BAL 25X3 ALA

GTIN 4013364357426, Customs tariff No. (EU): 85389099, Gross weight: 20.00 g, PU: 1.00 pc(s)

Images

Additional information

Certificates



Technical data

Material Aluminium Alloy
Conductor Material Bare Aluminium
Clamping range Fl 25 x 3 mm
Clamping screw CSK M5 x 2 Nos
Material of screw Stainless Steel
Tightening Torque 6 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-4

Product 118071 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

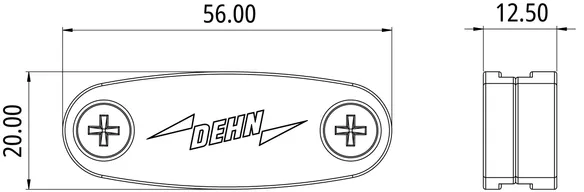

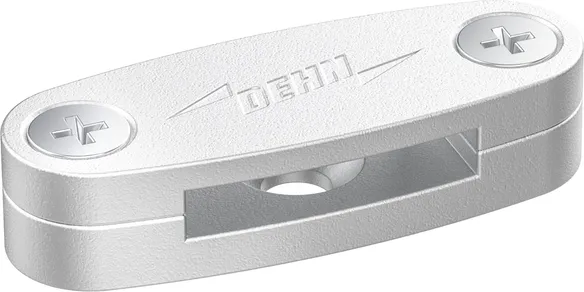

Part No. 118073 TCH CAL 25X3 ALA

GTIN 4013364357433, Customs tariff No. (EU): 85389099, Gross weight: 20.00 g, PU: 40.00 pc(s)

Images

Additional information

Certificates



Technical data

Material Aluminium Alloy
Conductor Material PVC Covered Aluminium
Clamping range Fl 25 x 3 mm
PVC Covering Thickness approx. 1 mm
Clamping screw CSK M5 x 2 Nos
Material of screw Stainless Steel
Tightening Torque 6 Nm
Recommended Fixings Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-4

Product 118073 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Tape Conductor Clips

Tape Conductor Clips used for securing bare and PVC covered flat conductors flush to building surfaces.

4 Products

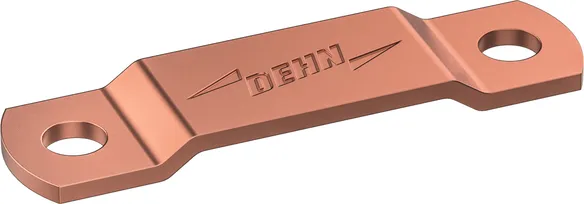

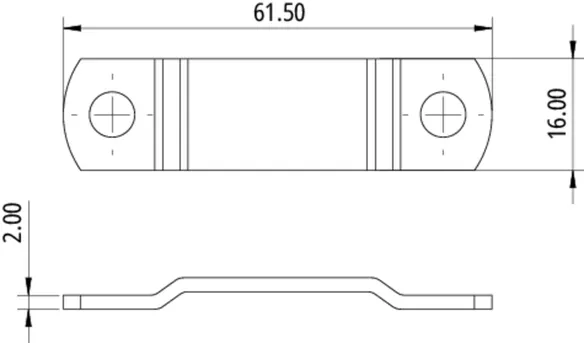

Part No. 118086 TCC BCU 25X3 CU

GTIN 4013364497030, Customs tariff No. (EU): 85389099, Gross weight: 14.00 g, PU: 100.00 pc(s)

Predecessor

Images

Additional information

Certificates



Technical data

Material Copper
Conductor Material Bare Copper
Clamping range Fl 25 x 3 mm
Recommended Fixings 2 x Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-4

Product 118086 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

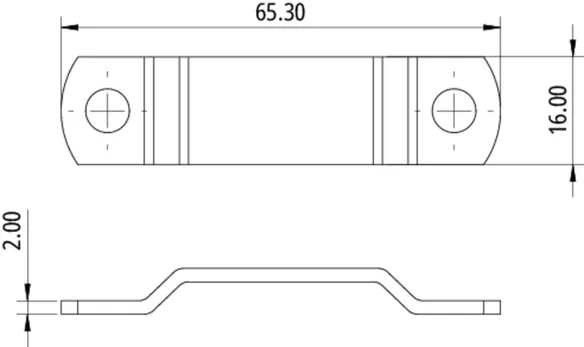

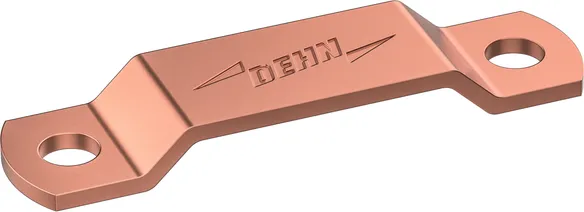

Part No. 118085 TCC CCU 25X3 CU

GTIN 4013364299009, Customs tariff No. (EU): 85389099, Gross weight: 15.00 g, PU: 100.00 pc(s)

Images

Additional information

Certificates



Technical data

Material Copper
Conductor Material PVC Covered Copper
Clamping range Fl 25 x 3 mm
PVC Covering Thickness approx. 1 mm
Recommended Fixings 2 x Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-4

Product 118085 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

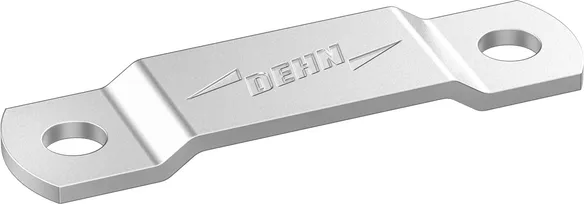

Part No. 118075 TCC BAL 25X3 ALA

GTIN 4013364497047, Customs tariff No. (EU): 85389099, Gross weight: 4.00 g, PU: 100.00 pc(s)

Images

Additional information

Certificates



Technical data

Material Aluminium Alloy
Conductor Material Bare Aluminium
Clamping range Fl 25 x 3 mm
Recommended Fixings 2 x Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-4

Product 118075 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

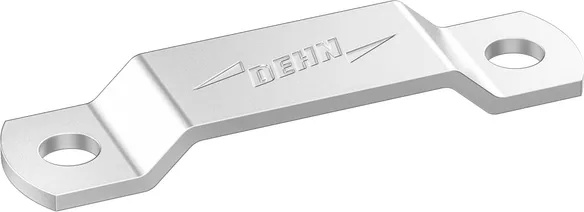

Part No. 118076 TCC CAL 25X3 ALA

GTIN 4013364497054, Customs tariff No. (EU): 85389099, Gross weight: 4.00 g, PU: 100.00 pc(s)

Images

Additional information

Certificates



Technical data

Material Aluminium Alloy
Conductor Material PVC Covered Aluminium
Clamping range Fl 25 x 3 mm
PVC Covering Thickness approx. 1 mm
Recommended Fixings 2 x Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Standards IEC / EN / BS EN 62561-4

Product 118076 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
