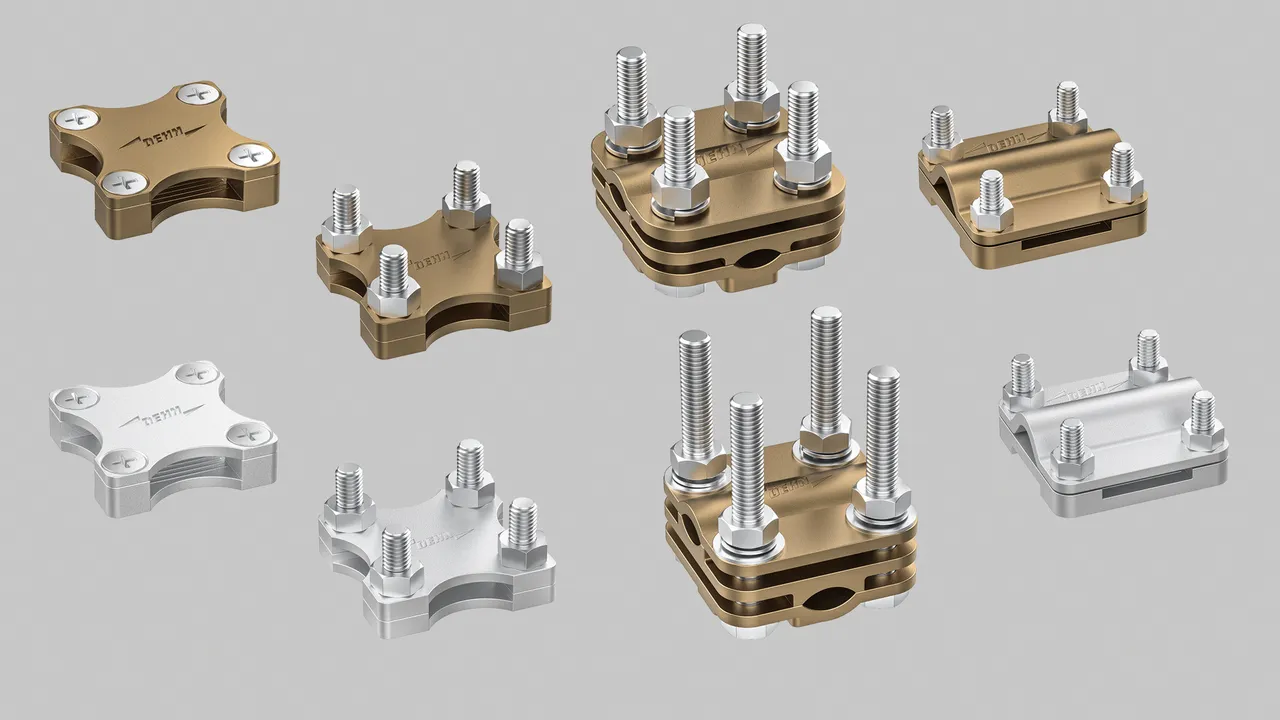

Square Conductor Clamps

Square Tape and Cable Clamps for interconnecting various sizes of flat and stranded conductors in parallel, cross, and T connection arrangements to form a continuous network. The Multipurpose Square Conductor Clamps can be used for interconnecting various sizes of flat, round and stranded conductors in parallel, cross, and T connection arrangements.
The clamps are equipped with countersunk hole for fixing the clamp to structural surfaces. The clamps have a high resistance to corrosion and show high mechanical strength to ensure a lasting connection.

Square Tape Clamps

Square Tape Clamps for interconnecting flat tapes in parallel, cross, and T connection arrangements to form a continuous network.

118208 and 118218 expected to be available for delivery in Q2/2025.

5 Products

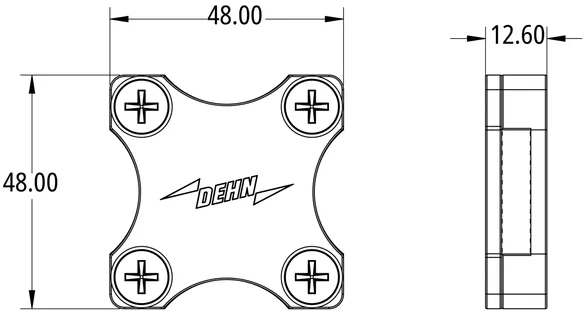

Part No. 118202 STC BCU FL 25X3 HCA

GTIN 4013364476271, Customs tariff No. (EU): 85359000, Gross weight: 120.00 g, PU: 15.00 pc(s)

Predecessor

Images

Additional information

Certificates

Technical data

Material	High Copper Alloy
Conductor Material	Bare Copper
Clamping range Fl / Fl	25 x 3 / 25 x 3 mm
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=

Material	High Copper Alloy
Conductor Material	Bare Copper
Clamping range Fl / Fl	25 x 3 / 25 x 3 mm
Clamp Fixings	CSK M6 x 4 Nos
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Recommended Fixings	Countersunk Wood Screws 1 ½” x No. 10 and No 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	48 x 48 x 12.6 mm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Installation location	Outdoors, Indoors, Burried in ground, Embedded in concrete & materials with thermal insulation
Mechanical behaviour	Intended to withstand static mechanical stress
Type of connection	Non-permanant screwing / bolting
Assembly instructions	Refer instructions (2196)

Product 118202 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

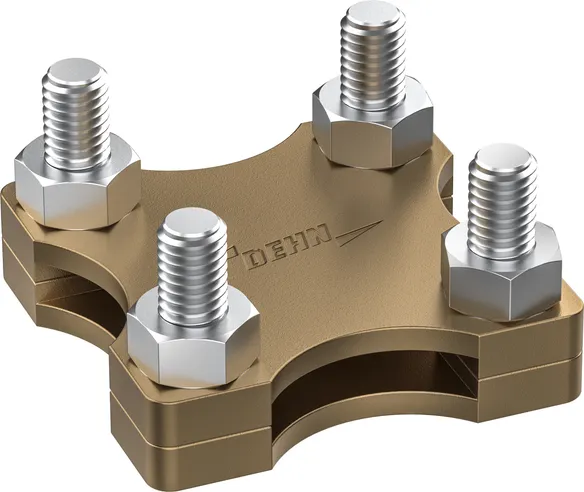

Part No. 118208 STC BCU FL 20.31X2.5.6 HCA

GTIN 4013364497382, Customs tariff No. (EU): 85359000, Gross weight: 230.00 g, PU: 50.00 pc(s)

Predecessor

Images

Open PDF

Additional information

Technical data

Material	High Copper Alloy
Conductor Material	Bare Copper
Clamping range Fl / Fl	W (20 - 31 mm) x T (2.5 - 6 mm) / W (20 - 31 mm) x T (2.5 - 6 mm)
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=

Material	High Copper Alloy
Conductor Material	Bare Copper
Clamping range Fl / Fl	W (20 - 31 mm) x T (2.5 - 6 mm) / W (20 - 31 mm) x T (2.5 - 6 mm)
Clamp Fixings	Stud & Nut M8 x 4 Nos
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Recommended Fixings	Countersunk Wood Screws 1 ½” x No. 10 and No 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	60 x 60 x 30 mm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Installation location	Outdoors, Indoors, Burried in ground, Embedded in concrete & materials with thermal insulation
Mechanical behaviour	Intended to withstand static mechanical stress
Type of connection	Non-permanant screwing / bolting
Assembly instructions	Refer instructions (2196)

Product 118208 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

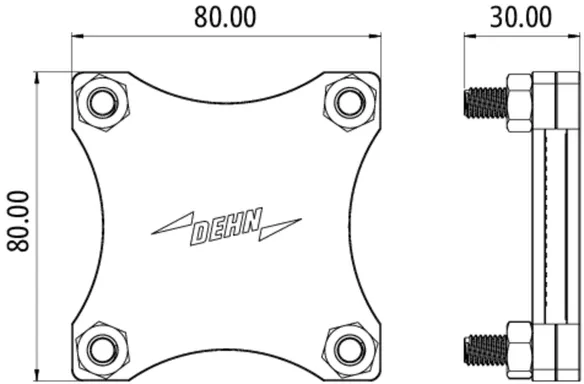

Part No. 118219 STC BCU FL 40.50X2.5.6 HCA

GTIN 4013364476301, Customs tariff No. (EU): 85359000, Gross weight: 400.00 g, PU: 4.00 pc(s)

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Material	High Copper Alloy
Conductor Material	Bare Copper
Clamping range Fl / Fl	W (40 - 50 mm) x T (2.5 - 6 mm) / W (40 - 50 mm) x T (2.5 - 6 mm)
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=

Material	High Copper Alloy
Conductor Material	Bare Copper
Clamping range Fl / Fl	W (40 - 50 mm) x T (2.5 - 6 mm) / W (40 - 50 mm) x T (2.5 - 6 mm)
Clamp Fixings	Stud & Nut M8 x 4 Nos
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Recommended Fixings	Countersunk Wood Screws 1 ½” x No. 10 and No 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	80 x 80 x 30 mm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Installation location	Outdoors, Indoors, Burried in ground, Embedded in concrete & materials with thermal insulation
Mechanical behaviour	Intended to withstand static mechanical stress
Type of connection	Non-permanant screwing / bolting
Assembly instructions	Refer instructions (2196)

Product 118219 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 118209 STC BAL FL 25X3 ALA

GTIN 4013364357464, Customs tariff No. (EU): 85359000, Gross weight: 50.00 g, PU: 1.00 pc(s)

Images

Additional information

Certificates

Technical data

Material	Aluminium Alloy
Conductor Material	Bare Aluminium
Clamping range Fl / Fl	25 x 3 / 25 x 3 mm
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=

Material	Aluminium Alloy
Conductor Material	Bare Aluminium
Clamping range Fl / Fl	25 x 3 / 25 x 3 mm
Clamp Fixings	CSK M6 x 4 Nos
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Recommended Fixings	Countersunk Wood Screws 1 ½” x No. 10 and No 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	48 x 48 x 12.6 mm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Installation location	Outdoors, Indoors
Mechanical behaviour	Intended to withstand static mechanical stress
Type of connection	Non-permanant screwing / bolting
Assembly instructions	Refer instructions (2196)

Product 118209 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

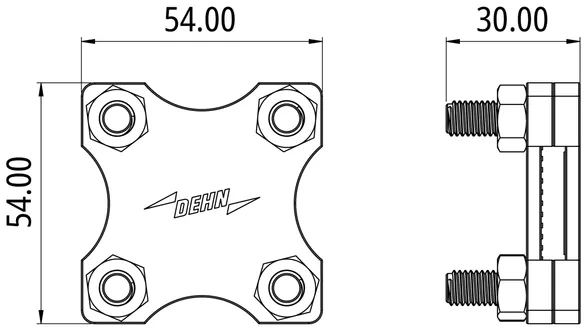

Part No. 118218 STC BAL FL 25X3.6 ALA

GTIN 4013364497528, Customs tariff No. (EU): 85359000, Gross weight: 104.00 g, PU: 50.00 pc(s)

Images

Open PDF

Additional information

Technical data

Material	Aluminium Alloy
Conductor Material	Bare Aluminium
Clamping range Fl / Fl	W (25 mm) x T (3 - 6 mm) / W (25 mm) x T (3 - 6 mm)
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=

Material	Aluminium Alloy
Conductor Material	Bare Aluminium
Clamping range Fl / Fl	W (25 mm) x T (3 - 6 mm) / W (25 mm) x T (3 - 6 mm)
Clamp Fixings	Stud & Nut M8 x 4 Nos
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Recommended Fixings	Countersunk Wood Screws 1 ½” x No. 10 and No 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	54 x 54 x 30 mm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Installation location	Outdoors, Indoors
Mechanical behaviour	Intended to withstand static mechanical stress
Type of connection	Non-permanant screwing / bolting
Assembly instructions	Refer instructions (2196)

Product 118218 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Square Cable Clamps

Square Cable Clamps for interconnecting stranded cables in cross and T connection arrangements to form a continuous network. The Clamps have a high resistance to corrosion and show high mechanical strength to ensure a lasting connection.

3 Products

Part No. 118628 SCC BCCU SC 16.70 HCA

GTIN 4013364536241, Customs tariff No. (EU): 85359000, Gross weight: 195.00 g, PU: 8.00 pc(s)

Images

Additional information

Certificates

Technical data

Material	High Copper Alloy
Conductor Material	Copper
Clamping range Stranded cable / Stranded cable	16 - 70 mm² / 16 - 70 mm²
Material of Clamp Fixings	Stainless Steel
Tightening Torque	5 Nm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Note: Clamp can be used as a conductor holder for stranded PVC covered cables

Material	High Copper Alloy
Conductor Material	Copper
Clamping range Stranded cable / Stranded cable	16 - 70 mm² / 16 - 70 mm²
Clamp Fixings	Hex Bolt, Nut & Washer M6 x 4 Nos
Material of Clamp Fixings	Stainless Steel
Tightening Torque	5 Nm
Recommended Fixings	2 x Countersunk Wood Screws 1 ½” x 10 and No. 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	43 x 43 x 40 mm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Installation location	Outdoors, Indoors, Burried in ground, Embedded in concrete & materials with thermal insulation
Mechanical behaviour	Intended to withstand static mechanical stress
Type of connection	Non-permanant screwing / bolting
Assembly instructions	Refer instructions (2194)
Note: Clamp can be used as a conductor holder for stranded PVC covered cables

Product 118628 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 118634 SCC BCCU SC 35.150 HCA

GTIN 4013364497535, Customs tariff No. (EU): 85359000, Gross weight: 408.00 g, PU: 4.00 pc(s)

Predecessor

Images

Additional information

Certificates

Technical data

Material	High Copper Alloy
Conductor Material	Copper
Clamping range Stranded cable / Stranded cable	35 - 150 mm² / 35 - 150 mm²
Material of Clamp Fixings	Stainless Steel
Tightening Torque	12 Nm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Note: Clamp can be used as a conductor holder for stranded PVC covered cables

Material	High Copper Alloy
Conductor Material	Copper
Clamping range Stranded cable / Stranded cable	35 - 150 mm² / 35 - 150 mm²
Clamp Fixings	Hex Bolt, Nut & Washer M8 x 4 Nos
Material of Clamp Fixings	Stainless Steel
Tightening Torque	12 Nm
Recommended Fixings	2 x Countersunk Wood Screws 1 ½” x No.12 and No.12 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	54 x 54 x 68 mm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Installation location	Outdoors, Indoors, Burried in ground, Embedded in concrete & materials with thermal insulation
Mechanical behaviour	Intended to withstand static mechanical stress
Type of connection	Non-permanant screwing / bolting
Assembly instructions	Refer instructions (2194)
Note: Clamp can be used as a conductor holder for stranded PVC covered cables

Product 118634 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

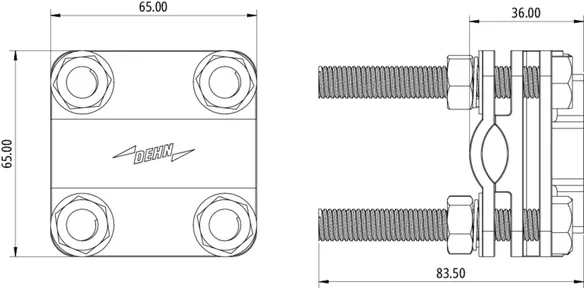

Part No. 118635 SCC BCCU SC 70.300 HCA

GTIN 4013364497542, Customs tariff No. (EU): 85359000, Gross weight: 730.00 g, PU: 10.00 pc(s)

Images

Additional information

Technical data

Material	High Copper Alloy
Conductor Material	Copper
Clamping range Stranded cable / Stranded cable	70 - 300 mm² / 70 - 300 mm²
Material of Clamp Fixings	Stainless Steel
Tightening Torque	12 Nm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Note: Clamp can be used as a conductor holder for stranded PVC covered cables

Material	High Copper Alloy
Conductor Material	Copper
Clamping range Stranded cable / Stranded cable	70 - 300 mm² / 70 - 300 mm²
Clamp Fixings	Hex Bolt, Nut & Washer M10 x 4 Nos
Material of Clamp Fixings	Stainless Steel
Tightening Torque	12 Nm
Recommended Fixings	2 x Countersunk Wood Screws 1 ½” x No.14 and No.14 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	65 x 65 x 83.5 mm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Installation location	Outdoors, Indoors, Burried in ground, Embedded in concrete & materials with thermal insulation
Mechanical behaviour	Intended to withstand static mechanical stress
Type of connection	Non-permanant screwing / bolting
Assembly instructions	Refer instructions (2194)
Note: Clamp can be used as a conductor holder for stranded PVC covered cables

Product 118635 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Multipurpose Square Conductor Clamps

Square Conductor Clamps for interconnecting various sizes of flat, round and stranded conductors in parallel, cross, and T connection arrangements to form a continuous network. Equipped with a countersunk hole for fixing the clamp to structural surfaces. The Clamps have a high resistance to corrosion and show high mechanical strength to ensure a lasting connection.

2 Products

Part No. 118606 STRCC FLRDSC 25X3/8.10-50.120 HCA

GTIN 4013364497689, Customs tariff No. (EU): 85359000, Gross weight: 190.00 g, PU: 12.00 pc(s)

Predecessor

Images

Additional information

Certificates

Technical data

Material	High Copper Alloy
Conductor Material	Copper
Clamping range Fl / Rd	25 x 3 mm / 8-10 mm
Clamping range Fl / Stranded cable	25 x 3 mm / 50 - 120 mm²
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=

Material	High Copper Alloy
Conductor Material	Copper
Clamping range Fl / Rd	25 x 3 mm / 8-10 mm
Clamping range Fl / Stranded cable	25 x 3 mm / 50 - 120 mm²
Clamp Fixings	Stud & Nut M6 x 4 Nos
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Recommended Fixings	Countersunk Wood Screw 1 ½” x No. 10 and No 10 Wall Plugs (To be Purchased Separately)

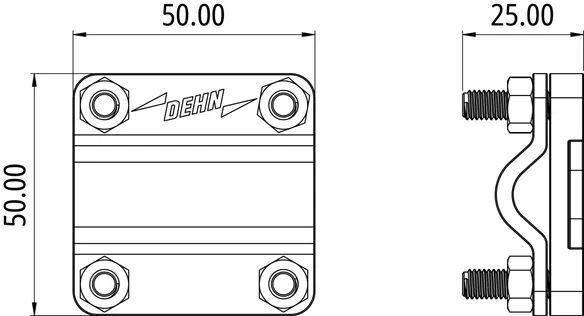

Dimensions (l x w x h)	50 x 50 x 25 mm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Installation location	Outdoors, Indoors, Burried in ground, Embedded in concrete & materials with thermal insulation
Mechanical behaviour	Intended to withstand static mechanical stress
Type of connection	Non-permanant screwing / bolting
Assembly instructions	Refer instructions (2181)

Product 118606 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 118620 STRCC FLRDSC 25X3/8.10-50.120 ALA

GTIN 4013364497702, Customs tariff No. (EU): 85359000, Gross weight: 80.00 g, PU: 12.00 pc(s)

Images

Additional information

Certificates

Technical data

Material	Aluminium Alloy
Conductor Material	Aluminium
Clamping range Fl / Rd	25 x 3 mm / 8-10 mm
Clamping range Fl / Stranded cable	25 x 3 mm / 50 - 120 mm²
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=

Material	Aluminium Alloy
Conductor Material	Aluminium
Clamping range Fl / Rd	25 x 3 mm / 8-10 mm
Clamping range Fl / Stranded cable	25 x 3 mm / 50 - 120 mm²
Clamp Fixings	Stud & Nut M6 x 4 Nos
Material of Clamp Fixings	Stainless Steel
Tightening Torque	6 Nm
Recommended Fixings	Countersunk Wood Screw 1 ½” x No. 10 and No 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	50 x 50 x 25 mm
Standards	IEC / EN / BS EN 62561-1
Classification	Class H
Lightning current carrying capability (10/350 μs)	=
Installation location	Outdoors, Indoors
Mechanical behaviour	Intended to withstand static mechanical stress
Type of connection	Non-permanant screwing / bolting
Assembly instructions	Refer instructions (2181)

Product 118620 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
