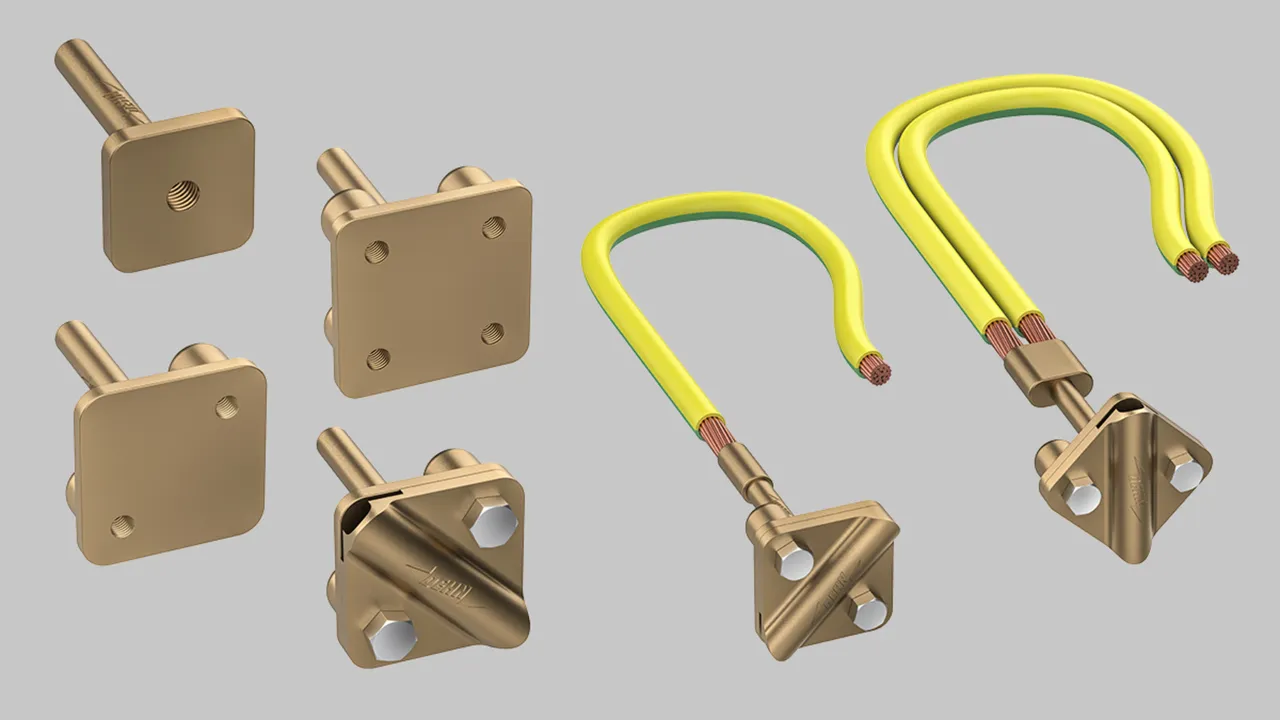

Earth Points

Earth Points connect reinforced steel bars used as down conductors to the Lightning Protection and/or Earthing System using mechanical clamps or Exo-thermic Welding. For connecting flat and stranded conductors in parallel or T connection arrangement to form a continuous network. The Clamps have a high resistance to corrosion and show high mechanical strength to ensure a lasting connection.

Without Pre-Welded Tail, For Flat and Stranded Conductors

Earth Points for connecting to the internal rebars using either mechanical clamps or exo-thermic welding.

4 ??store.products_de??

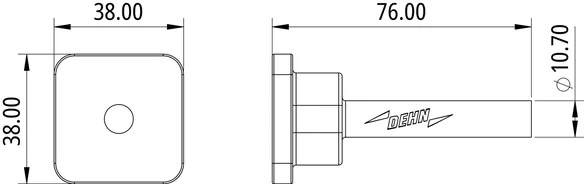

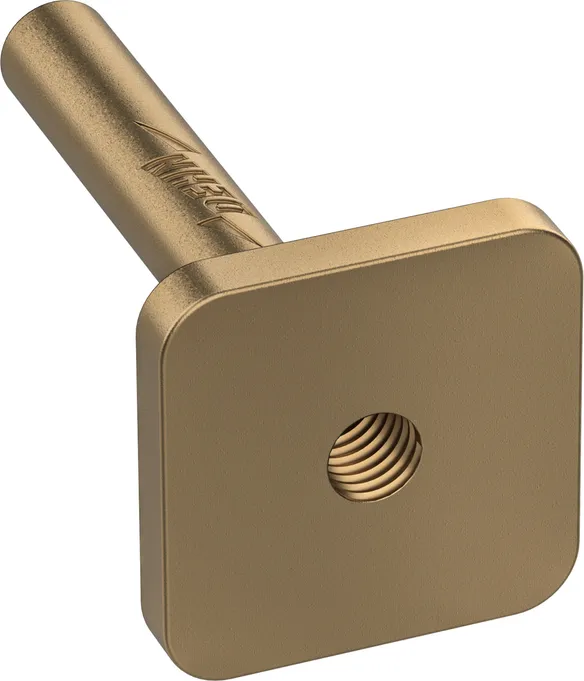

??store.product.number.short_de?? 118338 EP1H FLSC 20.31X2.5.6/50.95 HCA

??store.product.gtin_de?? 4013364520035, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 150.00 g, ??store.product.packaging_de??: 8.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Clamping range (Stranded / Cable) 50 - 95 mm²
Clamping range Fl W (20 - 31) mm x T (2.5 - 6) mm
Recommended Fixings for Stranded / Cable (50 - 95 mm²) M10 x 10 mm (Hex Head Screw) + M10 (Cable Lug)
Recommended Fixings for Fl T (2.5 - 4) mm M10 x 10 mm (Hex Head Screw)
Recommended Fixings for Fl T (5 - 6) mm M10 x 15 mm (Hex Head Screw)
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

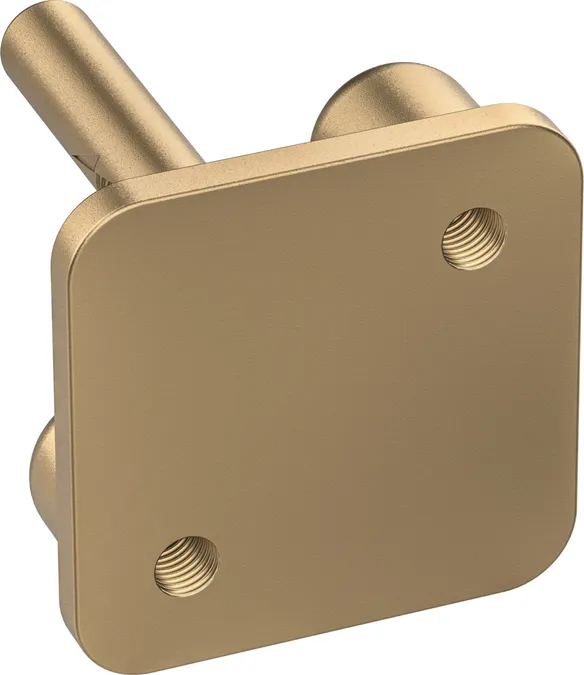

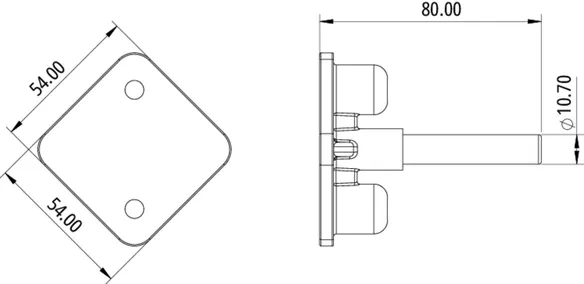

??store.product.number.short_de?? 118342 EP2H FLSC 25X2.5.6/50.95 HCA

??store.product.gtin_de?? 4013364520097, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 270.00 g, ??store.product.packaging_de??: 4.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Clamping range (Stranded / Cable) 50 - 95 mm²
Clamping range Fl 25 x 2.5 - 6 mm
Recommended Fixings for Stranded / Cable (50 - 95 mm²) M8 x 10 mm (Hex Head Screw) + M8 (Cable Lug)
Recommended Fixings for Fl T (2.5 - 4) mm M8 x 10 mm (Hex Head Screw)
Recommended Fixings for Fl T (5 - 6) mm M8 x 15 mm (Hex Head Screw)
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

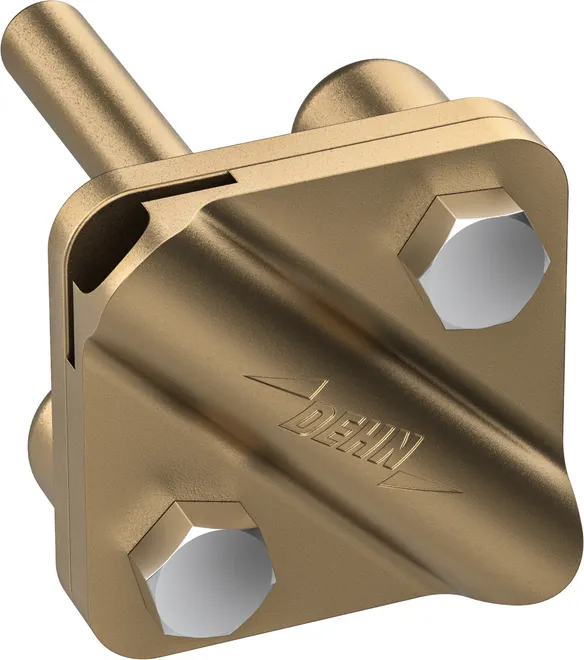

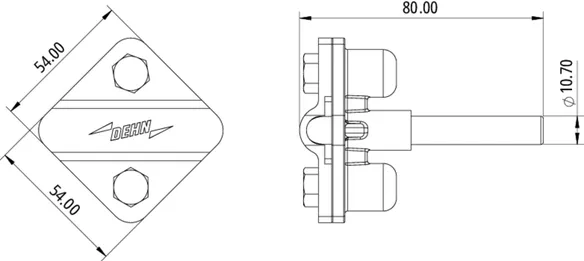

??store.product.number.short_de?? 118349 EP2H CP FLSC 25X3/70 HCA

??store.product.gtin_de?? 4013364520066, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 390.00 g, ??store.product.packaging_de??: 4.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Clamping range (Stranded / Cable) 70 mm²
Clamping range Fl 25 x 3 mm
Tightening Torque 10 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

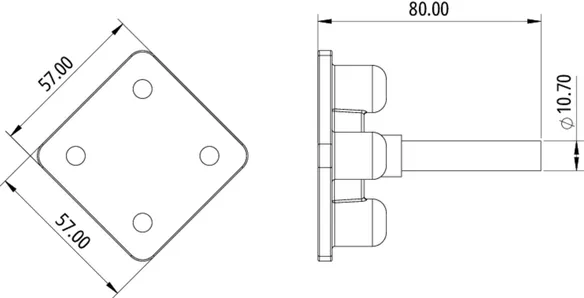

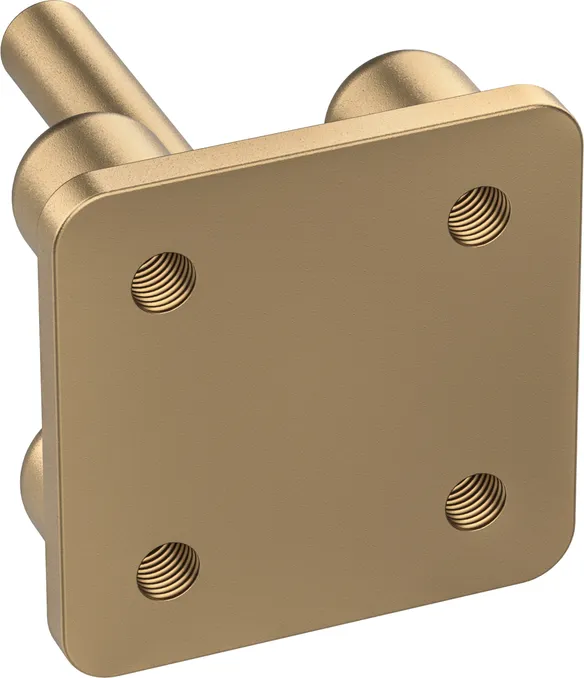

??store.product.number.short_de?? 118336 EP4H FLSC 25X2.5.6/50.95 HCA

??store.product.gtin_de?? 4013364520059, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 350.00 g, ??store.product.packaging_de??: 4.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Clamping range (Stranded / Cable) 50 - 95 mm²
Clamping range Fl 25 x 2.5 - 6 mm
Recommended Fixings for Stranded / Cable (50 - 95 mm²) M8 x 10 mm (Hex Head Screw) + M8 (Cable Lug)
Recommended Fixings for Fl T (2.5 - 4) mm M8 x 10 mm (Hex Head Screw)
Recommended Fixings for Fl T (5 - 6) mm M8 x 15 mm (Hex Head Screw)
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

With Pre-Welded Tail, For Flat and Stranded Conductors

Earth Points with pre-welded tail for connecting to the internal rebars using either mechanical clamps or exo-thermic welding.

3 ??store.products_de??

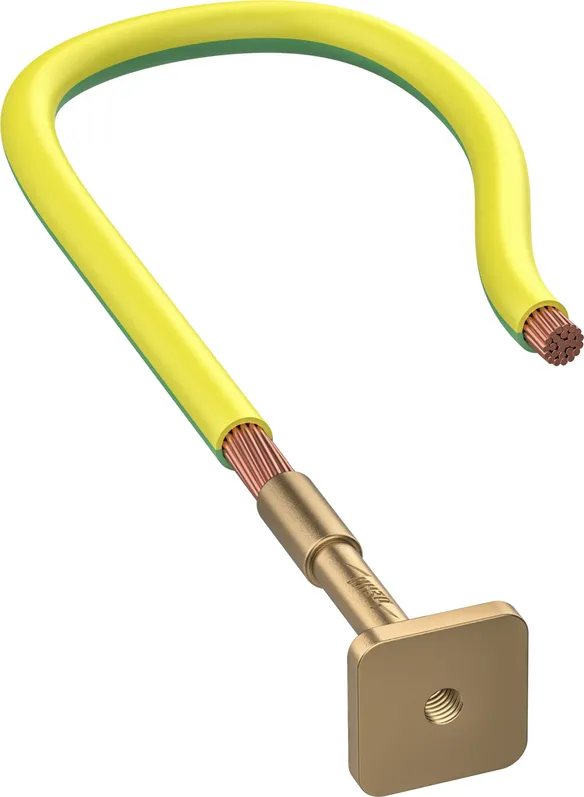

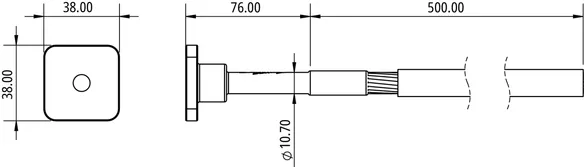

??store.product.number.short_de?? 118339 EP1H PWT70 FLSC 20.31X2.5.6/50.95 HCA

??store.product.gtin_de?? 4013364520080, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 500.00 g, ??store.product.packaging_de??: 8.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy + Single Pre-Welded Tail (70 mm² x 500 mm, PVC Cu Cable)
Conductor Material Copper
Clamping range (Stranded / Cable) 50 - 95 mm²
Clamping range Fl W (20 - 31) mm x T (2.5 - 6) mm
Recommended Fixings for Stranded / Cable (50 - 95 mm²) M10 x 10 mm (Hex Head Screw) + M10 (Cable Lug)
Recommended Fixings for Fl T (2.5 - 4) mm M10 x 10 mm (Hex Head Screw)
Recommended Fixings for Fl T (5 - 6) mm M10 x 15 mm (Hex Head Screw)
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

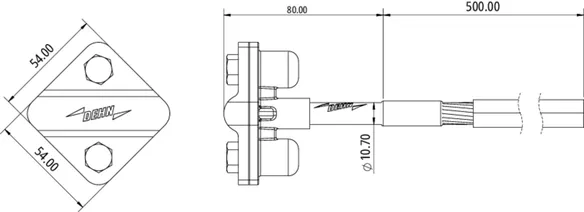

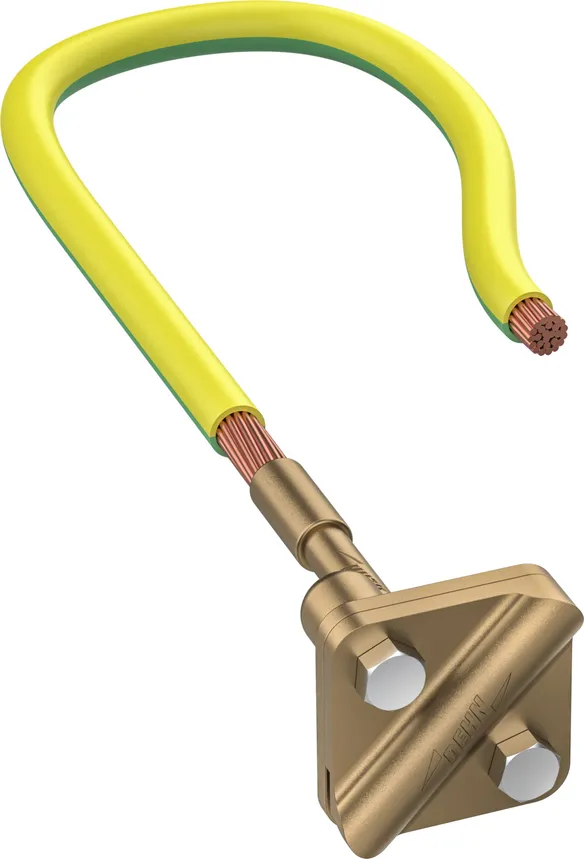

??store.product.number.short_de?? 118337 EP2H CP PWT70 FLSC 25X3/70 HCA

??store.product.gtin_de?? 4013364520042, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 740.00 g, ??store.product.packaging_de??: 4.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy + Single Pre-Welded Tail (70 mm² x 500 mm, PVC Cu Cable)
Conductor Material Copper
Clamping range (Stranded / Cable) 70 mm²
Clamping range Fl 25 x 3 mm
Tightening Torque 10 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

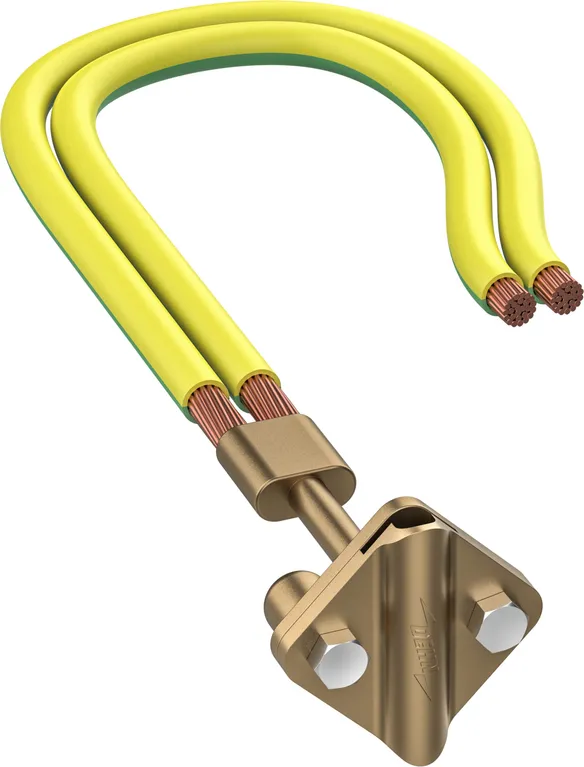

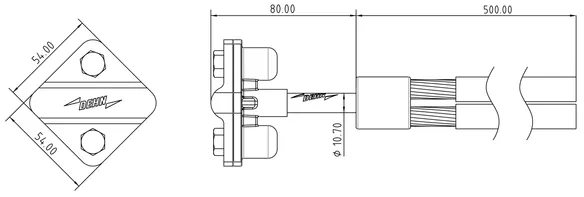

??store.product.number.short_de?? 118346 EP2H CP 2PWT70 FLSC 25X3/70 HCA

??store.product.gtin_de?? 4013364520073, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.12 kg, ??store.product.packaging_de??: 4.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy + Double Pre-Welded Tail (70 mm² x 500 mm, PVC Cu Cable)
Conductor Material Copper
Clamping range (Stranded / Cable) 70 mm²
Clamping range Fl 25 x 3 mm
Tightening Torque 10 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
