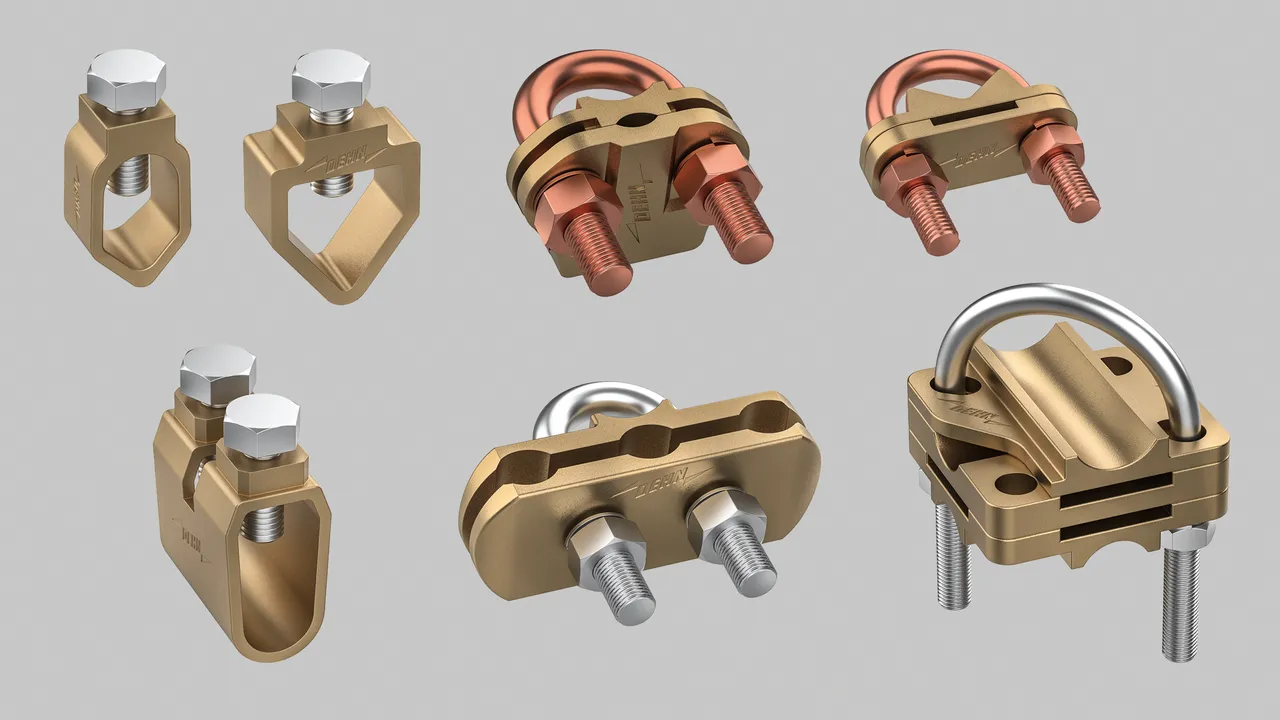

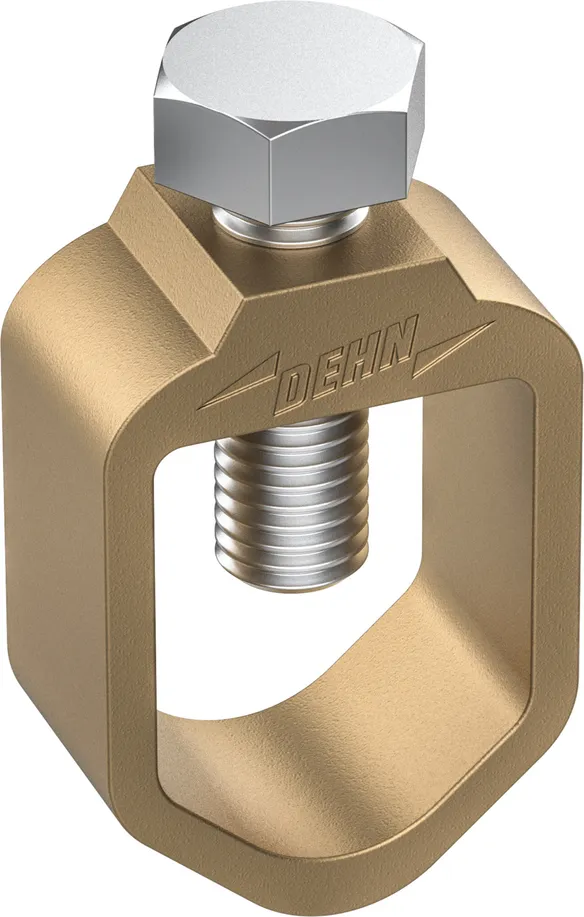

Earth Rod to Conductor Clamps

Earth Rod Clamps are used for interconnecting various sizes of earth rods with stranded cables and flat condutors.
The Clamps have a high resistance to corrosion and show high mechanical strength to ensure a lasting connection.

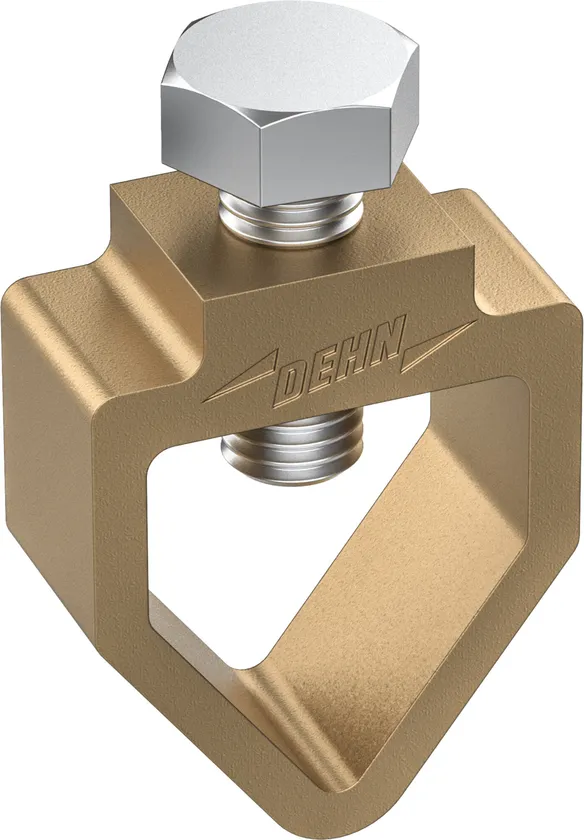

Earth Rods to Stranded Conductors

4 ??store.products_de??

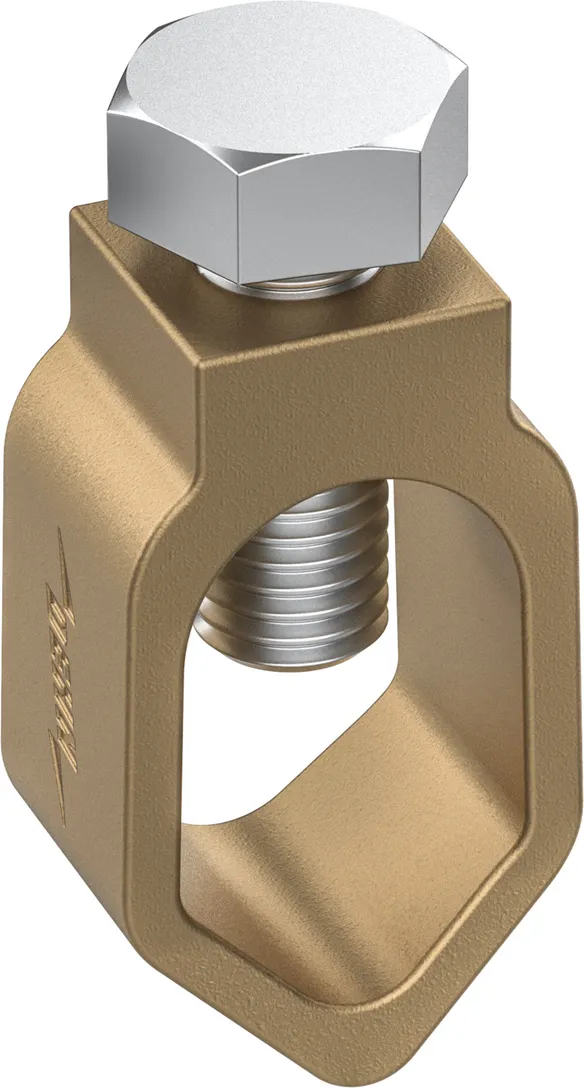

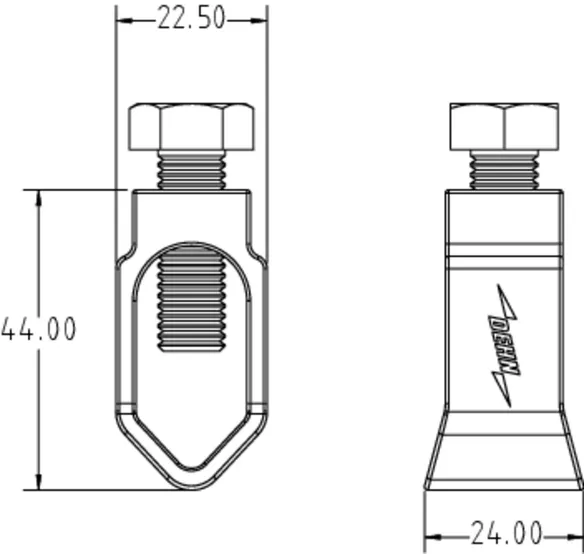

??store.product.number.short_de?? 138136 ERCC ERSC 14.2.16/16.95 HCA

??store.product.gtin_de?? 4013364475854, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 70.00 g, ??store.product.packaging_de??: 20.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 16 mm / 16 - 95 mm²
Clamp Fixings Hex Head Bolt M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 12 Nm
Dimensions (l x w x h) 25.5 x 24 x 44 mm
Standards IEC / EN / BS EN 62561-1
Classification Class N
Lightning current carrying capability (10/350 μs) &
Note: M10 x 25mm Phosphor Bronze (Bolt) can be supplied upon request.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

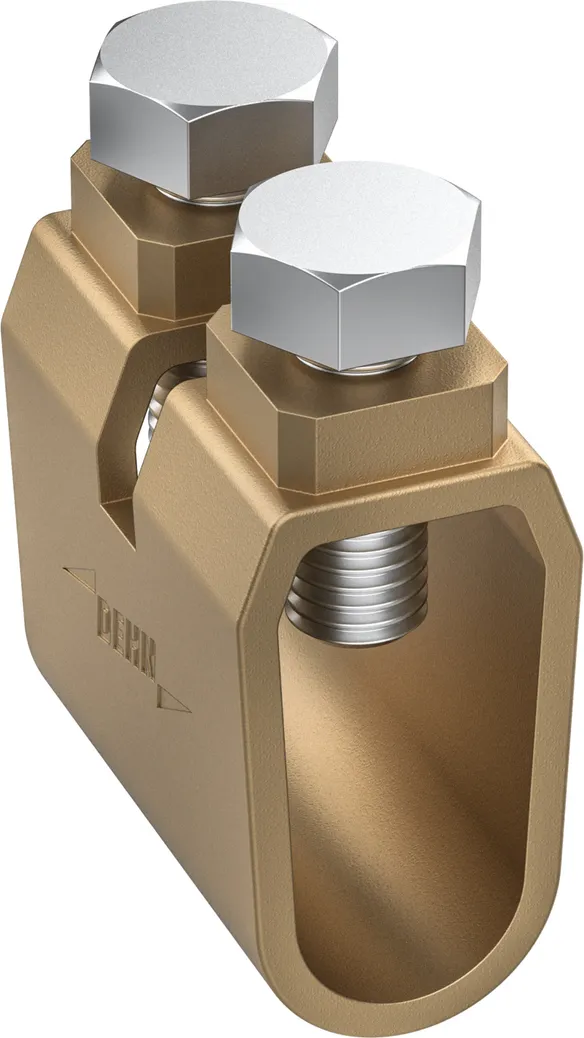

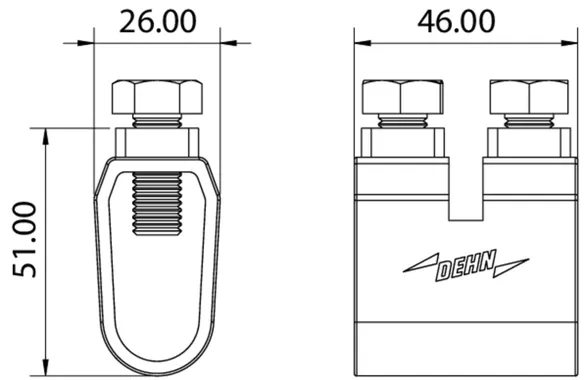

??store.product.number.short_de?? 138134 ERCC ERSC 14.2.16/95.150 HCA

??store.product.gtin_de?? 4013364519237, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 180.00 g, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 16 mm / 95 - 150 mm²
Clamp Fixings Hex Head Bolt M10 x 2 Nos
Material of Clamp Fixings Stainless Steel
Tightening Torque 12 Nm
Dimensions (l x w x h) 26 x 46 x 51 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: M10 x 25mm Phosphor Bronze (Bolt) can be supplied upon request.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

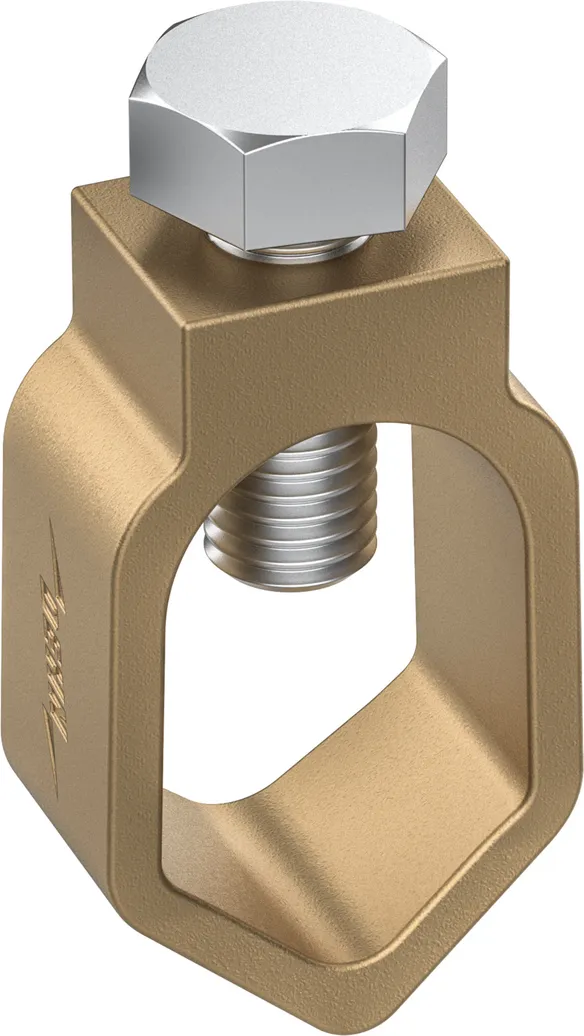

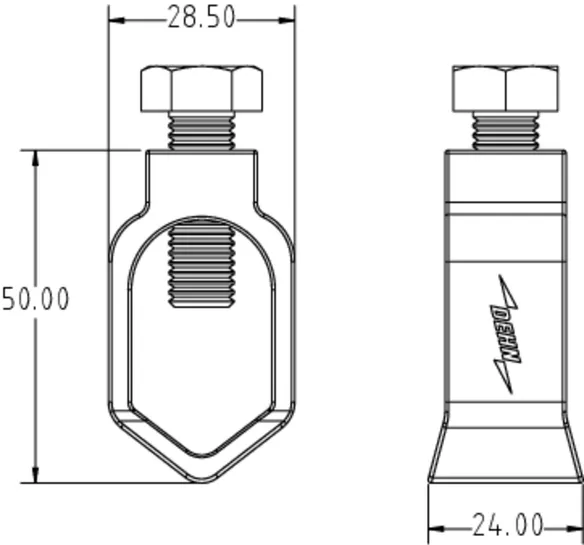

??store.product.number.short_de?? 138137 ERCC ERSC 17.2.20/16.95 HCA

??store.product.gtin_de?? 4013364475861, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 100.00 g, ??store.product.packaging_de??: 20.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 17.2 - 20 mm / 16 - 95 mm²
Clamp Fixings Hex Head Bolt M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 12 Nm
Dimensions (l x w x h) 28.5 x 24 x 50 mm
Standards IEC / EN / BS EN 62561-1
Classification Class N
Lightning current carrying capability (10/350 μs) &
Note: M10 x 25mm Phosphor Bronze (Bolt) can be supplied upon request.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

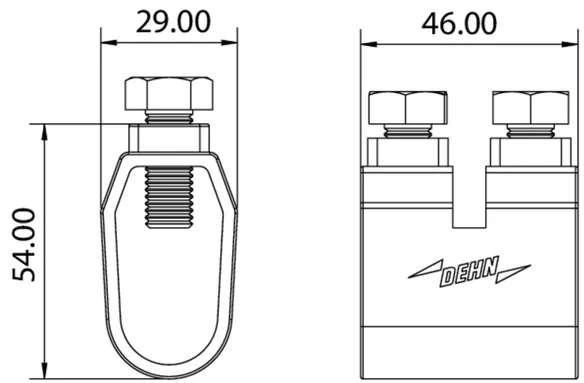

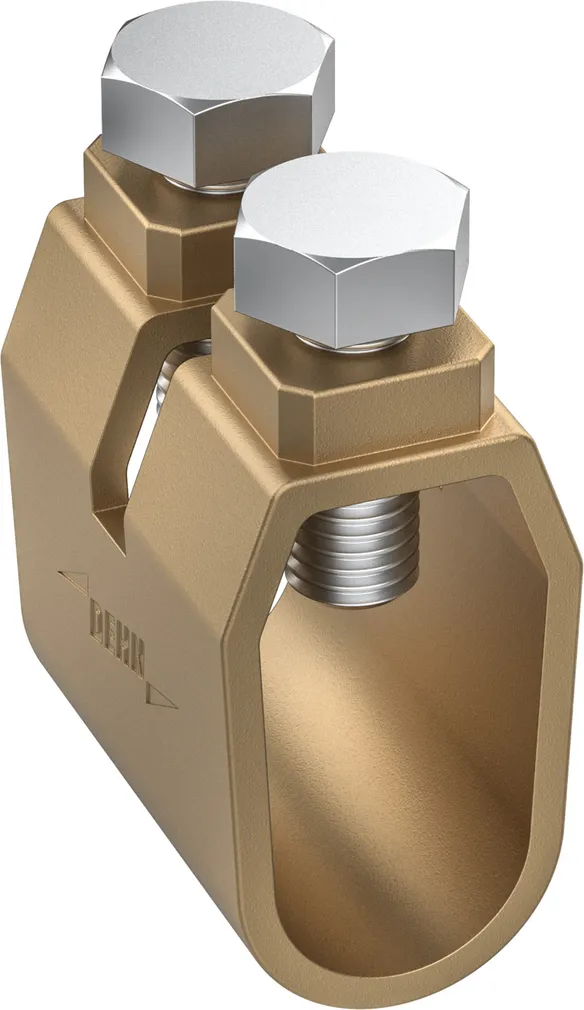

??store.product.number.short_de?? 138135 ERCC ERSC 17.2.20/95.150 HCA

??store.product.gtin_de?? 4013364519244, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 190.00 g, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 17.2 - 20 mm / 95 - 150 mm²
Clamp Fixings Hex Head Bolt M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 12 Nm
Dimensions (l x w x h) 29 x 46 x 54 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: M10 x 25mm Phosphor Bronze (Bolt) can be supplied upon request.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

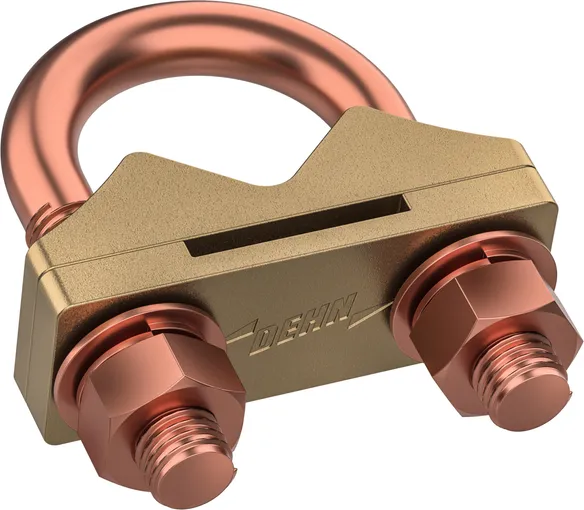

U-Bolt Clamps for Earth Rods to Stranded Conductors

7 ??store.products_de??

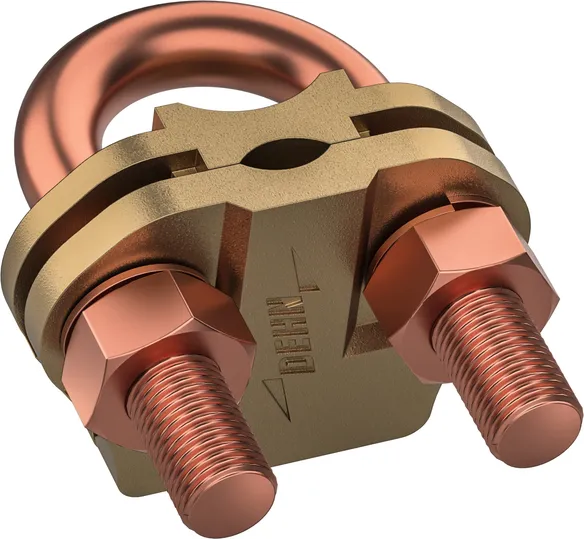

??store.product.number.short_de?? 138164 UBC ERRBSC 12.20/16.70 HCA CU

??store.product.gtin_de?? 4013364519077, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 220.00 g, ??store.product.packaging_de??: 8.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 16 - 70 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 16 - 70 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 15 Nm
Dimensions (l x w x h) 82.5 x 52 x 38 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

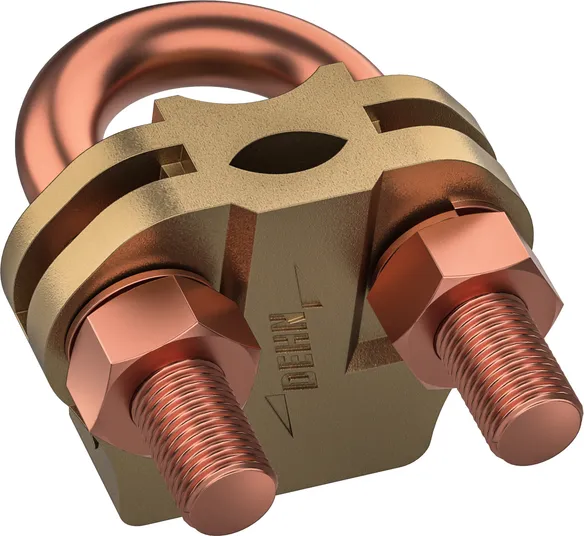

??store.product.number.short_de?? 138165 UBC ERRBSC 12.20/70.150 HCA CU

??store.product.gtin_de?? 4013364519084, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 240.00 g, ??store.product.packaging_de??: 8.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 70 - 150 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 70 - 150 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Dimensions (l x w x h) 82.5 x 52 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

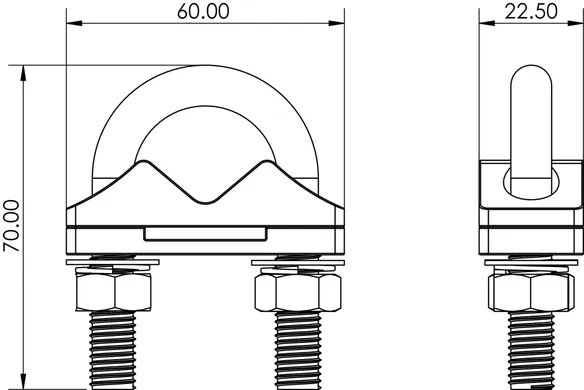

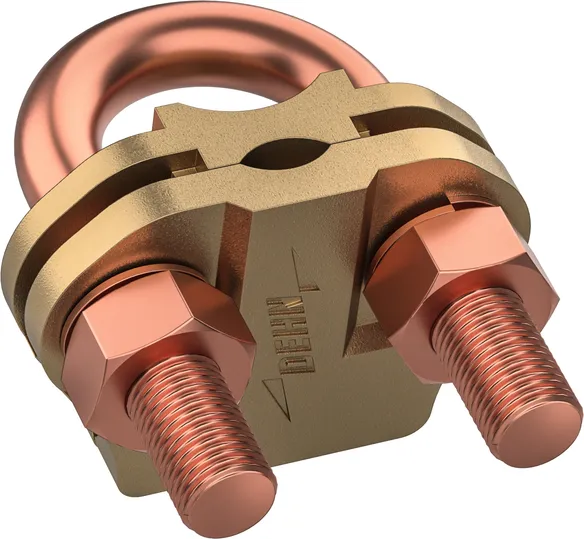

??store.product.number.short_de?? 138166 UBC ERRBSC 12.20/150.300 HCA CU

??store.product.gtin_de?? 4013364519091, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 280.00 g, ??store.product.packaging_de??: 6.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 150 - 300 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 150 - 300 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Dimensions (l x w x h) 75 x 60 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

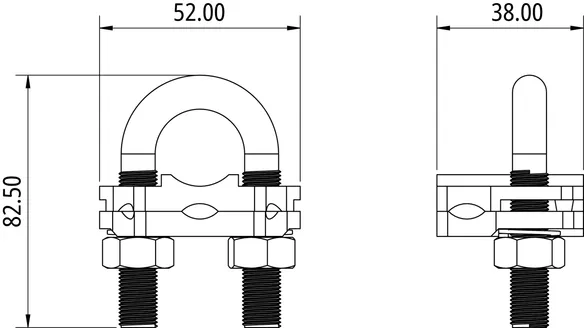

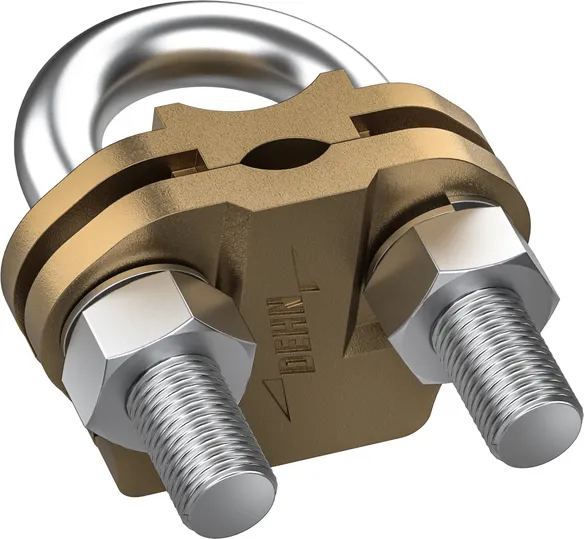

??store.product.number.short_de?? 138170 UBC ERRBSC 12.20/16.70 HCA

??store.product.gtin_de?? 4013364519107, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 210.00 g, ??store.product.packaging_de??: 8.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 16 - 70 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 16 - 70 mm²
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 82.5 x 52 x 38 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

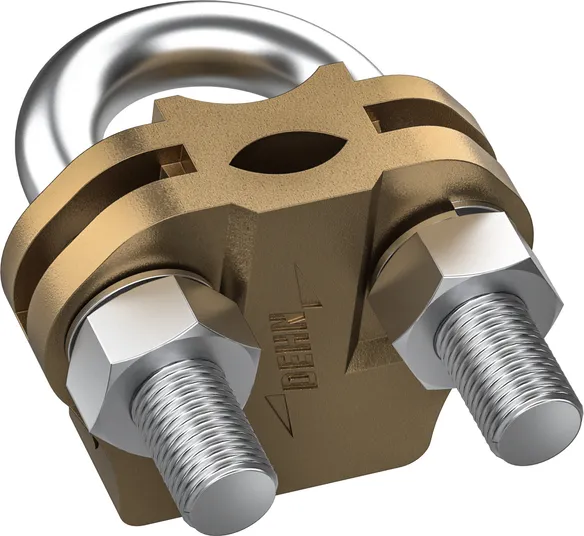

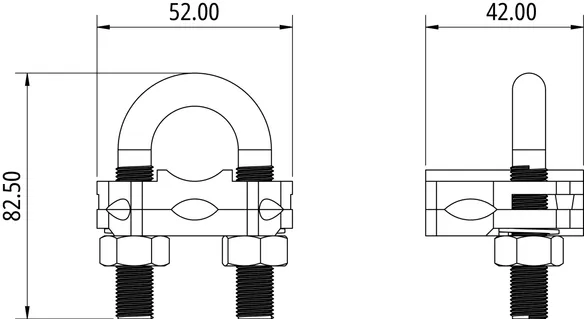

??store.product.number.short_de?? 138171 UBC ERRBSC 12.20/70.150 HCA

??store.product.gtin_de?? 4013364519114, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 230.00 g, ??store.product.packaging_de??: 8.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 70 - 150 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 70 - 150 mm²
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 82.5 x 52 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

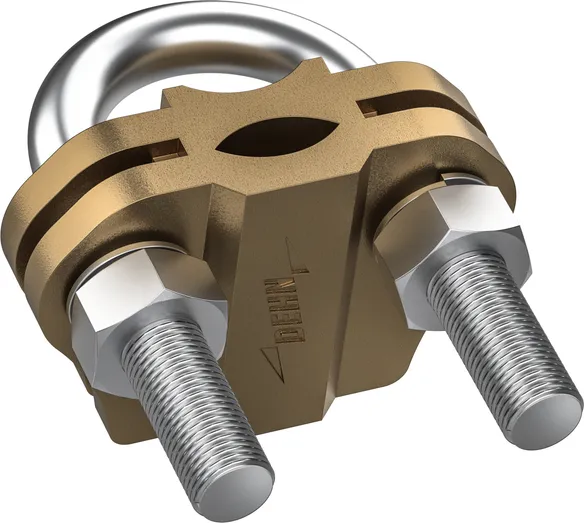

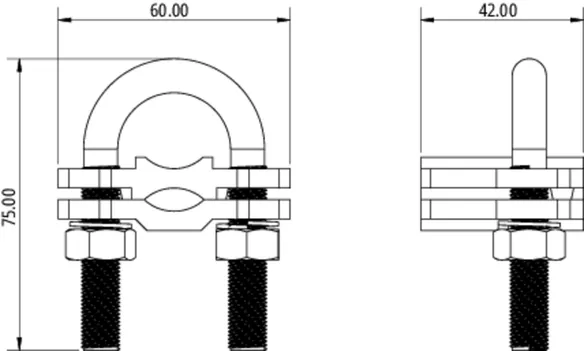

??store.product.number.short_de?? 138172 UBC ERRBSC 12.20/150.300 HCA

??store.product.gtin_de?? 4013364519121, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 270.00 g, ??store.product.packaging_de??: 6.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 150 - 300 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 150 - 300 mm²
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 75 x 60 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

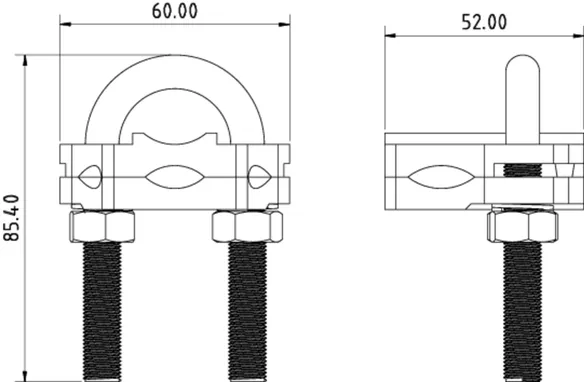

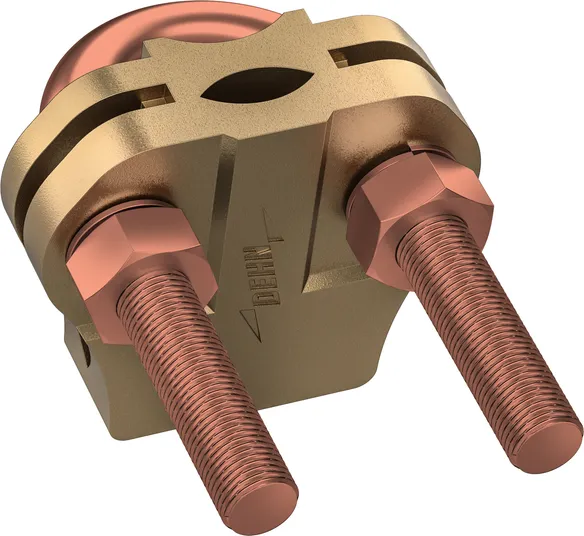

??store.product.number.short_de?? 138177 UBC ERRBSC 12.25/70.300 HCA CU

??store.product.gtin_de?? 4013364519138, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 370.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 25 mm / 70 - 300 mm²
Clamping range Rebar / Stranded cable 12 - 25 mm / 70 - 300 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

U-Bolt Clamp Earth Rods to Multi-Stranded Conductors

1 ??store.product_de??

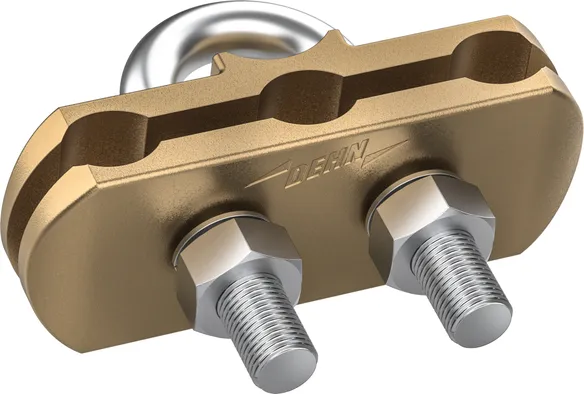

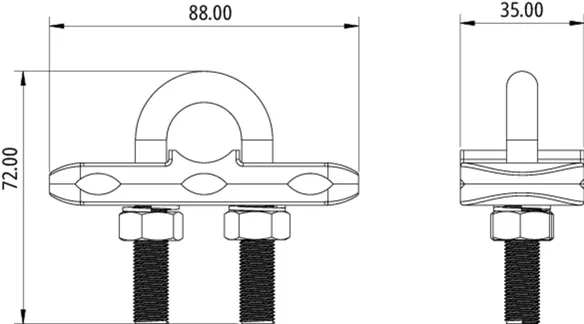

??store.product.number.short_de?? 138283 UBC ERSC 14.2.20/35.150 HCA

??store.product.gtin_de?? 4013364519190, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 308.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 3 x (35 - 150 mm²)
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 15 Nm
Dimensions (l x w x h) 88 x 35 x 72 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Earth Rods to Flat Conductors

3 ??store.products_de??

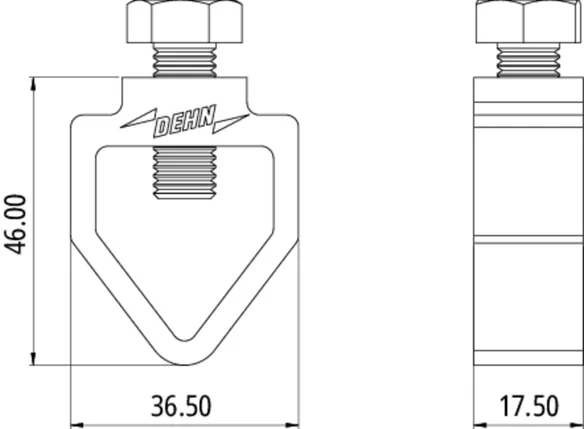

??store.product.number.short_de?? 138150 ERCC ERFL 14.2.20/25X3 HCA

??store.product.gtin_de?? 4013364298156, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 90.00 g, ??store.product.packaging_de??: 100.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Fl 14.2 - 20 mm / 25 x 3 mm
Clamp Fixings Hex Head Bolt M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 15 Nm
Dimensions (l x w x h) 46 x 36.5 x 17.5 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

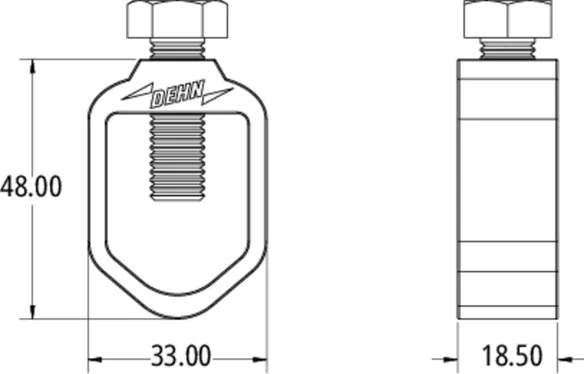

??store.product.number.short_de?? 138151 ERCC ERFL 14.2.20/25X9 HCA

??store.product.gtin_de?? 4013364528253, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 100.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Fl 14.2 - 20 mm / 25 x 3 mm (3 nos)
Clamp Fixings Hex Head Bolt M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 15 Nm
Dimensions (l x w x h) 48 x 33 x 18.5 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

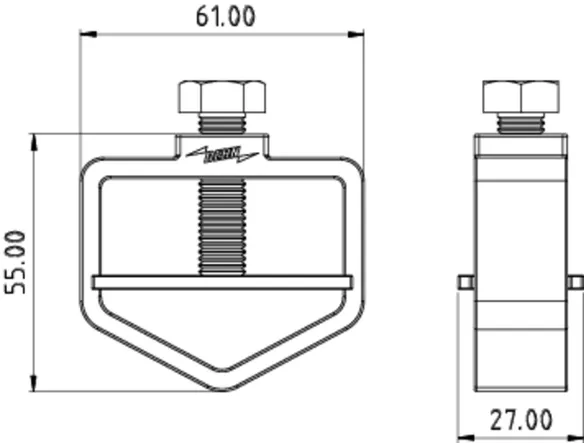

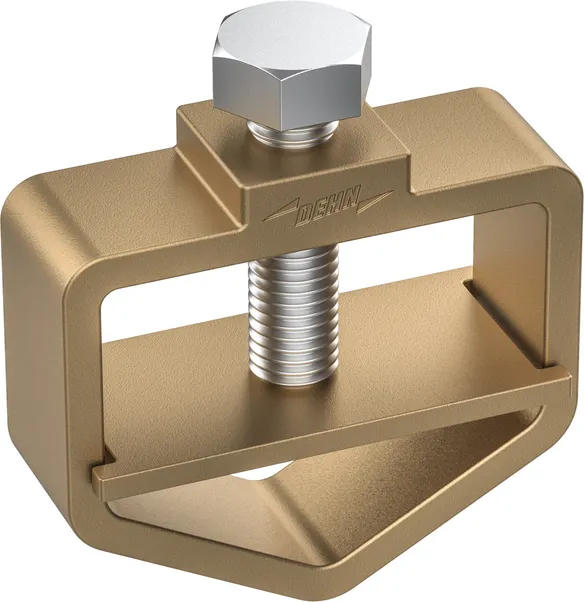

??store.product.number.short_de?? 138152 ERCC ERFL 14.2.20/25.50X3.6 HCA

??store.product.gtin_de?? 4013364534995, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 210.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Fl 14.2 - 20 mm / W (25-50) x T (3-6) mm
Clamp Fixings Hex Head Bolt M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 15 Nm
Dimensions (l x w x h) 61 x 55 x 20 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

U-Bolt Clamps for Earth Rods to Flat Conductors

138265 is expected to be available for delivery in Q2/2025!

3 ??store.products_de??

??store.product.number.short_de?? 138148 UBC FLER 25X3/16.25 HCA CU

??store.product.gtin_de?? 4013364300507, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 230.00 g, ??store.product.packaging_de??: 50.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Fl / Rod 25 x 3 / 16 - 25 mm
Clamping range Fl / Rebar 25 x 3 / 16 - 25 mm
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Dimensions (l x w x h) 60 x 22.5 x 70 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: For Single Plate U-Bolt application - Stranded cables crimped using appropriate cable lugs may be connected by removing the bottom plate and fixed directly to the top plate using the clamp fixings.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

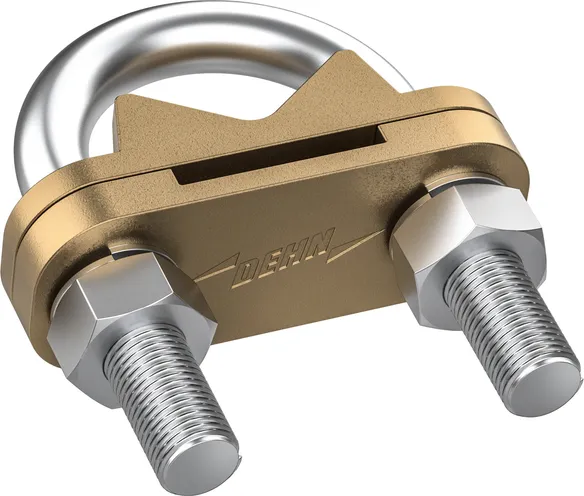

??store.product.number.short_de?? 138261 UBC FLERRB 25X3/12.25 HCA

??store.product.gtin_de?? 4013364519015, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 190.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Fl / Rod 25 x 3 / 14.2 - 25 mm
Clamping range Fl / Rebar 25 x 3 / 12 - 25 mm
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 62 x 25 x 70 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: For Single Plate U-Bolt application - Stranded cables crimped using appropriate cable lugs may be connected by removing the bottom plate and fixed directly to the top plate using the clamp fixings.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

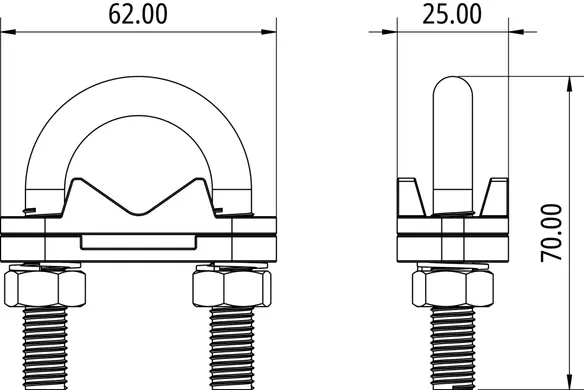

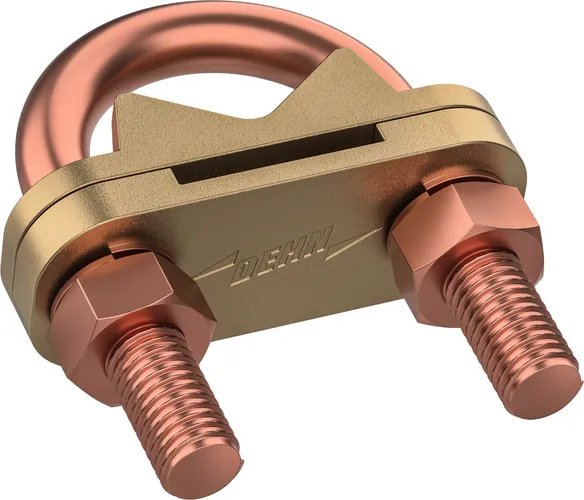

??store.product.number.short_de?? 138265 UBC FLERRB 25X3/12.25 HCA CU

??store.product.gtin_de?? 4013364519046, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 210.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Fl / Rod 25 x 3 / 14.2 - 25 mm
Clamping range Fl / Rebar 25 x 3 / 12 - 25 mm
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 15 Nm
Dimensions (l x w x h) 62 x 25 x 70 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: For Single Plate U-Bolt application - Stranded cables crimped using appropriate cable lugs may be connected by removing the bottom plate and fixed directly to the top plate using the clamp fixings.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Multipurpose Earth Rod Clamp

Expected to be available for delivery in Q2/2025!

1 ??store.product_de??

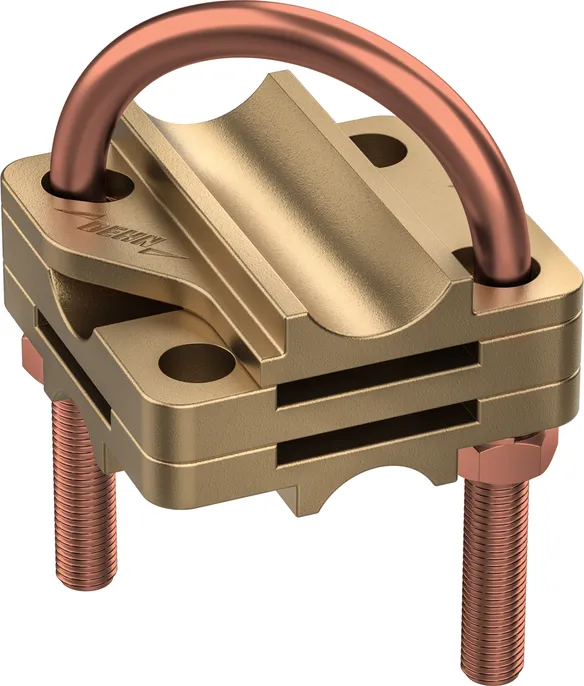

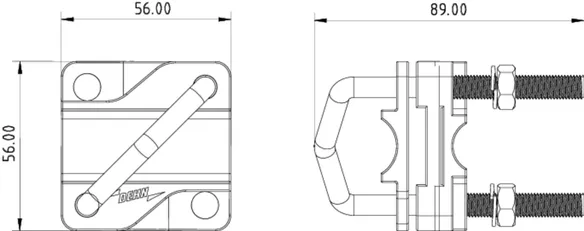

??store.product.number.short_de?? 138284 MUBC FLERSC 25X3.6/14.2.20/50.150 HCA

??store.product.gtin_de?? 4013364519206, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 432.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Fl / Fl 14.2 - 20 mm / 25 x 3-6 mm / 25 x 3-6 mm
Clamping range Rod / Fl / Stranded cable 14.2 - 20 mm / 25 x 3-6 mm / 50 - 150 mm²
Clamping range Rod / Stranded cable / Stranded cable 14.2 - 20 mm / 50 - 150 mm² / 50 - 150 mm²
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 56 x 56 x 89 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
back to top
