Earth Braid Bonds

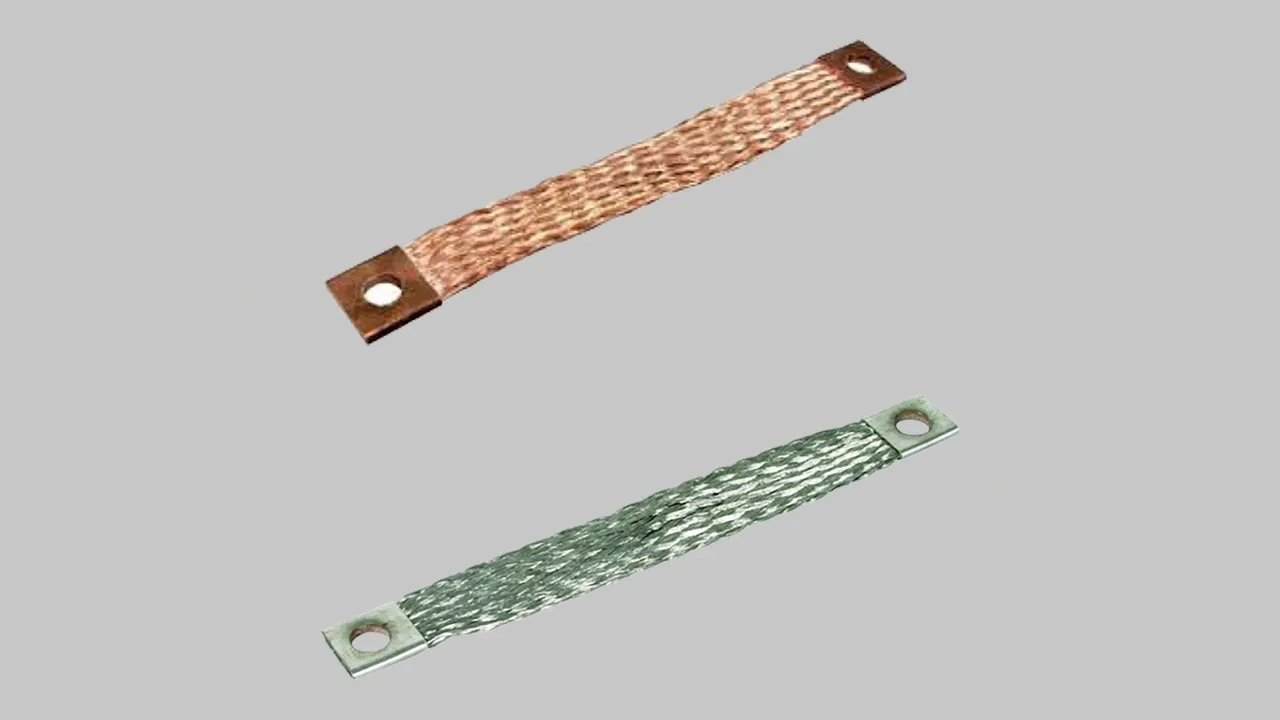

Earth Braid Bonds are suitable for applications of equipotential bonding, available in copper and tinned copper variants. The Braid Bonds are pre-terminated at both ends and are ideal for bonding metal doors or cladding, for both lightning protection and equipotential bonding.

Copper

Earth Braid Bonds Copper.

4 Products

Part No. 138220 EBB 25X3.5 L200 H11 CU

GTIN 4013364540736, Customs tariff No. (EU): 85359000, Gross weight: 60.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Copper

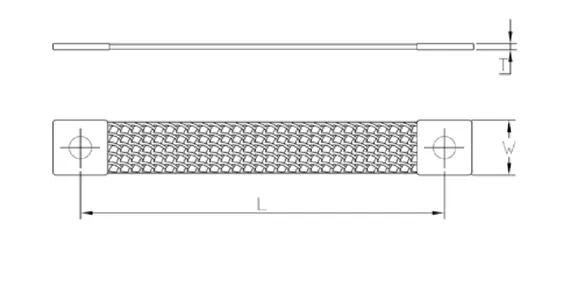

Width W 25 mm
Thickness T 3.5 mm
Length L 200 mm
Hole Dia 11 mm
Recommended Fixings M10 (Bolt, Nut & Washer)
Cross Section 35 mm2
Note: Other Diameters, Lengths, Thread Sizes are available on special request.

Product 138220 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 138222 EBB 25X3.5 L400 H11 CU

GTIN 4013364540743, Customs tariff No. (EU): 85359000, Gross weight: 106.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Copper
Width W 25 mm
Thickness T 3.5 mm
Length L 400 mm
Hole Dia 11 mm
Recommended Fixings M10 (Bolt, Nut & Washer)
Cross Section 35 mm2
Note: Other Diameters, Lengths, Thread Sizes are available on special request.

Product 138222 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

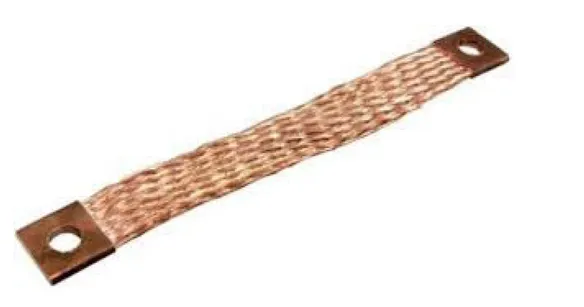

Part No. 138224 EBB 30X5 L200 H11 CU

GTIN 4013364540750, Customs tariff No. (EU): 85359000, Gross weight: 125.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Copper
Width W 30 mm
Thickness T 5 mm
Length L 200 mm
Hole Dia 11 mm
Recommended Fixings M10 (Bolt, Nut & Washer)
Cross Section 50 mm2
Note: Other Diameters, Lengths, Thread Sizes are available on special request.

Product 138224 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 138226 EBB 30X5 L400 H11 CU

GTIN 4013364540767, Customs tariff No. (EU): 85359000, Gross weight: 235.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Copper
Width W 30 mm
Thickness T 5 mm
Length L 400 mm
Hole Dia 11 mm
Recommended Fixings M10 (Bolt, Nut & Washer)
Cross Section 50 mm2
Note: Other Diameters, Lengths, Thread Sizes are available on special request.

Product 138226 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Tinned Copper

Earth Braid Bonds Tinned Copper.

4 Products

Part No. 138200 EBB 25X3.5 L200 H11 SNCU

GTIN 4013364300491, Customs tariff No. (EU): 85359000, Gross weight: 60.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Tinned Copper
Width W 25 mm
Thickness T 3.5 mm
Length L 200 mm
Hole Dia 11 mm
Recommended Fixings M10 (Bolt, Nut & Washer)
Cross Section 35 mm2
Note: Other Diameters, Lengths, Thread Sizes are available on special request.

Product 138200 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 138201 EBB 25X3.5 L400 H11 SNCU

GTIN 4013364540774, Customs tariff No. (EU): 85359000, Gross weight: 106.00 g, PU: 25.00 pc(s)

Images

Additional information



Technical data

Material Tinned Copper
Width W 25 mm
Thickness T 3.5 mm
Length L 400 mm
Hole Dia 11 mm
Recommended Fixings M10 (Bolt, Nut & Washer)
Cross Section 35 mm2
Note: Other Diameters, Lengths, Thread Sizes are available on special request.

Product 138201 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 138202 EBB 30X5 L200 H11 SNCU

GTIN 4013364540781, Customs tariff No. (EU): 85359000, Gross weight: 125.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Tinned Copper
Width W 30 mm
Thickness T 5 mm
Length L 200 mm
Hole Dia 11 mm
Recommended Fixings M10 (Bolt, Nut & Washer)
Cross Section 50 mm2
Note: Other Diameters, Lengths, Thread Sizes are available on special request.

Product 138202 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

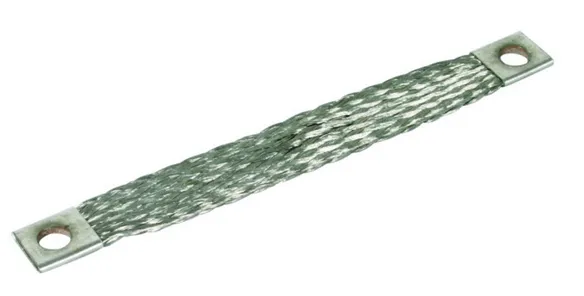

Part No. 138203 EBB 30X5 L400 H11 SNCU

GTIN 4013364540798, Customs tariff No. (EU): 85359000, Gross weight: 235.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Tinned Copper
Width W 30 mm
Thickness T 5 mm
Length L 400 mm
Hole Dia 11 mm
Recommended Fixings M10 (Bolt, Nut & Washer)
Cross Section 50 mm2
Note: Other Diameters, Lengths, Thread Sizes are available on special request.
