DEHNbloc modular

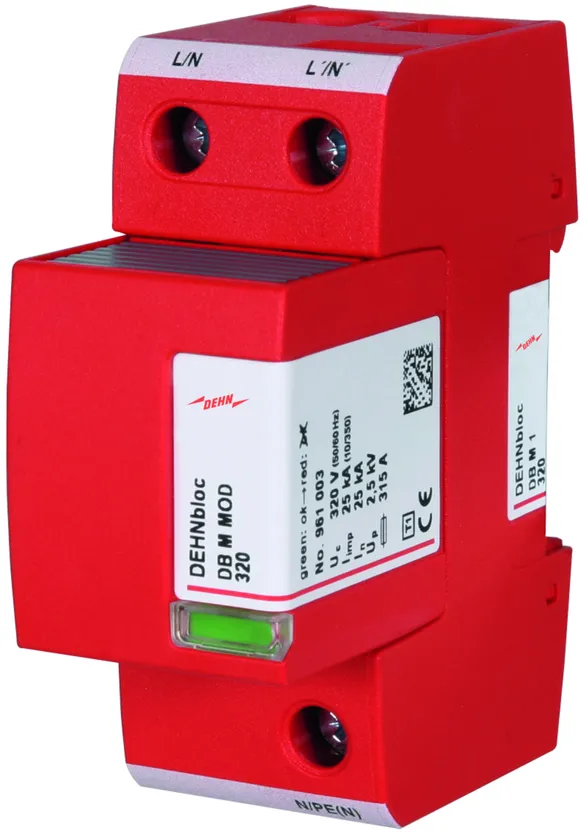

Coordinated spark-gap-based lightning current arrester consisting of a base part and a plug-in protection module
Maximum system availability due to RADAX Flow follow current limitation
No tripping of 32 A gG fuses up to short-circuit currents of 50 kA_rms
Discharge capacity up to 50 kA (10/350 µs)

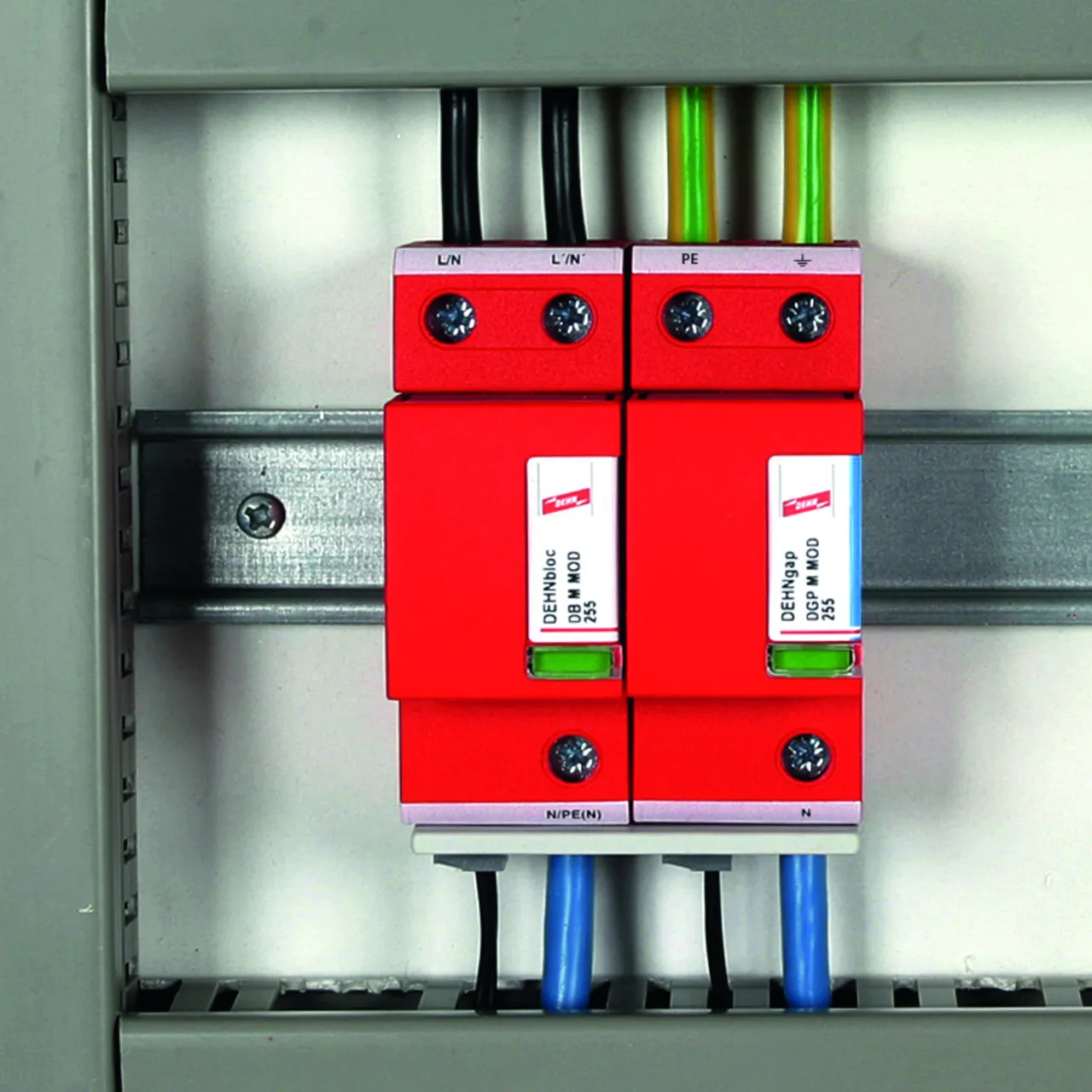

Directly coordinated with DEHNguard surge protective devices without additional cable length
Low voltage protection level
Operating state / fault indication by green / red indicator flag in the inspection window
Easy replacement of protection modules without tools due to module locking system with module release button

Details

DEHNbloc M 1 ...

Coordinated and modular single-pole lightning current arrester with a high discharge capacity.

3 ??store.products_de??

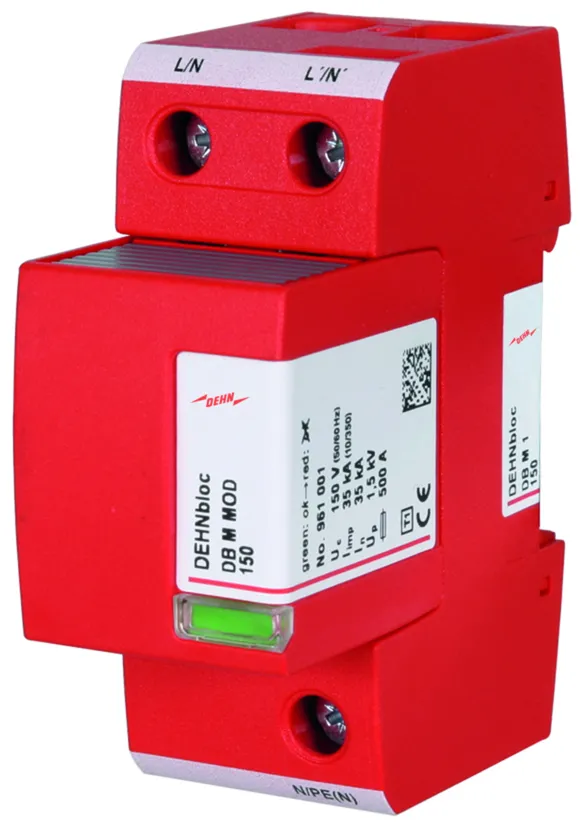

??store.product.number.short_de?? 961110 DB M 1 150

??store.product.gtin_de?? 4013364118560, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 333.40 g, ??store.product.packaging_de??: 1.00 pc(s)
