Protection module for DEHNsecure modular

  • Spark gap technology particularly suited for use in d.c. circuits
  • Operating state / fault indication by green / red indicator flag in the inspection window

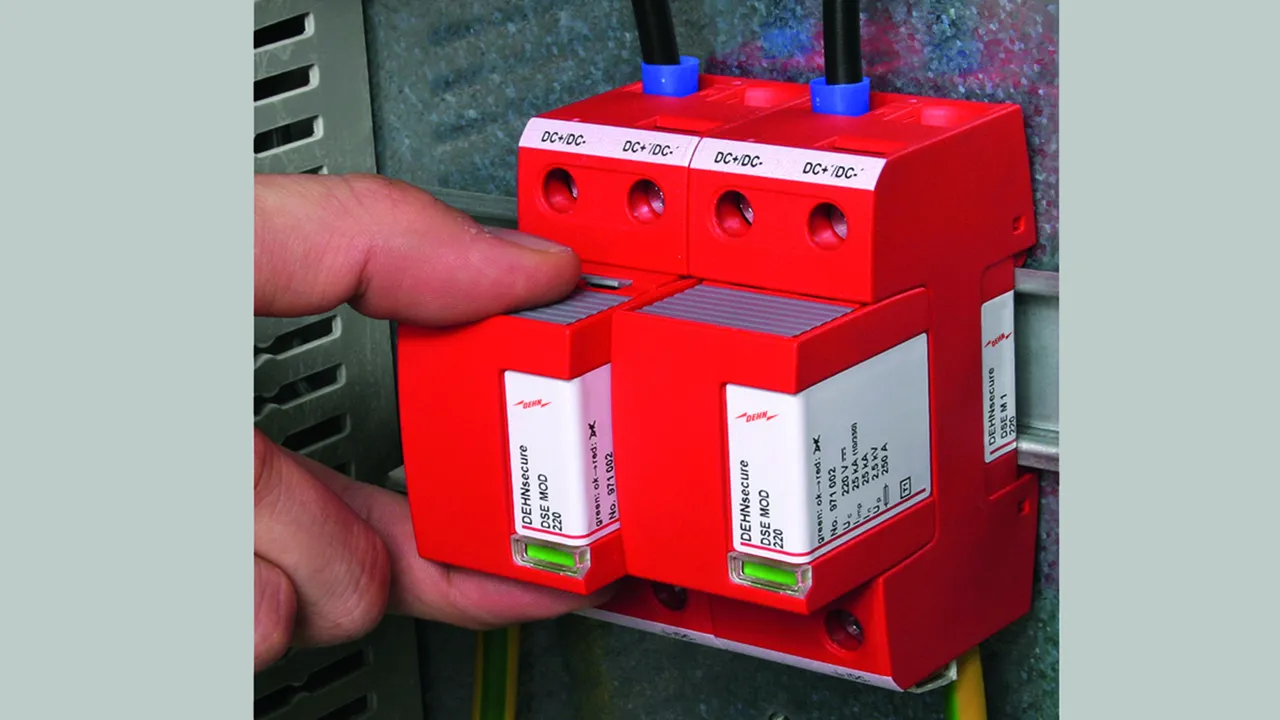

  • Easy replacement of protection modules without tools due to module locking system with module release button

DSE M Spark-Gap-Based Protection Module

Spark-gap-based protection module

3 ??store.products_de??

??store.product.number.short_de?? 971001 DSE MOD 60

??store.product.gtin_de?? 4013364138605, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 151.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

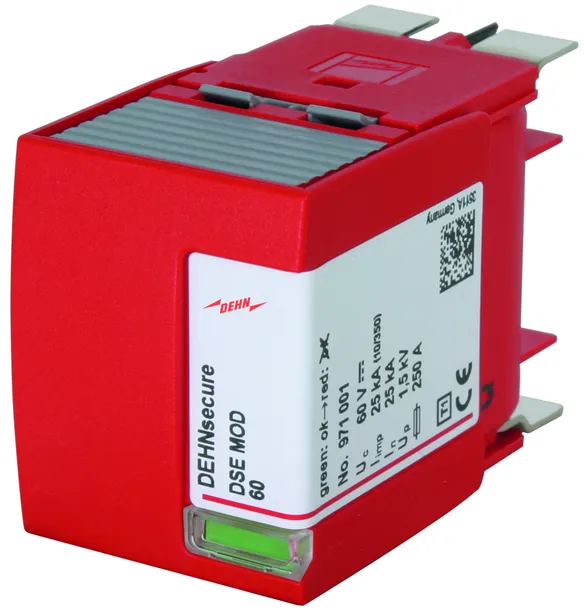

DSE MOD 60 spark-gap-based protection module
Spark-gap-based protection module for
coordinated single-pole type 1 arresters of
the Red/Line series according to EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V d.c.
Lightning impulse current: 25 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 25 kA

Brand: DEHN
Type: DSE MOD 60
Part No.: 971001
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 971002 DSE MOD 220

??store.product.gtin_de?? 4013364133655, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 118.20 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

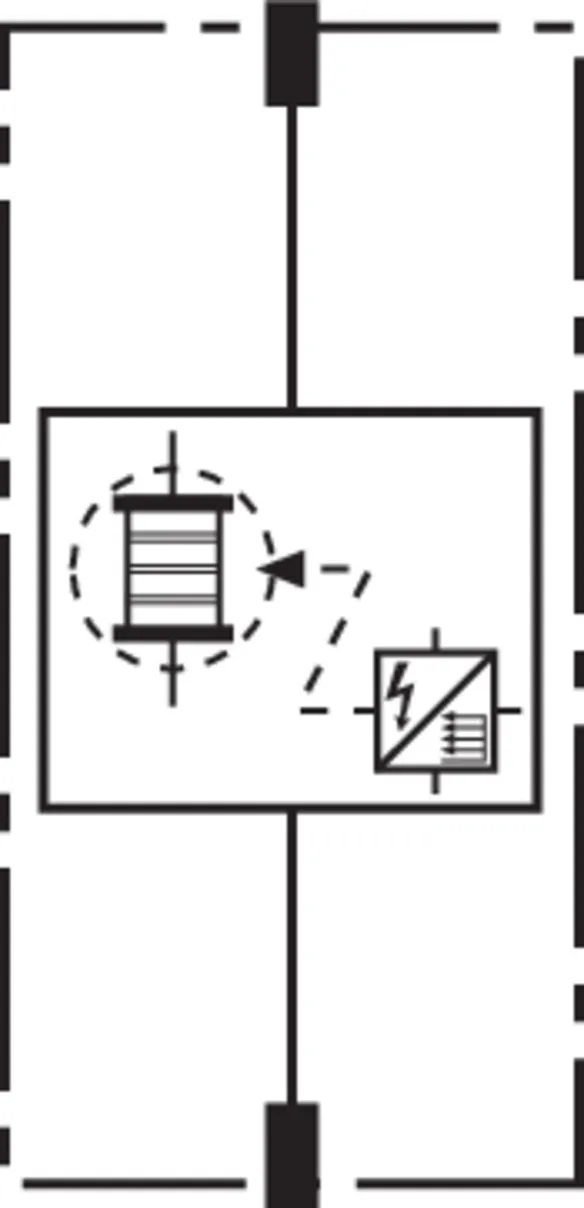

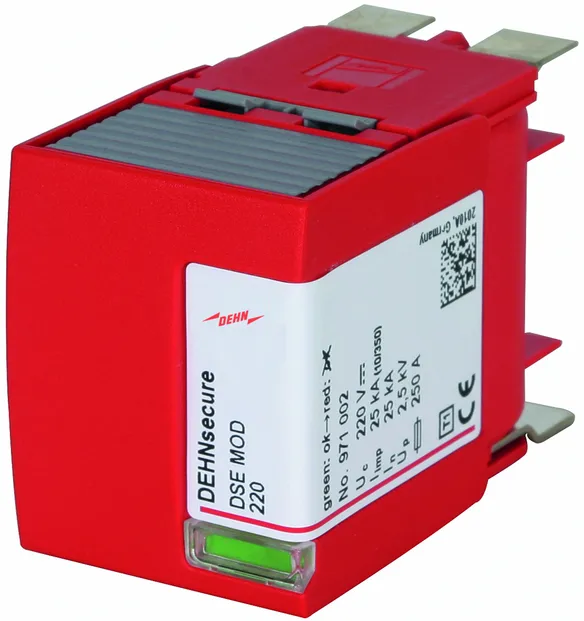

DSE MOD 220 spark-gap-based protection module
Spark-gap-based protection module for
coordinated single-pole type 1 arresters of
the Red/Line series according to EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 220 V d.c.
Lightning impulse current: 25 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 25 kA

Brand: DEHN
Type: DSE MOD 220
Part No.: 971002
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Max. continuous operating voltage (d.c.) (UC ) 220 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 971003 DSE MOD 242

??store.product.gtin_de?? 4013364144491, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 120.50 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

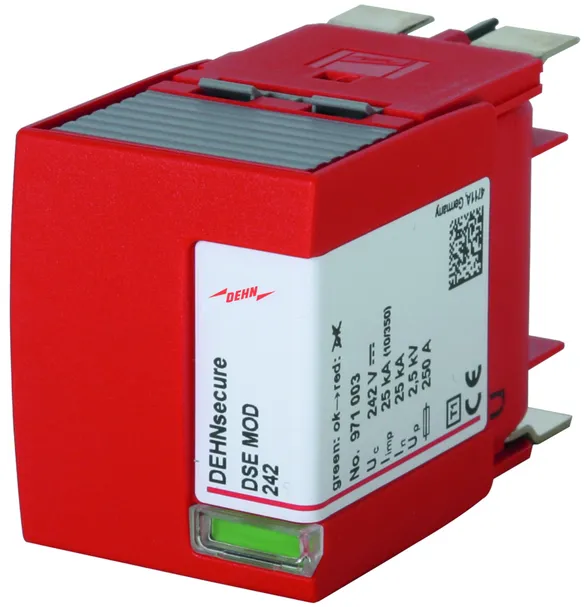

DSE MOD 242 spark-gap-based protection module
Spark-gap-based protection module for
coordinated single-pole type 1 arresters of
the Red/Line series according to EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 242 V d.c.
Lightning impulse current: 25 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 25 kA

Brand: DEHN
Type: DSE MOD 242
Part No.: 971003
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Max. continuous operating voltage (d.c.) (UC ) 242 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

DSE PE Spark-Gap-Based Protection Module

Spark-gap-based protection module

1 ??store.product_de??

??store.product.number.short_de?? 971010 DSE MOD PE 60

??store.product.gtin_de?? 4013364138636, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 183.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

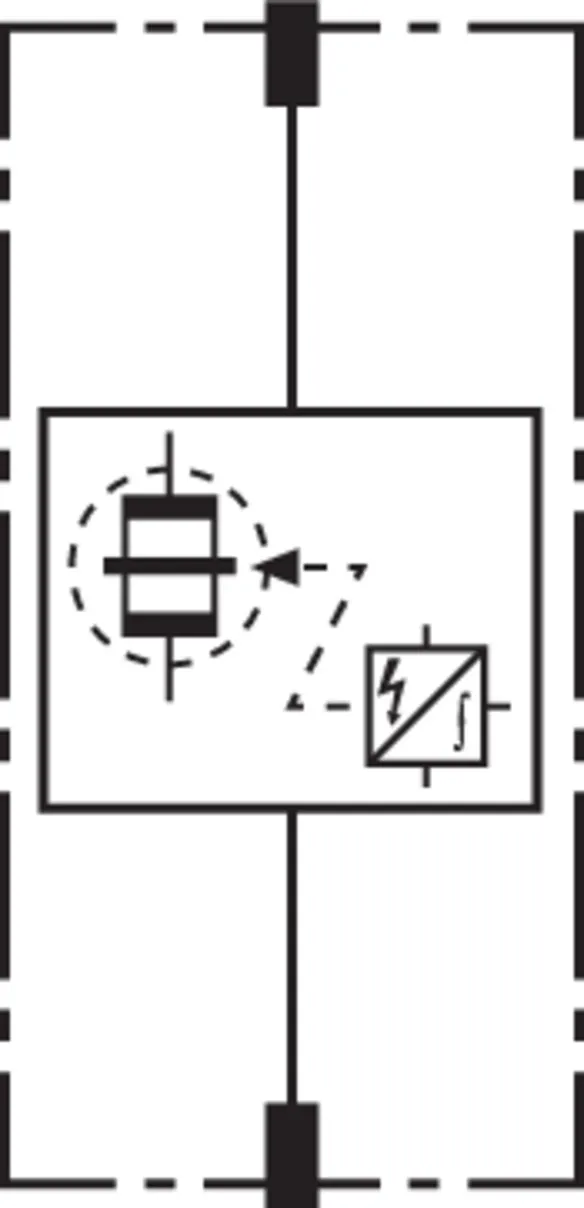

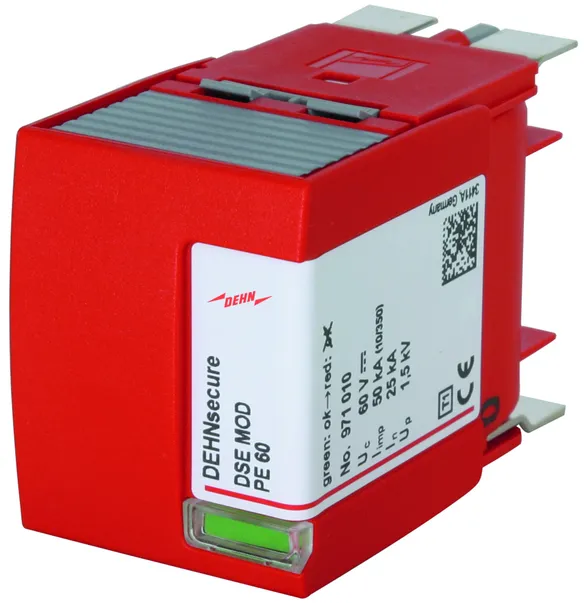

DSE MOD PE 60 spark-gap-based protection module
PE spark-gap-based protection module for
coordinated single-pole type 1 arresters of
the Red/Line series according to EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V d.c.
Lightning impulse current: 50 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 25 kA

Brand: DEHN
Type: DSE MOD PE 60
Part No.: 971010
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (Iimp ) 50 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

DSE MOD 60

Spark-gap-based protection module

1 ??store.product_de??

??store.product.number.short_de?? 971004 DSE MOD NG 2P 60

??store.product.gtin_de?? 4013364489530, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 252.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

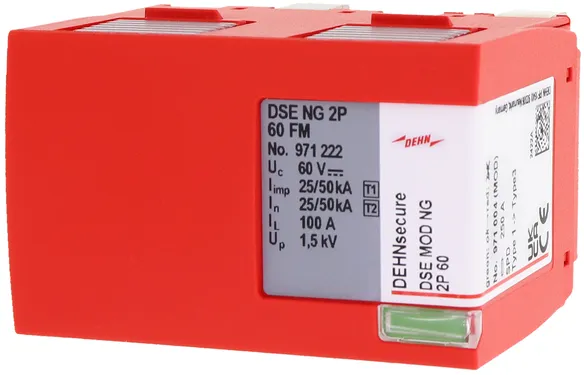

Spark-gap-based protection module DSE MOD NG 2P 60
for the single-pole, coordinated
Type 1 arrester DSE NG 2P 60 FM
of the Red/Line product series
as per EN 61643-11
Spark gap technology ideally suited for use in DC
circuits
Fault indication
Max. continuous operating voltage: 60 V DC
Lightning impulse current: 50 kA
Short-circuit withstand capability for max. mains-side
DC overcurrent protection: 10 kA

Brand: DEHN
Type: DSE MOD NG 2P 60
Part No.: 971004
or equivalent.



??store.product.data_de??

Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA
