Protection module for DEHNgap modular

  • High discharge capacity due to powerful creepage discharge spark gap
  • Easy replacement of protection modules without tools due to module locking system with module release button
  • Operating state / fault indication by green / red indicator flag in the inspection window

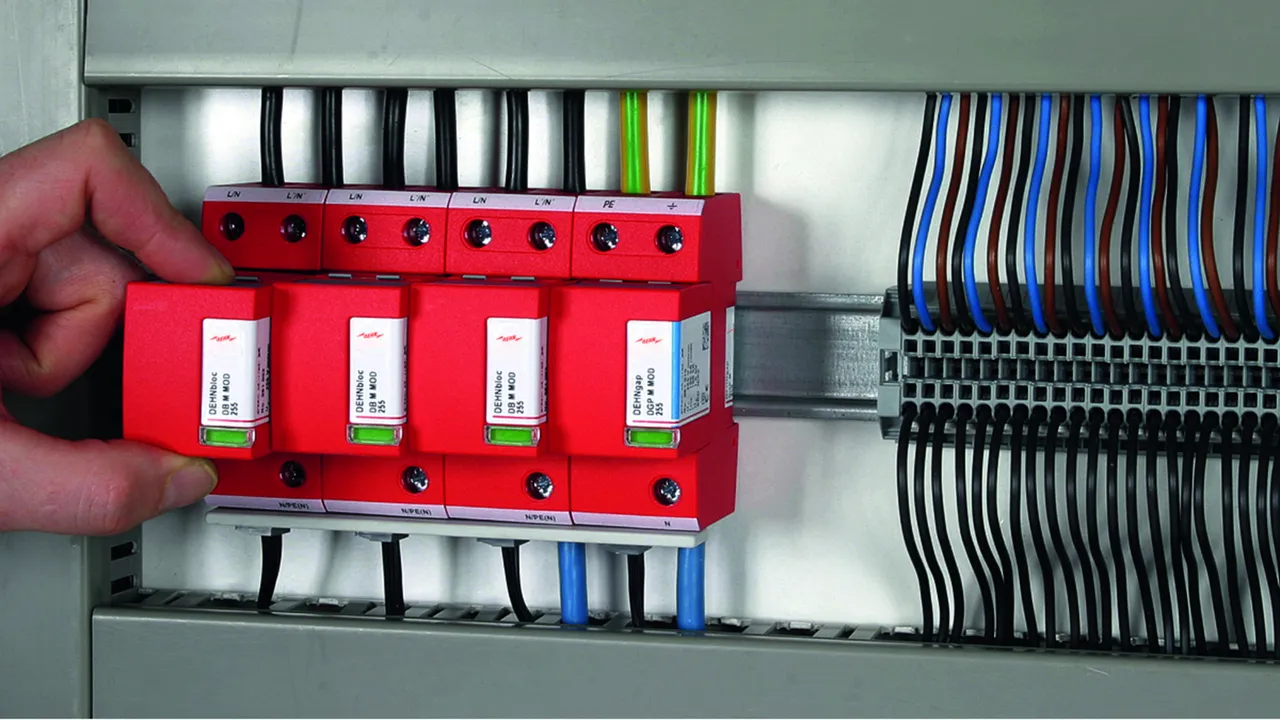

  • The plug-in protection module can be replaced without the need to de-energise and without removing the distribution board cover

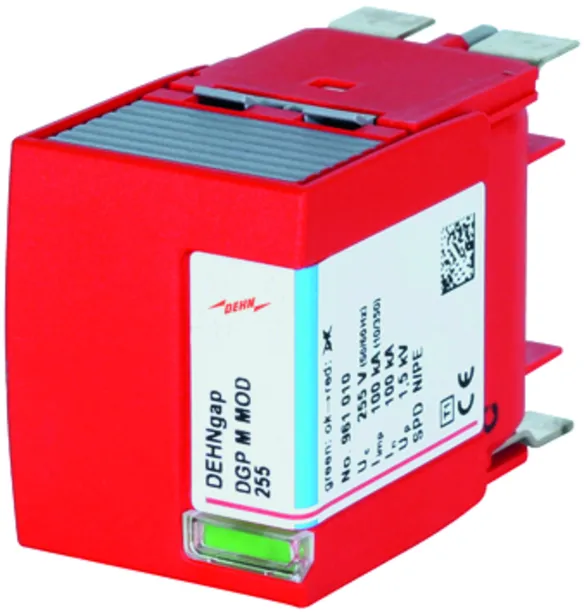

DGP M – 100 kA N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for all devices of the modular DEHNgap M family.

1 ??store.product_de??

??store.product.number.short_de?? 961010 DGP M MOD 255

??store.product.gtin_de?? 4013364118744, ??store.product.customsTariffNumber_de??: 85363030, ??store.product.grossWeight_de??: 182.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

DGP M MOD 255 N-PE spark-gap-based protection module
N-PE spark-gap-based protection module for all
devices of the modular DEHNgap M series
Type 1 N-PE arrester according to EN 61643-11
Heavy-duty creepage discharge spark gap
Fault indication
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 100 kA
Follow current extinguishing capability: 100 kArms at 255 V a.c.

Brand: DEHN
Type: DGP M MOD 255
Part No.: 961010
or equivalent.



??store.product.data_de??

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 100 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

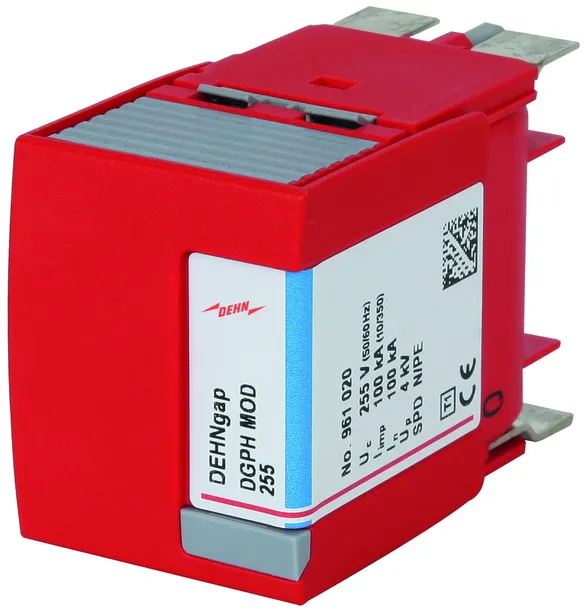

DGPH M – 100 kA N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for all devices of the modular DEHNgap H M family.

1 ??store.product_de??

??store.product.number.short_de?? 961020 DGPH MOD 255

??store.product.gtin_de?? 4013364118706, ??store.product.customsTariffNumber_de??: 85363030, ??store.product.grossWeight_de??: 151.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

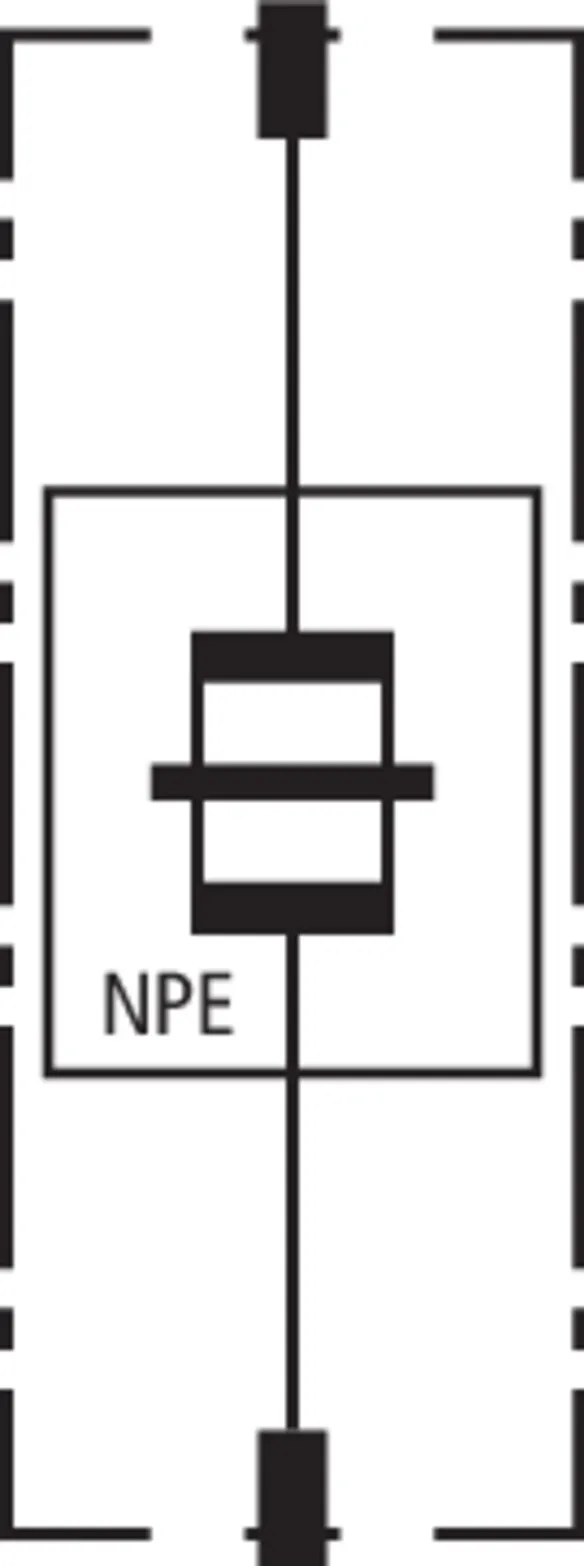

DGPH MOD 255 N-PE spark-gap-based protection module
N-PE spark-gap-based protection module for all
devices of the modular DEHNgap M series
Type 1 N-PE arrester according to EN 61643-11
Heavy-duty creepage discharge spark gap
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 100 kA
Follow current extinguishing capability: 100 kArms at 255 V a.c.

Brand: DEHN
Type: DGPH MOD 255
Part No.: 961020
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 100 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
