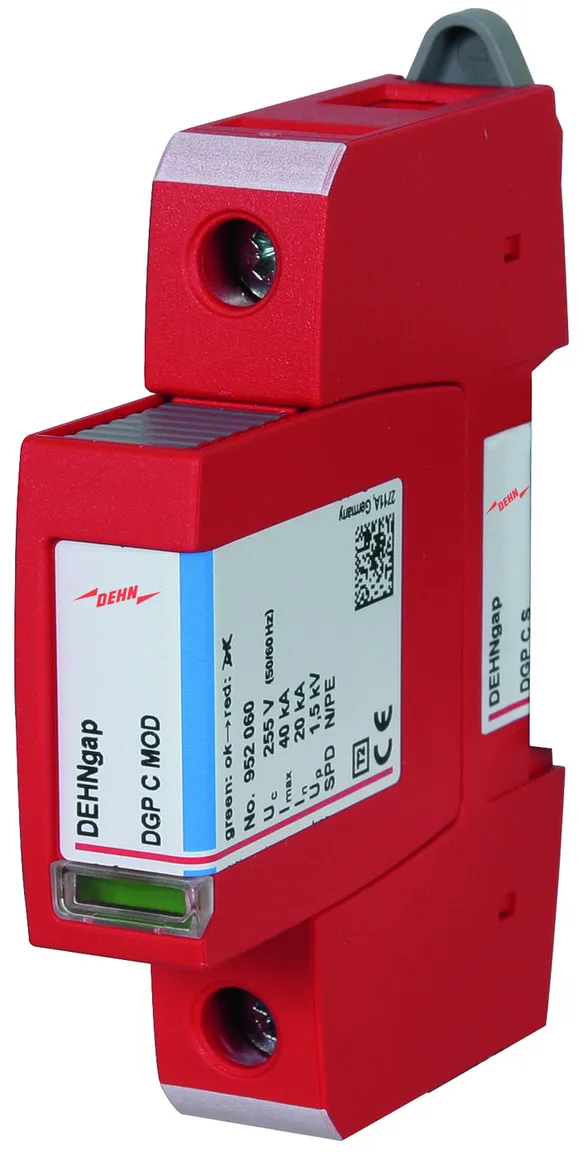

DEHNgap C S

Specifically designed for use in 3+1 and 1+1 configurations of TT systems acc. to IEC 60364-5-53 between neutral conductor N and protective conductor PE
High discharge capacity
Two-part surge arrester consisting of a base part and a pluggable spark-gap-based protection module
Energy coordination with other arresters of the Red/Line product family
Operating state / fault indication by green / red indicator flag in the inspection window
With remote signalling contact for monitoring device
Easy replacement of protection modules without tools due to module locking system with module release button
Vibration and shock-tested according to EN 60068-2

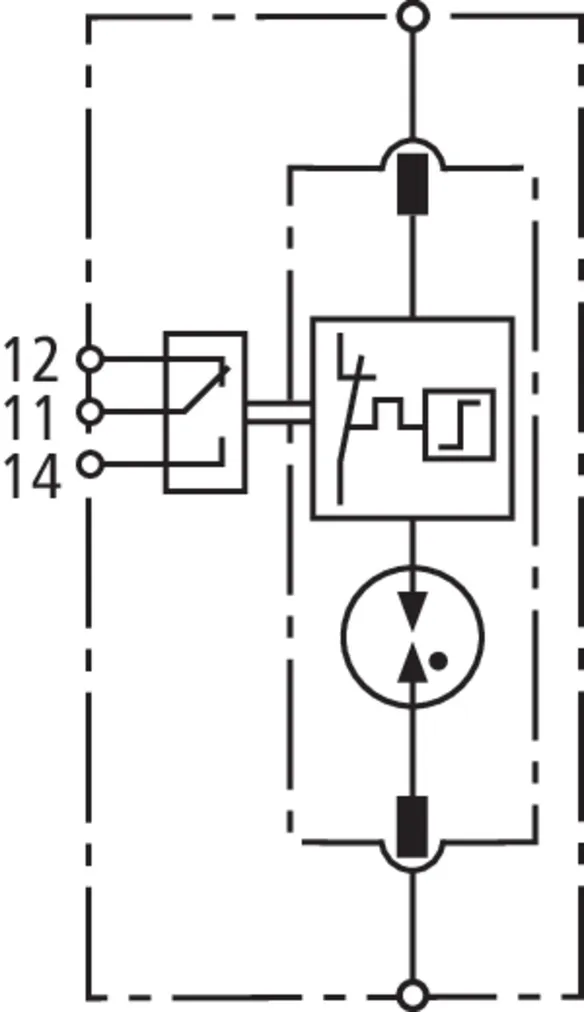

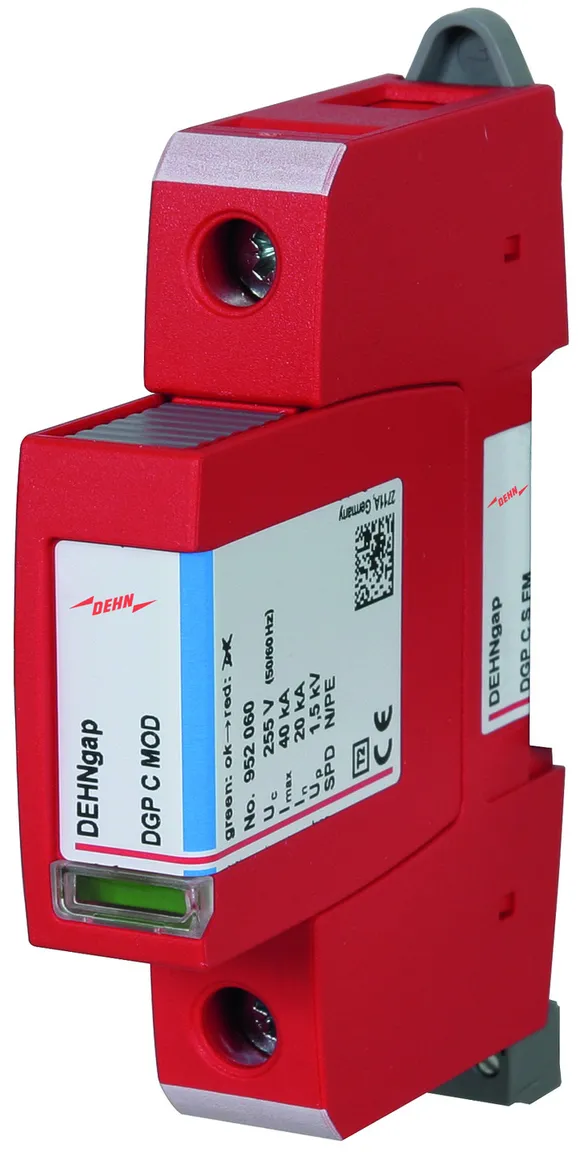

DEHNgap C S (FM)

N-PE surge arrester; FM version with floating remote signalling contact.

2 ??store.products_de??

??store.product.number.short_de?? 952030 DGP C S

??store.product.gtin_de?? 4013364108530, ??store.product.customsTariffNumber_de??: 85363030, ??store.product.grossWeight_de??: 121.00 g, ??store.product.packaging_de??: 1.00 pc(s)
