Specific PCB solutions

  • Surge arrester for protecting the terminal device ready for installation
  • Space-saving protective devices for integration into the customer application
  • Can be used in AC, DC and AC+DC applications
  • Fitted directly on the PCB using THT
  • Designed as a type 1 +2 combined arrester in RAC spark gap technology with follow current limitation

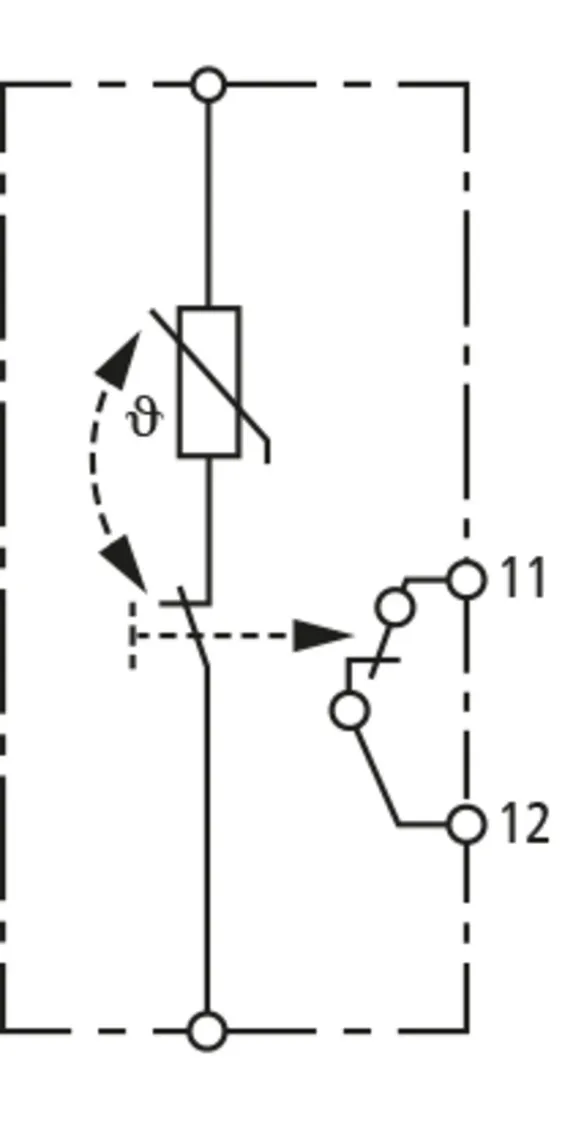

  • Designed as a type 2 arrester in varistor technology with "thermodynamic control" arrester monitoring
  • High device reliability requiring minimal installation space
  • Use in various sectors: e.g. wind, PV, mobile communication

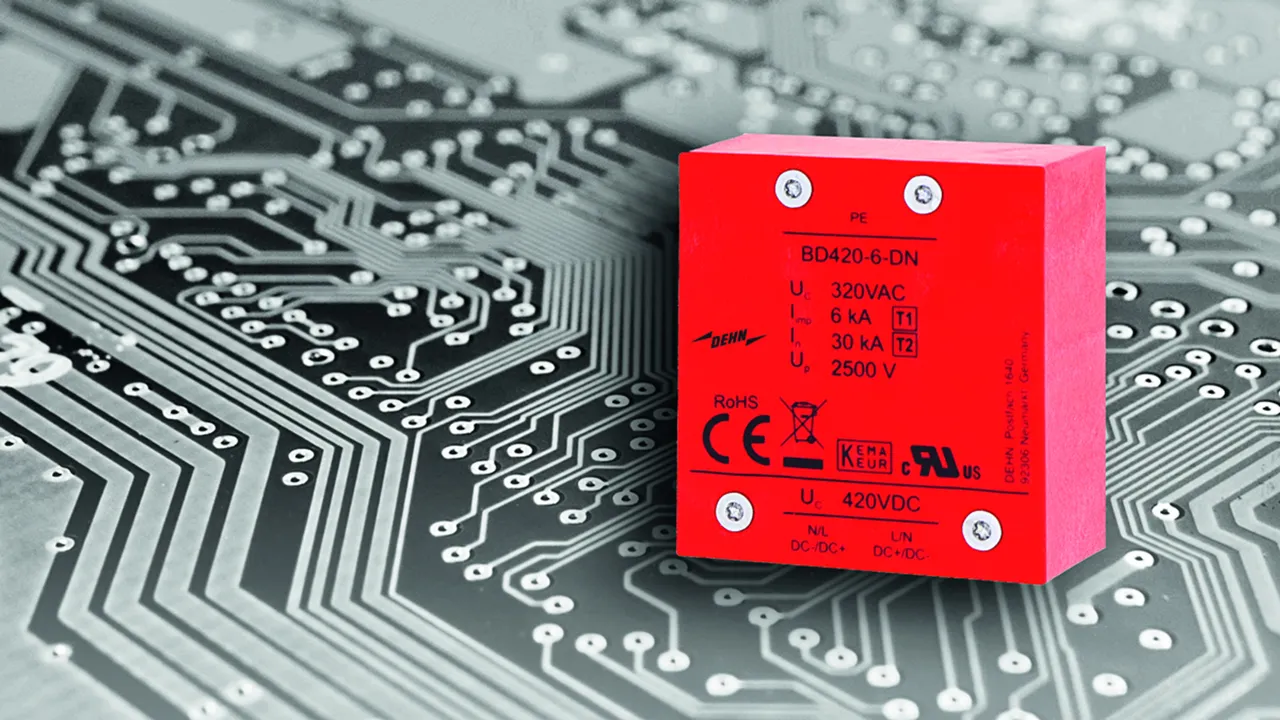

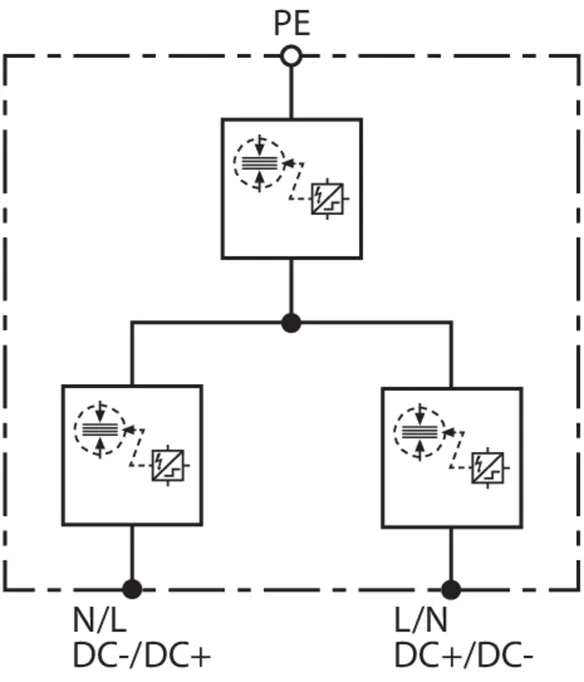

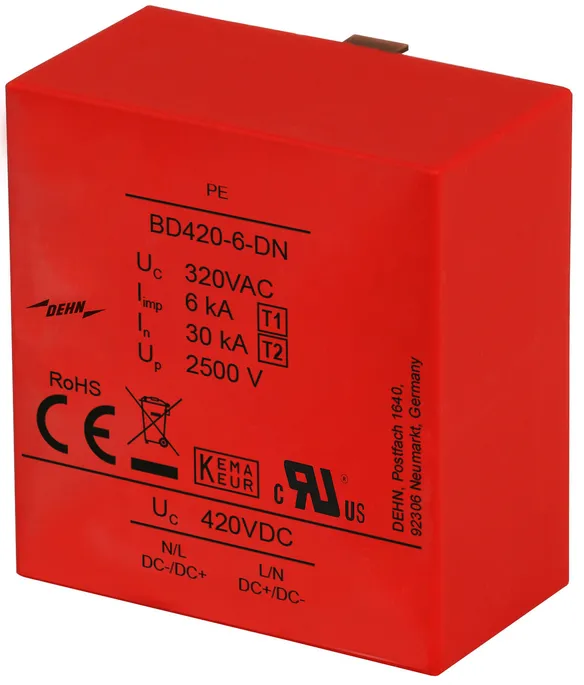

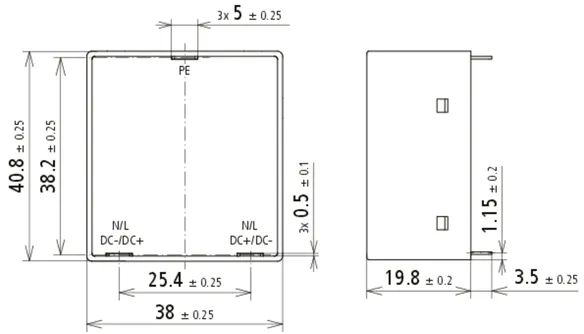

BD420-6-DN

1 Product

Part No. 900488 BD420-6-DN

GTIN 4013364426382, Customs tariff No. (EU): 85363090, Gross weight: 58.00 g, PU: 125.00 pc(s)

Images

Additional information



Brand: DEHN
Type: BD420-6-DN
Part No.: 900488
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (UC ) 320 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (Iimp ) 6 kA
Voltage protection level (UP ) ≤ 2.5 kV
Max. backup fuse (L) up to IK = 3 kArms 100 A gG

Product 900488 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

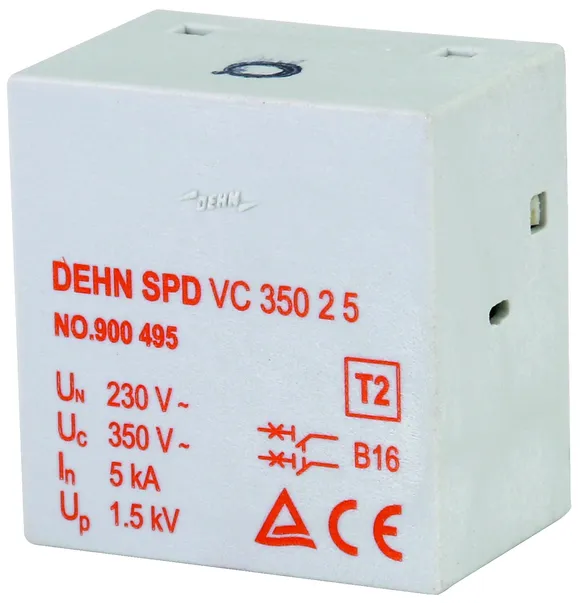

VC 350 2 5

1 Product

Part No. 900495 VC 350 2 5

GTIN 6942299502527, Gross weight: 27.00 g, PU: 1.00 pc(s)

Images

Additional information
