MicroΩmeter LoRe EaS

  • Mobile measuring system for performing technical tests on portable earthing and short-circuiting devices (EaS) at regular intervals
  • For determining minimum ohmic resistances of earthing and short-circuiting devices and the quality of electrical connections e.g. conductor rails or switch contacts
  • Electronic transfer of measured values to the evaluation software via USB interface
  • Software-aided procedure and automatic documentation of results
  • Acoustic signal as soon as the limit values are exceeded
  • Calibrated when delivered
  • Software update via USB interface

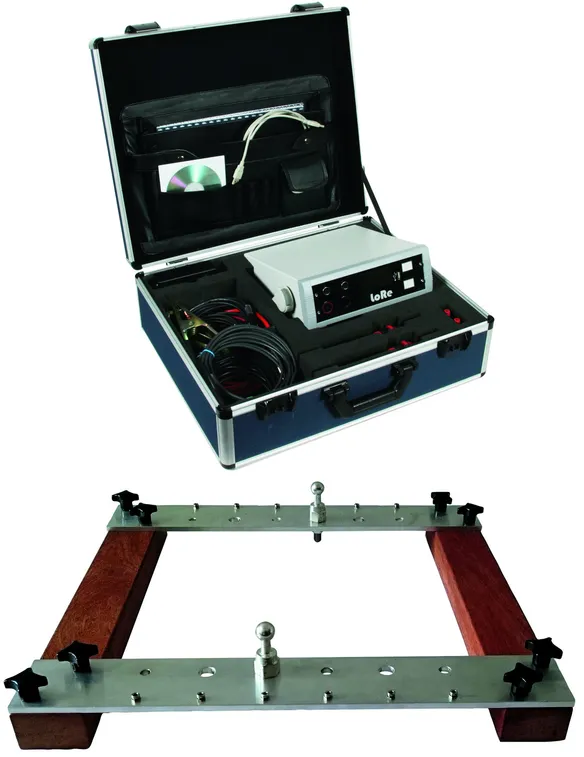

MikroΩmeter LoRe EaS

Double rail system included in delivery.

1 ??store.product_de??

??store.product.number.short_de?? 799100 MOMS LORE EUK

??store.product.gtin_de?? 4013364237094, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 16.50 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Measuring range 0.01 µΩ … 500 mΩ
Min. resolution 1 nΩ
Measuring accuracy 100 nΩ
Type of measurement Four-conductor measurement
Measuring current Approx. 30 A … 70 A
Interface USB 2.0 connection
Case dimensions (h x w x d) 190 x 500 x 450 mm
Weight (with accessories) Approx. 9 kg
Temperature range –10 °C ... +40 °C
