DEHNbloc Maxi 1 CI 440 / 760 FM

  • Spark-gap-based lightning current arrester with an integrated backup fuse capable of carrying lightning currents in a compact enclosure
  • Extremely high lightning current discharge capacity of 35 kA (10/350 µs)
  • Low voltage protection level (including backup fuse)
  • High follow current extinguishing capability and limitation thanks to RADAX Flow technology
  • Energy coordination with other arresters of the Red/Line product family
  • Operating state / fault indication by green / red indicator flag in the inspection window

Details

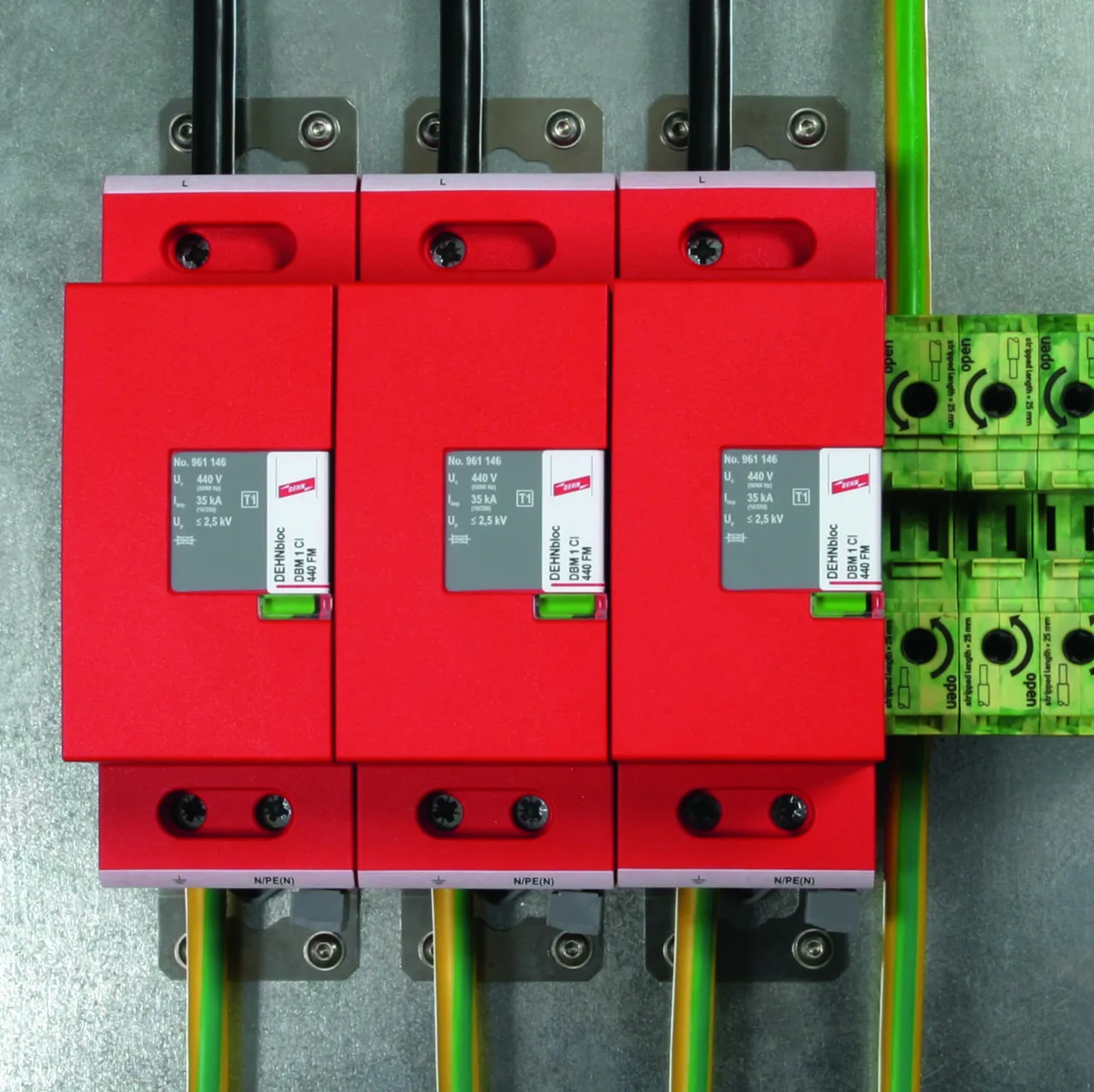

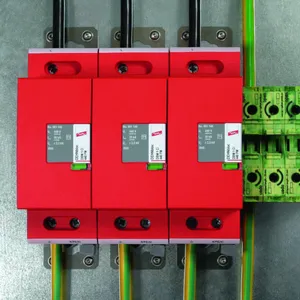

Flexible installation using mounting brackets
lorem ipsum

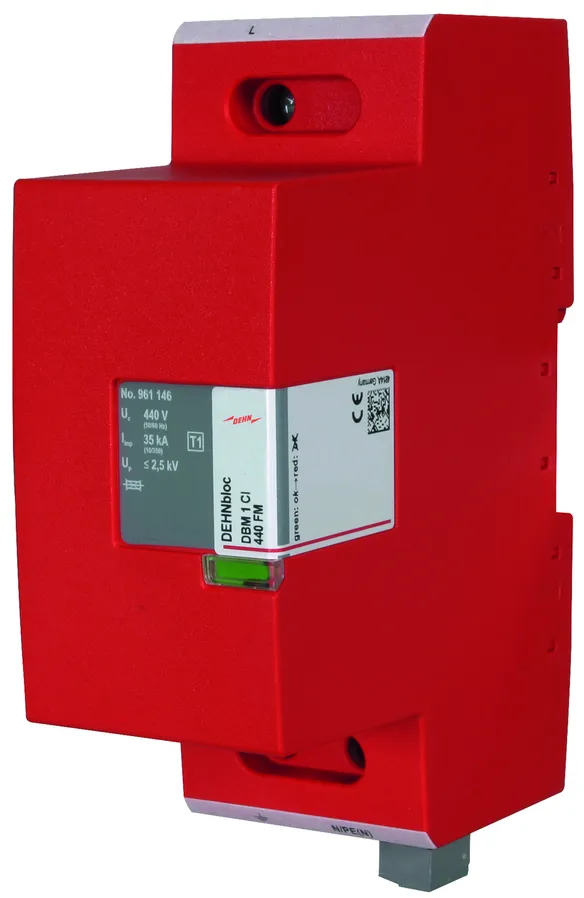

DEHNbloc Maxi 1 CI 440 FM

Coordinated single-pole lightning current arrester with integrated backup fuse for 400 / 690 V TN systems and 400 V IT systems; with remote signalling contact for monitoring device (floating changeover contact).

1 ??store.product_de??

??store.product.number.short_de?? 961146 DBM 1 CI 440 FM

??store.product.gtin_de?? 4013364250062, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 1175.20 g, ??store.product.packaging_de??: 1.00 pc(s)
