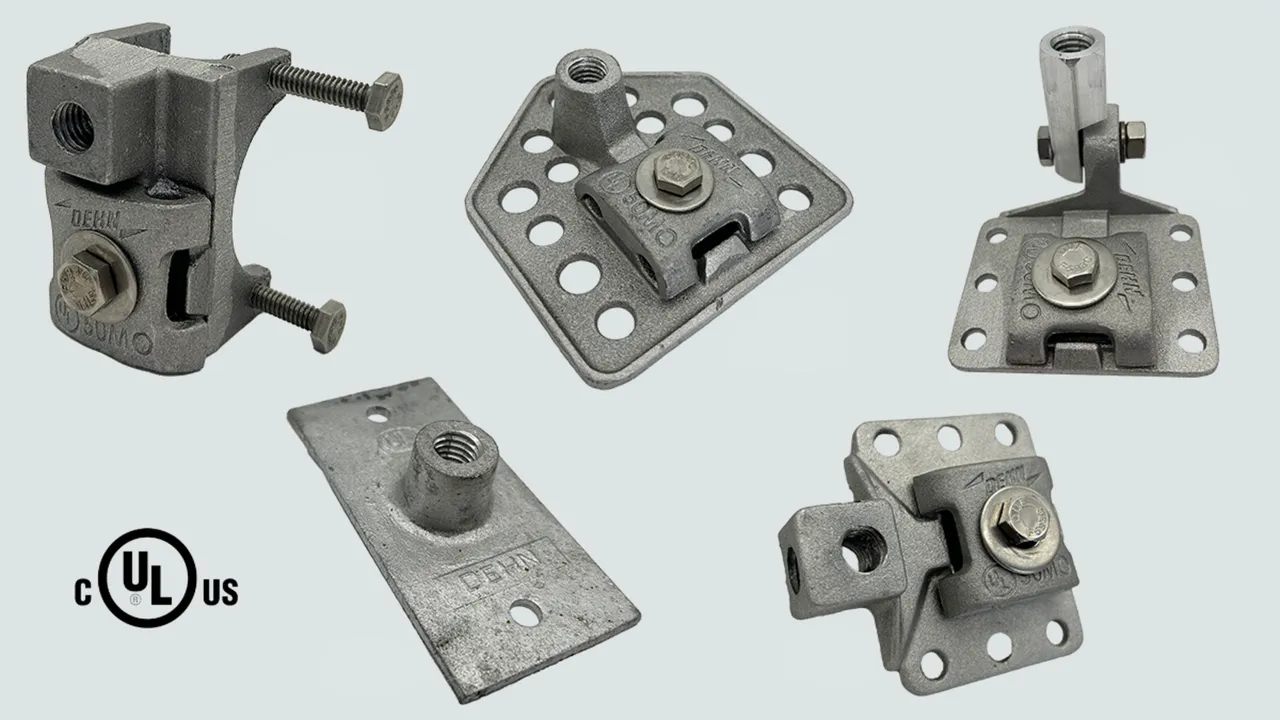

DEHNaterms - Air Terminal Bases

For securing air terminals on or adjacent to the protected object.

Standing seam base

1 ??store.product_de??

??store.product.number.short_de?? 218421 AT SSB 1/2'' AL

??store.product.gtin_de?? 4013364517806, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 17.10 OZ, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Aluminum Standing Seam Base 1/2 Thread

Brand: DEHN
Type: AT SSB 1/2'' AL
Part No.: 218421
or equivalent.



??store.product.data_de??

Material Aluminum (minimum 85%)
Conductor material Copper, Stainless steel, Steel
Thread size 1/2 in.
Clamping range stranded cable 3/8 - 1/2 in (30 - 61.5 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 2-5/8 x 1-3/4 x 1-5/8 in (6.7 x 4.4 x 4.1 cm)
Standards UL 96
Classification Class 1
Weight (Metric) 484 g
Clamping range of seam up to 25.4 mm (1")

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Adhesive base

3 ??store.products_de??

??store.product.number.short_de?? 218441 AT ABB 1/2'' AL

??store.product.gtin_de?? 4013364517837, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.00 OZ, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Aluminum Adhesive Base 1/2

Brand: DEHN
Type: AT ABB 1/2'' AL
Part No.: 218441
or equivalent.



??store.product.data_de??

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Thread size 1/2 in.
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 4-1/4 x 4 in. (108 x 102 mm)
Standards UL 96
Classification Class 1
Weight (Metric) 170 g

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 218442 AT ABB 5/8'' AL

??store.product.gtin_de?? 4013364517844, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.00 OZ, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Aluminum Adhesive Base 1/2

Brand: DEHN
Type: AT ABB 5/8'' AL
Part No.: 218442
or equivalent.



??store.product.data_de??

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Thread size 5/8 in.
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 4-1/4 x 4 in. (108 x 102 mm)
Standards UL 96
Classification Class 1
Weight (Metric) 170 g

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 218443 AT ABB 1/2'' BZ

??store.product.gtin_de?? 4013364517851, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 16.00 OZ, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Bronze Adhesive Base 1/2

Brand: DEHN
Type: AT ABB 1/2'' BZ
Part No.: 218443
or equivalent.



??store.product.data_de??

Material Copper (minimum 80%)
Conductor material Copper, Stainless steel, Steel
Thread size 1/2 in.
Clamping range stranded cable 3/8-1/2 in. (30-61.5 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 4-1/4 x 4 in. (108 x 102 mm)
Standards UL 96
Classification Class 1
Weight (Metric) 454 g

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

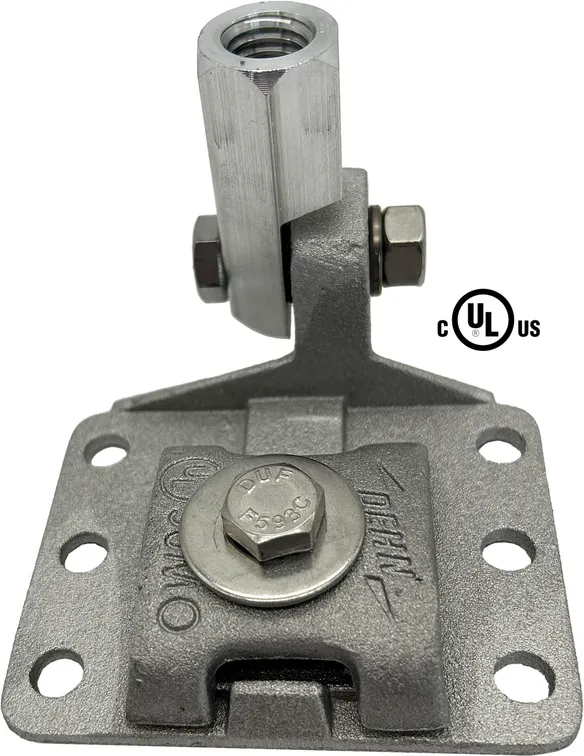

Swivel base

1 ??store.product_de??

??store.product.number.short_de?? 218470 AT SWB 1/2'' AL

??store.product.gtin_de?? 4013364517868, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 16.00 OZ, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Aluminum Swivel Base with 1/2 Female Swivel

Brand: DEHN
Type: AT SWB 1/2'' AL
Part No.: 218470
or equivalent.



??store.product.data_de??

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Thread size 1/2 in.
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 3-1/8 x 3-3/8 in (79.4 x 92 mm)
Standards UL 96
Classification Class 1
Weight (Metric) 454 g

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Extended dual thread base

2 ??store.products_de??

??store.product.number.short_de?? 218475 AT EDTB 1/2'' AL

??store.product.gtin_de?? 4013364517875, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.80 OZ, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Aluminum Combo Base 1/2

Brand: DEHN
Type: AT EDTB 1/2'' AL
Part No.: 218475
or equivalent.



??store.product.data_de??

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Thread size 1/2 in.
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 3-1/8 x 3-3/8 in (79.4 x 92 mm)
Standards UL 96
Classification Class 1
Weight (Metric) 136 g

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 218476 AT EDTB 5/8'' AL

??store.product.gtin_de?? 4013364517882, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.80 OZ, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Aluminum Combo Base 5/8

Brand: DEHN
Type: AT EDTB 5/8'' AL
Part No.: 218476
or equivalent.



??store.product.data_de??

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Thread size 1/2 in.
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 3-1/8 x 3-3/8 in (79.4 x 92 mm)
Standards UL 96
Classification Class 1
Weight (Metric) 136 g

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Flat back air terminal mount

1 ??store.product_de??

??store.product.number.short_de?? 218479 AT FBPM 1/2'' AL

??store.product.gtin_de?? 4013364517905, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.00 OZ, ??store.product.packaging_de??: 10.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Aluminum 2 Inch x 4 Inch Flat Back Air Terminal Mount 1/2

Brand: DEHN
Type: AT FBPM 1/2'' AL
Part No.: 218479
or equivalent.



??store.product.data_de??

Material Aluminum (minimum 85%)
Thread size 1/2 in.
Dimensions 2 x 4 in. (51 x 102 mm)
Standards UL 96
Classification Class 1
Weight (Metric) 57 g

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
