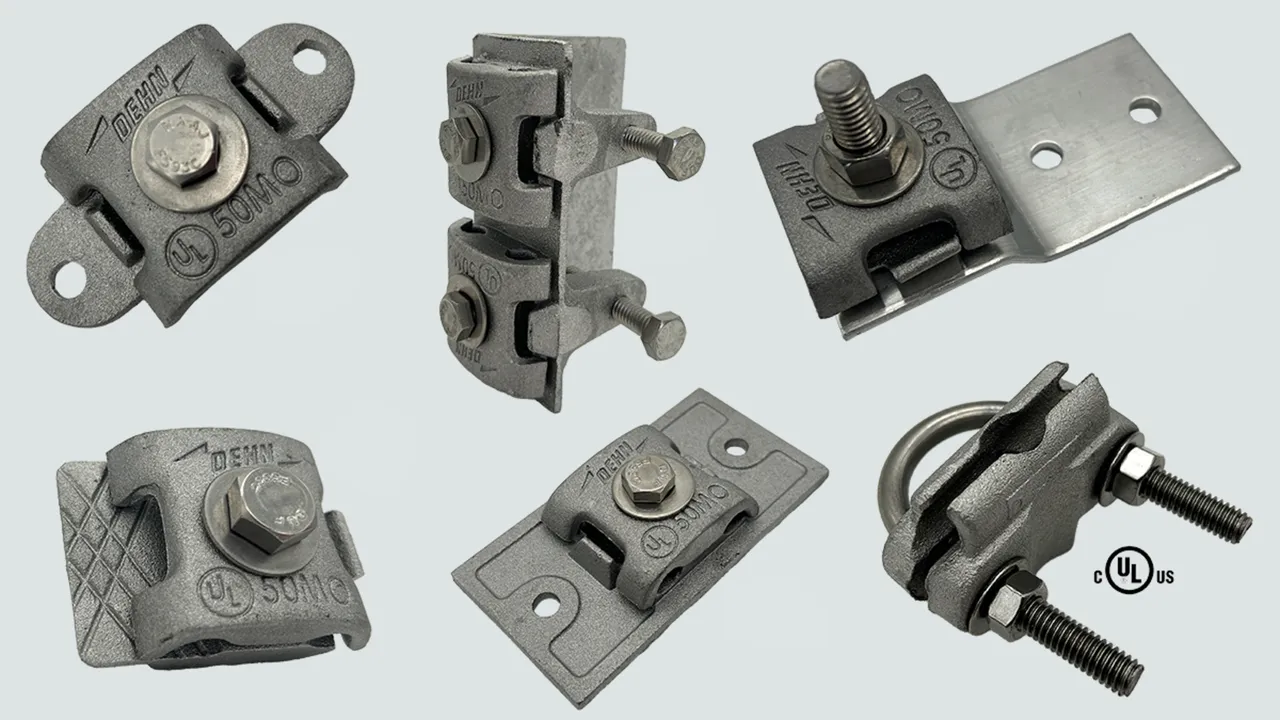

DEHNclamp - Connectors & Fittings

For interconnecting conductors, pipes, equipment, steel, etc.

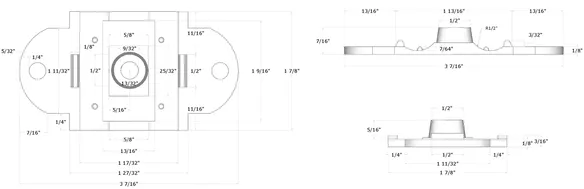

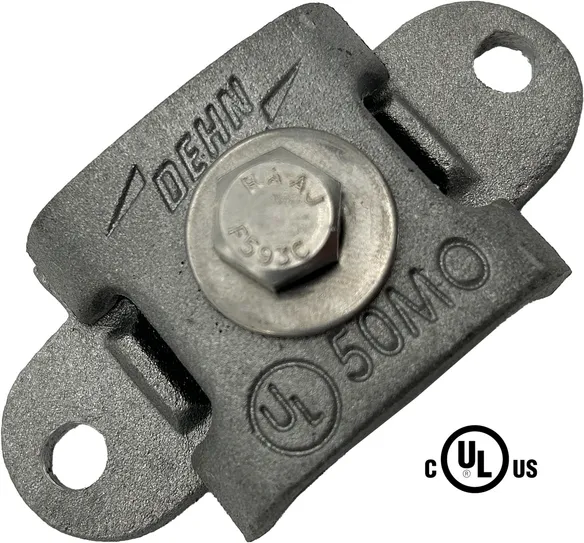

3 square inch bonding plate

1 Product

Part No. 218274 BF RRBP 1SSCB AL

GTIN 4013364517974, Customs tariff No. (EU): 85359000, Gross weight: 2.60 OZ, PU: 10.00 pc(s)

Images

Additional information

Aluminum 3 Square Inch Bonding Plate

Brand: DEHN
Type: BF RRBP 1SSCB AL
Part No.: 218274
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 1-5/8 x 3-1/4 in (41 x 82.6 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 73.7 g

Product 218274 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

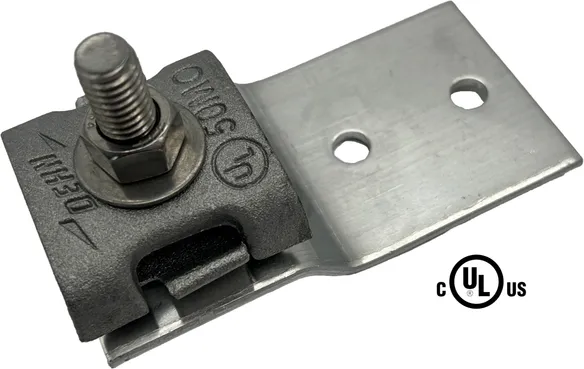

Malleable bonding lug

1 Product

Part No. 218276 BF RRBL 1SSCB AL

GTIN 4013364517981, Customs tariff No. (EU): 85359000, Gross weight: 4.30 OZ, PU: 10.00 pc(s)

Images

Additional information

Aluminum Malleable Bonding Lug

Brand: DEHN
Type: BF RRBL 1SSCB AL
Part No.: 218276
or equivalent.



Technical data

Material Aluminum (minimum 85% / 90%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 5/16-18 bolt, nut and washer
Material of screw Stainless steel
Dimensions 2 x 4 in (51 x 102 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 121 g

Product 218276 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

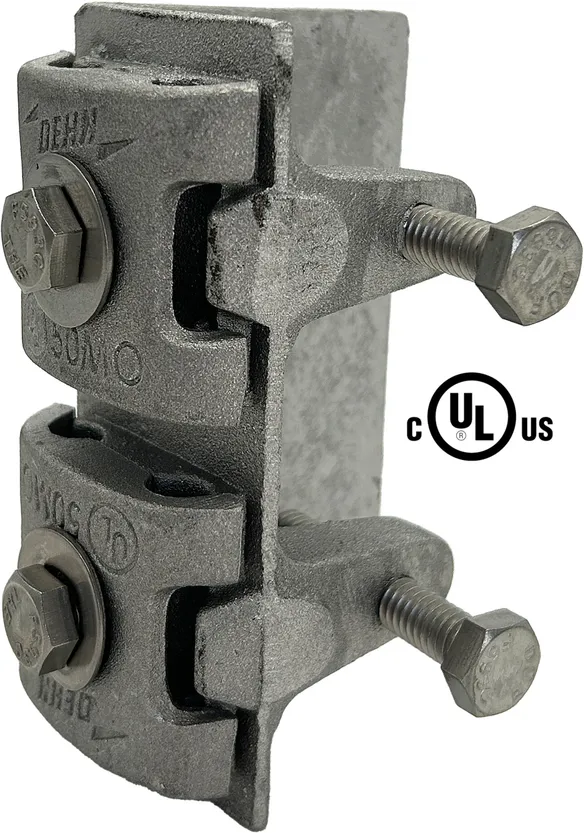

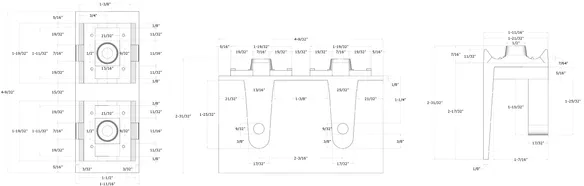

8 square inch beam clamp

2 Products

Part No. 218290 BF 8SQIBC 2SSB AL

GTIN 4013364517998, Customs tariff No. (EU): 85359000, Gross weight: 13.30 OZ, PU: 10.00 pc(s)

Images

Additional information

Aluminum 8 Square Inch Beam Clamp

Brand: DEHN
Type: BF 8SQIBC 2SSB AL
Part No.: 218290
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 3-1/4 x 4 in (82.6 x 101.6 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 377 g
Clamping range of seam up to 25.4 mm (1")

Product 218290 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

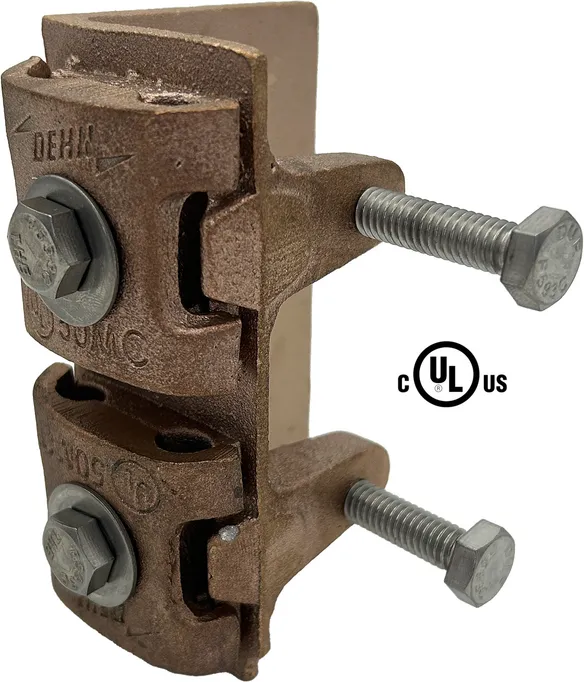

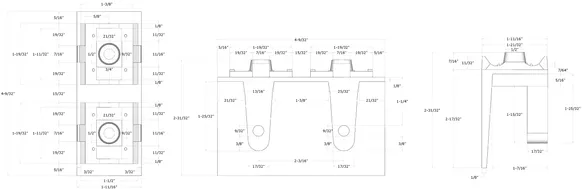

Part No. 218291 BF 8SQIBC 2SSB BZ

GTIN 4013364518001, Customs tariff No. (EU): 85359000, Gross weight: 34.10 OZ, PU: 10.00 pc(s)

Images

Additional information

Bronze 8 Square Inch Beam Clamp

Brand: DEHN
Type: BF 8SQIBC 2SSB BZ
Part No.: 218291
or equivalent.



Technical data

Material Copper (minimum 80%)
Conductor material Copper, Stainless steel, Steel
Clamping range stranded cable 3/8 - 1/2 in (30 - 61.5 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 3-1/4 x 4 in (82.6 x 101.6 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 967 g
Clamping range of seam up to 25.4 mm (1")

Product 218291 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

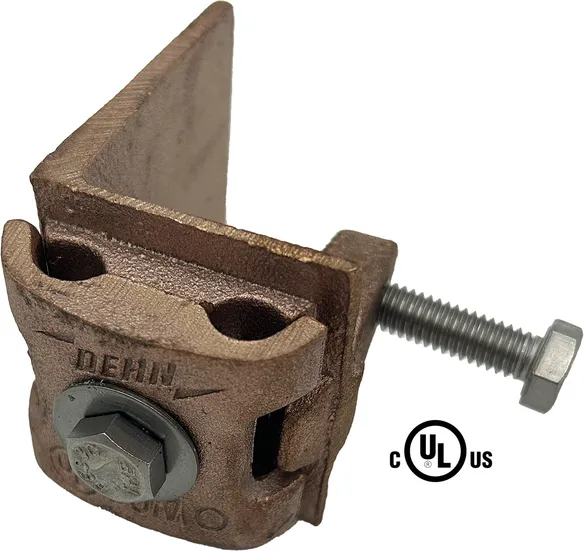

4 square inch beam clamp

1 Product

Part No. 218292 BF 4SQIBC 1SSB BZ

GTIN 4013364518018, Customs tariff No. (EU): 85359000, Gross weight: 17.00 OZ, PU: 10.00 pc(s)

Images

Additional information

Bronze 4 Square Inch Beam Clamp

Brand: DEHN
Type: BF 4SQIBC 1SSB BZ
Part No.: 218292
or equivalent.



Technical data

Material Copper (minimum 80%)
Conductor material Copper, Stainless steel, Steel
Clamping range stranded cable 3/8 - 1/2 in (30 - 61.5 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 3-1/4 x 2 in (82.6 x 50.8 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 482 g
Clamping range of seam up to 25.4 mm (1")

Product 218292 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

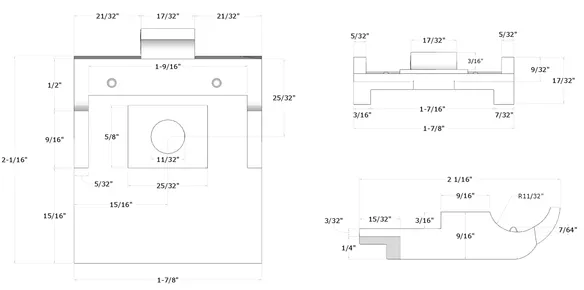

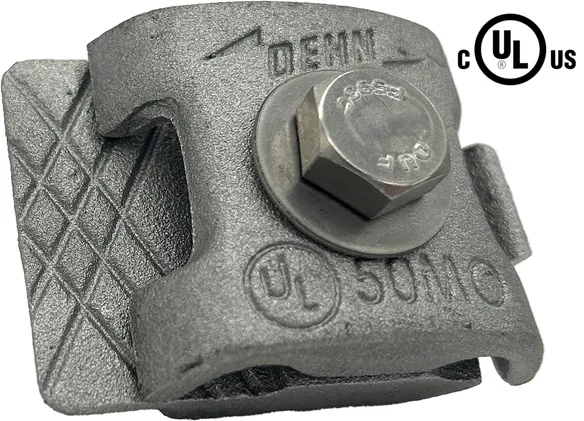

Round to flat clamp

1 Product

Part No. 218221 BF RTF 1SSB AL

GTIN 4013364518049, Customs tariff No. (EU): 85359000, Gross weight: 3.00 OZ, PU: 10.00 pc(s)

Images

Additional information

Aluminum Round to Flat Clamp

Brand: DEHN
Type: BF RTF 1SSB AL
Part No.: 218221
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 1-9/16 x 2-1/4 in (40 x 57 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 85 g

Product 218221 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

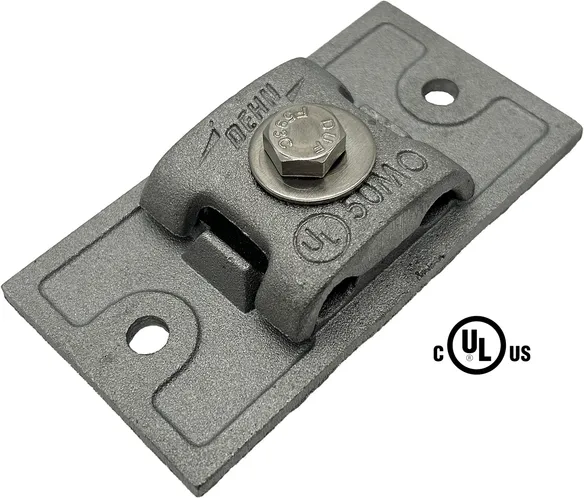

8 square inch bonding plate

2 Products

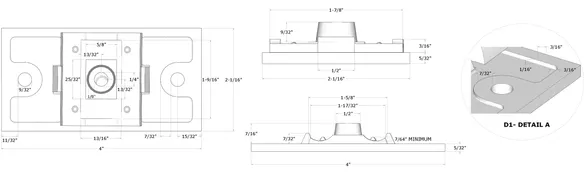

Part No. 218278 BF BP 1SSB AL

GTIN 4013364518056, Customs tariff No. (EU): 85359000, Gross weight: 3.80 OZ, PU: 10.00 pc(s)

Images

Additional information

Aluminum 8 Square Inch Bonding Plate 2.0625 x 4

Brand: DEHN
Type: BF BP 1SSB AL
Part No.: 218278
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 2-1/16 x 4 in (52.4 x 101.6 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 108 g

Product 218278 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

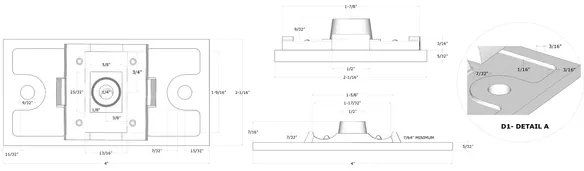

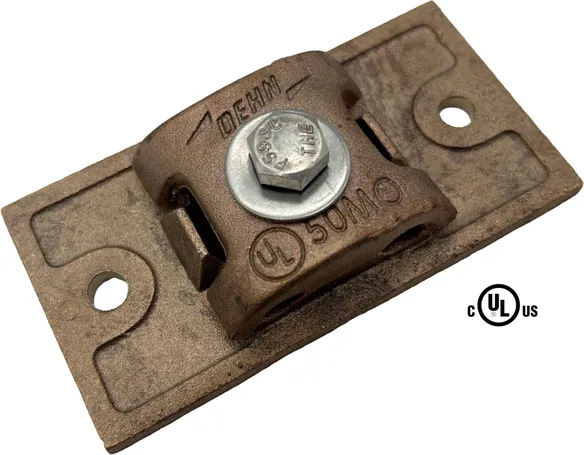

Part No. 218279 BF BP 1SSB BZ

GTIN 4013364518063, Customs tariff No. (EU): 85359000, Gross weight: 10.30 OZ, PU: 10.00 pc(s)

Images

Additional information

Bronze 8 Square Inch Bonding Plate 2.0625 x 4

Brand: DEHN
Type: BF BP 1SSB BZ
Part No.: 218279
or equivalent.



Technical data

Material Copper (minimum 80%)
Conductor material Copper, Stainless steel, Steel
Clamping range stranded cable 3/8 - 1/2 in (30 - 61.5 mm2)
Clamping screw 5/16-18 bolt and washer
Material of screw Stainless steel
Dimensions 2-1/16 x 4 in (52.4 x 101.6 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 292 g

Product 218279 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

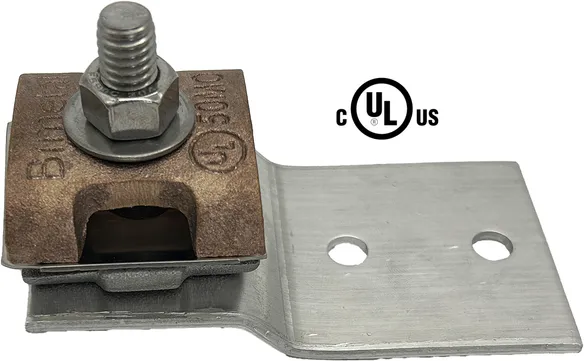

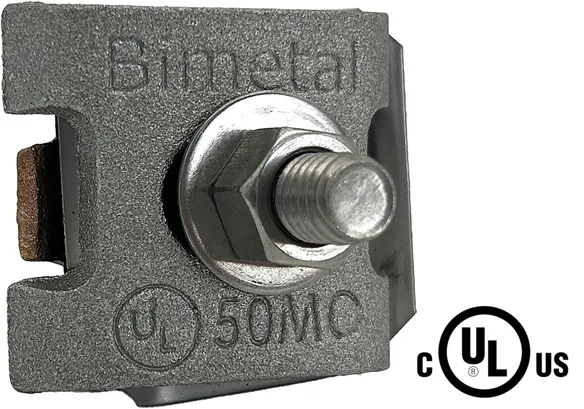

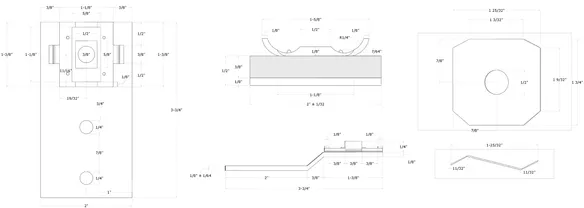

Bimetallic bonding lug

1 Product

Part No. 218311 BM RRBL 1SSCB AL BZ

GTIN 4013364518100, Customs tariff No. (EU): 85359000, Gross weight: 6.80 OZ, PU: 10.00 pc(s)

Images

Additional information

Copper Cable to Aluminum Bonding Lug

Brand: DEHN
Type: BM RRBL 1SSCB AL BZ
Part No.: 218311
or equivalent.



Technical data

Material Bimetal: Aluminum (minimum 85% / 90%) / Copper (minimum 80%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 5/16-18 bolt, nut and washer
Material of screw Stainless steel
Dimensions 2 x 4 in (51 x 102 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 192 g

Product 218311 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

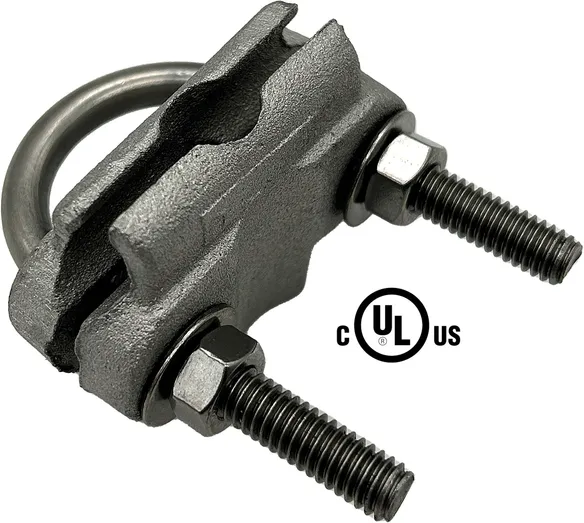

1.25 inch U-Bolt clamp

2 Products

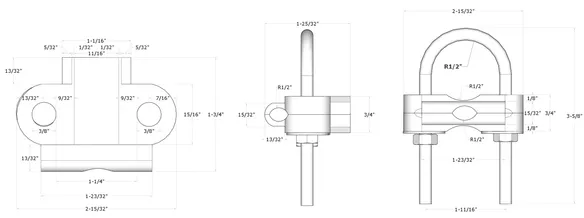

Part No. 218170 PC 1" SSUB AL

GTIN 4013364517639, Customs tariff No. (EU): 85359000, Gross weight: 5.00 OZ, PU: 10.00 pc(s)

Images

Additional information

Aluminum 1.25 Inch U-Bolt Clamp

Brand: DEHN
Type: PC 1" SSUB AL
Part No.: 218170
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Material of U-Bolt Stainless steel
Clamp fixings 5/16-18 U-bolt, nuts and washers
Material of clamp fixings Stainless steel
Dimensions 2-1/2 x 3-1/2 in (63.5 x 89 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 142 g

Product 218170 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

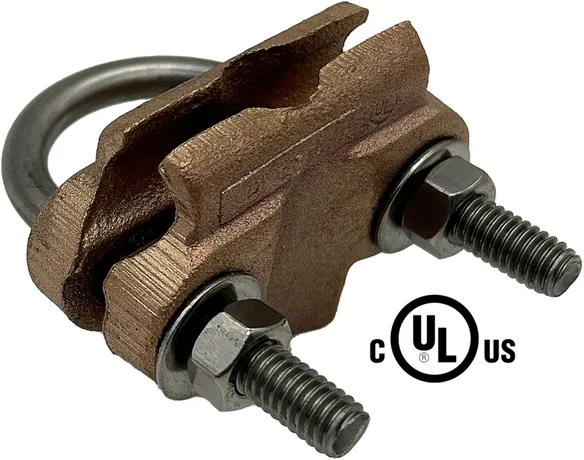

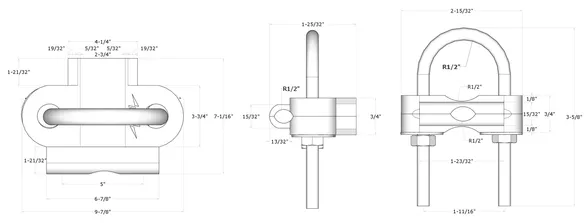

Part No. 218171 PC 1" SSUB BZ

GTIN 4013364518148, Customs tariff No. (EU): 85359000, Gross weight: 9.00 OZ, PU: 10.00 pc(s)

Images

Additional information

Bronze 1.25 Inch U-Bolt Clamp

Brand: DEHN
Type: PC 1" SSUB BZ
Part No.: 218171
or equivalent.



Technical data

Material Copper (minimum 80%)
Conductor material Copper, Stainless steel, Steel
Clamping range stranded cable 3/8 - 1/2 in (30 - 61.5 mm2)
Material of U-Bolt Stainless steel
Clamp fixings 5/16-18 U-bolt, nuts and washers
Material of clamp fixings Stainless steel
Dimensions 2-1/2 x 3-1/2 in (63.5 x 89 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 255 g

Product 218171 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

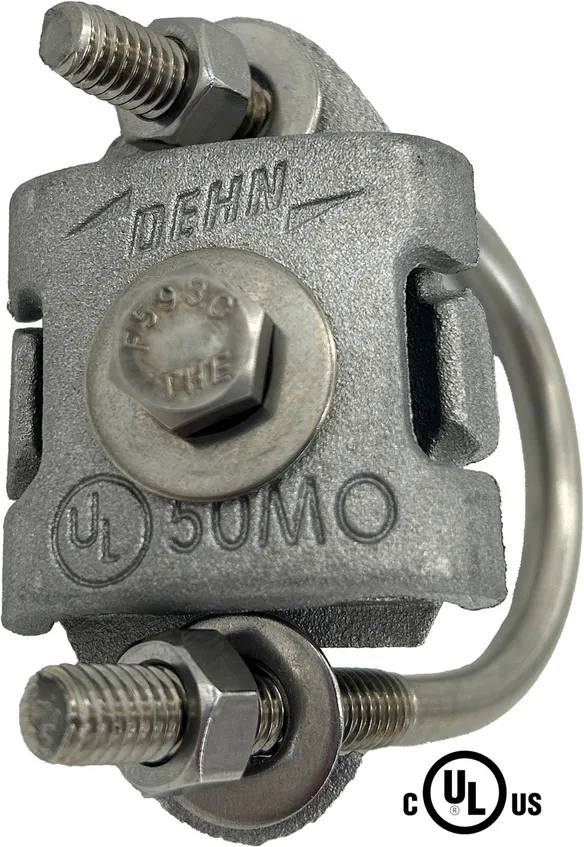

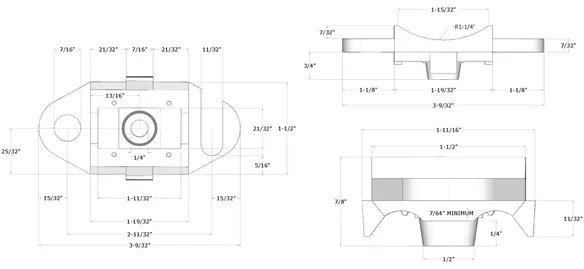

2 inch U-Bolt clamp

1 Product

Part No. 218172 PC 2" SSUB AL

GTIN 4013364518155, Customs tariff No. (EU): 85359000, Gross weight: 4.20 OZ, PU: 10.00 pc(s)

Images

Additional information

Aluminum 2 Inch U-Bolt Clamp

Brand: DEHN
Type: PC 2" SSUB AL
Part No.: 218172
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Material of U-Bolt Stainless steel
Clamp fixings 5/16-18 U-bolt, nuts and washers
Material of clamp fixings Stainless steel
Dimensions 3-1/4 x 3-1/2 in (82.5 x 89 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 119 g

Product 218172 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

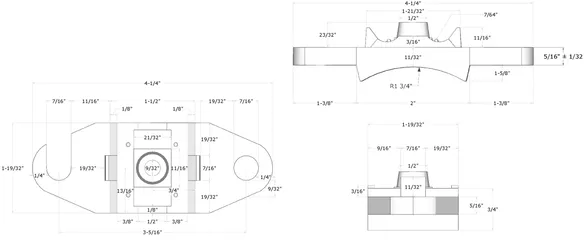

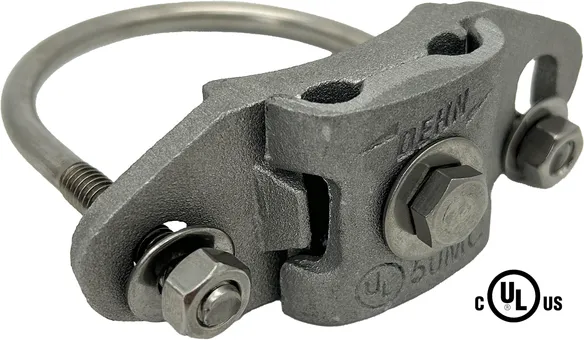

3 inch U-Bolt clamp

1 Product

Part No. 218173 PC 3" SSUB AL

GTIN 4013364518162, Customs tariff No. (EU): 85359000, Gross weight: 6.00 OZ, PU: 10.00 pc(s)

Images

Additional information

Aluminum 3 Inch U-Bolt Clamp

Brand: DEHN
Type: PC 3" SSUB AL
Part No.: 218173
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Material of U-Bolt Stainless steel
Clamp fixings 5/16-18 U-bolt, nuts and washers
Material of clamp fixings Stainless steel
Dimensions 4-1/4 x 4-1/2 in (108 x 114.3 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 170 g

Product 218173 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

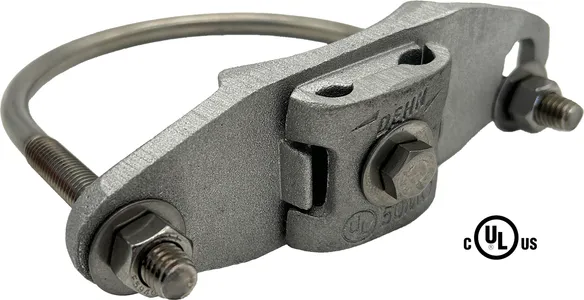

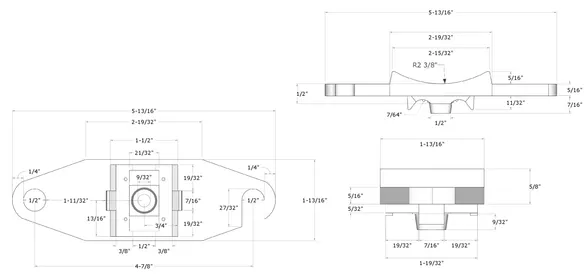

4 Inch U-Bolt Clamp

1 Product

Part No. 218174 PC 4" SSUB AL

GTIN 4013364518186, Customs tariff No. (EU): 85359000, Gross weight: 11.80 OZ, PU: 10.00 pc(s)

Images

Additional information

Aluminum 4 Inch U-Bolt Clamp

Brand: DEHN
Type: PC 4" SSUB AL
Part No.: 218174
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Material of U-Bolt Stainless steel
Clamp fixings 5/16-18 U-bolt, nuts and washers
Material of clamp fixings Stainless steel
Dimensions 6-1/4 x 6-1/2 in (159 x 165 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 335 g

Product 218174 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

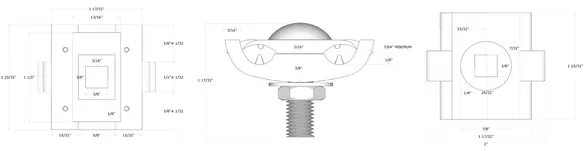

Countersunk 1-bolt parallel clamp

3 Products

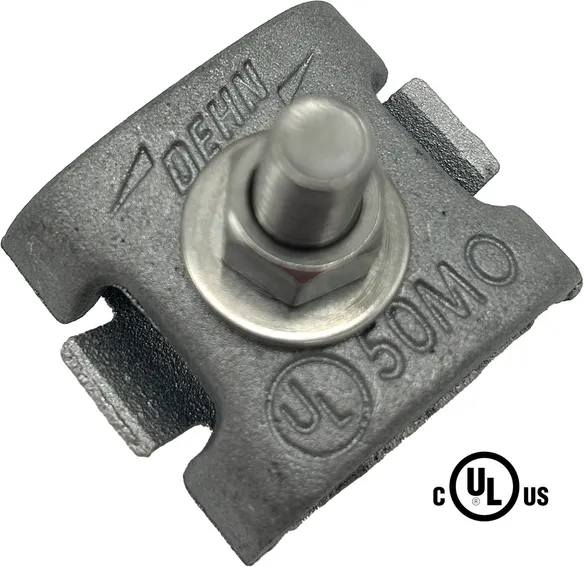

Part No. 218270 BF RRP 1SSCB AL

GTIN 4013364517912, Customs tariff No. (EU): 85359000, Gross weight: 3.00 OZ, PU: 10.00 pc(s)

Images

Additional information

Aluminum Countersunk 1-Bolt Parallel Clamp

Brand: DEHN
Type: BF RRP 1SSCB AL
Part No.: 218270
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 1-1/2 carriage bolt, nut and washer
Material of screw Stainless steel
Dimensions 1-9/16 x 1-3/4 in (39.7 x 44.5 mm)
Standards UL 96
Classification Class 1
Weight (Metric) 85 g

Product 218270 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

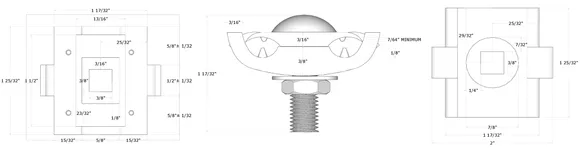

Part No. 218271 BF RRP 1SSCB BZ

GTIN 4013364517929, Customs tariff No. (EU): 85359000, Gross weight: 7.60 OZ, PU: 10.00 pc(s)

Images

Additional information

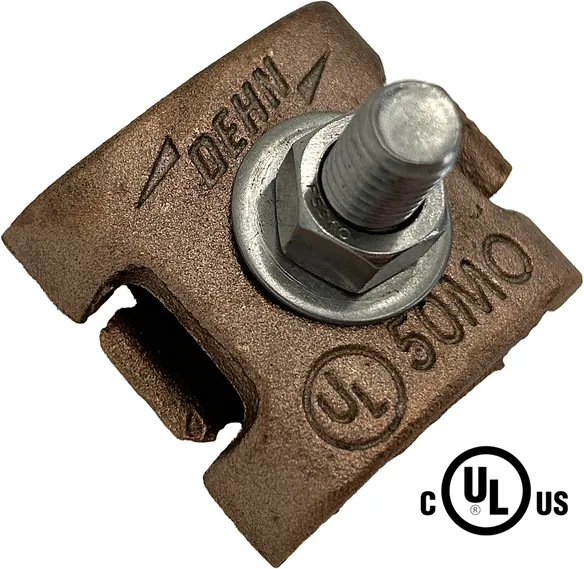

Bronze Countersunk 1-Bolt Parallel Clamp

Brand: DEHN
Type: BF RRP 1SSCB BZ
Part No.: 218271
or equivalent.



Technical data

Material Copper (minimum 80%)
Conductor material Copper, Stainless steel, Steel
Clamping range stranded cable 3/8-1/2 in. (30-61.5 mm2)
Clamping screw 1-1/2 carriage bolt, nut and washer
Material of screw Stainless steel
Dimensions 1-9/16 x 1-3/4 in (39.7 x 44.5 mm)
Standards UL 96
Classification Class 1
Weight (Metric) 215 g

Product 218271 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 218310 BM RRP 1SSCB AL BZ

GTIN 4013364518094, Customs tariff No. (EU): 85359000, Gross weight: 6.00 OZ, PU: 10.00 pc(s)

Images

Additional information

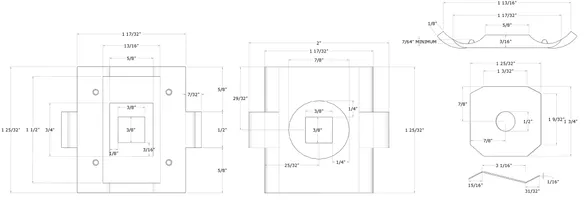

Bimetallic Countersunk 1-Bolt Parallel

Brand: DEHN
Type: BM RRP 1SSCB AL BZ
Part No.: 218310
or equivalent.



Technical data

Material Bimetal: Aluminum (minimum 85%) / Copper (minimum 80%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 3/8-1/2 in. (30-61.5 mm2)
Clamping screw 1-1/2 bolt, nut and washer
Material of screw Stainless steel
Dimensions 1-9/16 x 1-3/4 in (39.7 x 44.5 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 170 g

Product 218310 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

2-bolt parallel clamp

2 Products

Part No. 218272 BF RRP 2SSCB AL

GTIN 4013364517936, Customs tariff No. (EU): 85359000, Gross weight: 2.50 OZ, PU: 10.00 pc(s)

Images

Additional information

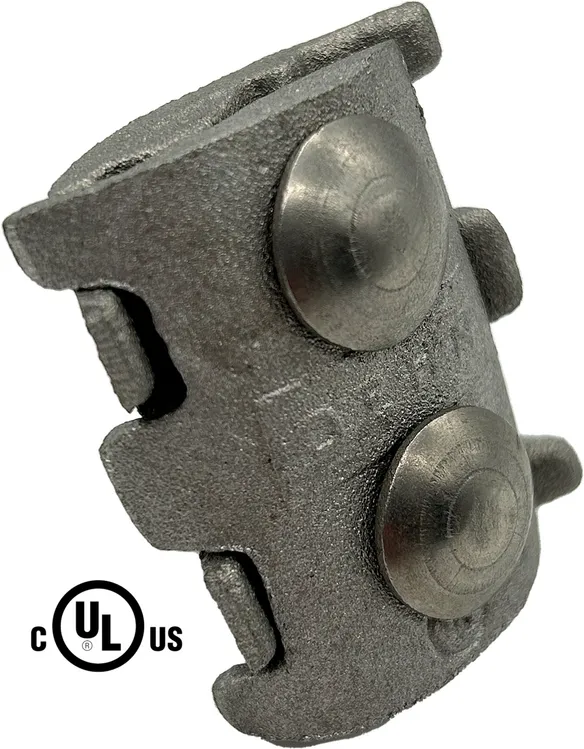

Aluminum 2-Bolt Parallel Clamp

Brand: DEHN
Type: BF RRP 2SSCB AL
Part No.: 218272
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 1-1/2 carriage bolt, nut and washer
Material of screw Stainless steel
Dimensions 2 x 1-5/8 in (51 x 41.3 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 71 g

Product 218272 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

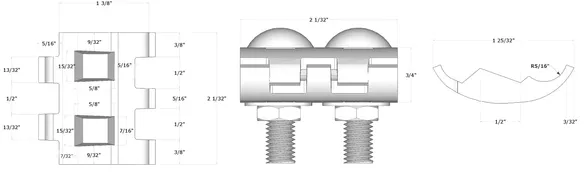

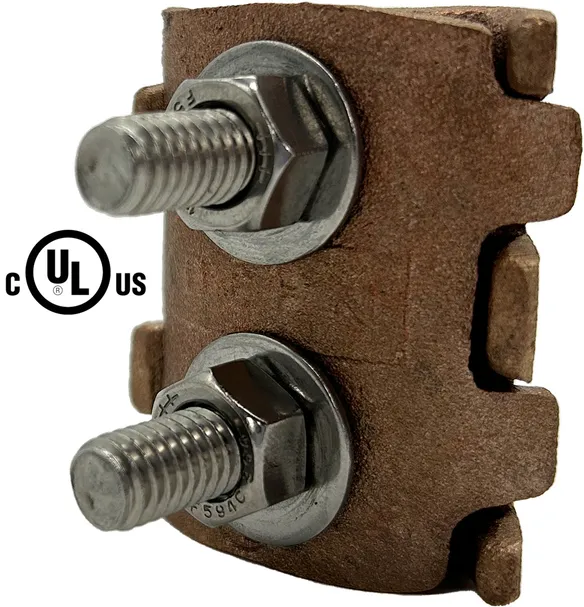

Part No. 218273 BF RRP 2SSCB BZ

GTIN 4013364517943, Customs tariff No. (EU): 85359000, Gross weight: 8.00 OZ, PU: 10.00 pc(s)

Images

Additional information

Bronze 2-Bolt Parallel Clamp

Brand: DEHN
Type: BF RRP 2SSCB BZ
Part No.: 218273
or equivalent.



Technical data

Material Copper (minimum 80%)
Conductor material Copper, Stainless steel, Steel
Clamping range stranded cable 3/8-1/2 in. (30-61.5 mm2)
Clamping screw 1-1/2 carriage bolt, nut and washer
Material of screw Stainless steel
Dimensions 2 x 1-5/8 in (51 x 41.3 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 227 g

Product 218273 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

4-bolt straight splicer

3 Products

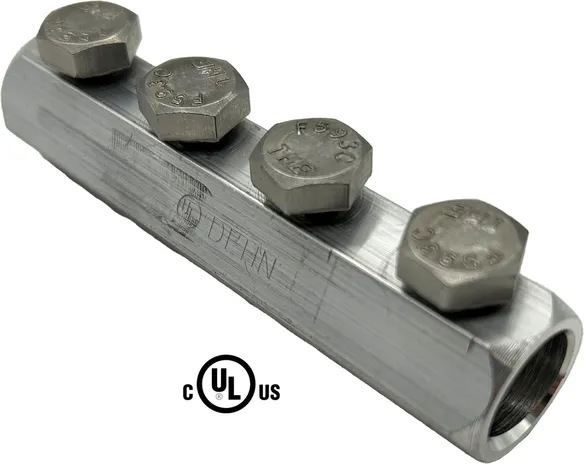

Part No. 218282 BF SHS 4SSB AL

GTIN 4013364518025, Customs tariff No. (EU): 85359000, Gross weight: 2.00 OZ, PU: 10.00 pc(s)

Images

Additional information

Aluminum 4-Bolt Straight Splicer

Brand: DEHN
Type: BF SHS 4SSB AL
Part No.: 218282
or equivalent.



Technical data

Material Aluminum (minimum 90%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 5/16-18 bolts
Material of screw Stainless steel
Dimensions 3-1/2 x 3/4 in (89 x 19 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 57 g

Product 218282 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

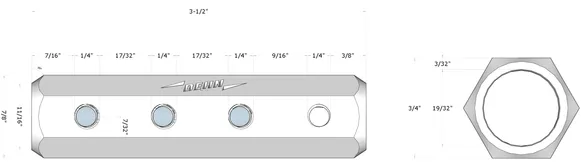

Part No. 218283 BF SHS 4SSB BS

GTIN 4013364518032, Customs tariff No. (EU): 85359000, Gross weight: 6.00 OZ, PU: 10.00 pc(s)

Images

Additional information

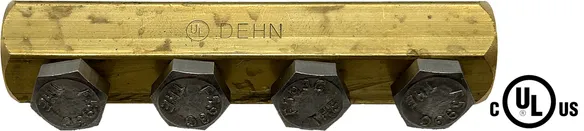

Brass 4-Bolt Straight Splicer

Brand: DEHN
Type: BF SHS 4SSB BS
Part No.: 218283
or equivalent.



Technical data

Material Brass (minimum 60%)
Conductor material Copper, Stainless steel, Steel
Clamping range stranded cable 3/8-1/2 in (30-61.5 mm2)
Clamping screw 5/16-18 bolts
Material of screw Stainless steel
Dimensions 3-1/2 x 3/4 in (89 x 19 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 170 g

Product 218283 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

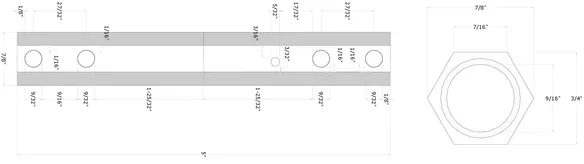

Part No. 218312 BM SHS 4SSB AL BS

GTIN 4013364518117, Customs tariff No. (EU): 85359000, Gross weight: 6.00 OZ, PU: 10.00 pc(s)

Images

Additional information

Bimetallic 4-Bolt Straight Splicer

Brand: DEHN
Type: BM SHS 4SSB AL BS
Part No.: 218312
or equivalent.



Technical data

Material Bimetal: Aluminum (minimum 90%) / Brass (minimum 60%)
Conductor material Copper, Stainless steel, Steel
Clamping range stranded cable 3/8-1/2 in (30-61.5 mm2)
Clamping screw 5/16-18 bolts
Material of screw Stainless steel
Dimensions 5 x 3/4 in (89 x 19 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 170 g

Product 218312 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Cross run clamp

2 Products

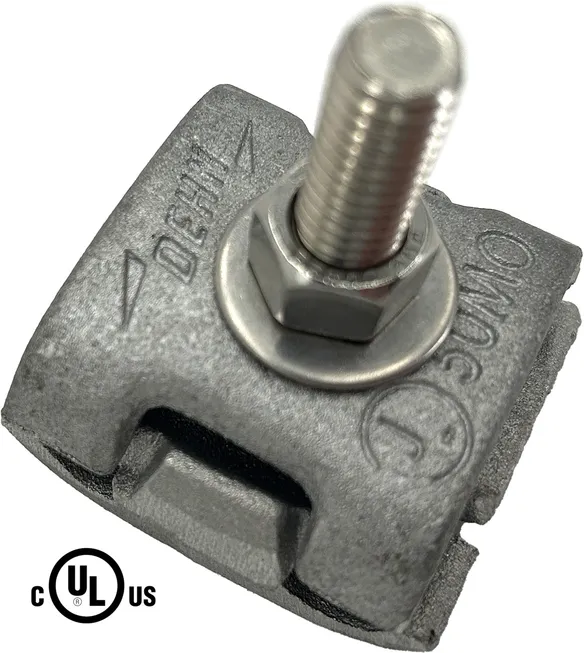

Part No. 218634 BF RRCR 1SSCB AL

GTIN 4013364517950, Customs tariff No. (EU): 85359000, Gross weight: 3.50 OZ, PU: 10.00 pc(s)

Images

Additional information

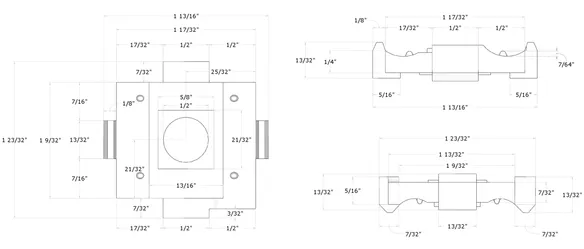

Aluminum Cross Run Clamp

Brand: DEHN
Type: BF RRCR 1SSCB AL
Part No.: 218634
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)
Clamping screw 1-1/2 carriage bolt, nut and washer
Material of screw Stainless steel
Dimensions 1-9/16 x 1-3/4 in (40 x 45 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 99 g

Product 218634 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

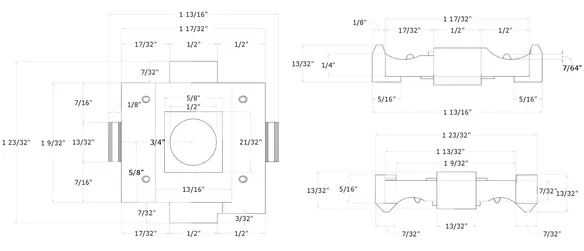

Part No. 218635 BF RRCR 1SSCB BZ

GTIN 4013364517967, Customs tariff No. (EU): 85359000, Gross weight: 8.00 OZ, PU: 10.00 pc(s)

Images

Additional information

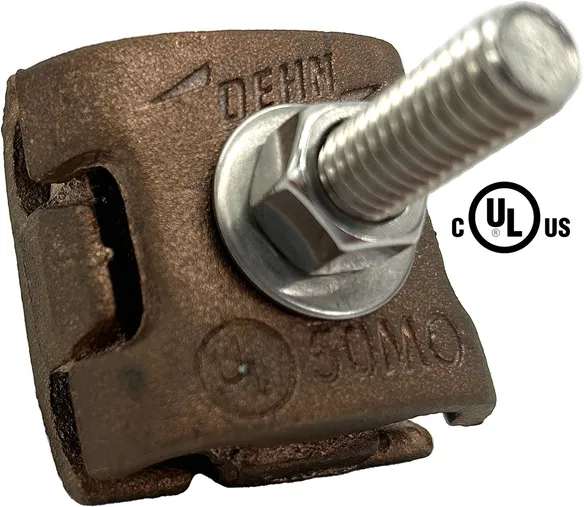

Bronze Cross Run Clamp

Brand: DEHN
Type: BF RRCR 1SSCB BZ
Part No.: 218635
or equivalent.



Technical data

Material Copper (minimum 80%)
Conductor material Copper, Stainless steel, Steel
Clamping range stranded cable 3/8-1/2 in. (30-61.5 mm2)
Clamping screw 1-1/2 carriage bolt, nut and washer
Material of screw Stainless steel
Dimensions 2-9/16 x 1-3/4 in (40 x 45 mm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 227 g

Product 218635 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
back to top
