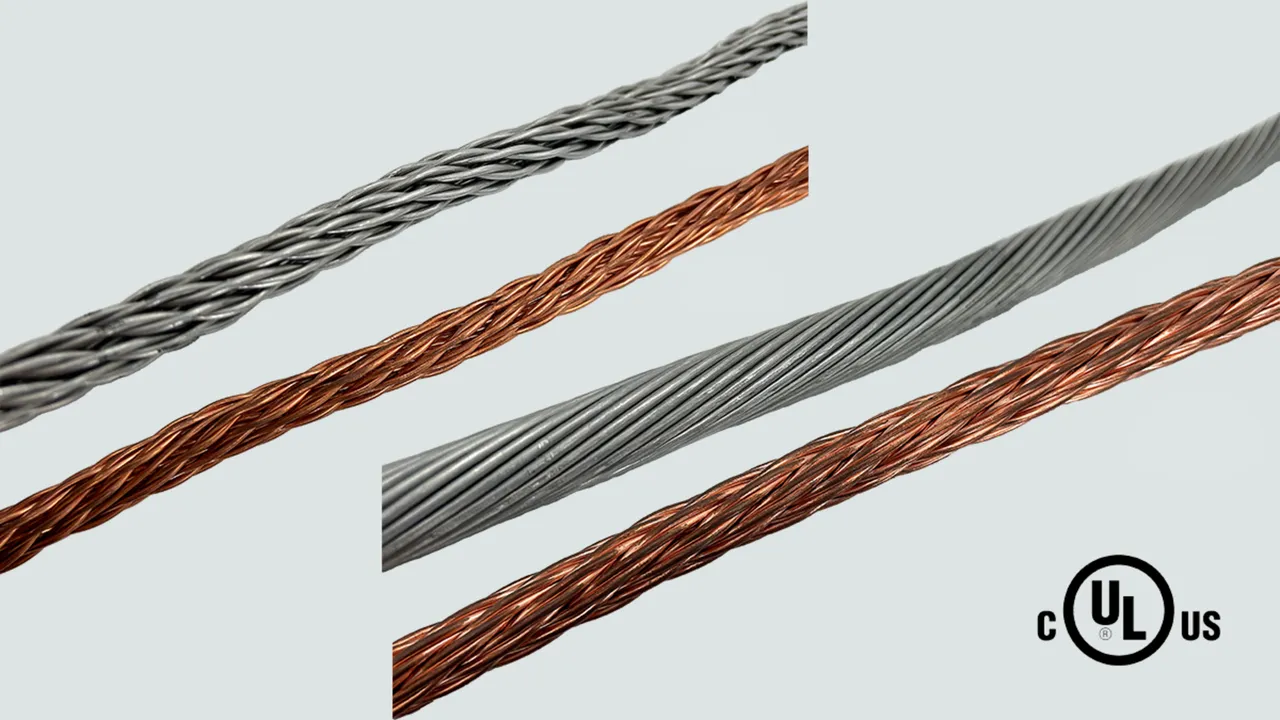

DEHNconduct - Conductors

For interconnecting air terminals, bonds, and grounds in a complete system.

Aluminium cable

2 ??store.products_de??

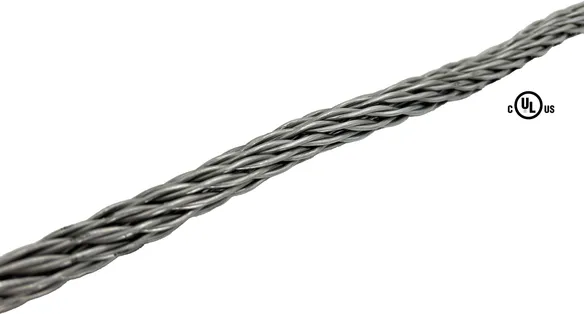

??store.product.number.short_de?? 228300 CABLE 24x14 AL 50QMM

??store.product.gtin_de?? 4013364518322, ??store.product.customsTariffNumber_de??: 76149000, ??store.product.grossWeight_de??: 0.10 LB/FT, ??store.product.packaging_de??: 500.00 FT

??store.product.slides_de??

??store.product.additional_de??

Aluminum 24 x 14 Cable UL ECLE

Brand: DEHN
Type: CABLE 24x14 AL 50QMM
Part No.: 228300
or equivalent.



??store.product.data_de??

Cross-section 98.640 circular mils (50 mm2)
Cable structure qty x Ø wire 24 x 14 gauge (1.63 mm)
Material Electrical grade aluminum (minimum 99%)
Outside diameter Ø 3/8 in. (9.525 mm)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Classification Class 1
Conductor length 500 ft. (152.4 m)
Coil weight 102 lb / 1000 ft (152 g / m)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 228301 CABLE 37x12.5 AL 107QMM

??store.product.gtin_de?? 4013364518339, ??store.product.customsTariffNumber_de??: 76149000, ??store.product.grossWeight_de??: 0.20 LB/FT, ??store.product.packaging_de??: 500.00 FT

??store.product.slides_de??

??store.product.additional_de??

Aluminum 4/0-37 Cable UL ECLE

Brand: DEHN
Type: CABLE 37x12.5 AL 107QMM
Part No.: 228301
or equivalent.



??store.product.data_de??

Cross-section 211.475 circular mils (107 mm2)
Cable structure qty x Ø wire 37 x 12-1/2 gauge (1.92 mm)
Material Electrical grade aluminum (minimum 99%)
Outside diameter Ø 19/32 in. (15.081 mm)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Classification Class 2
Conductor length 500 ft. (152.4 m)
Coil weight 200 lb / 1000 ft (298 g / m)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Copper cable

2 ??store.products_de??

??store.product.number.short_de?? 228310 CABLE 29x17 CU 30QMM

??store.product.gtin_de?? 4013364518346, ??store.product.customsTariffNumber_de??: 74130000, ??store.product.grossWeight_de??: 0.19 LB/FT, ??store.product.packaging_de??: 500.00 FT

??store.product.slides_de??

??store.product.additional_de??

Copper 29 x 17 Cable UL ECLE

Brand: DEHN
Type: CABLE 29x17 CU 30QMM
Part No.: 228310
or equivalent.



??store.product.data_de??

Cross-section 59.450 circular mils (30 mm2)
Cable structure qty x Ø wire 29 x 17 gauge (1.15 mm)
Material Electrical grade copper (minimum 95%)
Outside diameter Ø 3/8 in. (9.525 mm)
Conductor material Copper, Stainless Steel, Steel
Classification Class 1
Conductor length 502 ft. (152.4 m)
Coil weight 192 lb / 1000 ft (286 g / m)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 228311 CABLE 28x0.066 CU 61.5QMM

??store.product.gtin_de?? 4013364518353, ??store.product.customsTariffNumber_de??: 74130000, ??store.product.grossWeight_de??: 0.39 LB/FT, ??store.product.packaging_de??: 500.00 FT

??store.product.slides_de??

??store.product.additional_de??

Copper 28 x .066 Cable UL ECLE

Brand: DEHN
Type: CABLE 28x0.066 CU 61.5QMM
Part No.: 228311
or equivalent.



??store.product.data_de??

Cross-section 121.968 circular mils (61.5 mm2)
Cable structure qty x Ø wire 28 x 0.066 gauge (1.68 mm)
Material Electrical grade copper (minimum 95%)
Outside diameter Ø 1/2 in. (12.7 mm)
Conductor material Copper, Stainless Steel, Steel
Classification Class 2
Conductor length 502 ft. (152.4 m)
Coil weight 385 lb / 1000 ft (573 g / m)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
