Protection module for DEHNbloc modular

  • High discharge capacity due to powerful creepage discharge spark gap
  • Maximum system availability due to RADAX Flow follow current limitation
  • Easy replacement of protection modules without tools due to module locking system with module release button
  • Operating state / fault indication by green / red indicator flag in the inspection window

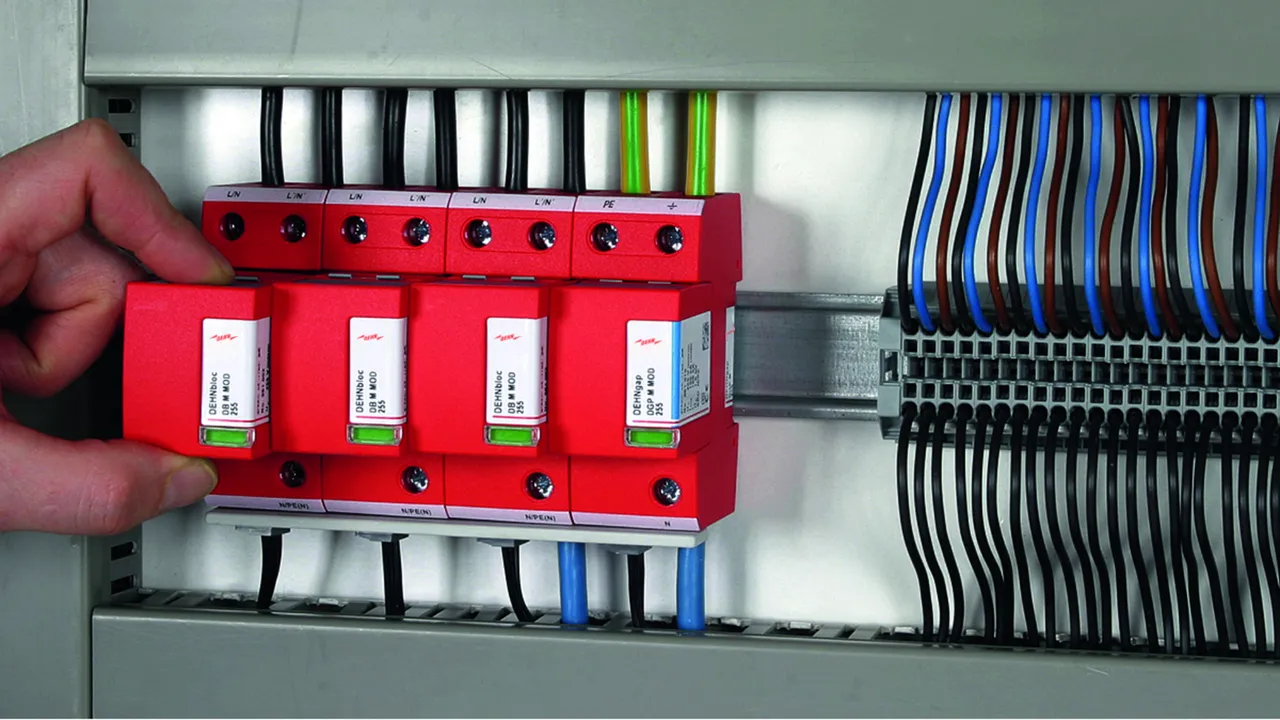

  • The plug-in protection module can be replaced without switching off the mains voltage or removing the vertical cover

DB M Spark-Gap-Based Protection Module

Spark-gap-based protection module for DEHNbloc M ...

3 ??store.products_de??

??store.product.number.short_de?? 961001 DB M MOD 150

??store.product.gtin_de?? 4013364118584, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 184.90 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

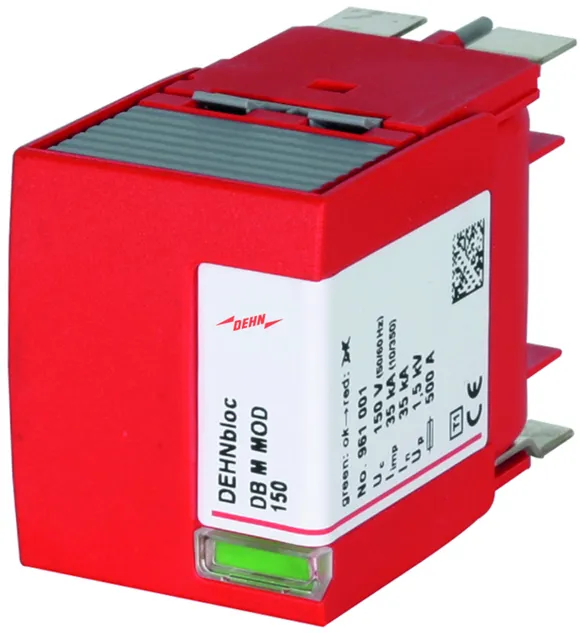

Spark-gap-based protection module DB M MOD 150
Spark-gap-based mains protection module for single-pole,
coordinated, pluggable, Type 1 arresters of the Red/Line
product series according to EN 61643-11
Maximum system availability due to
RADAX Flow follow current limitation.
Max. continuous operating voltage: 150 V AC
Lightning impulse current: 35 kA
Fault indication

Brand: DEHN
Type: DB M MOD 150
Part No.: 961001
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Max. continuous operating voltage (a.c.) (UC ) 150 V
Lightning impulse current (10/350 µs) (Iimp ) 35 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 961002 DB M MOD 255

??store.product.gtin_de?? 4013364118591, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 207.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Spark-gap-based protection module DB M MOD 255
Spark-gap-based mains protection module for single-pole,
coordinated, Type 1 arresters of the Red/Line
product series according to EN 61643-11
Maximum system availability due to
RADAX Flow follow current limitation.
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 50 kA
Fault indication

Brand: DEHN
Type: DB M MOD 255
Part No.: 961002
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 50 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 961003 DB M MOD 320

??store.product.gtin_de?? 4013364118607, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 192.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Spark-gap-based protection module DB M MOD 320
Spark-gap-based mains protection module for single-pole,
coordinated, Type 1 arresters of the Red/Line
product series according to EN 61643-11
Maximum system availability due to
RADAX Flow follow current limitation.
Max. continuous operating voltage: 320 V AC
Lightning impulse current: 50 kA
Fault indication

Brand: DEHN
Type: DB M MOD 320
Part No.: 961003
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Max. continuous operating voltage (a.c.) (UC ) 320 V
Lightning impulse current (10/350 µs) (Iimp ) 50 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
