Protection module for DEHNgap modular

  • High discharge capacity due to powerful creepage discharge spark gap

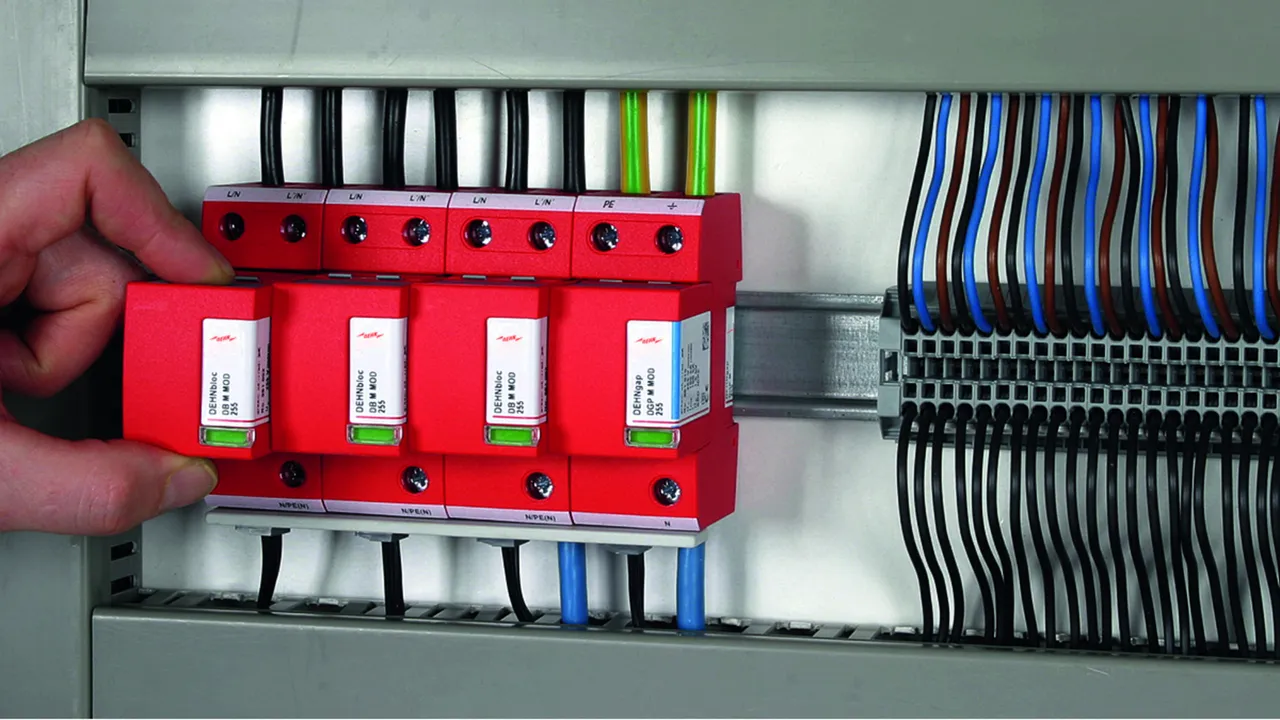

  • Easy replacement of protection modules without tools due to module locking system with module release button
  • Operating state/fault indication with green-red marking in the inspection window

DGP M – 100 kA N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for all devices of the modular DEHNgap M family.

1 ??store.product_de??

??store.product.number.short_de?? 961010 DGP M MOD 255

??store.product.gtin_de?? 4013364118744, ??store.product.customsTariffNumber_de??: 85363030, ??store.product.grossWeight_de??: 182.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

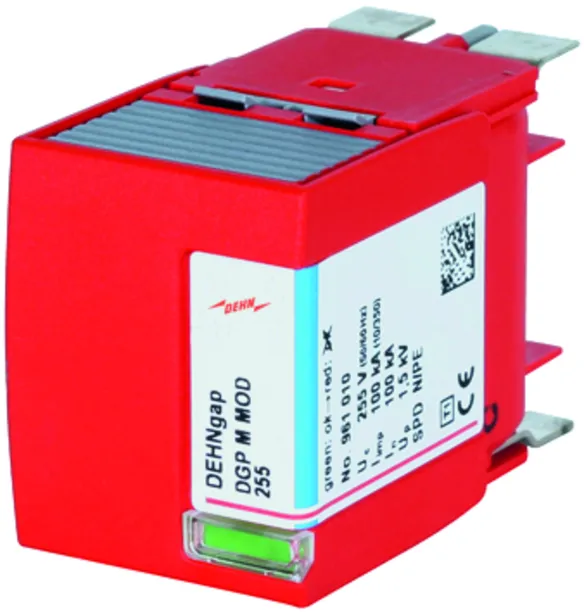

DGP M MOD 255 N-PE spark-gap-based protection module
N-PE spark-gap-based protection module suitable
for all devices of the modular DEHNgap M series
Type 1 N-PE arrester according to EN 61643-11
RADAX Flow spark gap technology
Fault indication
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 100 kA
Follow current extinguishing capability: 100 Arms at 255 V AC

Brand: DEHN
Type: DGP M MOD 255
Part No.: 961010
or equivalent.



??store.product.data_de??

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 100 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

DGPH M – 100 kA N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for all devices of the modular DEHNgap H M family.

1 ??store.product_de??

??store.product.number.short_de?? 961020 DGPH MOD 255

??store.product.gtin_de?? 4013364118706, ??store.product.customsTariffNumber_de??: 85363030, ??store.product.grossWeight_de??: 151.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

DGPH MOD 255 N-PE spark-gap-based protection module
N-PE spark-gap-based protection module suitable
for all devices of the modular DEHNgap M series
Type 1 N-PE arrester according to EN 61643-11
RADAX Flow spark gap technology
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 100 kA
Follow current extinguishing capability: 100 Arms at 255 V AC

Brand: DEHN
Type: DGPH MOD 255
Part No.: 961020
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 100 kA
