Electrodes

  • Safe contact with the part of an installation to be tested
  • With M8 thread, to be screwed on the test prods of PHE4, PHE III, PHE voltage detectors as well as PHV I phase comparators

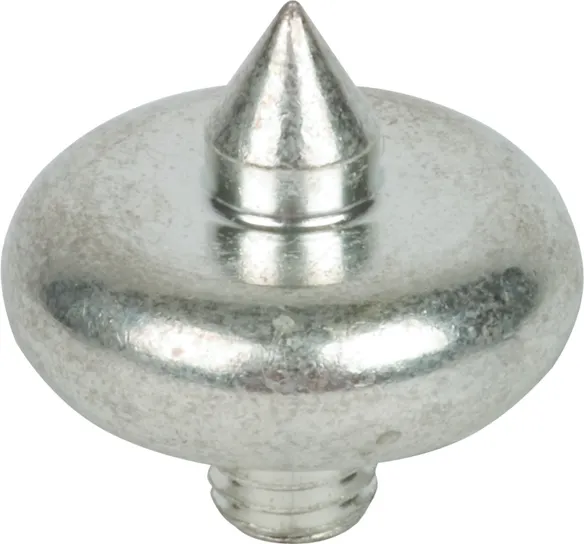

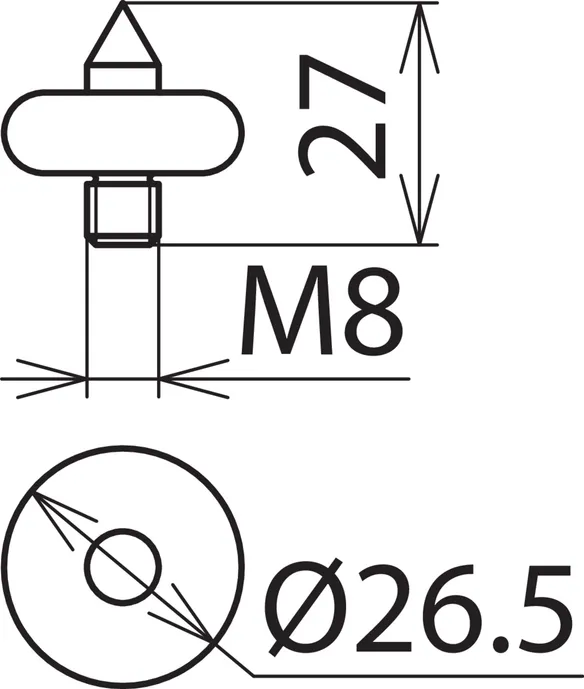

Onion-shaped Electrode

For contacting varnished busbars.

1 Product

Part No. 766913 EL M8 SZ PHE PHV

GTIN 4013364051836, Customs tariff No. (EU): 90309000, Gross weight: 42.30 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) From 3 kV
Material Brass/gal CuSn

Product 766913 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

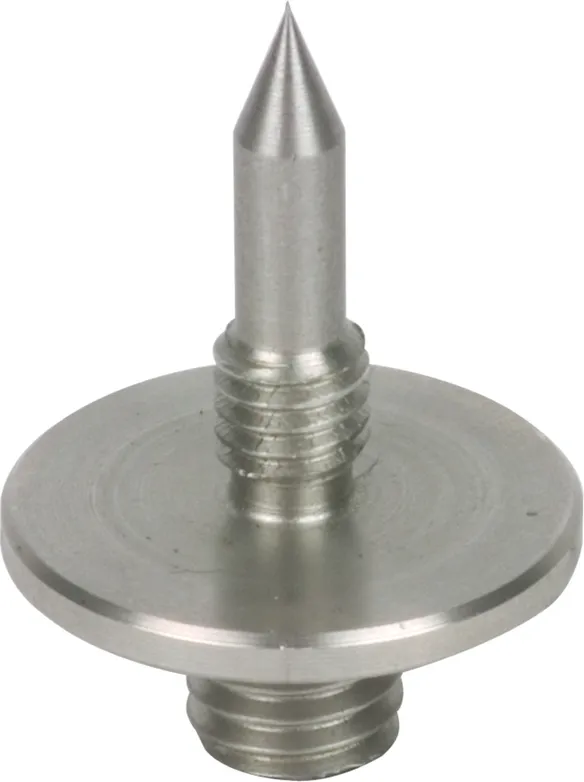

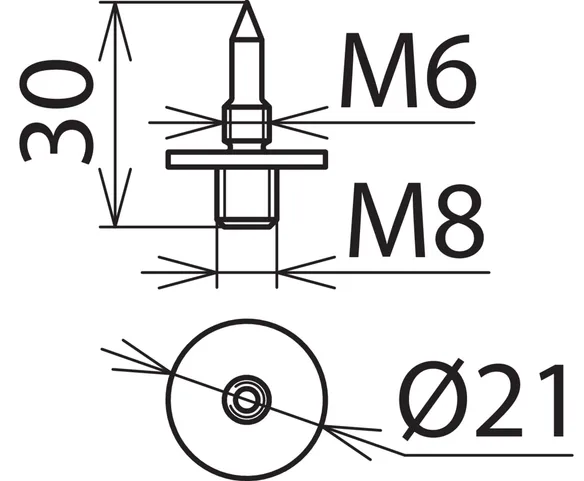

Pin-shaped Electrode

For contacting varnished busbars.

1 Product

Part No. 766925 EL M8 S PHE PHV

GTIN 4013364091672, Customs tariff No. (EU): 90309000, Gross weight: 10.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) From 3 kV
Material StSt

Product 766925 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

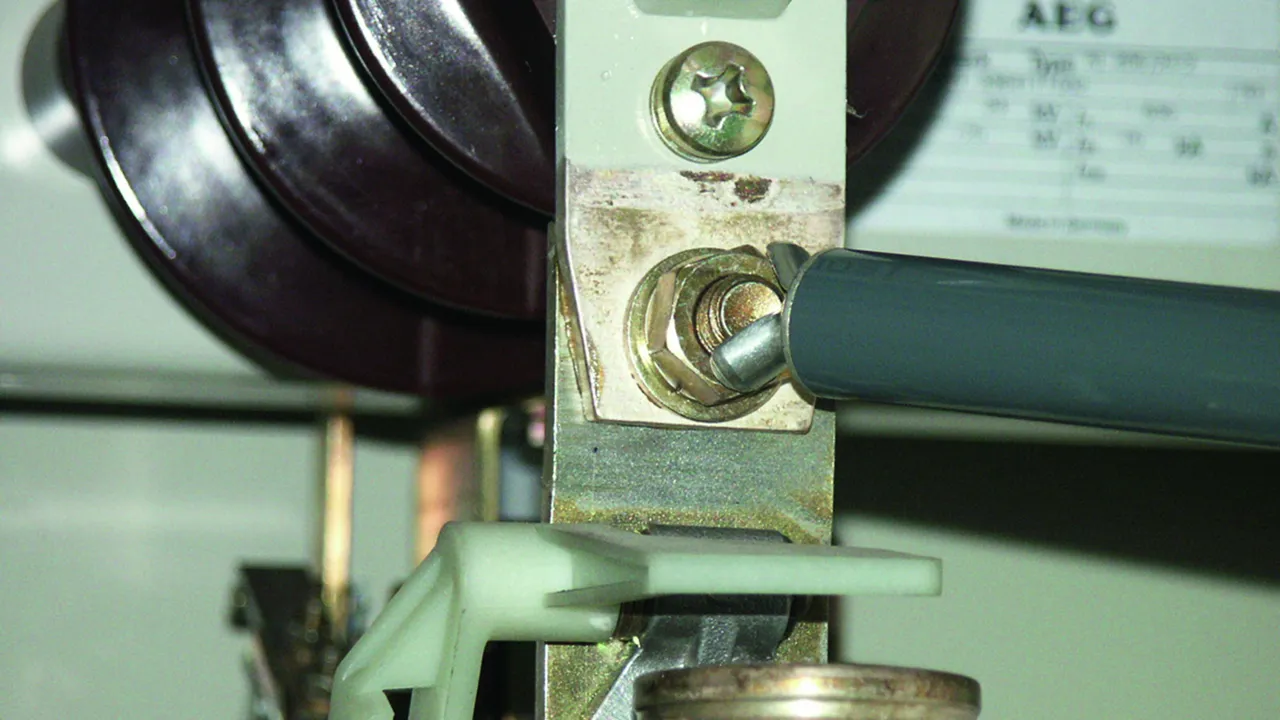

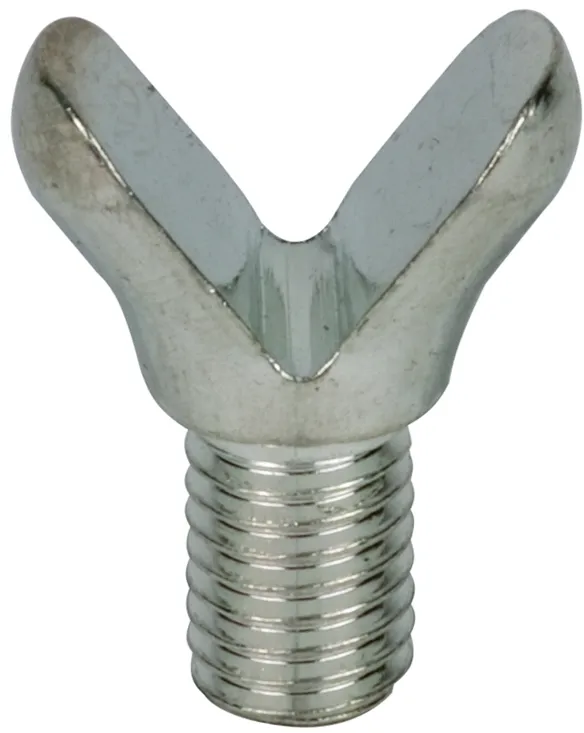

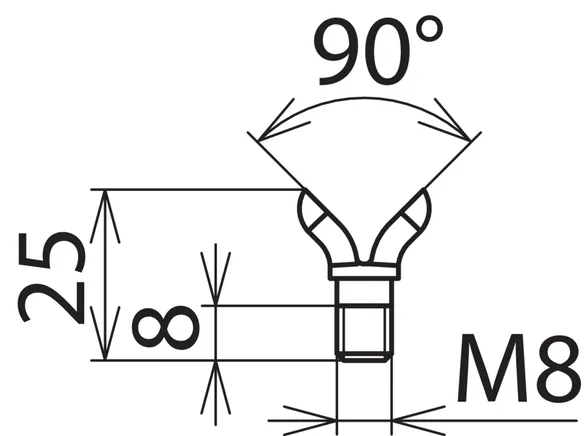

V-shaped Electrode

For contacting round conductors.

1 Product

Part No. 766927 EL M8 V PHE PHV

GTIN 4013364097452, Customs tariff No. (EU): 90309000, Gross weight: 11.77 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) From 3 kV
Material Cu/gal Sn

Product 766927 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

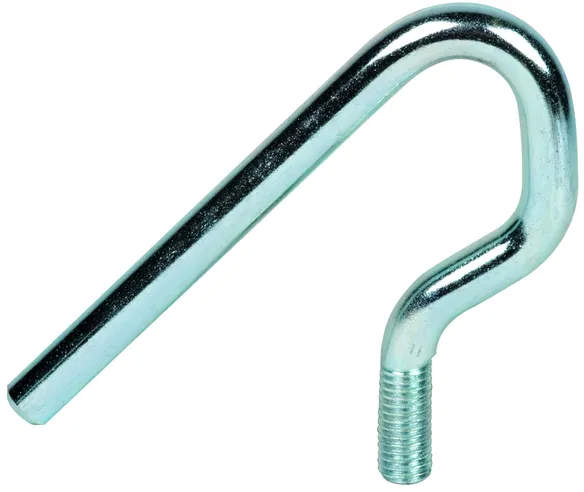

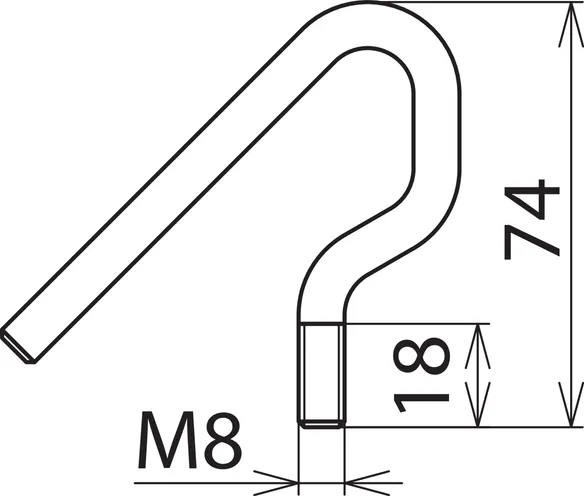

Hook-shaped Electrode

For contacting overhead line conductors.

1 Product

Part No. 766923 EL M8 H PHE

GTIN 4013364074590, Customs tariff No. (EU): 90309000, Gross weight: 70.50 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Application For overhead lines only
Material St/gal Zn

Product 766923 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

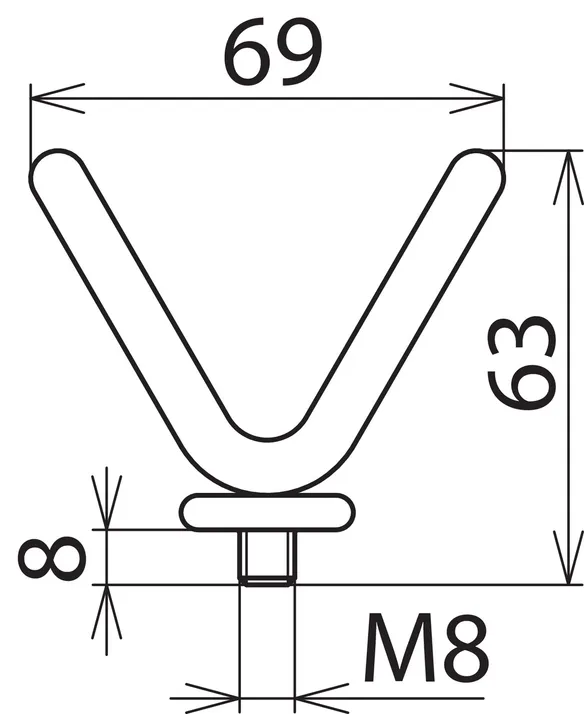

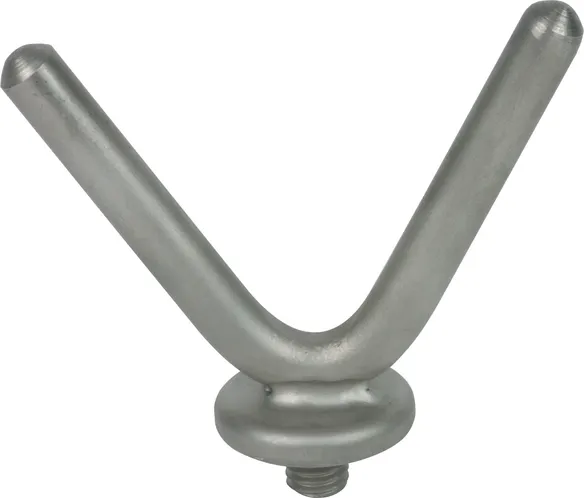

Fork-shaped Electrode

For contacting overhead line conductors.

1 Product

Part No. 766924 EL M8 G PHE

GTIN 4013364094840, Customs tariff No. (EU): 90309000, Gross weight: 70.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Application For overhead lines only
Material StSt

Product 766924 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

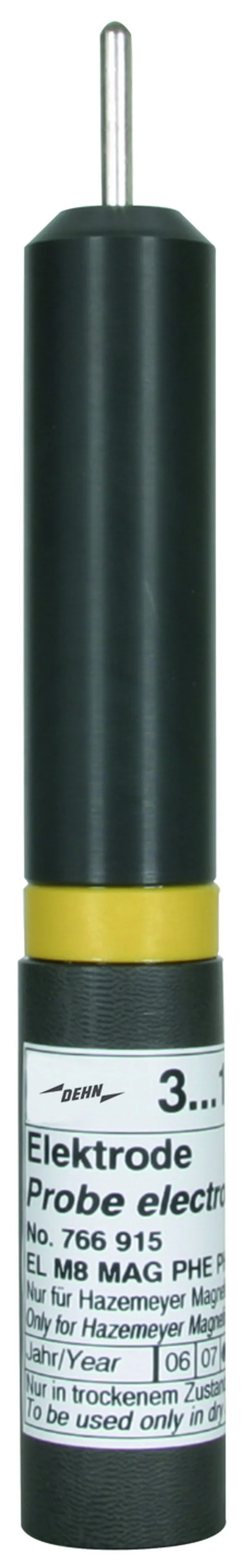

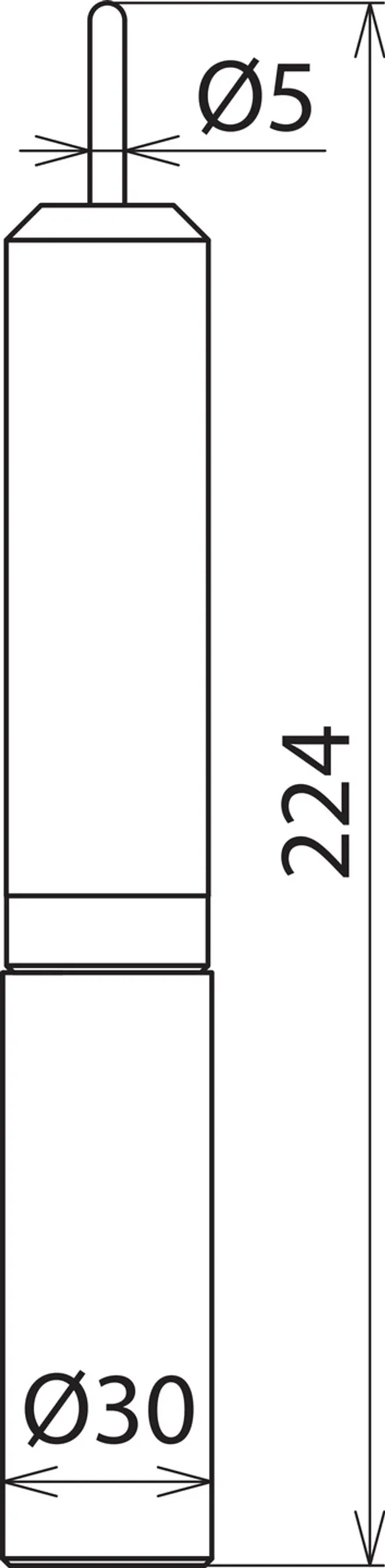

Eaton Holec Magnefix Electrode

For Eaton Holec Magnefix switchgear installations of type MA, MD4, MF, MG, MY.

1 Product

Part No. 766915 EL M8 MAG PHE PHV

GTIN 4013364088207, Customs tariff No. (EU): 90309000, Gross weight: 220.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) 3 ... 15 kV
Material Brass/gal CuSn, PVC

Product 766915 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
