Test Probes

  • Safe contact with the part of an installation to be tested
  • With M8 thread, to be screwed on test electrodes of PHE4, PHE III and PHE voltage detectors
  • For switchgear installations with limited access
  • Available in different lengths and angles

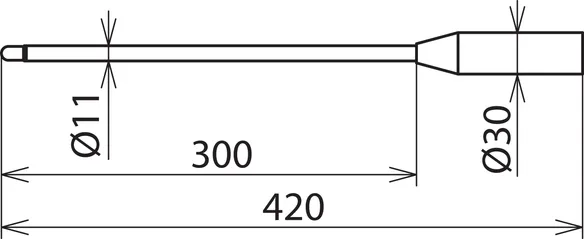

Test Probe, straight

For switchgear installations with limited access (e.g. Calor Emag/Isopond and Krone/KES)

1 Product

Part No. 766916 PSO M8 PHE

GTIN 4013364106840, Customs tariff No. (EU): 90309000, Gross weight: 125.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Nominal voltage (UN ) 1 ... 24 kV
Total length (lG ) 420 mm
Length (l1 ) 300 mm
Diameter 11 mm
For use at ^
Suitable for PHE4, PHE III, PHE

Product 766916 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

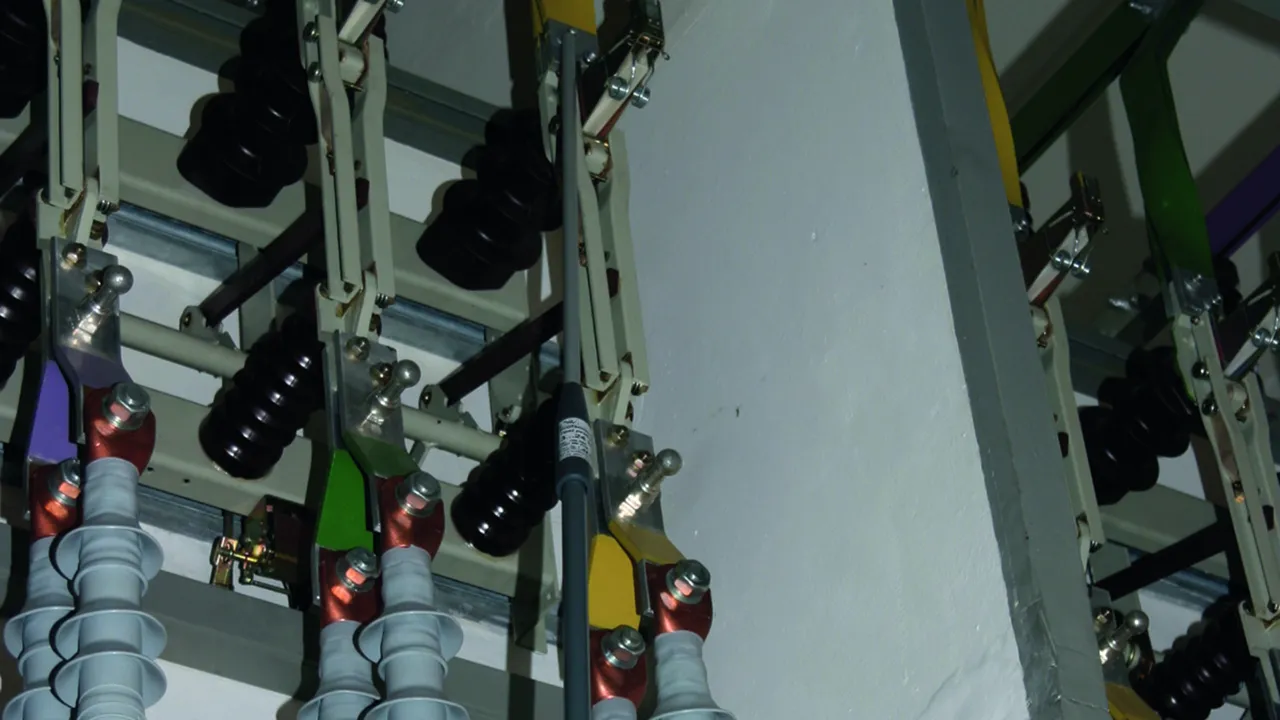

Test Probe, straight, 800 mm

For transformer stations and switchgear installations that require a greater insertion depth.

1 Product

Part No. 766960 PSO M8 PHE L800

GTIN 4013364109629, Customs tariff No. (EU): 90309000, Gross weight: 310.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Nominal voltage (UN ) 1 ... 24 kV
Total length (lG ) 890 mm
Diameter 14 mm
For use at _
Suitable for PHE4, PHE III, PHE

Product 766960 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

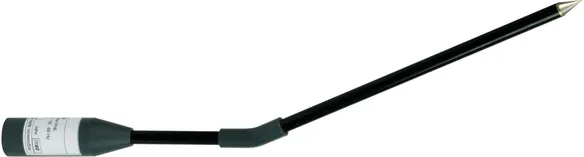

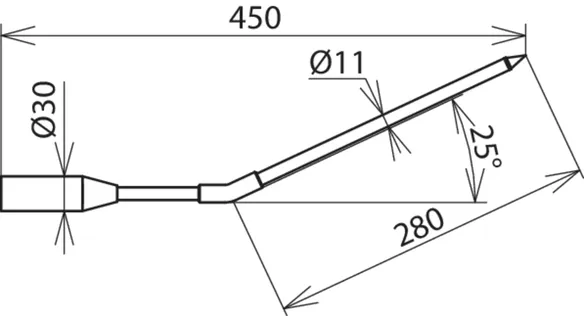

Test Probe, 25° angled

For switchgear installations with limited access.

1 Product

Part No. 766940 PSO M8 W25 PHE

GTIN 4013364080485, Customs tariff No. (EU): 90309000, Gross weight: 145.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Nominal voltage (UN ) 1 ... 24 kV
Total length (lG ) 450 mm
Length (l1 ) 280 mm
Diameter 11 mm
For use at ^
Suitable for PHE4, PHE III, PHE

Product 766940 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

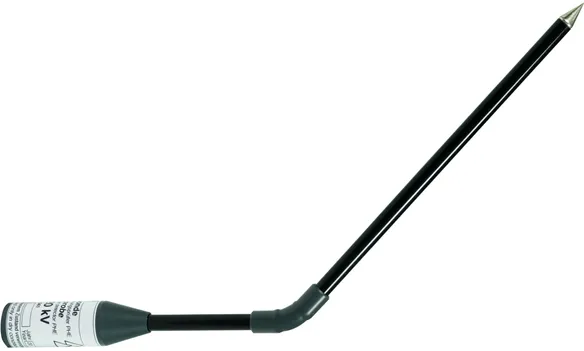

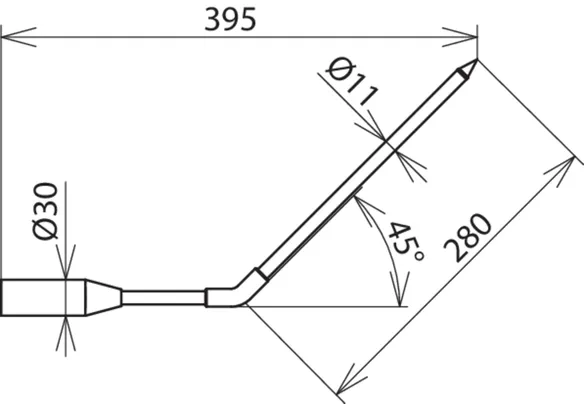

Test Probe, 45° angled

For switchgear installations with limited access.

1 Product

Part No. 766941 PSO M8 W45 PHE

GTIN 4013364080478, Customs tariff No. (EU): 90309000, Gross weight: 150.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Nominal voltage (UN ) 1 ... 24 kV
Total length (lG ) 395 mm
Length (l1 ) 280 mm
Diameter 11 mm
For use at ^
Suitable for PHE4, PHE III, PHE

Product 766941 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

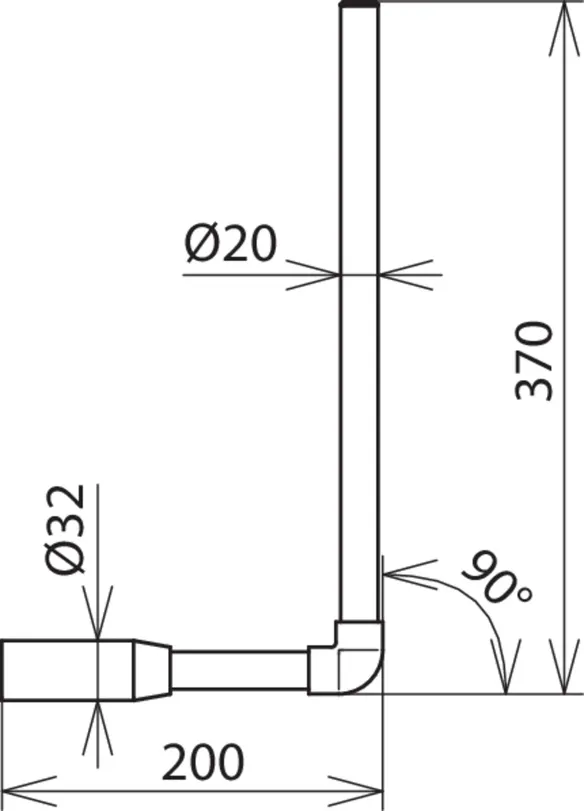

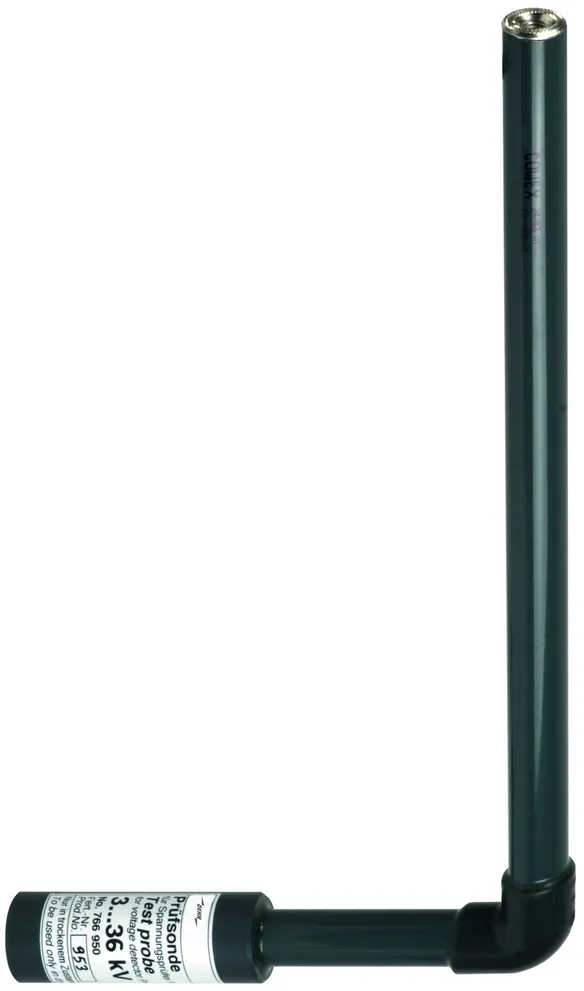

Test Probe, 90° angled

For switchgear installations with a limited tulip-shaped access from bottom to top.

1 Product

Part No. 766950 PSO M8 W90 PHE

GTIN 4013364090668, Customs tariff No. (EU): 90309000, Gross weight: 339.00 g, PU: 1.00 pc(s)


Images

Additional information



Technical data

Nominal voltage (UN ) 1 ... 24 kV
Total length (lG ) 200 mm
Length (l1 ) 370 mm
Diameter 20 mm
For use at ^
Suitable for PHE4, PHE III, PHE
