Hammer Inserts for Earth Rods

For driving in earth rods with a vibration hammer.
For earth rods type Z and AZ.
Ø20 mm (pin Ø12 mm Part No. 620...) or
Ø25 mm (pin Ø15 mm Part No. 625...)

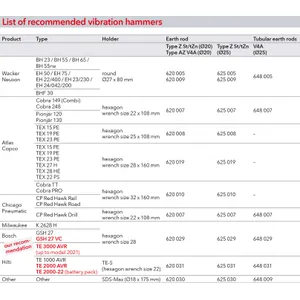

With the Atlas Copco equipment different adapter types can be used. Please note that when placing your order.

Details

Hammer inserts for earth rods and tubular earth electrodes
lorem ipsum

Design for Wacker Neuson

2 Products

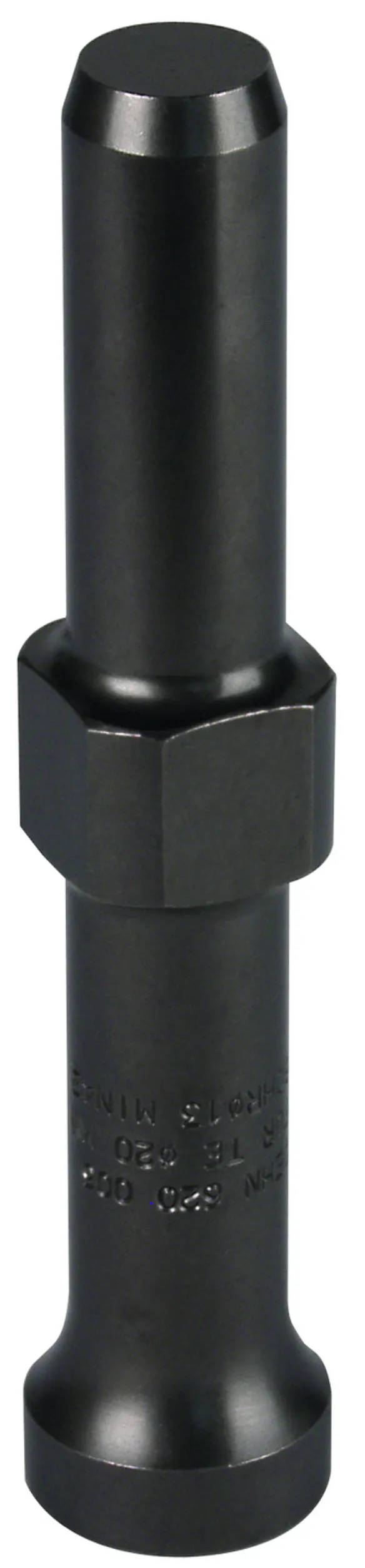

Part No. 620005 HE TE 20 R27 VH WN STBLANK

GTIN 4013364027039, Customs tariff No. (EU): 82079099, Gross weight: 1.07 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: BHF 30
Adapter: round Ø27 x 80 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 R27 VH WN STBLANK
Part No.: 620005
or equivalent.

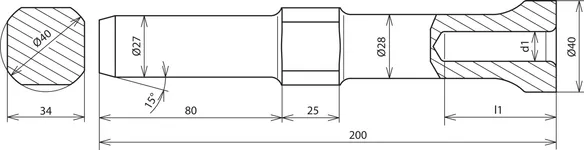

Technical data

Type BHF 30
Adapter round Ø27 x 80 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 200 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620005 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 625005 HE TE 25 R27 VH WN STBLANK

GTIN 4013364027046, Customs tariff No. (EU): 82079099, Gross weight: 1.05 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: BHF 30
Adapter: round Ø27 x 80 mm
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 R27 VH WN STBLANK
Part No.: 625005
or equivalent.



Technical data

Type BHF 30
Adapter round Ø27 x 80 mm
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 200 mm
Earth rod diameter 25 mm
Earth rod type S, Z

Product 625005 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Heavy design for Wacker Neuson

2 Products

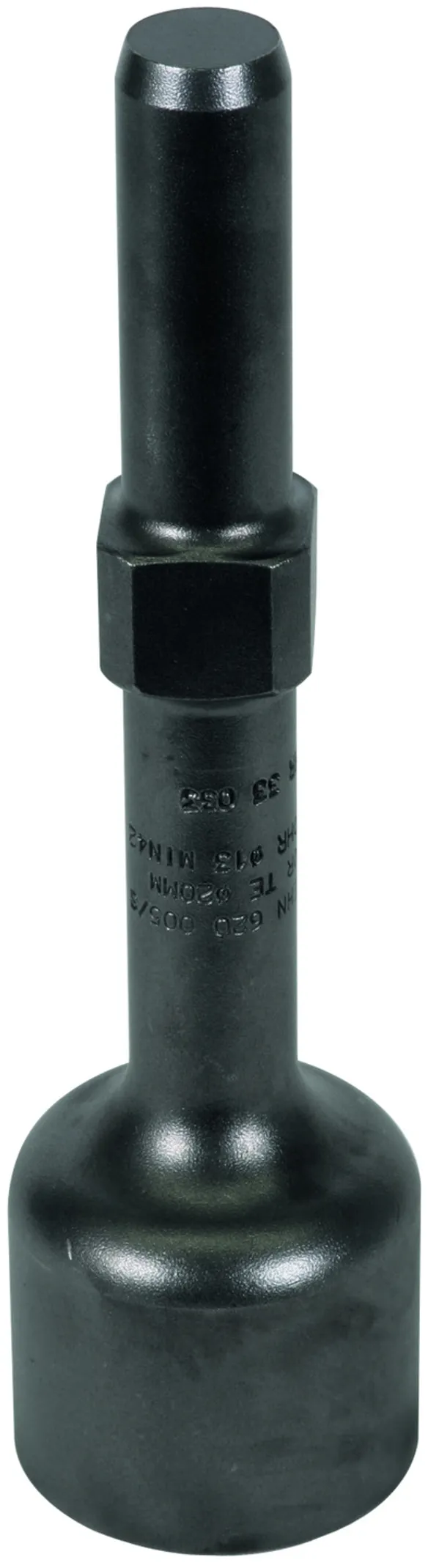

Part No. 620009 HE TE 20 R27 LVH WN STBLANK

GTIN 4013364118119, Customs tariff No. (EU): 82079099, Gross weight: 2.80 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: BH 55, BH 65, BH 55rw, EH 50, EH 75 and EH 22/400
Adapter: round Ø27 x 80 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 R27 LVH WN STBLANK
Part No.: 620009
or equivalent.

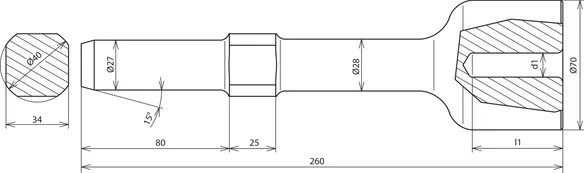

Technical data

Type BH 55, BH 65, BH 55rw, EH 50, EH 75 and EH 22/400
Adapter round Ø27 x 80 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 260 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620009 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 625009 HE TE 25 R27 LVH WN STBLANK

GTIN 4013364118126, Customs tariff No. (EU): 82079099, Gross weight: 2.80 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: BH 55, BH 65, BH 55rw, EH 50, EH 75 and EH 22/400
Adapter: round Ø27 x 80 mm
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 R27 LVH WN STBLANK
Part No.: 625009
or equivalent.



Technical data

Type BH 55, BH 65, BH 55rw, EH 50, EH 75 and EH 22/400
Adapter round Ø27 x 80 mm
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 260 mm
Earth rod diameter 25 mm
Earth rod type Z

Product 625009 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Design for Atlas Copco AF 22

2 Products

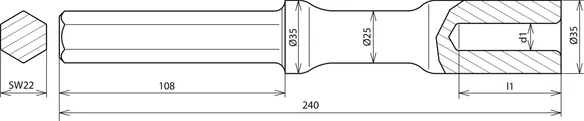

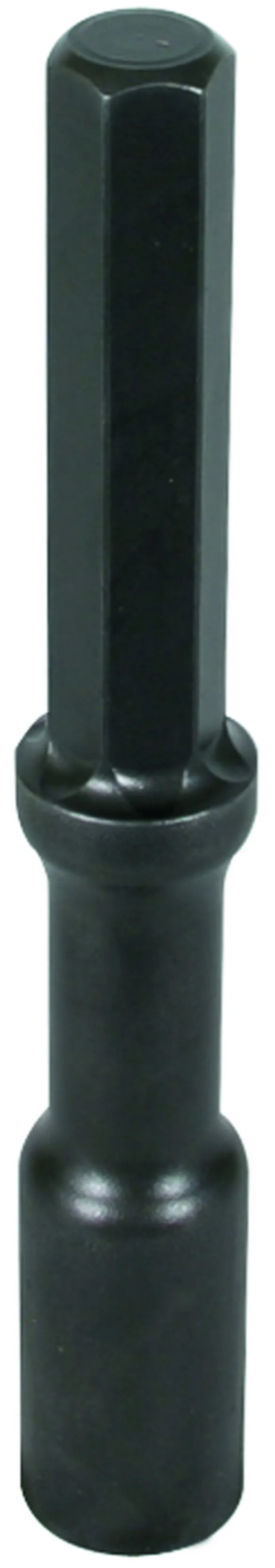

Part No. 620007 HE TE 20 SW22 VH AC STBLANK

GTIN 4013364027084, Customs tariff No. (EU): 82079099, Gross weight: 1.08 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: Cobra Combi, Pionjär 120+130, CP Red Hawk (Cobra Standard)
Adapter: hexagon, wrench size 22 x 108 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 SW22 VH AC STBLANK
Part No.: 620007
or equivalent.



Technical data

Type Cobra Combi, Pionjär 120+130, CP Red Hawk (Cobra Standard)
Adapter hexagon, wrench size 22 x 108 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 240 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620007 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 625007 HE TE 25 SW22 VH AC STBLANK

GTIN 4013364027091, Customs tariff No. (EU): 82079099, Gross weight: 1.03 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: Cobra Combi, Pionjär 120+130, CP Red Hawk (Cobra Standard)
Adapter: hexagon, wrench size 22 x 108 mm
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 SW22 VH AC STBLANK
Part No.: 625007
or equivalent.



Technical data

Type Cobra Combi, Pionjär 120+130, CP Red Hawk (Cobra Standard)
Adapter hexagon, wrench size 22 x 108 mm
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 240 mm
Earth rod diameter 25 mm
Earth rod type Z

Product 625007 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Design for Atlas Copco AF 25

2 Products

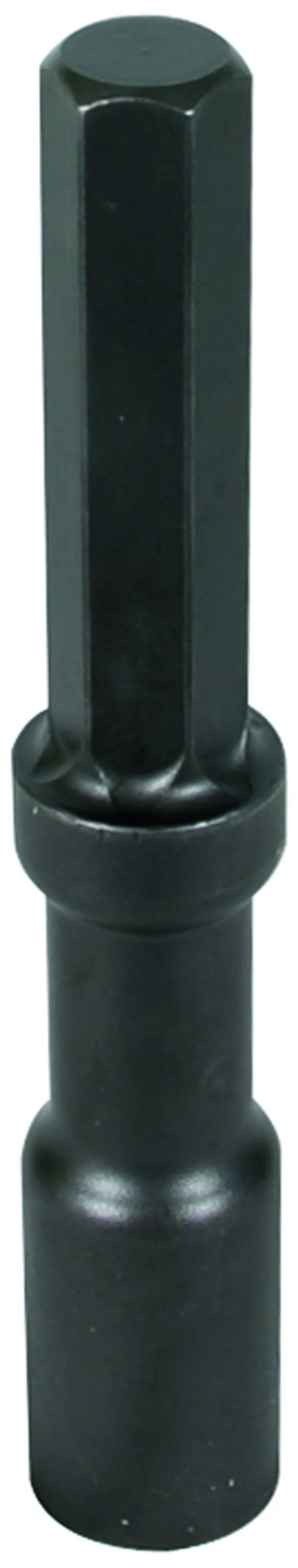

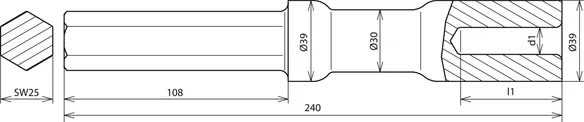

Part No. 620008 HE TE 20 SW25 VH AC STBLANK

GTIN 4013364066151, Customs tariff No. (EU): 82079099, Gross weight: 1.44 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: TEX 15 PE, 19 PE, 23 PE
Adapter: hexagon, wrench size 25 x 108 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 SW25 VH AC STBLANK
Part No.: 620008
or equivalent.



Technical data

Type TEX 15 PE, 19 PE, 23 PE
Adapter hexagon, wrench size 25 x 108 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 240 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620008 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 625008 HE TE 25 SW25 VH AC STBLANK

GTIN 4013364066144, Customs tariff No. (EU): 82079099, Gross weight: 1.41 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: TEX 15 PE, 19 PE, 23 PE
Adapter: hexagon, wrench size 25 x 108 mm
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 SW25 VH AC STBLANK
Part No.: 625008
or equivalent.



Technical data

Type TEX 15 PE, 19 PE, 23 PE
Adapter hexagon, wrench size 25 x 108 mm
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 240 mm
Earth rod diameter 25 mm
Earth rod type Z

Product 625008 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Design for Atlas Copco AF 28

2 Products

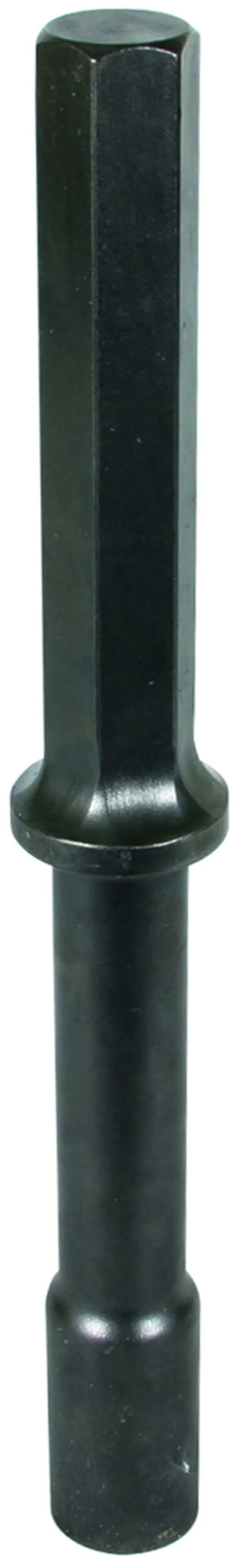

Part No. 620019 HE TE 20 SW28 VH AC STBLANK

GTIN 4013364027008, Customs tariff No. (EU): 82079099, Gross weight: 1.98 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: TEX 28 HE, 27 H, 15 PE, 19 PE, 23 PE, 22 PS
Adapter: hexagon, wrench size 28 x 160 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 SW28 VH AC STBLANK
Part No.: 620019
or equivalent.



Technical data

Type TEX 28 HE, 27 H, 15 PE, 19 PE, 23 PE, 22 PS
Adapter hexagon, wrench size 28 x 160 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 350 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620019 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 625019 HE TE 25 SW28 VH AC STBLANK

GTIN 4013364027015, Customs tariff No. (EU): 82079099, Gross weight: 2.08 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: TEX 28 HE, 27 H, 15 PE, 19 PE, 23 PE, 22 PS
Adapter: hexagon, wrench size 28 x 160 mm
Material: St/bare
Hole: 16 x 55 mm

Brand: DEHN
Type: HE TE 25 SW28 VH AC STBLANK
Part No.: 625019
or equivalent.



Technical data

Type TEX 28 HE, 27 H, 15 PE, 19 PE, 23 PE, 22 PS
Adapter hexagon, wrench size 28 x 160 mm
Material St/bare
Hole (d1 x l1) 16 x 55 mm
Length 350 mm
Earth rod diameter 25 mm
Earth rod type Z

Product 625019 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Design for Atlas Copco AF 32

2 Products

Part No. 620010 HE TE 20 SW32 VH AC STBLANK

GTIN 4013364244764, Customs tariff No. (EU): 82079099, Gross weight: 2.31 kg, PU: 1.00 pc(s)

Images

Additional information

Hammer inserts for earth rods
Hammer insert for earth rods
For driving down earth rods with a vibration hammer
Type: TT, PRO, MK1
Adapter: hexagon, wrench size 32 x 160 mm
Material: St/bare
Hole: 13 x 50 mm

Brand: DEHN
Type: HE TE 20 SW32 VH AC STBLANK
Part No.: 620010
or equivalent.



Technical data

Type TT, PRO, MK1
Adapter hexagon, wrench size 32 x 160 mm
Material St/bare
Hole (d1 x l1) 13 x 50 mm
Length 350 mm
Earth rod diameter 20 mm
Earth rod type Z, AZ

Product 620010 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 625010 HE TE 25 SW32 VH AC STBLANK

GTIN 4013364157613, Customs tariff No. (EU): 82079099, Gross weight: 2.25 kg, PU: 1.00 pc(s)

Images

Additional information
