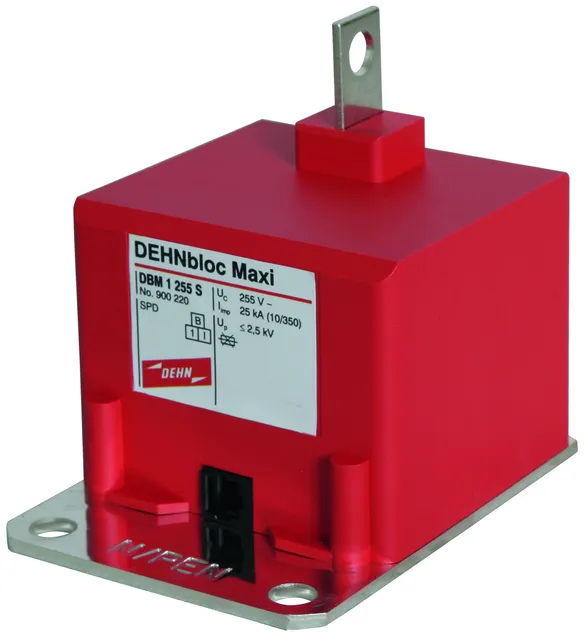

DEHNbloc Maxi S

Spark-gap-based lightning current arrester with integrated lightning current carrying backup fuse in a compact enclosure

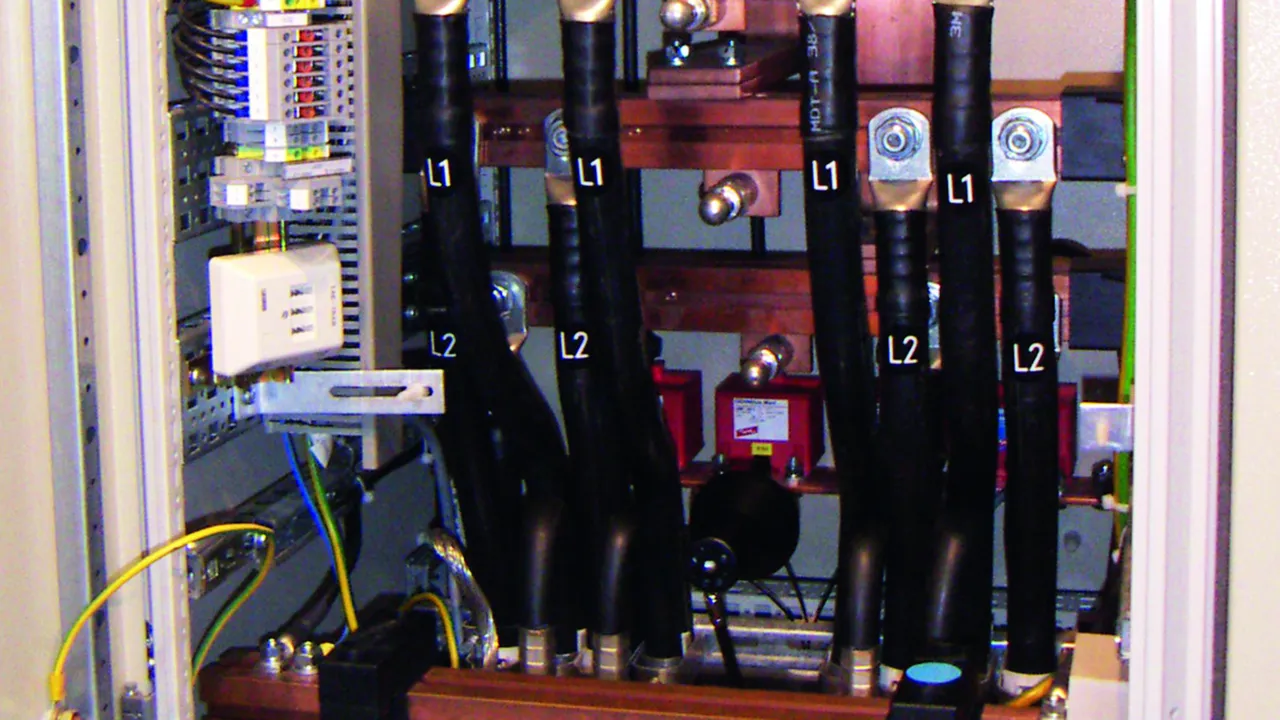

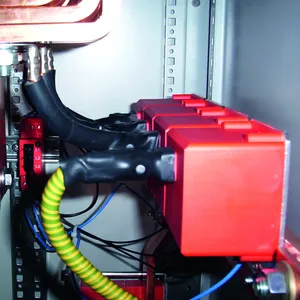

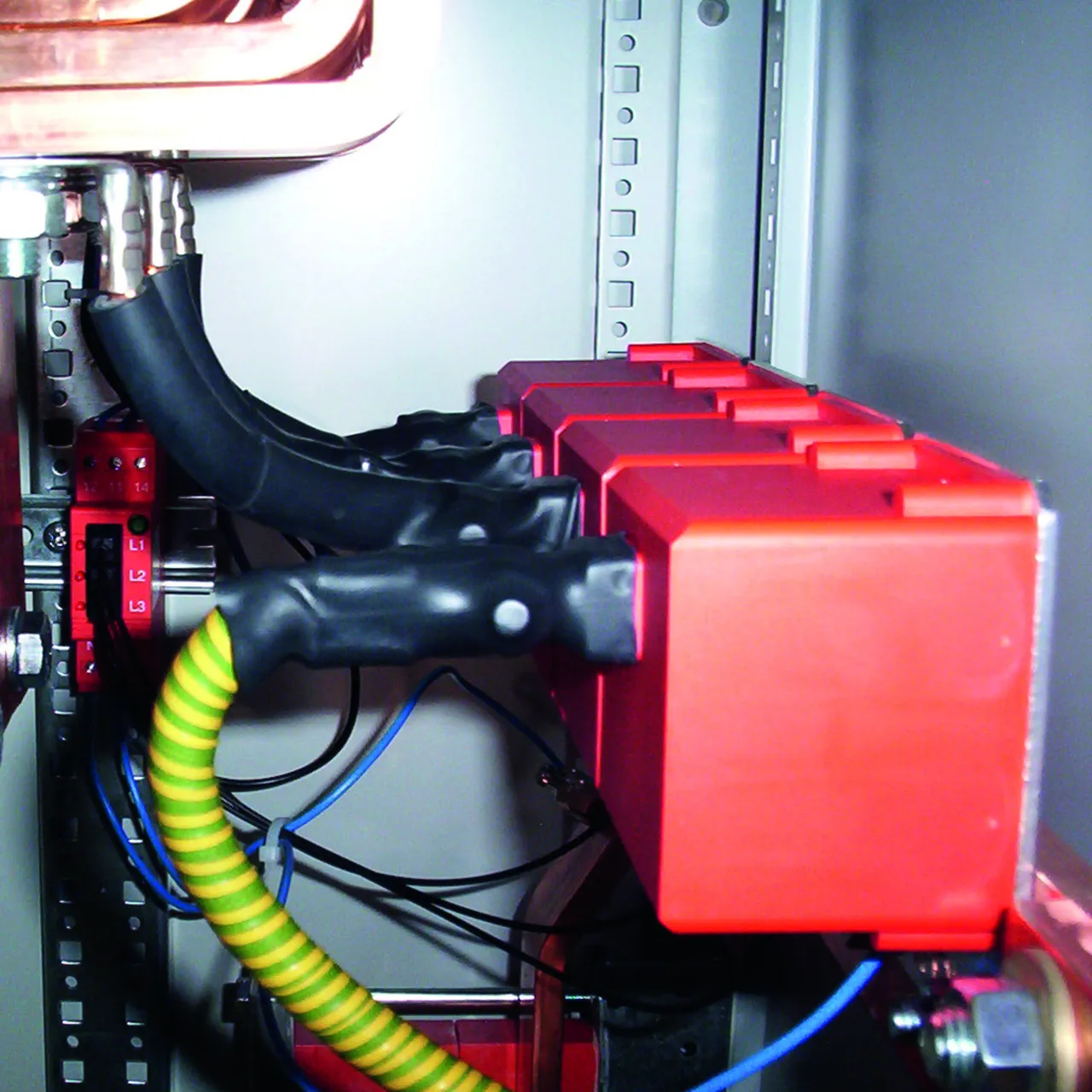

Directly mounted on the PEN / N busbar
Low voltage protection level U_P ≤2.5 kV (including 80 cm connecting cable)
Directly coordinated with DEHNguard surge protective device without additional cable length
Short-circuit withstand capability of 100 kA_rms(220 kA_peak)
High follow current extinguishing capability and limitation due to RADAX Flow technology
High lightning current discharge capacity

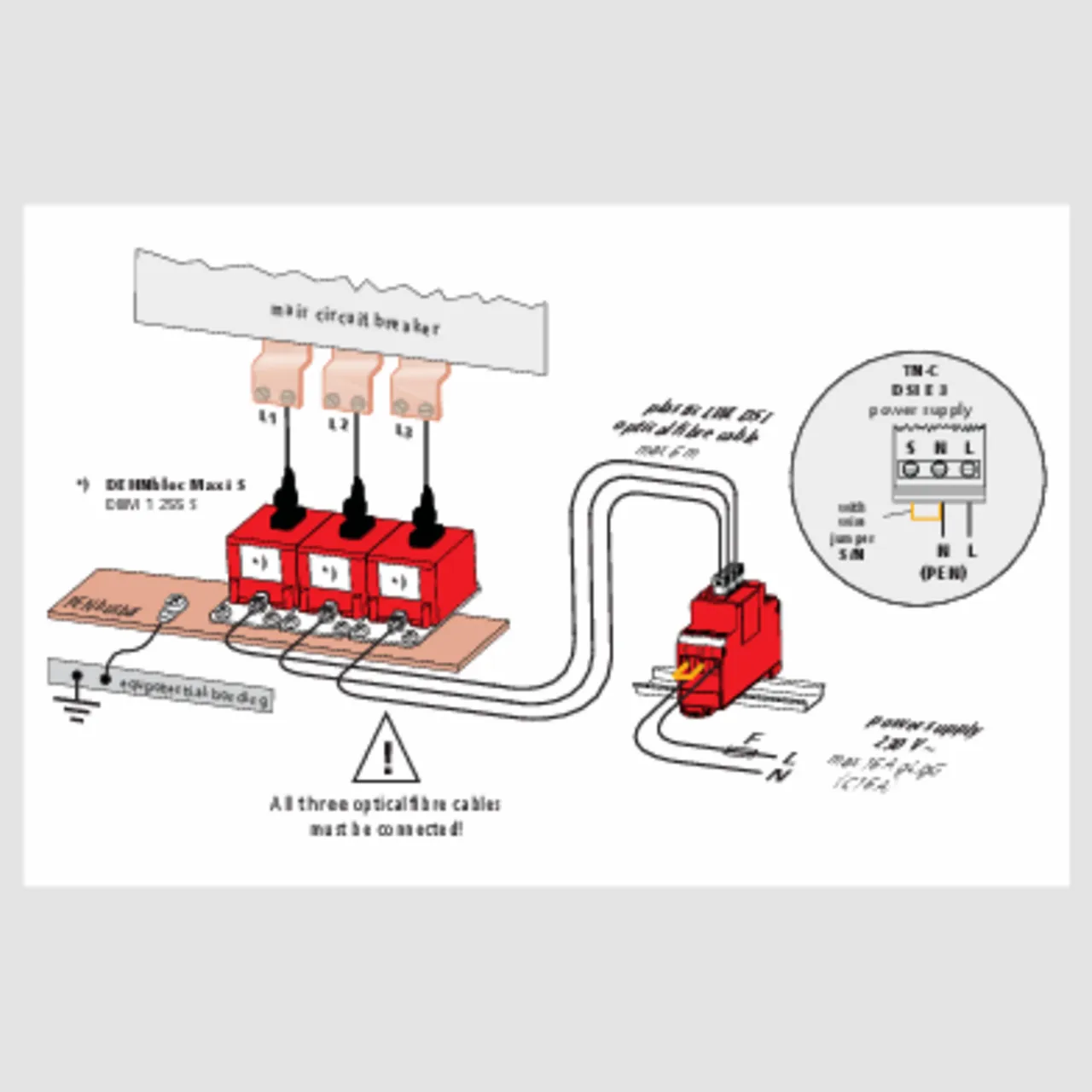

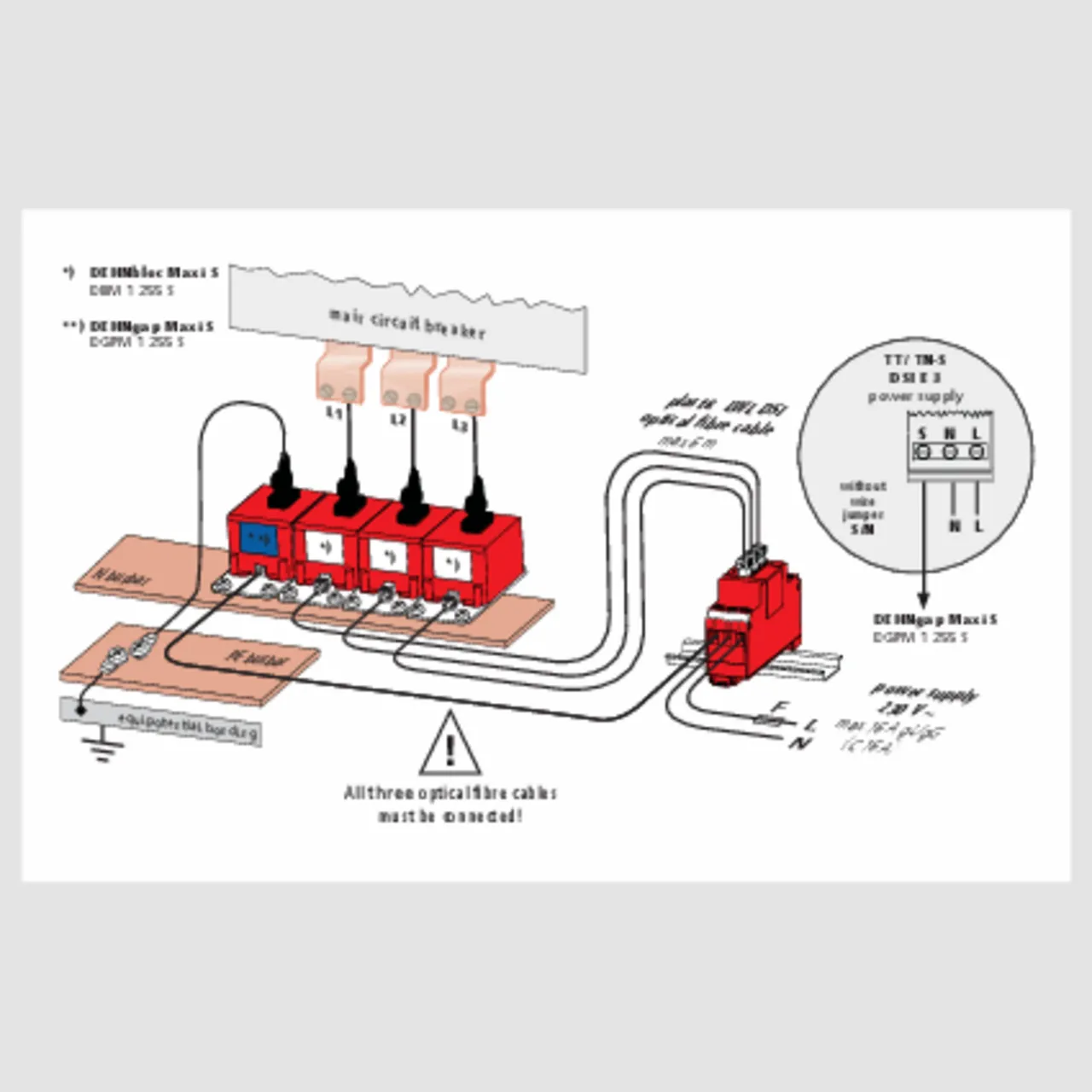

With optical-fibre interface for SPD monitoring

Details

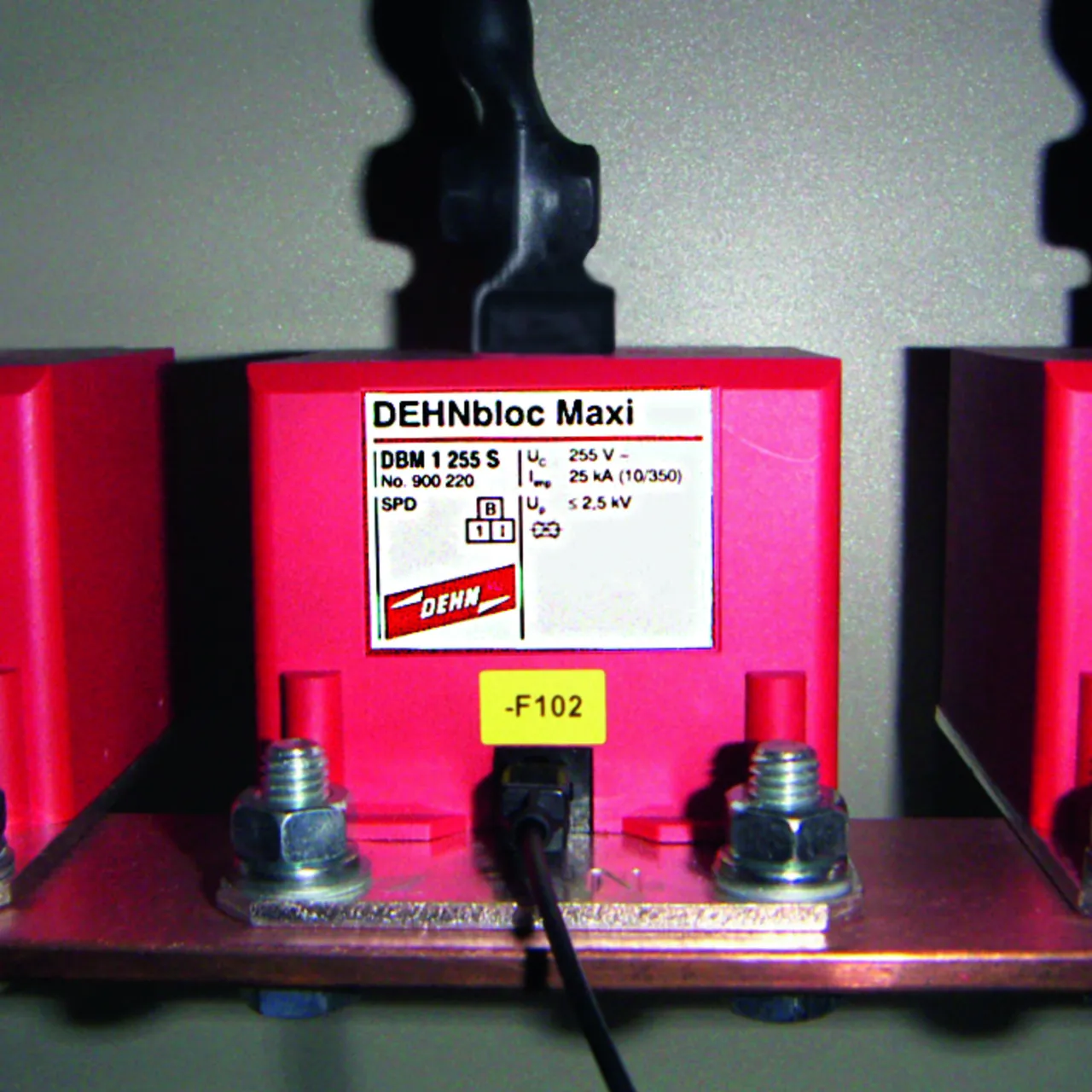

DEHNbloc Maxi 1 255 S

Coordinated single-pole lightning current arrester with integrated backup fuse for busbar installation in 230 / 400 V systems.

1 ??store.product_de??

??store.product.number.short_de?? 900220 DBM 1 255 S

??store.product.gtin_de?? 4013364106734, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 730.70 g, ??store.product.packaging_de??: 1.00 pc(s)
