Condition Monitoring System with RFID LifeCheck Sensor

Permanent condition monitoring of arresters with RFID LifeCheck technology ensures a maximum degree of system protection and availability The early detection system even detects pre-damaged arresters and warns of imminent arrester failure

Visual indication of faulty or pre-damaged arresters
Compact dimensions and minimum wiring effort

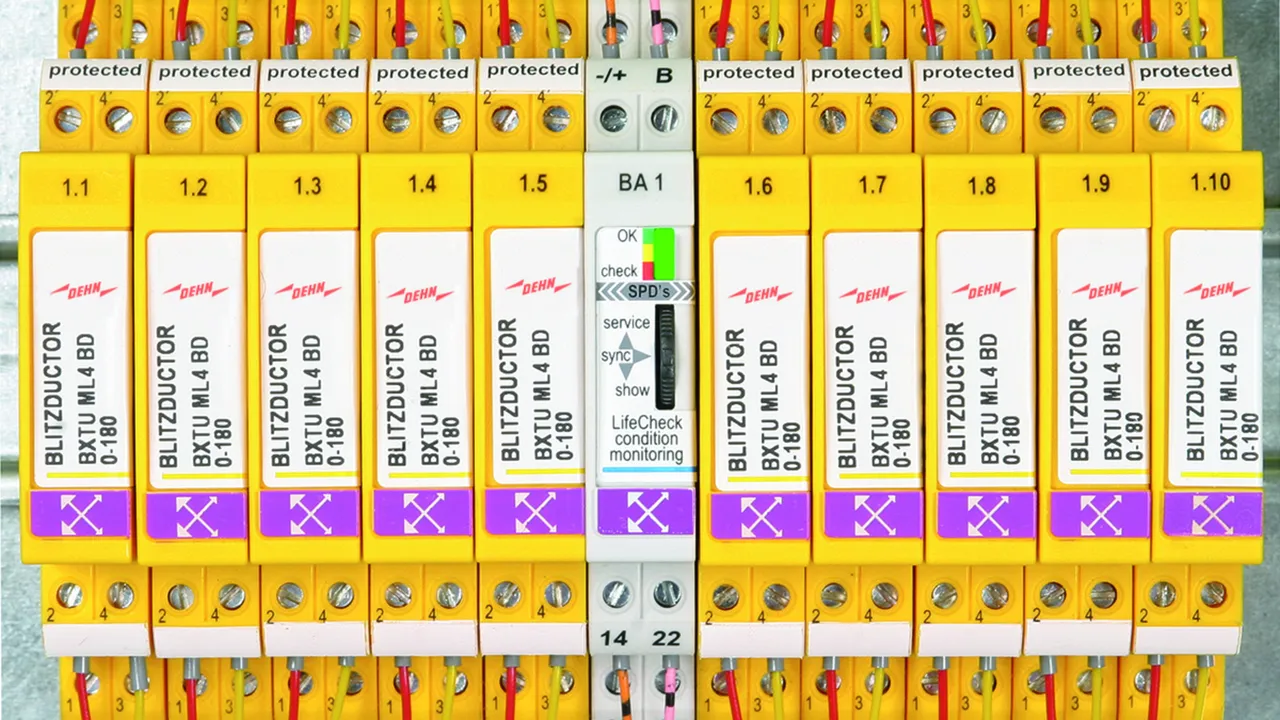

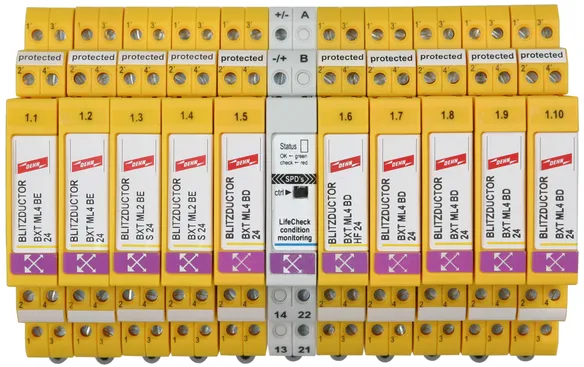

Monitoring of up to ten arresters (40 signal cores)
Remote signalling contact
Remote monitoring also via RS485 interface and PC software (DRC MCM XT)

Details

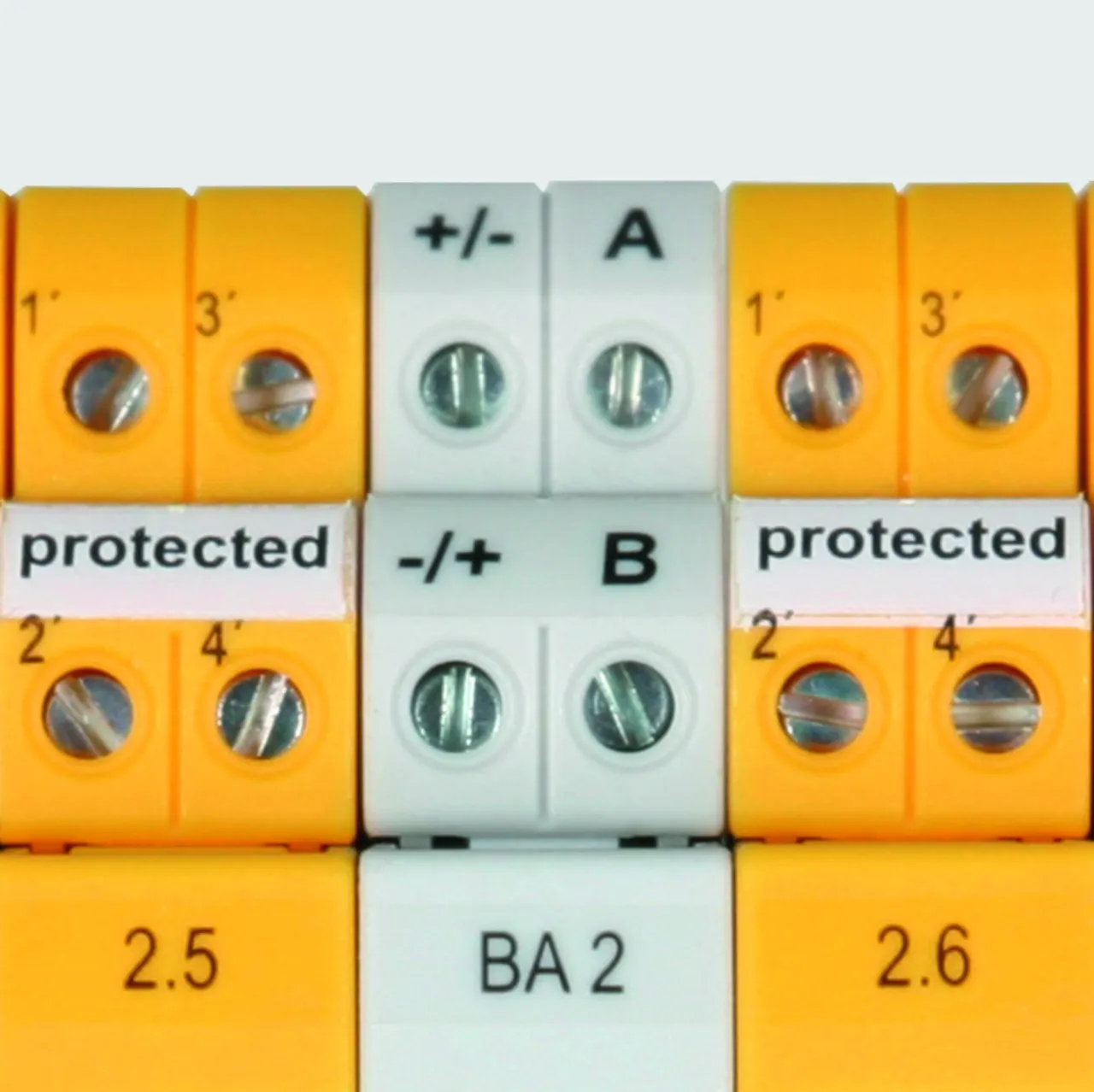

RS485 interface A/B (only for DRC MCM XT) for communication and control room solutions.

lorem ipsum — RS485 interface A/B (only for DRC MCM XT) for communication and control room solutions.

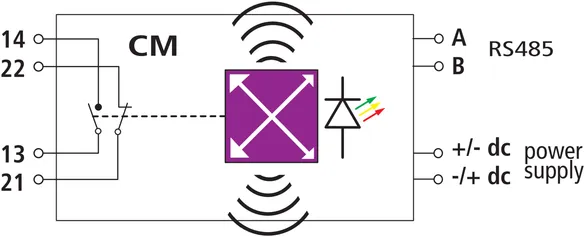

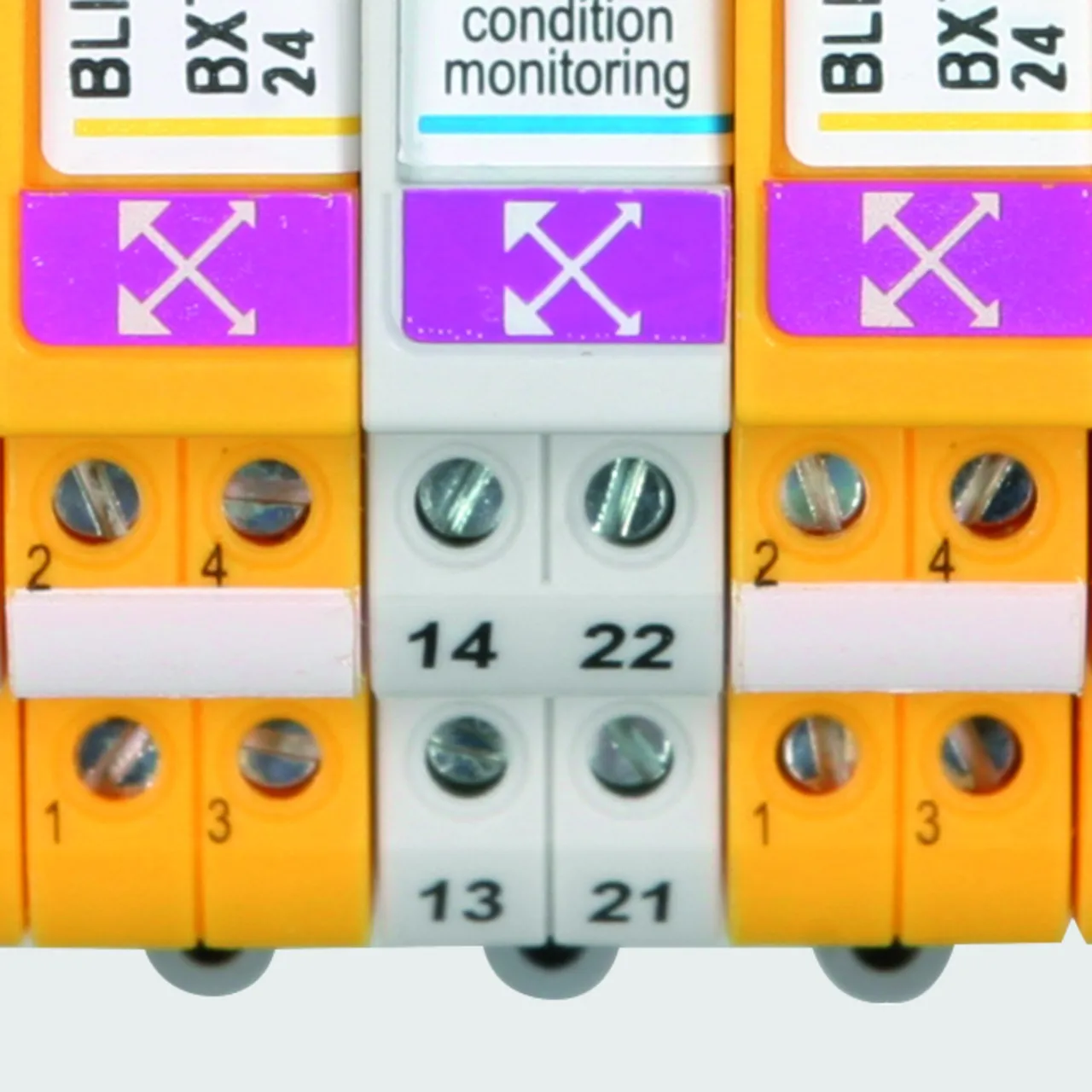

Floating remote signalling contact
DRC MCM XT: break contact (21/22), make contact (13/14)

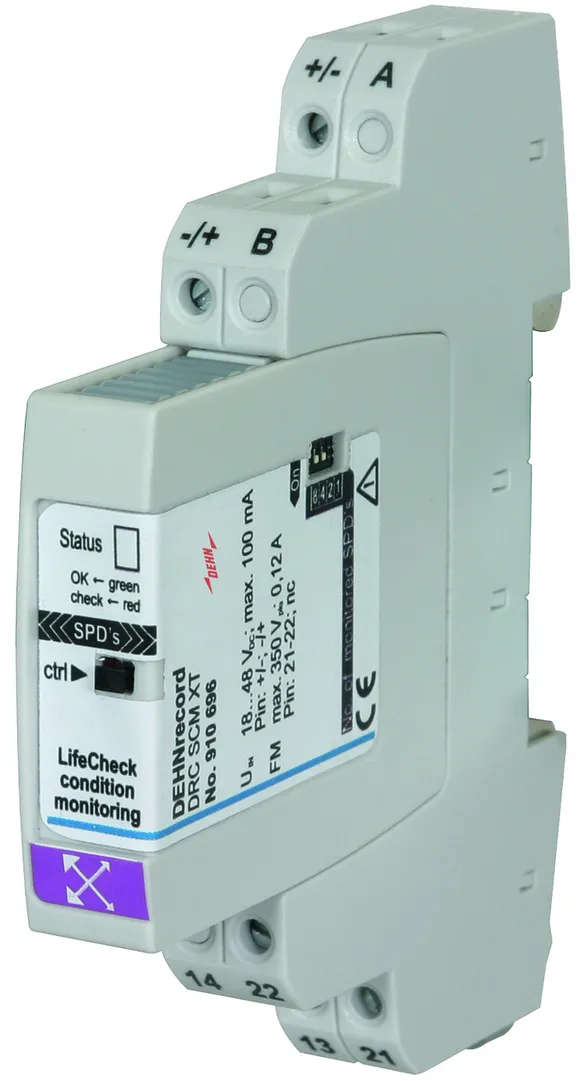

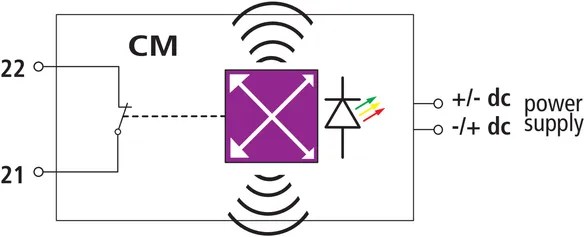

DRC SCM XT: break contact (21/22)

Online monitoring via free software (only for DRC MCM XT).

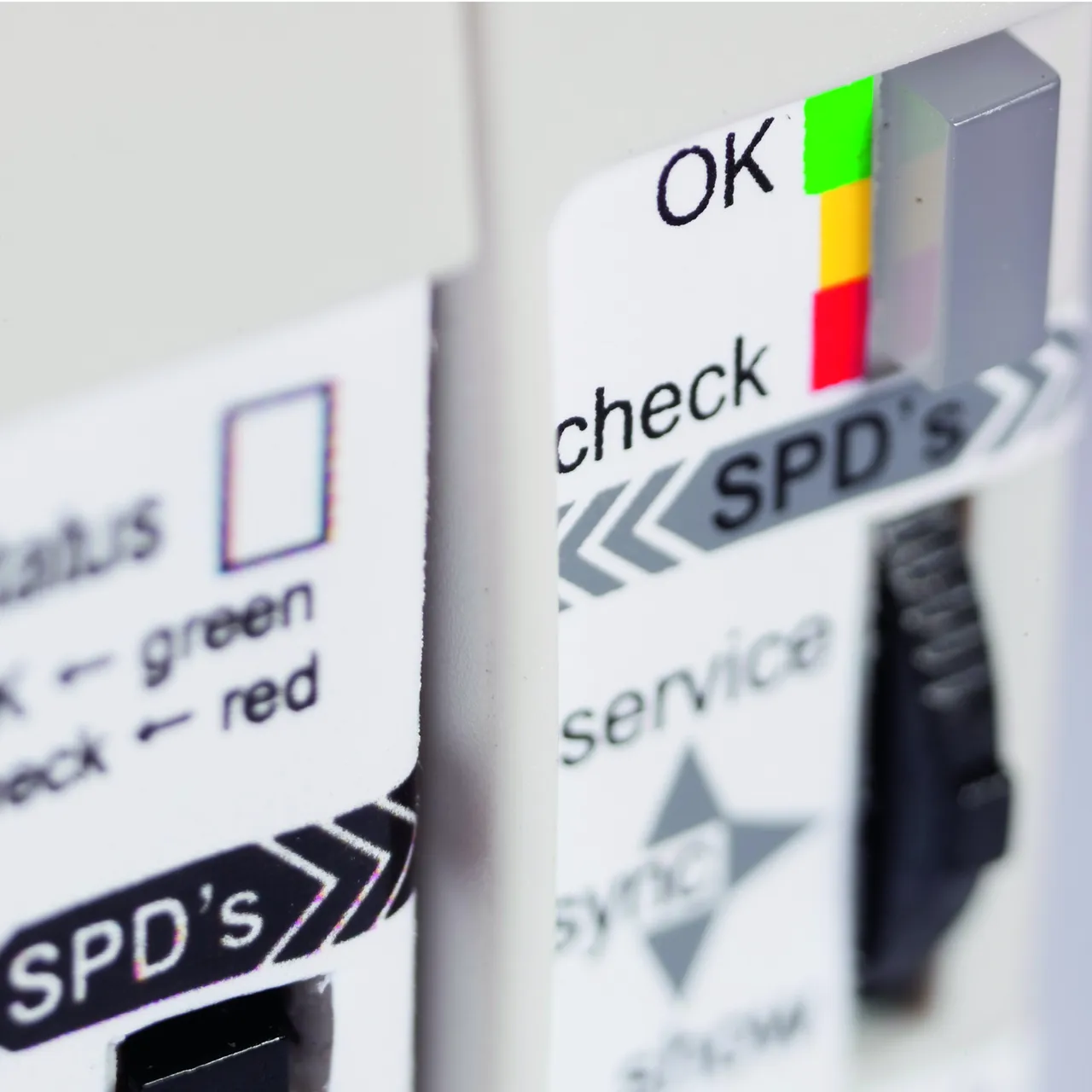

Integrated visual operating state indication with three-colour LED.

DRC MCM XT

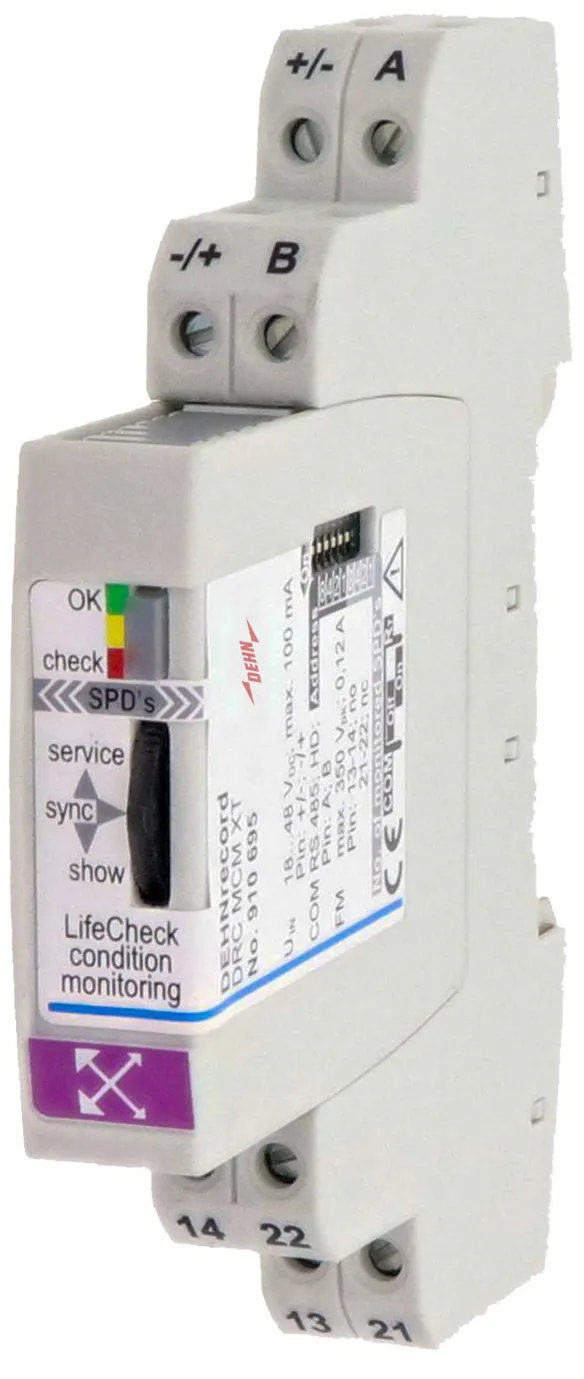

DIN rail mounted device with integrated RFID LifeCheck sensor for condition monitoring of max. 10 BLITZDUCTOR XT / XTU arresters with RFID LifeCheck technology. Visual operating state indication via three-coloured LED in conjunction with remote signalling contact (break or make contact).

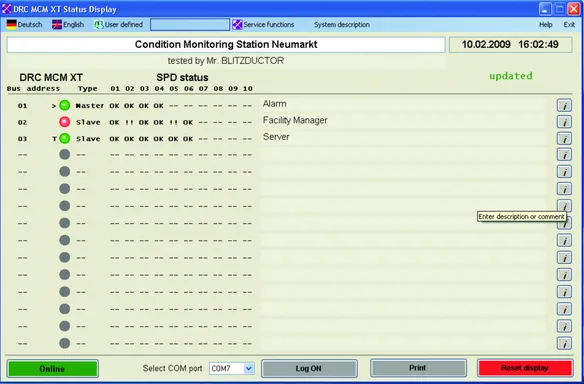

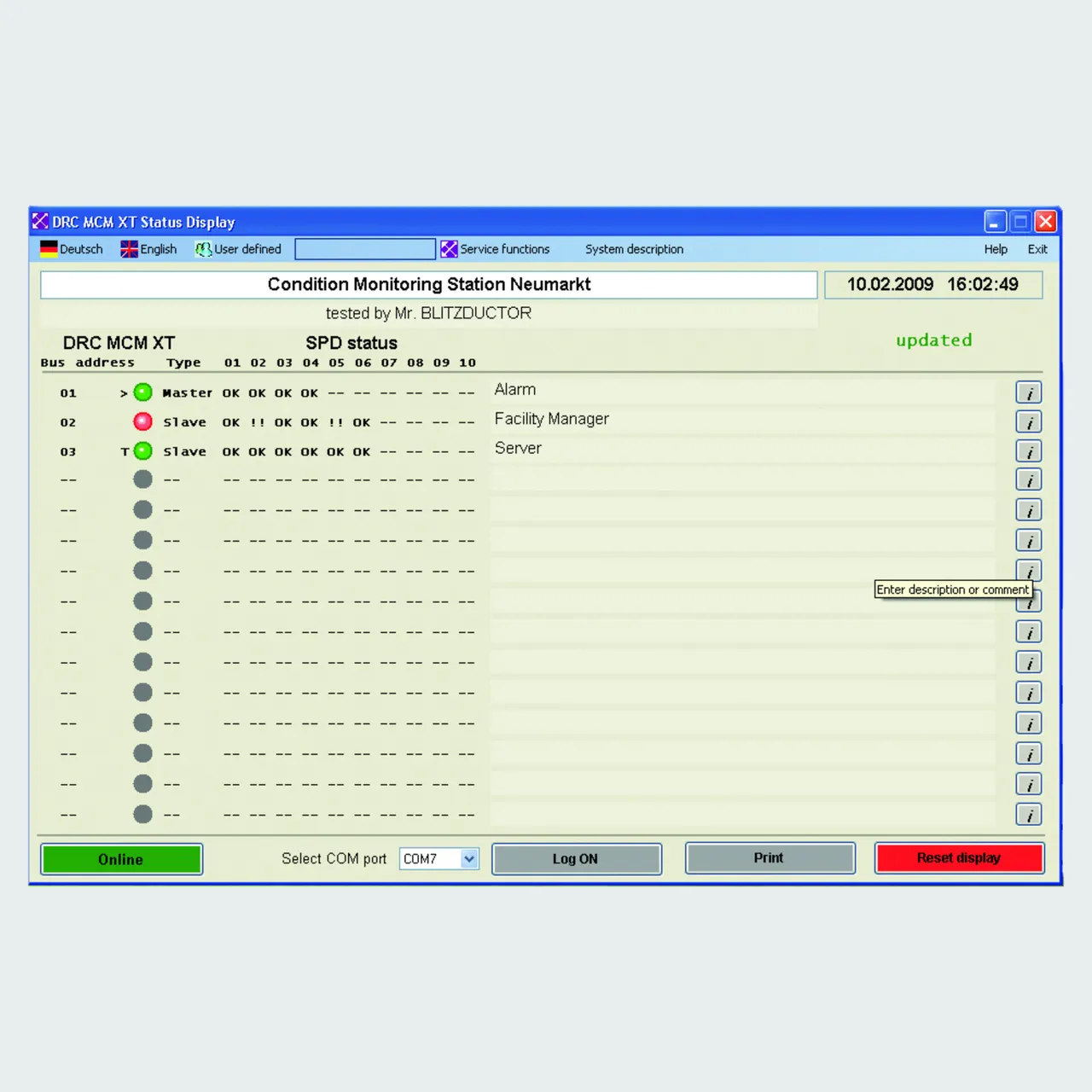

Up to 15 DRC MCM XT can be monitored via the integrated RS485 interface in a system with up to 150 BLITZDUCTOR XT/XTU arresters. The free "Status Display and Service Console" software can be optionally used via an RS485 interface converter. The software allows PC-based remote indication of the condition of all monitored arresters.
Download: www.dehn-international.com (Service section)

1 ??store.product_de??

??store.product.number.short_de?? 910695 DRC MCM XT

??store.product.gtin_de?? 4013364118959, ??store.product.customsTariffNumber_de??: 90308900, ??store.product.grossWeight_de??: 217.00 g, ??store.product.packaging_de??: 1.00 pc(s)
