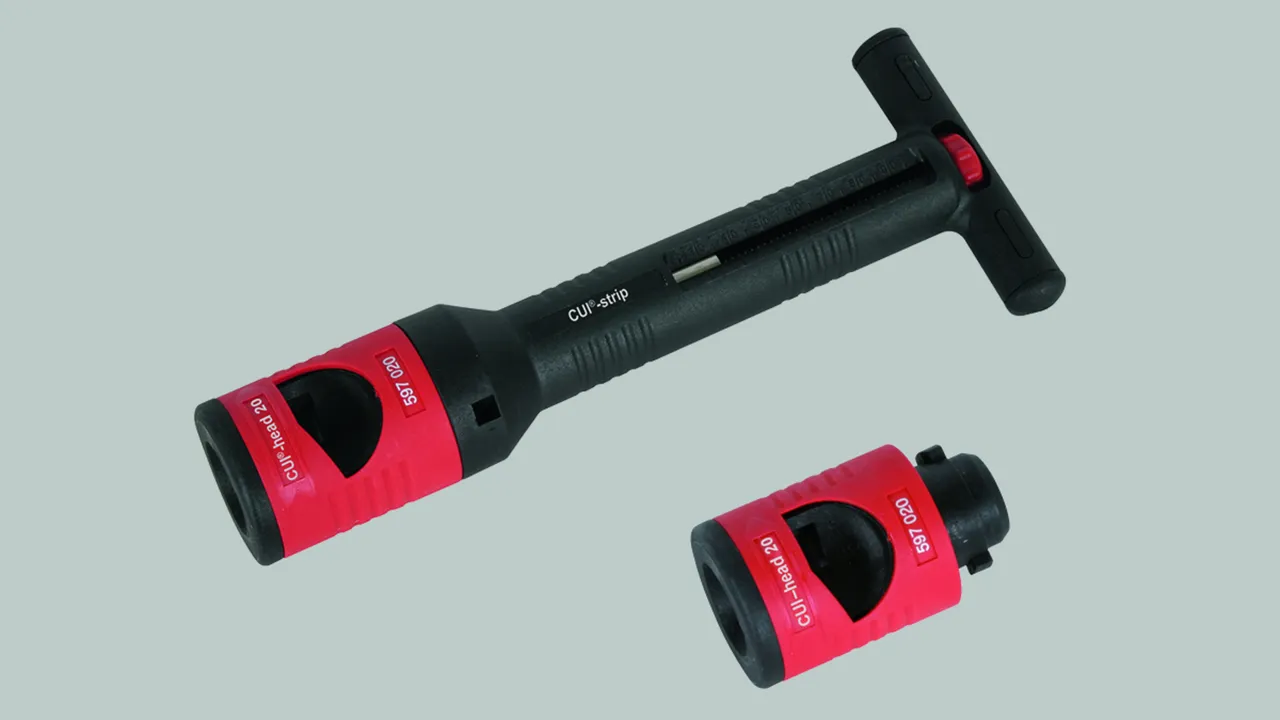

Stripping Tool for CUI Conductors

Tool for stripping the XLPE insulated CUI Conductor (outer diameter 20 mm).
  • Tool consists of a handle and an exchangeable cutting heads
  • Stripping length of the CUI Conductor is adjustable in steps of 0.2 mm (lock points) using the knob in the handle. The dial on the handle shows the length set.
HandlingPosition the cutting head at the cut-off end of the conductor and turn clockwise applying light pressure to cut/strip it.

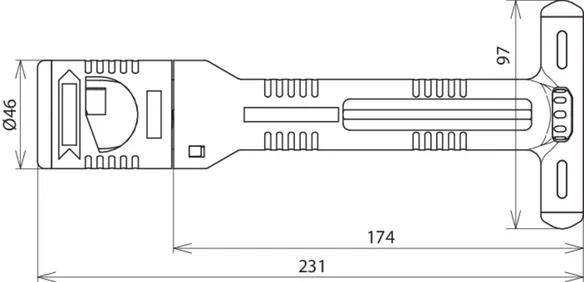

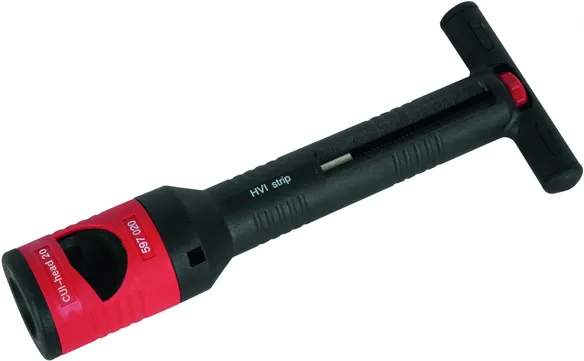

CUI-strip 20

1 ??store.product_de??

??store.product.number.short_de?? 597320 CUI STRIP 20

??store.product.gtin_de?? 4013364154940, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 442.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



Brand: DEHN
Type: CUI STRIP 20
Part No.: 597320
or equivalent.



??store.product.data_de??

Diameter Ø conductor 20 mm
Material of moulded part plastic
Material of blade StSt

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

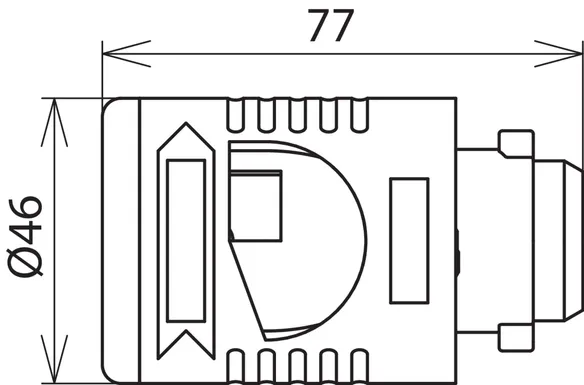

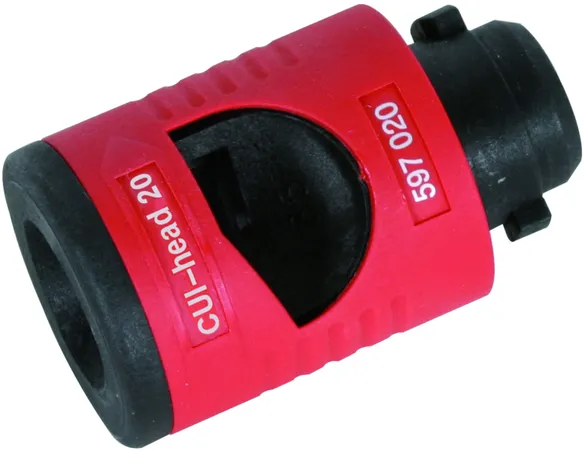

CUI-head 20

Toolless exchange of the cutting head via a bayonet coupling.

1 ??store.product_de??

??store.product.number.short_de?? 597020 CUI HEAD 20

??store.product.gtin_de?? 4013364154957, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 155.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



Brand: DEHN
Type: CUI HEAD 20
Part No.: 597020
or equivalent.



??store.product.data_de??

Diameter Ø conductor 20 mm
Material of moulded part plastic
Material of blade StSt

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
