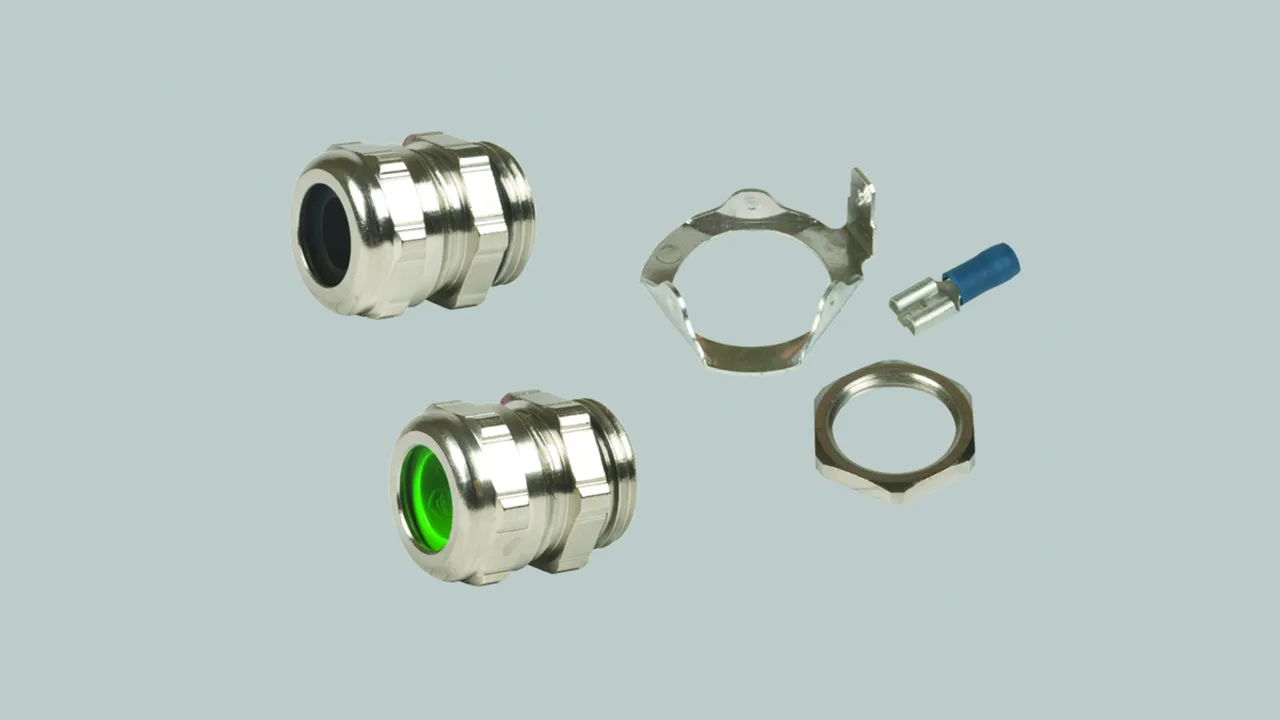

Accessories for DEHNpipe

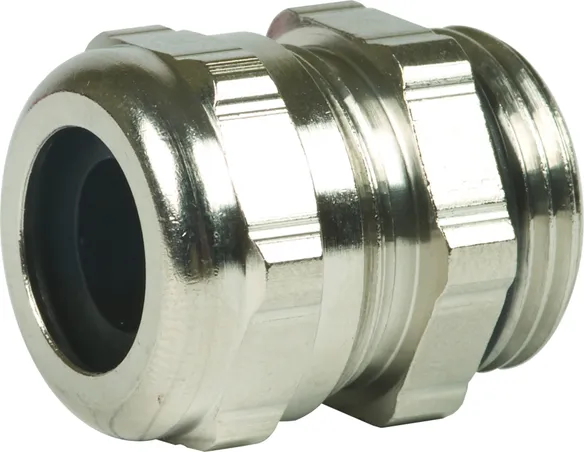

EMC Cable Gland

Brass gland with shield connection

1 ??store.product_de??

??store.product.number.short_de?? 929982 KV S M20 MS 9.5

??store.product.gtin_de?? 4013364098695, ??store.product.customsTariffNumber_de??: 74122000, ??store.product.grossWeight_de??: 36.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

KV S M20 MS 9.5 EMC cable gland
Cable gland, M20 Mes., shielded,
sealing range Rd 6,5 – 9,5 mm

Brand: DEHN
Type: KV S M20 MS 9.5
Part No.: 929982
or equivalent.



??store.product.data_de??

Sealing range (Rd) 6.5-9.5 mm
Shield diameter 3.2-6.5 mm
For mounting on M20 x 1.5
Degree of protection IP 68

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

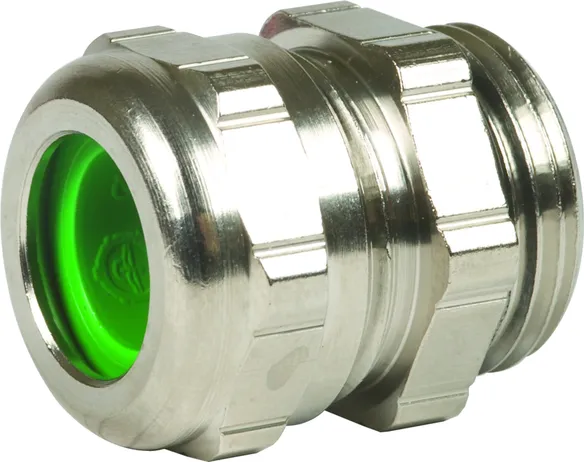

Cable Gland

Brass gland without shield connection

1 ??store.product_de??

??store.product.number.short_de?? 929984 KV M20 MS 10.5

??store.product.gtin_de?? 4013364098688, ??store.product.customsTariffNumber_de??: 74122000, ??store.product.grossWeight_de??: 30.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

KV M20 MS 10.5 cable gland
Cable gland, M20 Mes.,
sealing range Rd 7 – 10,5 mm

Brand: DEHN
Type: KV M20 MS 10.5
Part No.: 929984
or equivalent.



??store.product.data_de??

Sealing range (Rd) 7.0-10.5 mm
For mounting on M20 x 1.5
Degree of protection IP 68

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

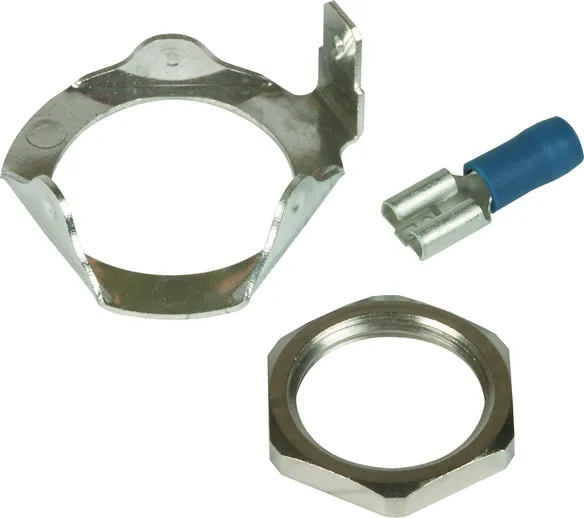

Brass Earthing Ring

Earthing ring made of nickel-plated brass, for externally earthing DPI devices.

1 ??store.product_de??

??store.product.number.short_de?? 929996 ER DPI M20

??store.product.gtin_de?? 4013364098244, ??store.product.customsTariffNumber_de??: 85369010, ??store.product.grossWeight_de??: 13.20 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

ER DPI M20 earthing ring, brass
MS Earthing ring for DEHNpipe M20
of nickel-plated brass with flat connection
and nut, if earthing by field enclosure is not
possible (e. g. plastic enclosure)

Brand: DEHN
Type: ER DPI M20
Part No.: 929996
or equivalent.



??store.product.data_de??

For mounting on DPI M20 x 1.5

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
