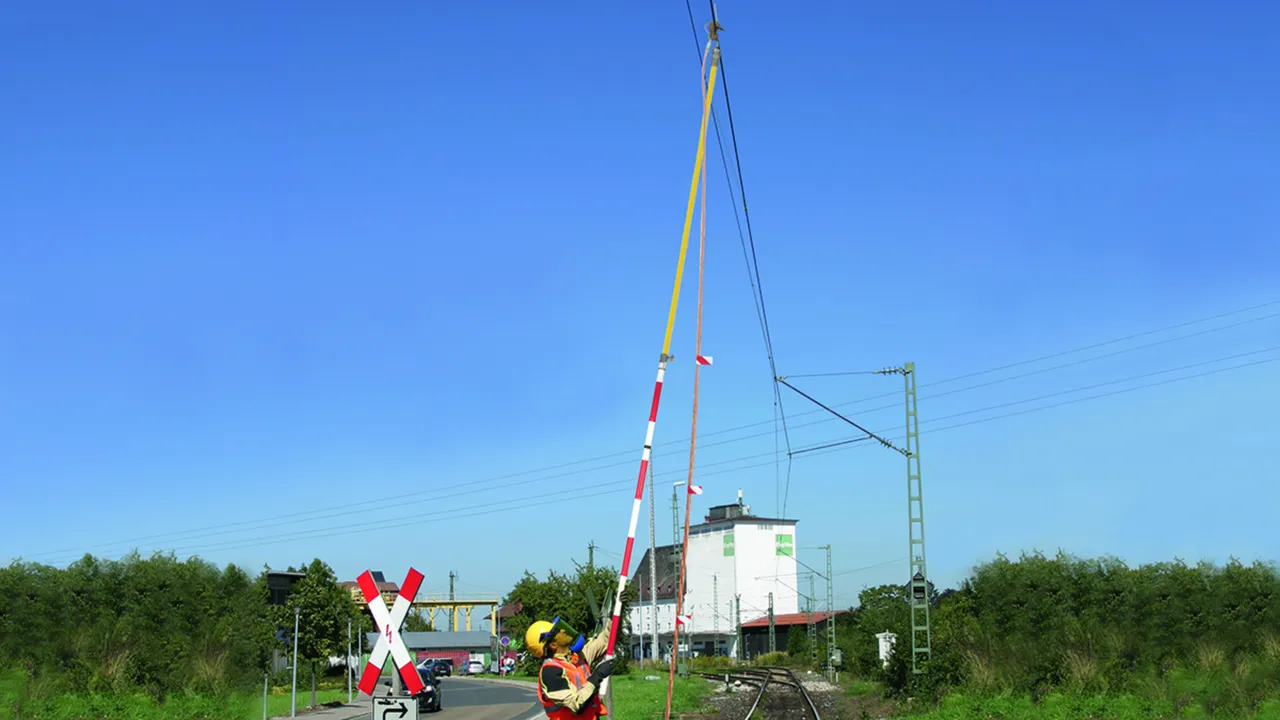

Earthing Sticks for Railway Applications

  • For outdoor use

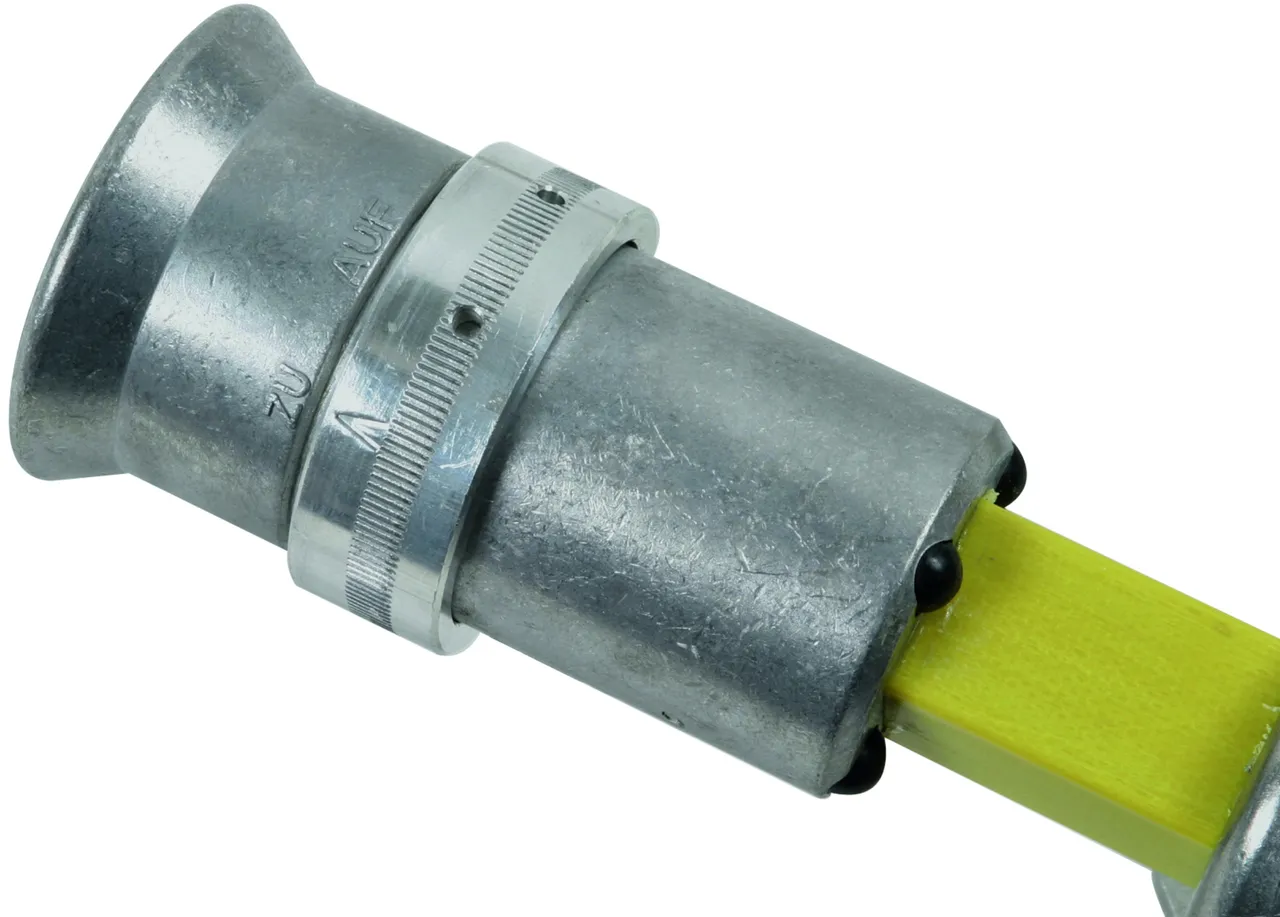

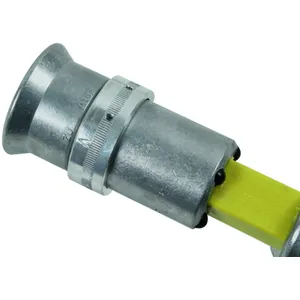

  • Robust aluminium cone coupling
  • Telescopic stick, length continuously adjustable by star knob
  • Only suitable for phase screw clamps and clamps with long T pin shaft

Details

lorem ipsum

Telescopic, with T pin shaft

For threaded T pin shaft (bayonet locking mechanism).

2 Products

Part No. 769352 ESTC SQL RW 3500

GTIN 4013364007345, Customs tariff No. (EU): 82055980, Gross weight: 4.60 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Total length (lG max / IG min ) 3515 / 1935 mm
DB drawing No. 3 Ebgw 01.58
DB material No. 157 534

Product 769352 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 769502 ESTC SQL RW 5000

GTIN 4013364004542, Customs tariff No. (EU): 82055980, Gross weight: 5.30 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Total length (lG max / IG min ) 5015 / 2685 mm
DB drawing No. 3 Ebgw 01.52
DB material No. 157 533

Product 769502 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Telescopic with T pin shaft and cable guide

For threaded T pin shaft (bayonet locking mechanism).
The coupling is additionally fitted with a cable entry and a hook for securing the earthing cable and earthing stick at the tower (without adjusting ring).

1 Product

Part No. 769508 ESTC SQL H RW 5000

GTIN 4013364052383, Customs tariff No. (EU): 82055980, Gross weight: 5.30 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Total length (lG max / IG min ) 5015 / 2685 mm
DB drawing No. 3 Ebgw 01.55
DB material No. 612 142

Product 769508 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

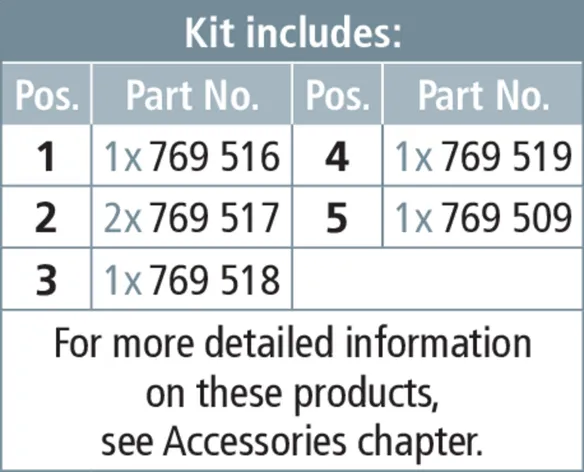

Six-part, with T pin shaft and aluminium coupling

For threaded T pin shafts (bayonet locking mechanism)

1 Product

Part No. 769515 EST SQL RW 4855 TA

GTIN 4013364157361, Customs tariff No. (EU): 82055980, Gross weight: 6.69 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

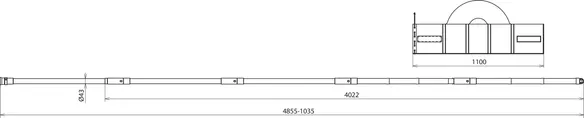

Total length (lG max / IG min ) 4855 / 1035 mm
DB drawing No. 3 Ebgw 01.68-1
