Phase Connecting Elements for Railway Applications

Safe positive-locking earth clamps for railway applications

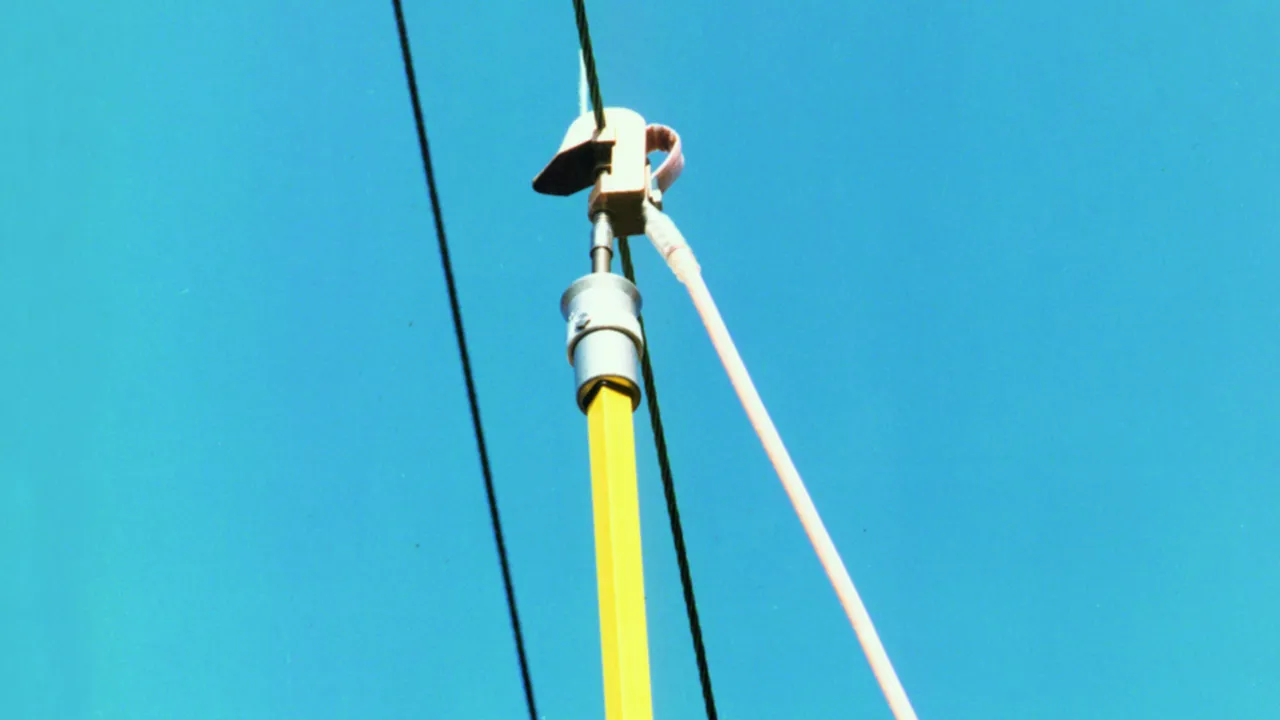

Earth Clamp for Overhead Contact Lines

With contact electrode and flexible threaded T pin shaft according to DIN 48087.
For AC 80 to AC 120 overhead contact lines.

2 Products

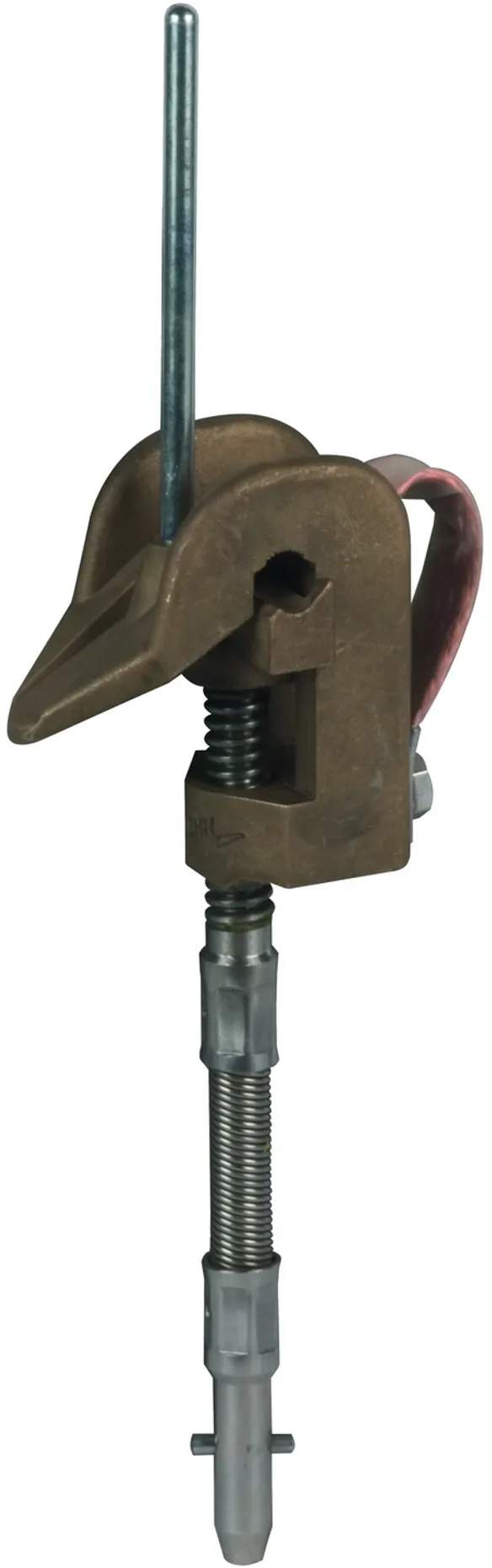

Part No. 784755 FEK 4 15 TS FSQL

GTIN 4013364054202, Customs tariff No. (EU): 85359000, Gross weight: 1.71 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Clamping range Ø 4 ... 15 mm
Anti-rotation cable lug PK2 (Ø10.5 mm)
For cable material Cu
For cable cross-section 50 mm2
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 3 Ebgw 01.54
DB material No. 157 536

Product 784755 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 784756 FEK4 15 TS FSQL AB29

GTIN 4013364230118, Customs tariff No. (EU): 85359000, Gross weight: 1.82 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Clamping range Ø 4 ... 15 mm
Anti-rotation cable lug PK2 (Ø10.5 mm)
For cable material Al
For cable cross-section 70 mm2
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. Ebgw 01.85

Product 784756 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

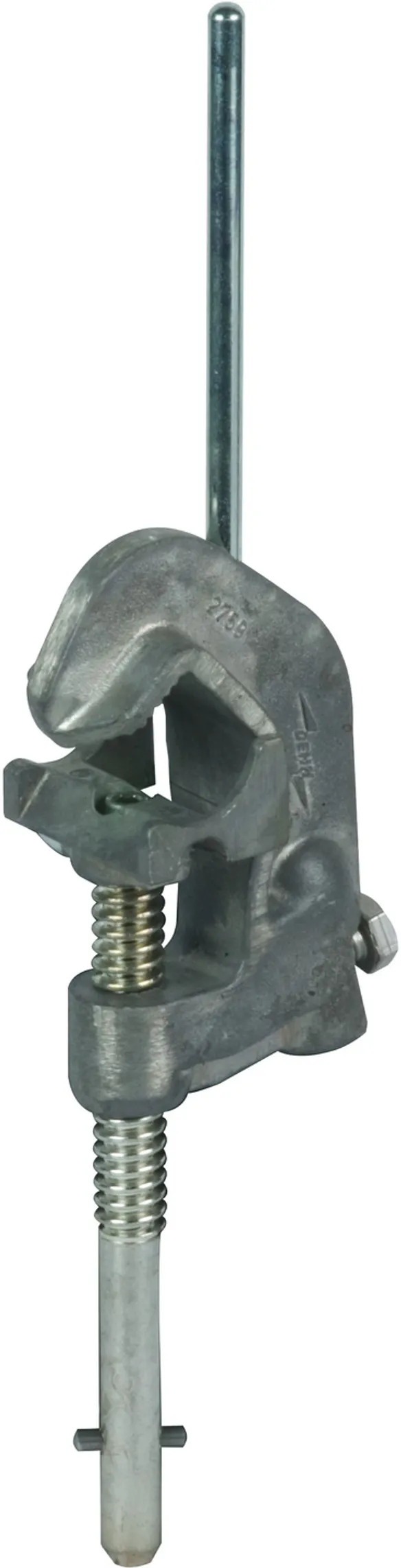

Line Clamp

With contact electrode and threaded T pin shaft according to DIN 48087.
For supply and traction power lines.

1 Product

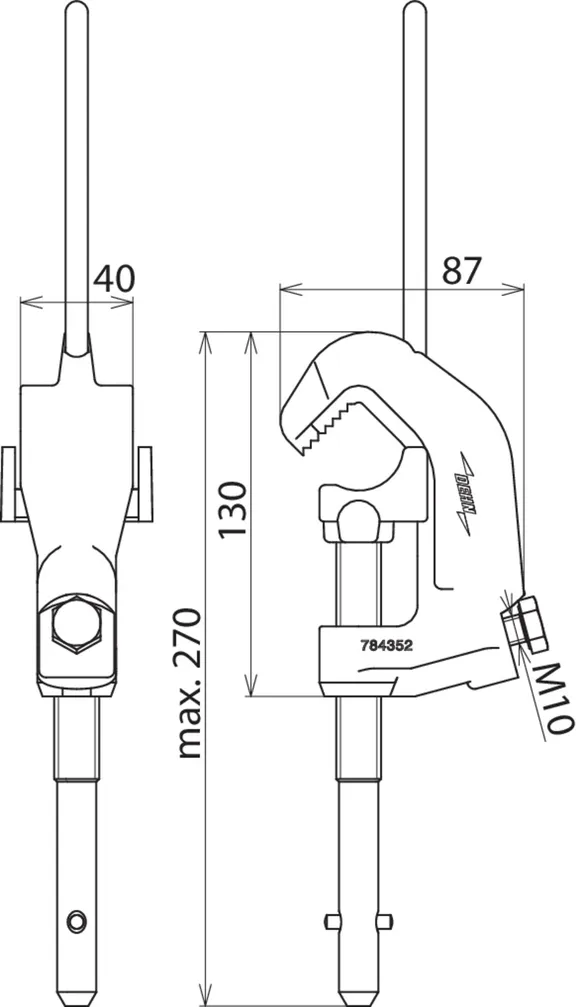

Part No. 784352 LK 4 40 TS SQL

GTIN 4013364006072, Customs tariff No. (EU): 85359000, Gross weight: 971.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Clamping range Ø 4 ... 40 mm
Anti-rotation cable lug PK2 (Ø10.5 mm)
DB drawing No. 3 Ebgw 01.65
DB material No. 157 539

Product 784352 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
