DEHNiso Combi Sets

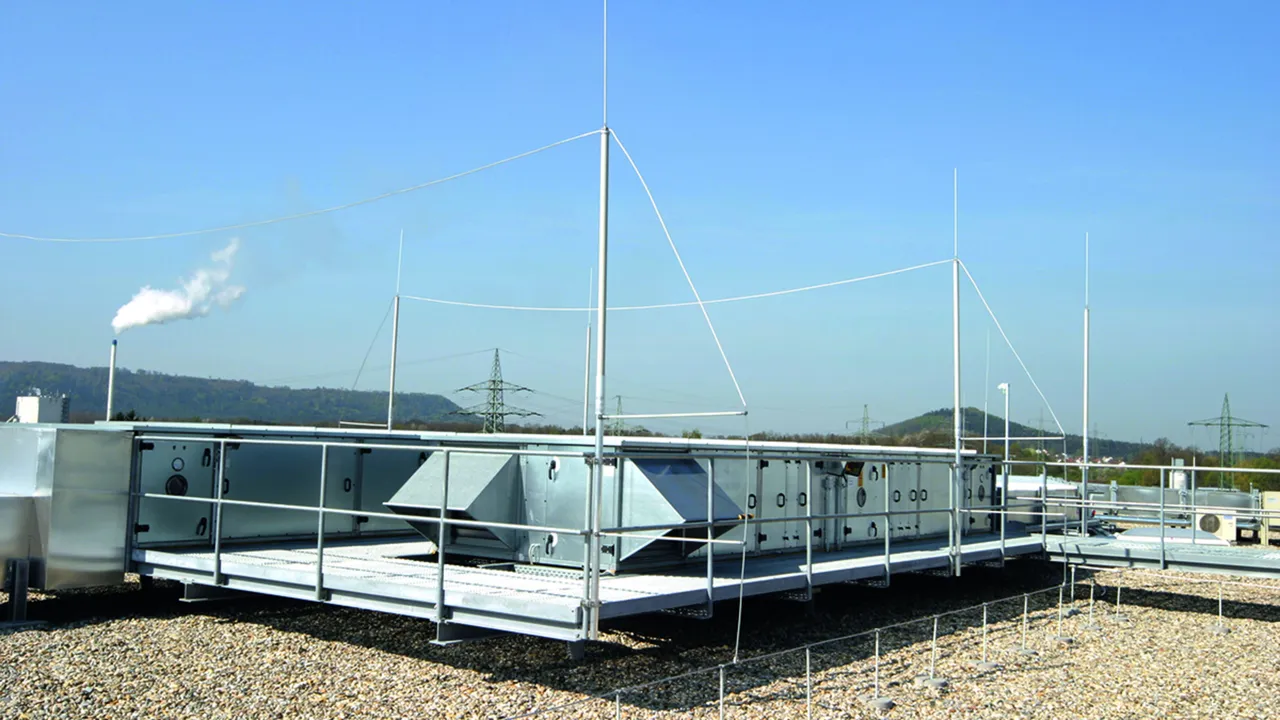

Components for isolated air-termination systems. For protecting large roof-mounted structures such as air-conditioning systems, heat exchangers etc.For keeping the separation distance to electrically conductive parts according to IEC/EN 62305-3.Tubes and spacers made of glass-fibre reinforced plastic (GRP), UV-stabilised, light grey colour, permanent temperature range -50 up to 100 °C.

Complete unit ready for installation
Low own weight
Stable overall design
One-screw fixing clamps
Various holes for different mounting requirements

The separation distance (insulating clearance) is determined with material factor k_m = 0.7 (length of the spacer bar).1 m of spacer bar is equivalent to a clearance in air of 0.7 m.The distance between the head of the supporting tube and the upper holder (fixing point) is considered as maximum free length.Distances for spanning of aluminium cables (Part No. 840 050) of max. 10 m (observe the sag) are allowed.

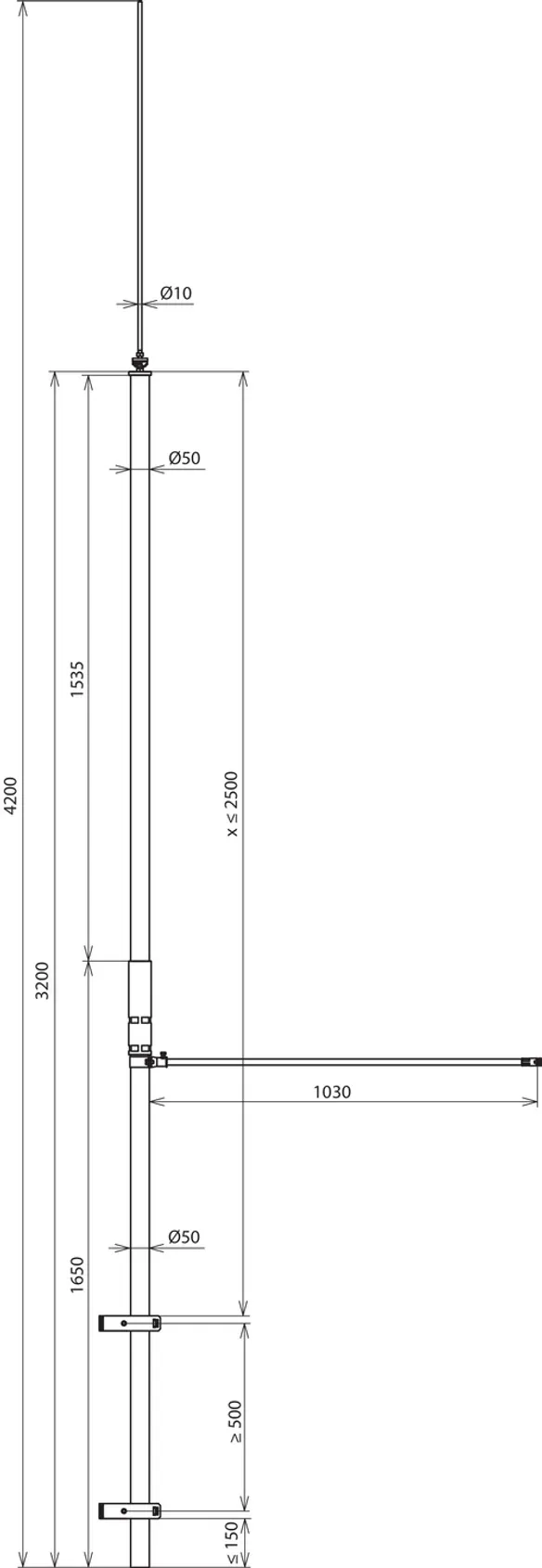

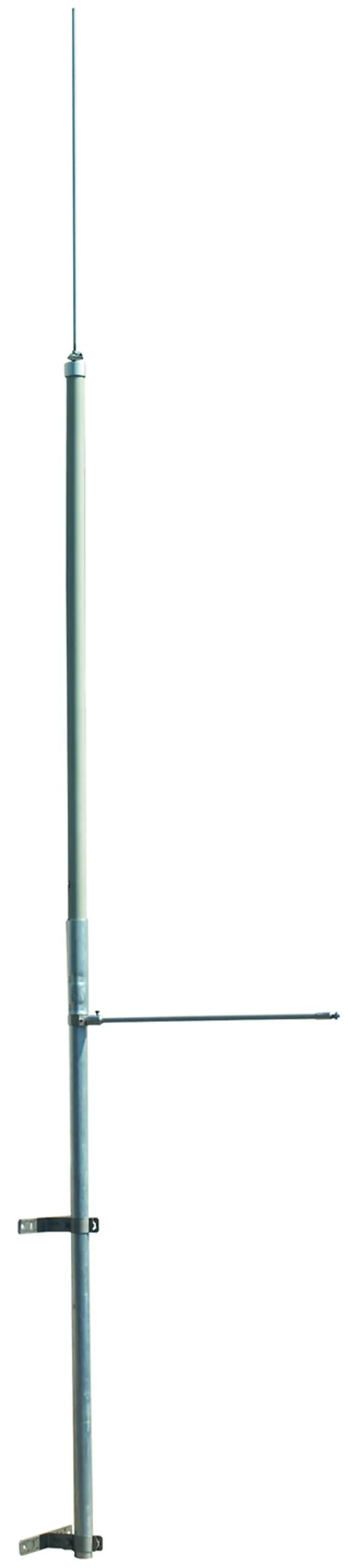

One-piece, total height 4200 mm

Consisting of:
1x air-termination tip StSt, L = 1000 mm (Part No. 105 071)
1x supporting tube GRP/Al, L = 3200 mm (Part No. 105 300)
2x wall mounting bracket StSt (Part No. 105 340)
1x spacer GRP/Al, L = 1030 mm (Part No. 106 331)

1 ??store.product_de??

??store.product.number.short_de?? 105440 DICS WB D50.10 4.2M GFK AL V2A

??store.product.gtin_de?? 4013364099692, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 7.64 kg, ??store.product.packaging_de??: 1.00 pc(s)
