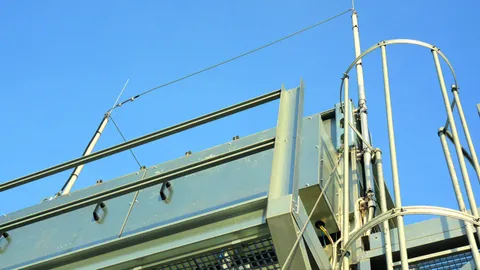

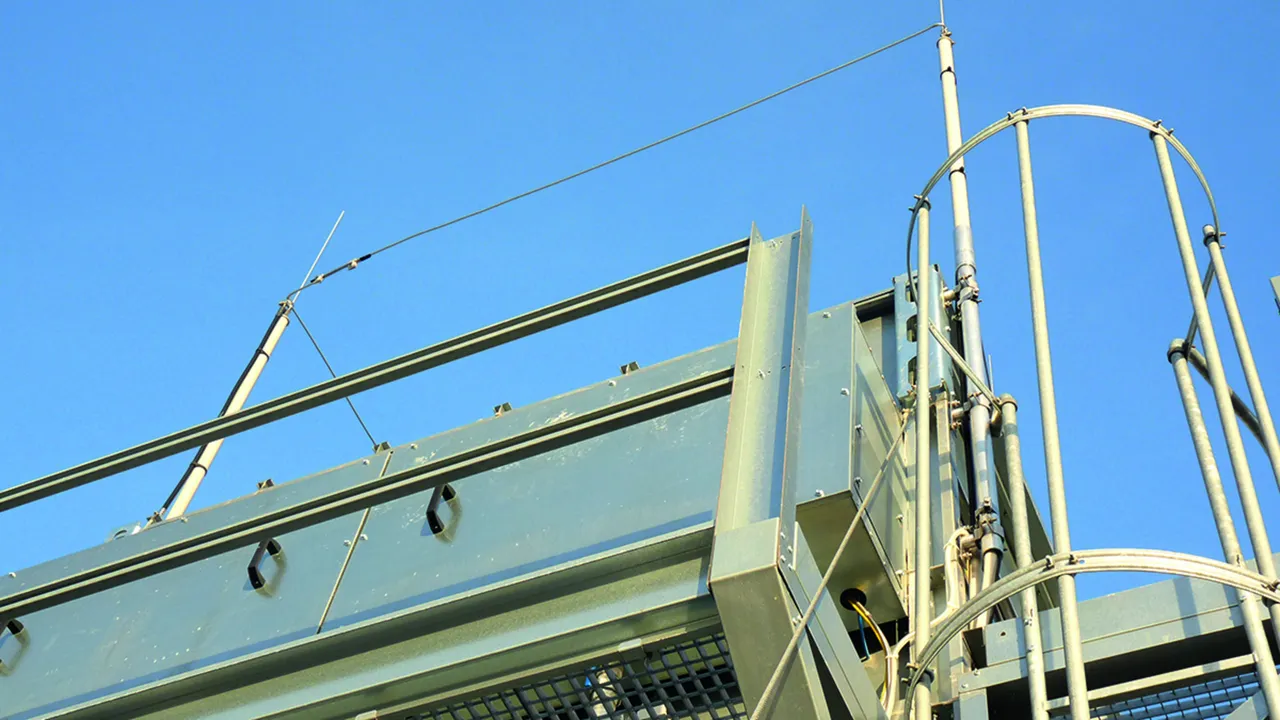

Supporting Tube with HVI Conductor

High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive components according to IEC/EN 62305-3. For use up to an equivalent separation distance s ≤ 75 cm (in air) or s ≤ 150 cm (solid material).
Optically optimised installation of the HVI Conductor inside the supporting tube creates less wind exposed surface.
Minimum order length 6 or 8 m. Conductor length has to be stated when ordering (steps of 0.5 m).
The conductor cannot be returned as it is made to order.

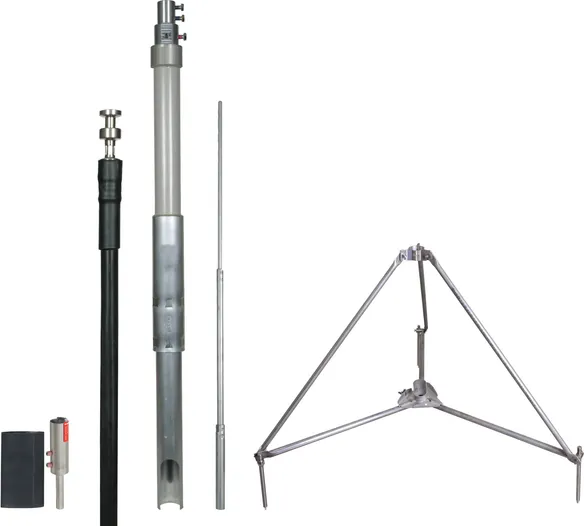

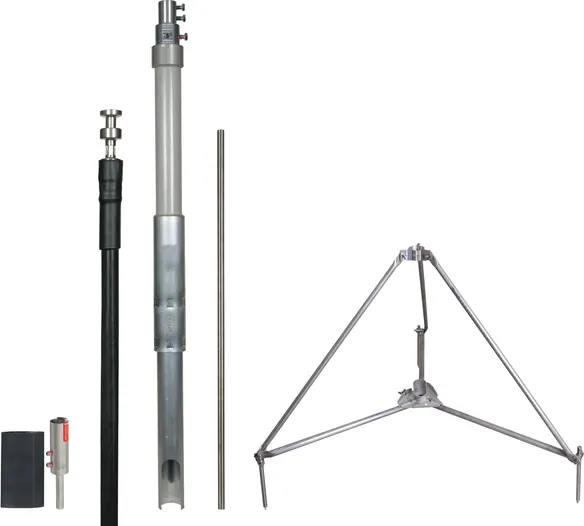

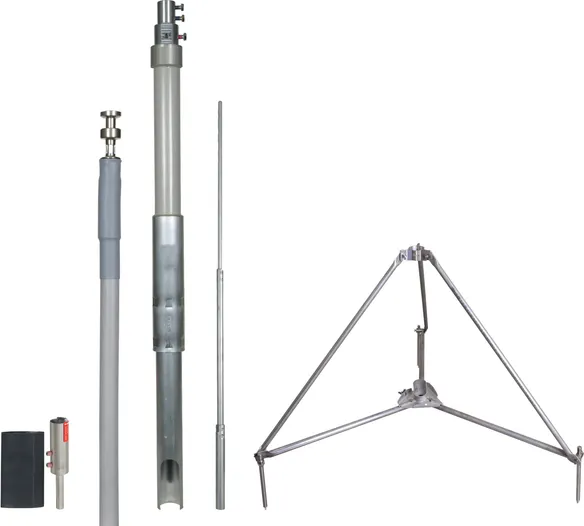

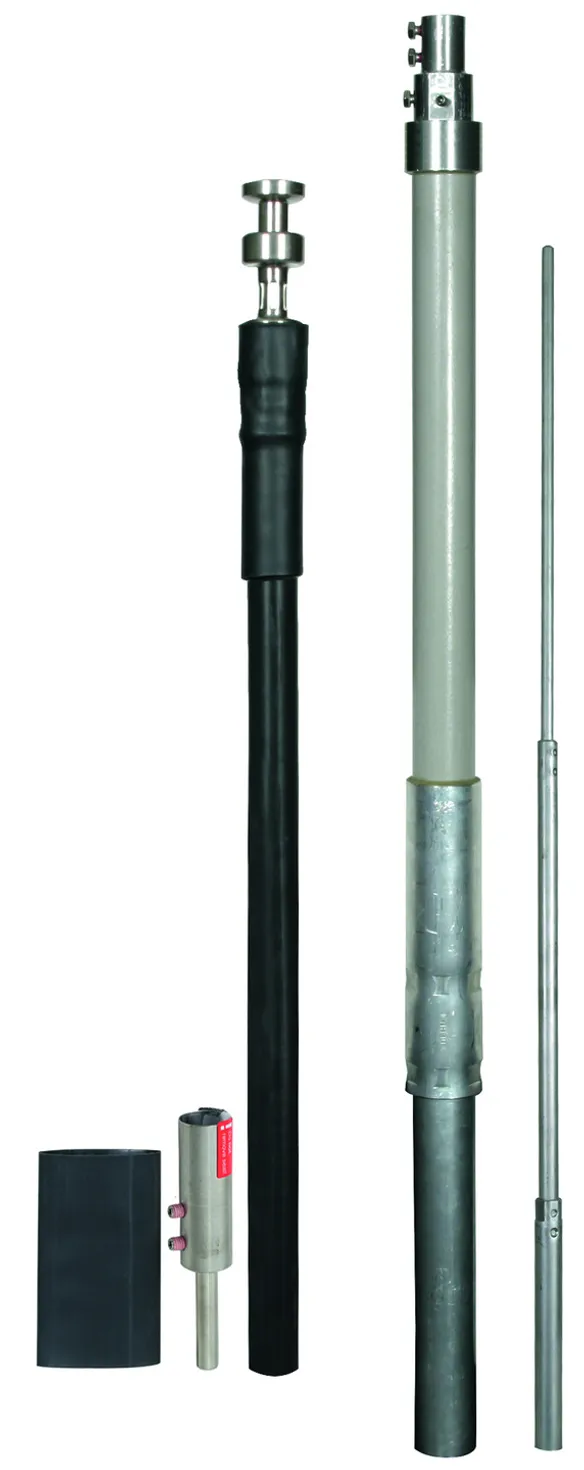

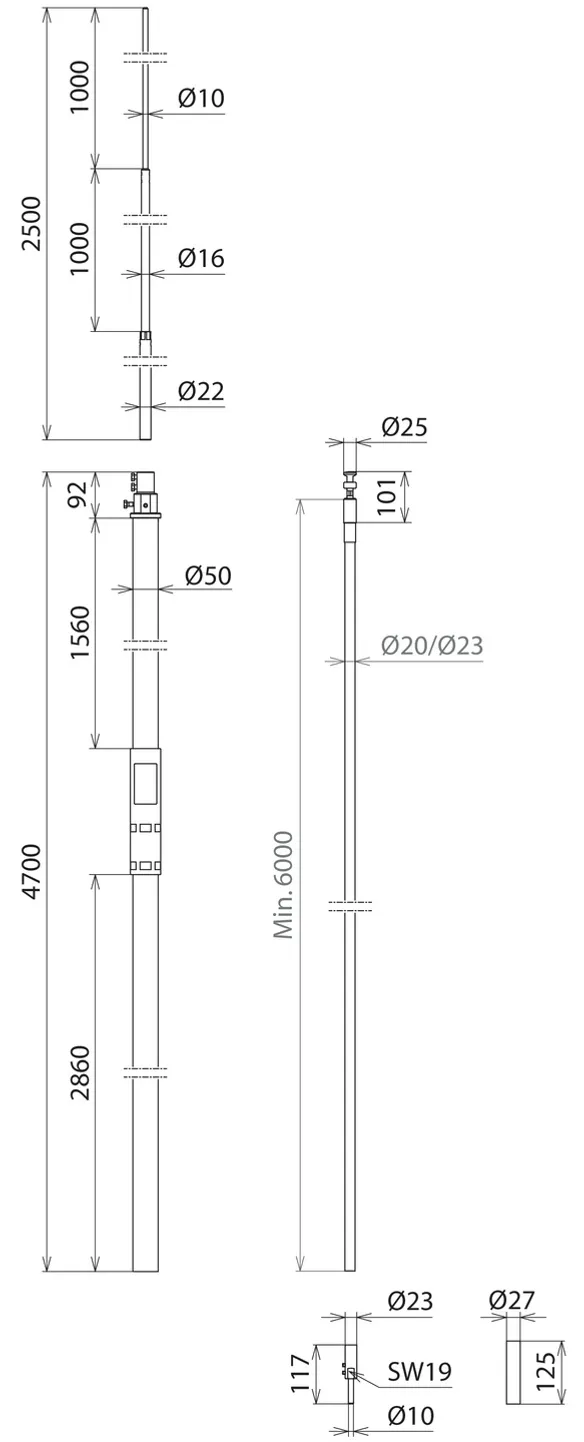

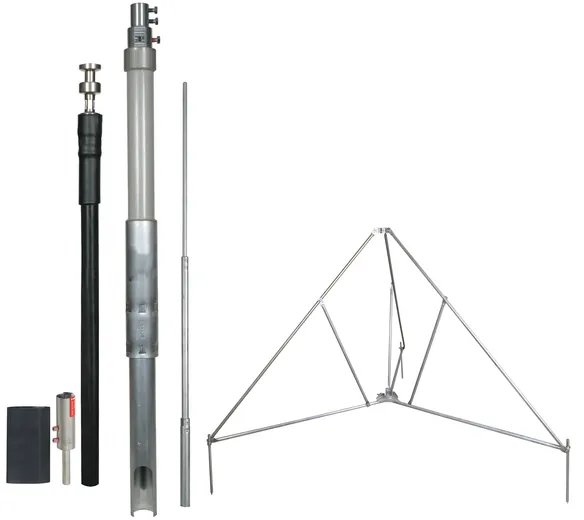

HVI Conductor in supporting tube with air-termination tip

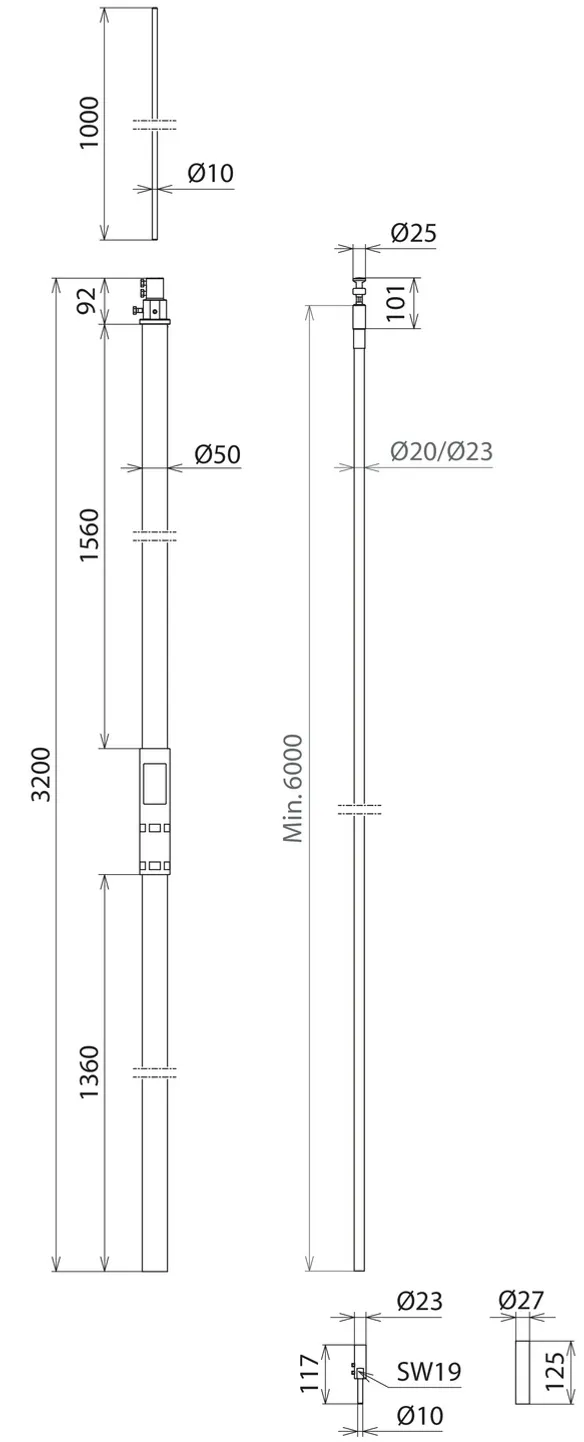

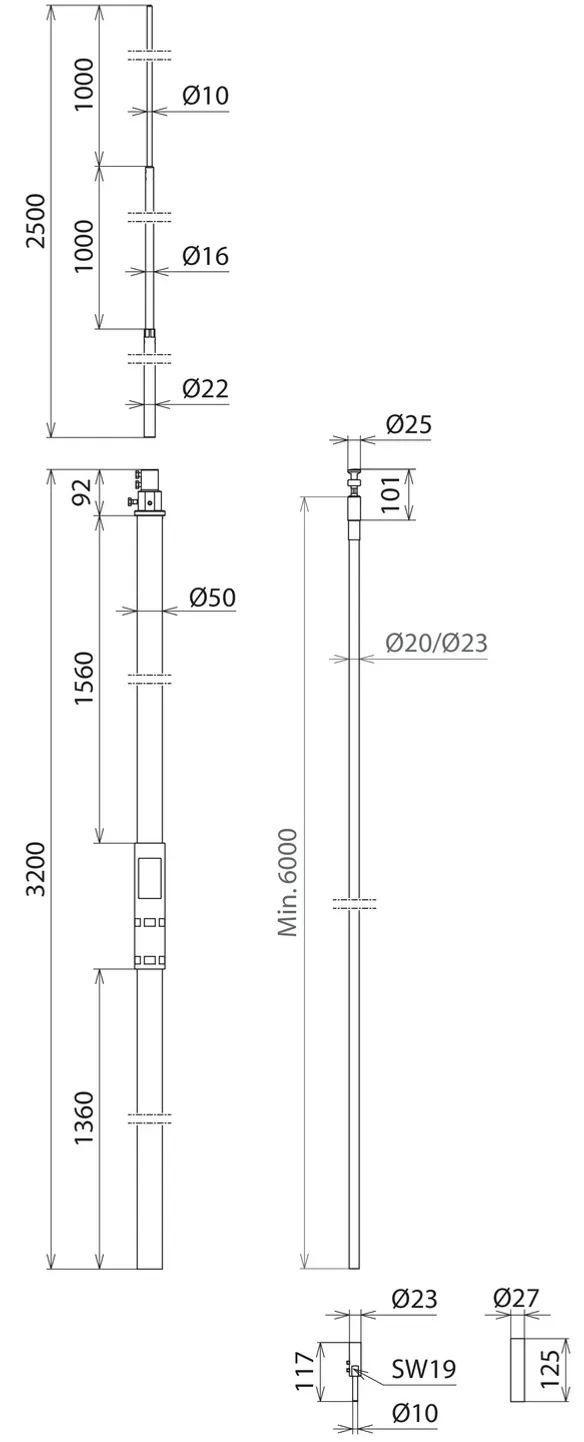

With internal sealing end and air-termination tip, StSt, Ø10 mm, length 1000 mm.

2 ??store.products_de??

??store.product.number.short_de?? 819326 HVI 20 M L6M SR3200 IP FSP1000 GFK AL

??store.product.gtin_de?? 4013364260511, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 8.70 kg, ??store.product.packaging_de??: 1.00 pc(s)
