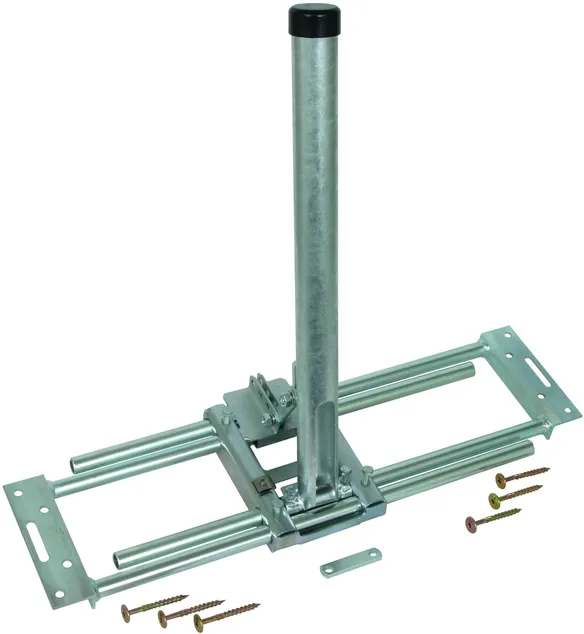

Mounting Bracket for Installation on Rafters

For the lateral fixing of
  • HVI light plus Conductor routed in the supporting tube (Ø40 mm)
  • HVI Conductor routed inside the supporting tube (Ø50 mm)
  • And to attach and fix the supporting tubes and for the sub-roof installation of the HVI Conductor or HVI light plus Conductor.

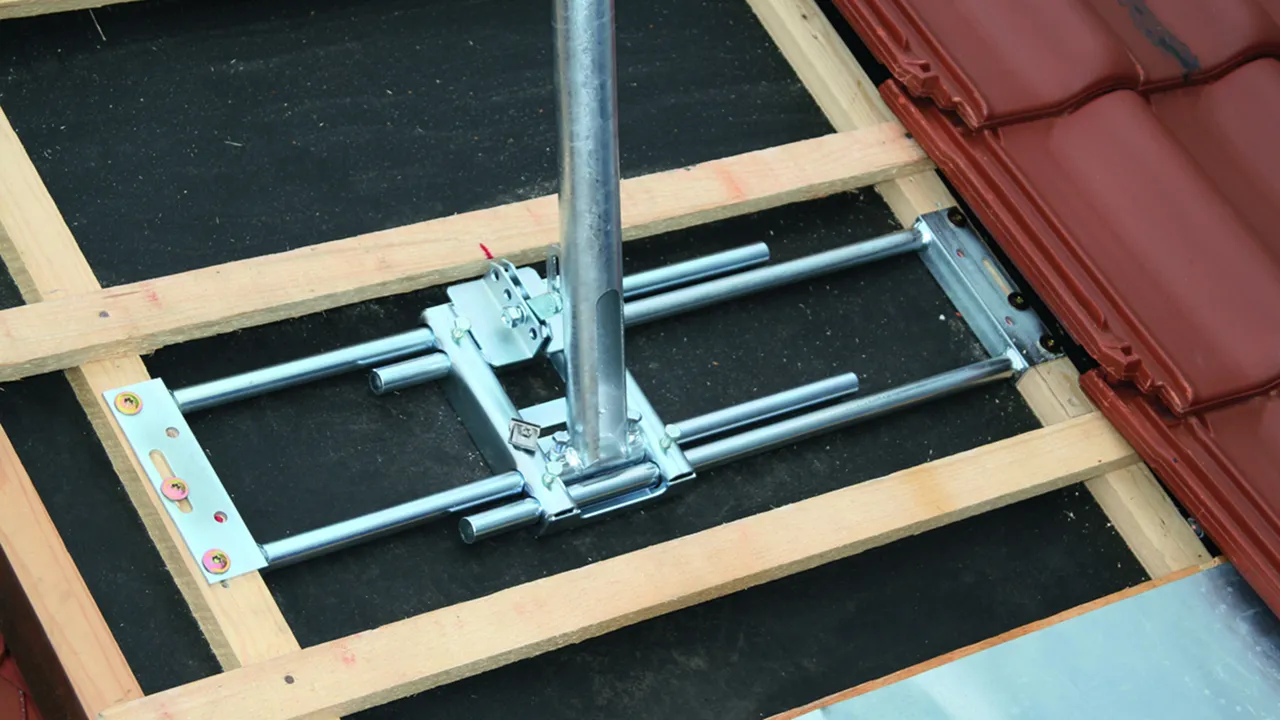

The roof rafter bracket can be installed on suitable, stable substructures.The roof rafter bracket is designed for up to 320 Nm torque.Mount the bracket from outside and screw it directly on the rafters or on the counter battens.The roof rafter bracket cannot be used with on-roof insulation and only conditionally with plain tiles.Note: Mounting conditions on site must be clarified with the builder.

1 ??store.product_de??

??store.product.number.short_de?? 105240 DASH D48 AS600.750 STTZN

??store.product.gtin_de?? 4013364135116, ??store.product.customsTariffNumber_de??: 73089098, ??store.product.grossWeight_de??: 7.23 kg, ??store.product.packaging_de??: 1.00 pc(s)
