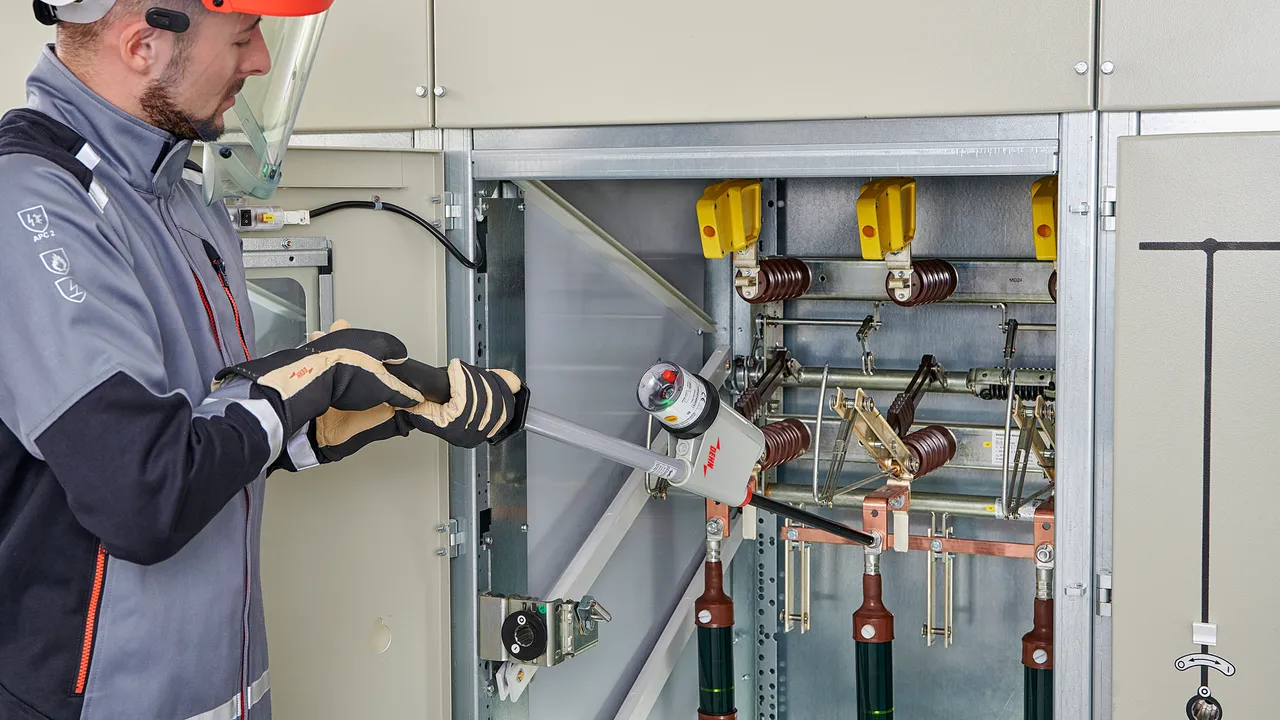

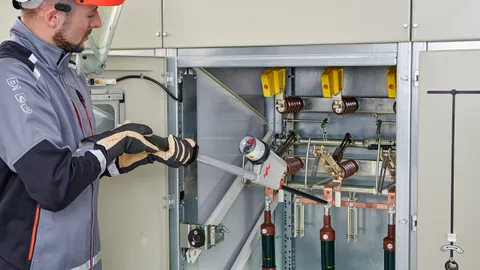

PHE4 Voltage Detector Medium Voltage

  • Self-test of all live parts including test prod
  • Unique plug-in coupling system
  • Integrated visual and acoustic indication
  • Also for use in wet weather conditions

Nominal Voltages up to 30 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

5 ??store.products_de??

??store.product.number.short_de?? 783003 PHE4 3 S

??store.product.gtin_de?? 4013364310179, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 3 kV
Total length (lG ) 1030 mm
Insertion depth (lO ) 230 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783006 PHE4 6 S

??store.product.gtin_de?? 4013364310155, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.19 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 kV
Total length (lG ) 1030 mm
Insertion depth (lO ) 230 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783010 PHE4 10 S

??store.product.gtin_de?? 4013364297869, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 kV

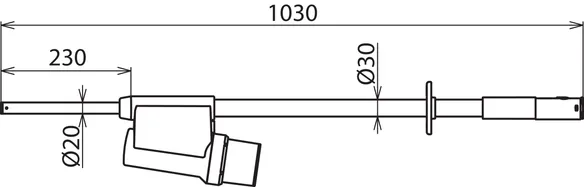

Total length (lG ) 1030 mm
Insertion depth (lO ) 230 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

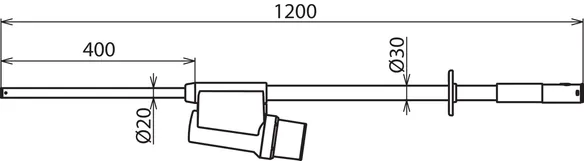

??store.product.number.short_de?? 783020 PHE4 20 S

??store.product.gtin_de?? 4013364310124, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.27 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 20 kV
Total length (lG ) 1200 mm
Insertion depth (lO ) 400 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783030 PHE4 30 S

??store.product.gtin_de?? 4013364310100, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.75 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 30 kV

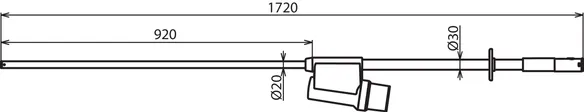

Total length (lG ) 1720 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltages up to 36 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

6 ??store.products_de??

??store.product.number.short_de?? 783013 PHE4 1 3 S

??store.product.gtin_de?? 4013364310186, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.60 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 1 ... 3 kV
Total length (lG ) 1410 mm
Insertion depth (lO ) 610 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783231 PHE4 3 10 S

??store.product.gtin_de?? 4013364310087, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 3 ... 10 kV
Total length (lG ) 1410 mm
Insertion depth (lO ) 610 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783235 PHE4 6 20 S

??store.product.gtin_de?? 4013364310049, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.47 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 ... 20 kV
Total length (lG ) 1600 mm
Insertion depth (lO ) 800 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783240 PHE4 10 20 S

??store.product.gtin_de?? 4013364310056, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 ... 20 kV

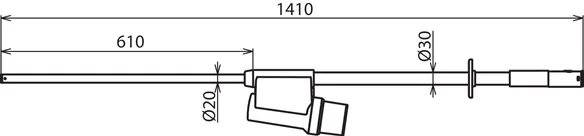

Total length (lG ) 1410 mm
Insertion depth (lO ) 610 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783250 PHE4 10 30 S

??store.product.gtin_de?? 4013364309999, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.53 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 ... 30 kV
Total length (lG ) 1720 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783245 PHE4 20 36 S

??store.product.gtin_de?? 4013364310032, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.53 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 20 ... 36 kV
Total length (lG ) 1720 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltages up to 36 kV / 50 Hz, switchable, M12 Thread

Category "S" for switchgear installations and overhead lines.

3 ??store.products_de??

??store.product.number.short_de?? 783520 PHE4 U 2 20 S

??store.product.gtin_de?? 4013364309913, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.47 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 2 ... 6 / 6 ... 20 kV

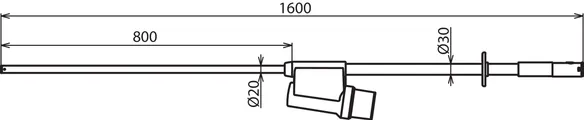

Total length (lG ) 1600 mm
Insertion depth (lO ) 800 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783530 PHE4 U 3 30 S

??store.product.gtin_de?? 4013364309968, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.53 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 3 ... 10 / 10 ... 30 kV
Total length (lG ) 1720 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783536 PHE4 U 6 36 S

??store.product.gtin_de?? 4013364309944, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.53 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 ... 15 / 15 ... 36 kV
Total length (lG ) 1720 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltages up to 30 kV / 50 Hz, Gear Coupling

Category "S" for switchgear installations and overhead lines.

5 ??store.products_de??

??store.product.number.short_de?? 783103 PHE4 3 S ZK

??store.product.gtin_de?? 4013364317277, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.19 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 3 kV
Total length (lG ) 1070 mm
Insertion depth (lO ) 230 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783106 PHE4 6 S ZK

??store.product.gtin_de?? 4013364317260, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.19 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 kV
Total length (lG ) 1070 mm
Insertion depth (lO ) 230 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783110 PHE4 10 S ZK

??store.product.gtin_de?? 4013364317253, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.19 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 kV

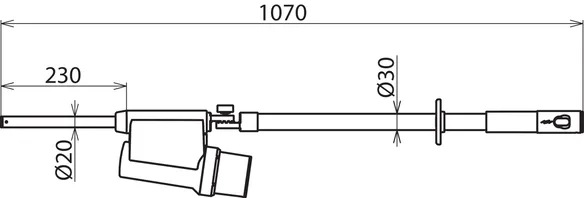

Total length (lG ) 1070 mm
Insertion depth (lO ) 230 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

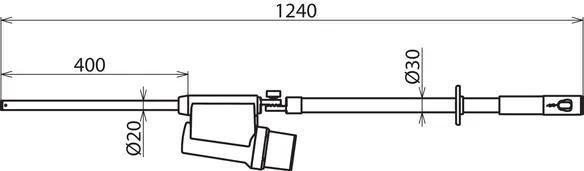

??store.product.number.short_de?? 783120 PHE4 20 S ZK

??store.product.gtin_de?? 4013364317246, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.27 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 20 kV
Total length (lG ) 1240 mm
Insertion depth (lO ) 400 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783130 PHE4 30 S ZK

??store.product.gtin_de?? 4013364317239, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.53 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

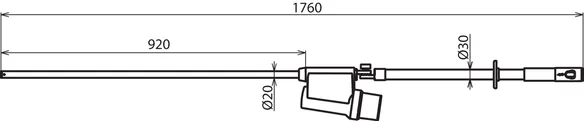

Nominal voltage (UN ) 30 kV

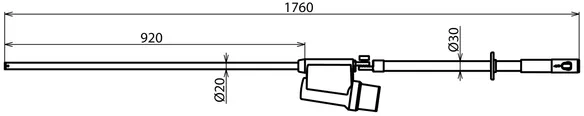

Total length (lG ) 1760 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltages up to bis 30 kV / 50 Hz, Gear Coupling

Category "S" for switchgear installations and overhead lines.

3 ??store.products_de??

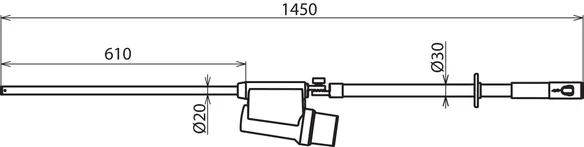

??store.product.number.short_de?? 783141 PHE4 3 10 S ZK

??store.product.gtin_de?? 4013364317222, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 3 ... 10 kV
Total length (lG ) 1450 mm
Insertion depth (lO ) 610 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783151 PHE4 6 20 S ZK

??store.product.gtin_de?? 4013364317215, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.47 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

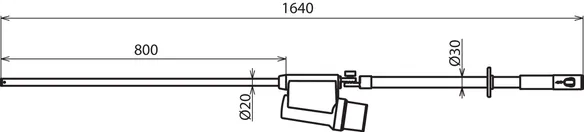

Nominal voltage (UN ) 6 ... 20 kV
Total length (lG ) 1640 mm
Insertion depth (lO ) 800 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783161 PHE4 10 30 S ZK

??store.product.gtin_de?? 4013364317208, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.53 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 ... 30 kV
Total length (lG ) 1760 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltages up to 36 kV / 60 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

5 ??store.products_de??

??store.product.number.short_de?? 783332 PHE4 3 10 S 60

??store.product.gtin_de?? 4013364310070, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 3 ... 10 kV
Total length (lG ) 1410 mm
Insertion depth (lO ) 610 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783335 PHE4 6 20 S 60

??store.product.gtin_de?? 4013364310001, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.47 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 ... 20 kV
Total length (lG ) 1600 mm
Insertion depth (lO ) 800 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783345 PHE4 10 30 S 60

??store.product.gtin_de?? 4013364309975, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.53 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 ... 30 kV
Total length (lG ) 1720 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783342 PHE4 20 36 S 60

??store.product.gtin_de?? 4013364310025, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.53 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 20 ... 36 kV
Total length (lG ) 1720 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783395 PHE4 U 3 36 S 60

??store.product.gtin_de?? 4013364309951, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.53 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 3 ... 10 / 12 ... 36 kV
Total length (lG ) 1720 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage up to 20 kV / 50 Hz or 16.7 Hz, switchable

Category "S" for switchgear installations and overhead lines.

1 ??store.product_de??

??store.product.number.short_de?? 783430 PHE4 U 6 20 S 16.7 50

??store.product.gtin_de?? 4013364309906, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.47 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 ... 20 kV
Total length (lG ) 1600 mm
Insertion depth (lO ) 800 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage up to 20 kV / 16.7 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

1 ??store.product_de??

??store.product.number.short_de?? 783420 PHE4 6 20 S 16.7

??store.product.gtin_de?? 4013364309890, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.47 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 ... 20 kV
Total length (lG ) 1600 mm
Insertion depth (lO ) 800 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
back to top
