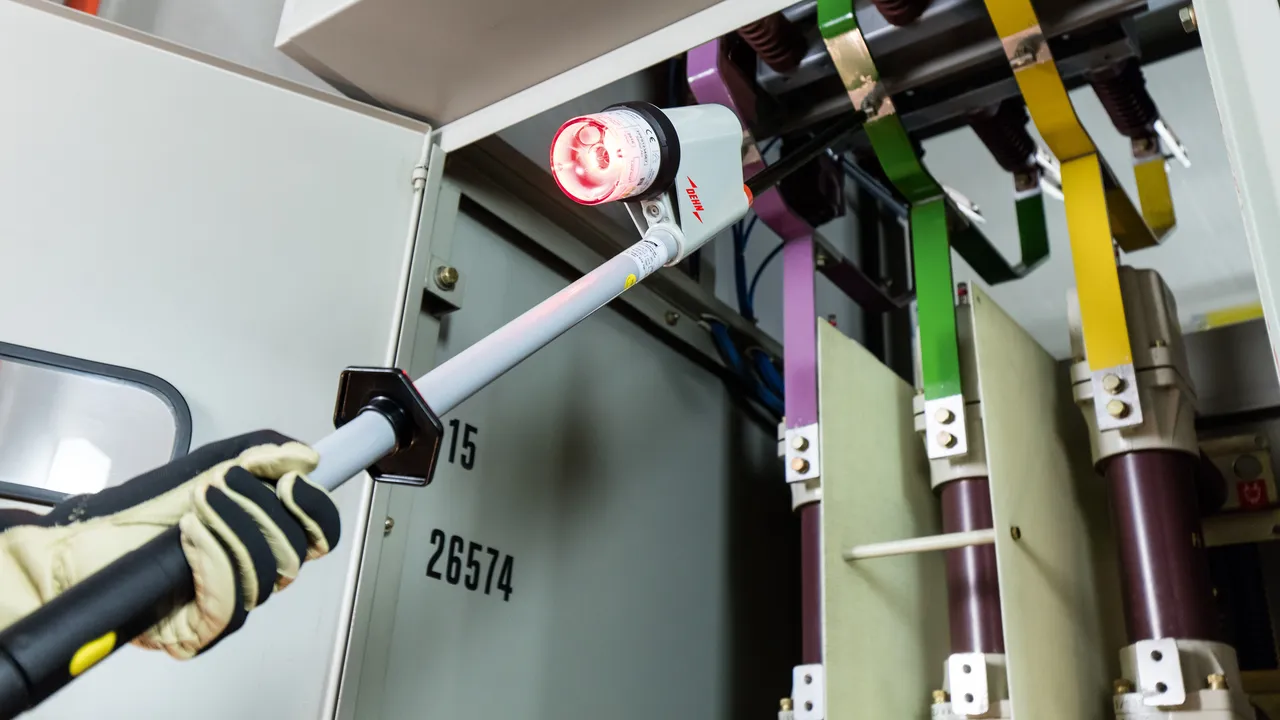

PHE4 Voltage Detector (British Influenced Voltage Level)

  • Self-test of all live parts (including test prod category "S")
  • Unique plug-in coupling system
  • Integrated visual and acoustic indication
  • Also for use in wet weather conditions

Nominal Voltages up to 33 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

5 ??store.products_de??

??store.product.number.short_de?? 783033 PHE4 3.3 S

??store.product.gtin_de?? 4013364310162, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.41 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

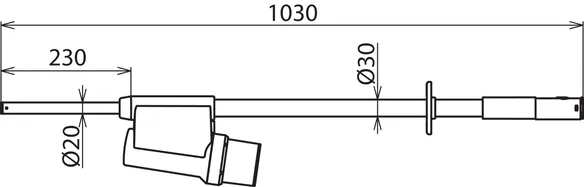

Nominal voltage (UN ) 3.3 kV
Total length (lG ) 1030 mm
Insertion depth (lO ) 230 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783066 PHE4 6.6 S

??store.product.gtin_de?? 4013364310148, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.19 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6.6 kV
Total length (lG ) 1030 mm
Insertion depth (lO ) 230 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783011 PHE4 11 S

??store.product.gtin_de?? 4013364310131, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.38 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 11 kV
Total length (lG ) 1030 mm
Insertion depth (lO ) 230 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783022 PHE4 22 S

??store.product.gtin_de?? 4013364310117, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.27 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

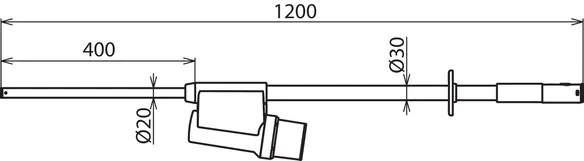

Nominal voltage (UN ) 22 kV
Total length (lG ) 1200 mm
Insertion depth (lO ) 400 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783045 PHE4 33 S

??store.product.gtin_de?? 4013364310094, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.48 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

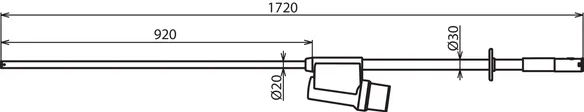

Nominal voltage (UN ) 33 kV
Total length (lG ) 1720 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage Ranges up to 33 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

3 ??store.products_de??

??store.product.number.short_de?? 783233 PHE4 3.3 11 S

??store.product.gtin_de?? 4013364310063, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.37 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

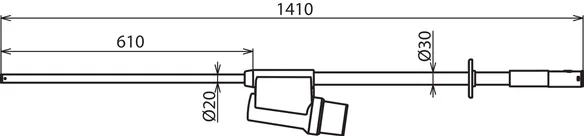

Nominal voltage (UN ) 3.3 ... 11 kV
Total length (lG ) 1410 mm
Insertion depth (lO ) 610 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783243 PHE4 6.6 22 S

??store.product.gtin_de?? 4013364310018, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.47 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

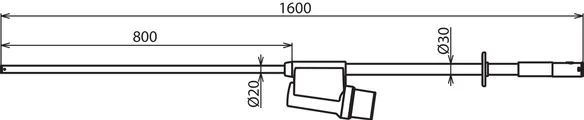

Nominal voltage (UN ) 6.6 ... 22 kV
Total length (lG ) 1600 mm
Insertion depth (lO ) 800 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783255 PHE4 11 33 S

??store.product.gtin_de?? 4013364309982, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.53 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 11 ... 33 kV
Total length (lG ) 1720 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage Ranges up to 33 kV / 50 Hz, switchable, M12 Thread

Category "S" for switchgear installations and overhead lines.

2 ??store.products_de??

??store.product.number.short_de?? 783511 PHE4 U 6.6 11 S

??store.product.gtin_de?? 4013364309937, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.19 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6.6 / 11 kV
Total length (lG ) 1030 mm
Insertion depth (lO ) 230 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 783533 PHE4 U 3.3 33 S

??store.product.gtin_de?? 4013364309920, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.53 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 3.3 ... 11 / 11 ... 33 kV
Total length (lG ) 1720 mm
Insertion depth (lO ) 920 mm
*) all circuits including test prod

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
