??store.product.number.short_de?? VGJD2QX EKV3+1 16 G VGJD2QX

??store.product.gtin_de?? 4013364165373, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.12 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	16 mm²
Max. short-circuit current I_k0.5 s	4.5 kA
Max. short-circuit current I_k1 s	3.2 kA

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	16 mm²
Max. short-circuit current I_k0.5 s	4.5 kA
Max. short-circuit current I_k1 s	3.2 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C

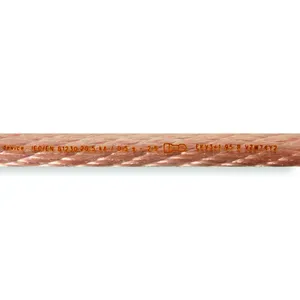

Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VRDSN66 EKV3+1 25 G VRDSN66

??store.product.gtin_de?? 4013364163669, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.44 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	25 mm²
Max. short-circuit current I_k0.5 s	7.0 kA
Max. short-circuit current I_k1 s	4.9 kA

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	25 mm²
Max. short-circuit current I_k0.5 s	7.0 kA
Max. short-circuit current I_k1 s	4.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V3WJMYY EKV3+1 35 G V3WJMYY

??store.product.gtin_de?? 4013364163676, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.81 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	35 mm²
Max. short-circuit current I_k0.5 s	10.0 kA
Max. short-circuit current I_k1 s	6.9 kA

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	35 mm²
Max. short-circuit current I_k0.5 s	10.0 kA
Max. short-circuit current I_k1 s	6.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VU8P6LE EKV3+1 50 G VU8P6LE

??store.product.gtin_de?? 4013364165380, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.53 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	50 mm²
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	50 mm²
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VCEY1U6 EKV3+1 70 G VCEY1U6

??store.product.gtin_de?? 4013364165397, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.50 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VA3926U EKV3+1 95 G VA3926U

??store.product.gtin_de?? 4013364165403, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.19 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	95 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	95 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VAB3PJV EKV3+1 120 G VAB3PJV

??store.product.gtin_de?? 4013364165410, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.18 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

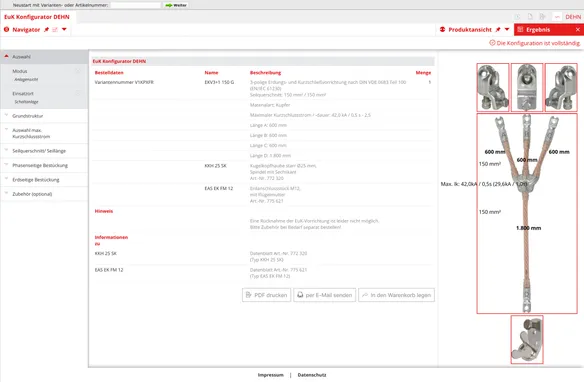

??store.product.number.short_de?? V1KPXFR EKV3+1 150 G V1KPXFR

??store.product.gtin_de?? 4013364165427, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.23 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 25 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	25 mm
Cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0 kA
Max. short-circuit current I_k1 s	29.6 kA

Phase cable end	KKH 25 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	25 mm
Cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0 kA
Max. short-circuit current I_k1 s	29.6 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

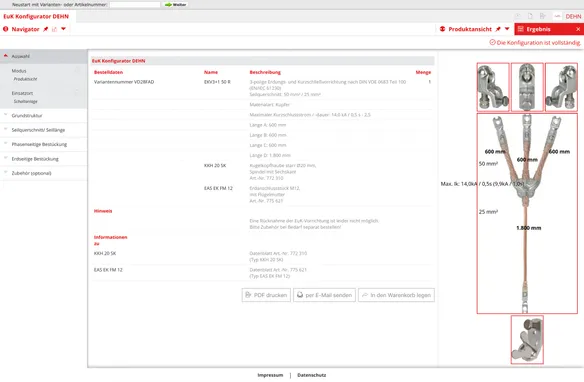

??store.product.number.short_de?? VD28FAD EKV3+1 50 R VD28FAD

??store.product.gtin_de?? 4013364165434, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.11 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	50/25 mm²
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	50/25 mm²
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

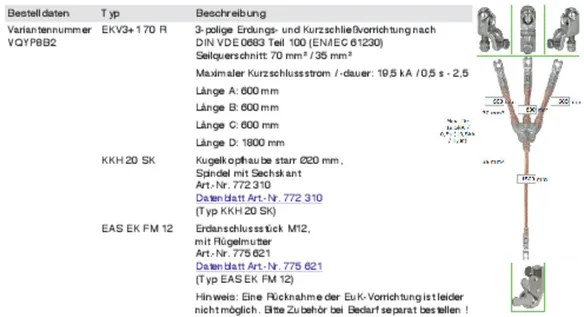

??store.product.number.short_de?? VQYP8B2 EKV3+1 70 R VQYP8B2

??store.product.gtin_de?? 4013364163195, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.63 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	70/35 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	70/35 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

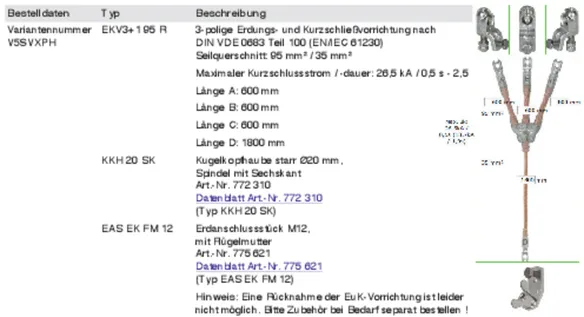

??store.product.number.short_de?? V5SVXPH EKV3+1 95 R V5SVXPH

??store.product.gtin_de?? 4013364164727, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.71 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	95/35 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	95/35 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VTSY9XH EKV3+1 120 R VTSY9XH

??store.product.gtin_de?? 4013364163621, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.78 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	120/50 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

Phase cable end	KKH 20 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	20 mm
Cable cross-section Cu	120/50 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VHBWUNH EKV3+1 150 R VHBWUNH

??store.product.gtin_de?? 4013364163645, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.24 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	KKH 25 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	25 mm
Cable cross-section Cu	150/50 mm²
Max. short-circuit current I_k0.5 s	42.0 kA
Max. short-circuit current I_k1 s	29.6 kA

Phase cable end	KKH 25 SK
Earth cable end	EAS EK FM 12
For fixed ball point Ø	25 mm
Cable cross-section Cu	150/50 mm²
Max. short-circuit current I_k0.5 s	42.0 kA
Max. short-circuit current I_k1 s	29.6 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V8MCNWM EKV3+1 16 G V8MCNWM

??store.product.gtin_de?? 4013364165441, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.61 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	16 mm²
Max. short-circuit current I_k0.5 s	4.5 kA
Max. short-circuit current I_k1 s	3.2 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	16 mm²
Max. short-circuit current I_k0.5 s	4.5 kA
Max. short-circuit current I_k1 s	3.2 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V8VF7CP EKV3+1 25 G V8VF7CP

??store.product.gtin_de?? 4013364165458, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.66 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	25 mm²
Max. short-circuit current I_k0.5 s	7.0 kA
Max. short-circuit current I_k1 s	4.9 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	25 mm²
Max. short-circuit current I_k0.5 s	7.0 kA
Max. short-circuit current I_k1 s	4.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V5VN56Z EKV3+1 35 G V5VN56Z

??store.product.gtin_de?? 4013364165465, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.98 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	35 mm²
Max. short-circuit current I_k0.5 s	10.0 kA
Max. short-circuit current I_k1 s	6.9 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	35 mm²
Max. short-circuit current I_k0.5 s	10.0 kA
Max. short-circuit current I_k1 s	6.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VPH98CT EKV3+1 50 G VPH98CT

??store.product.gtin_de?? 4013364165472, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.75 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	50 mm²
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	50 mm²
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VMLM2BZ EKV3+1 70 G VMLM2BZ

??store.product.gtin_de?? 4013364165489, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.91 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VE9HQHJ EKV3+1 95 G VE9HQHJ

??store.product.gtin_de?? 4013364165496, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.29 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	95 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	95 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VKZLVU3 EKV3+1 120 G VKZLVU3

??store.product.gtin_de?? 4013364165502, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 9.28 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

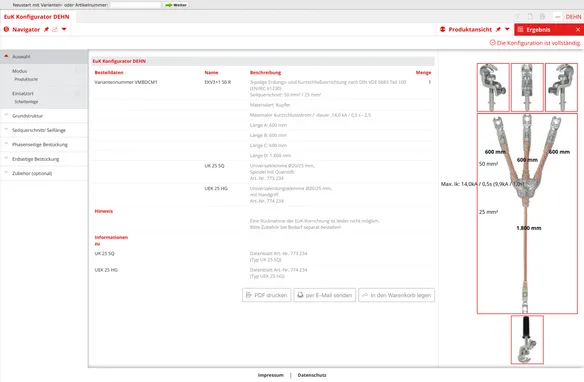

??store.product.number.short_de?? VMBDCM1 EKV3+1 50 R VMBDCM1

??store.product.gtin_de?? 4013364165519, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.25 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	50/25 mm²
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	50/25 mm²
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

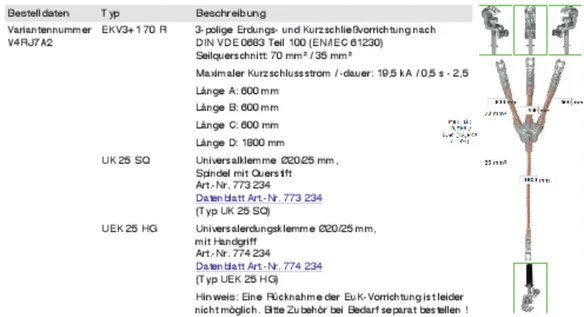

??store.product.number.short_de?? V4RJ7A2 EKV3+1 70 R V4RJ7A2

??store.product.gtin_de?? 4013364165526, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.92 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	70/35 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	70/35 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VRAB9WB EKV3+1 95 R VRAB9WB

??store.product.gtin_de?? 4013364165533, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.10 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	95/35 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	95/35 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VACNLP8 EKV3+1 120 R VACNLP8

??store.product.gtin_de?? 4013364165540, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.89 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	120/50 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 25 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	120/50 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VE5E8FZ EKV1+1 16 VE5E8FZ

??store.product.gtin_de?? 4013364165557, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.67 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	PSK 4 30 SQL
Earth cable end	EFK FL40 SKN
Clamping range Ø	4 ... 30 mm
Cable cross-section Cu	16 mm²
Max. short-circuit current I_k0.5 s	4.5 kA
Max. short-circuit current I_k1 s	3.2 kA

Phase cable end	PSK 4 30 SQL
Earth cable end	EFK FL40 SKN
Clamping range Ø	4 ... 30 mm
Cable cross-section Cu	16 mm²
Max. short-circuit current I_k0.5 s	4.5 kA
Max. short-circuit current I_k1 s	3.2 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VF33XR2 EKV1+1 25 VF33XR2

??store.product.gtin_de?? 4013364165564, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	PSK 4 30 SQL
Earth cable end	EFK FL40 SKN
Clamping range Ø	4 ... 30 mm
Cable cross-section Cu	25 mm²
Max. short-circuit current I_k0.5 s	7.0 kA
Max. short-circuit current I_k1 s	4.9 kA

Phase cable end	PSK 4 30 SQL
Earth cable end	EFK FL40 SKN
Clamping range Ø	4 ... 30 mm
Cable cross-section Cu	25 mm²
Max. short-circuit current I_k0.5 s	7.0 kA
Max. short-circuit current I_k1 s	4.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V43FCV8 EKV1+1 35 V43FCV8

??store.product.gtin_de?? 4013364165571, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.58 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	PSK 4 30 SQL
Earth cable end	EFK FL40 SKN
Clamping range Ø	4 ... 30 mm
Cable cross-section Cu	35 mm²
Max. short-circuit current I_k0.5 s	10.0 kA
Max. short-circuit current I_k1 s	6.9 kA

Phase cable end	PSK 4 30 SQL
Earth cable end	EFK FL40 SKN
Clamping range Ø	4 ... 30 mm
Cable cross-section Cu	35 mm²
Max. short-circuit current I_k0.5 s	10.0 kA
Max. short-circuit current I_k1 s	6.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V2KWXUL EKV1+1 50 V2KWXUL

??store.product.gtin_de?? 4013364165588, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.46 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	PSK 4 30 SQL
Earth cable end	EFK FL40 SKN
Clamping range Ø	4 ... 30 mm
Cable cross-section Cu	50 mm²
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA

Phase cable end	PSK 4 30 SQL
Earth cable end	EFK FL40 SKN
Clamping range Ø	4 ... 30 mm
Cable cross-section Cu	50 mm²
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VRP32FL EKV1+1 70 VRP32FL

??store.product.gtin_de?? 4013364165595, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.59 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	PSK 4 30 SQL
Earth cable end	EFK FL40 SKN
Clamping range Ø	4 ... 30 mm
Cable cross-section Cu	70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA

Phase cable end	PSK 4 30 SQL
Earth cable end	EFK FL40 SKN
Clamping range Ø	4 ... 30 mm
Cable cross-section Cu	70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V2WPYVF EKV1+1 95 V2WPYVF

??store.product.gtin_de?? 4013364165601, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.44 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	PSK 10 65 SQL
Earth cable end	UEK 30 HG
Clamping range Ø	10 ... 65 mm
Cable cross-section Cu	95 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA

Phase cable end	PSK 10 65 SQL
Earth cable end	UEK 30 HG
Clamping range Ø	10 ... 65 mm
Cable cross-section Cu	95 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VG4GXHQ EKV1+1 120 VG4GXHQ

??store.product.gtin_de?? 4013364165618, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	PSK 10 65 SQL
Earth cable end	UEK 30 HG
Clamping range Ø	10 ... 65 mm
Cable cross-section Cu	120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

Phase cable end	PSK 10 65 SQL
Earth cable end	UEK 30 HG
Clamping range Ø	10 ... 65 mm
Cable cross-section Cu	120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VMZDL8N EKV1+1 16 VMZDL8N

??store.product.gtin_de?? 4013364165625, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.87 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	16 mm²
Max. short-circuit current I_k0.5 s	4.5 kA
Max. short-circuit current I_k1 s	3.2 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	16 mm²
Max. short-circuit current I_k0.5 s	4.5 kA
Max. short-circuit current I_k1 s	3.2 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VB1DETL EKV1+1 25 VB1DETL

??store.product.gtin_de?? 4013364165632, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.19 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	25 mm²
Max. short-circuit current I_k0.5 s	7.0 kA
Max. short-circuit current I_k1 s	4.9 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	25 mm²
Max. short-circuit current I_k0.5 s	7.0 kA
Max. short-circuit current I_k1 s	4.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V8PPJEF EKV1+1 35 V8PPJEF

??store.product.gtin_de?? 4013364165649, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.14 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	35 mm²
Max. short-circuit current I_k0.5 s	10.0 kA
Max. short-circuit current I_k1 s	6.9 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	35 mm²
Max. short-circuit current I_k0.5 s	10.0 kA
Max. short-circuit current I_k1 s	6.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VQY44GL EKV1+1 50 VQY44GL

??store.product.gtin_de?? 4013364165656, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.66 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	50 mm²
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	50 mm²
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VFZ17TJ EKV1+1 70 VFZ17TJ

??store.product.gtin_de?? 4013364165663, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.15 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VWBDMPS EKV1+1 95 VWBDMPS

??store.product.gtin_de?? 4013364165670, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.59 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	95 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	95 mm²
Max. short-circuit current I_k0.5 s	26.5 kA
Max. short-circuit current I_k1 s	18.7 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V3CM9FR EKV1+1 120 V3CM9FR

??store.product.gtin_de?? 4013364165687, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.80 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

Phase cable end	UK 25 SQ
Earth cable end	UEK 30 HG
For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Cable cross-section Cu	120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61138 (DIN VDE 0283-3) and EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (cable)	E-Cu, extra finely stranded and highly flexible
Material (sheath)	Thermoplastic (soft PVC compound YM2)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

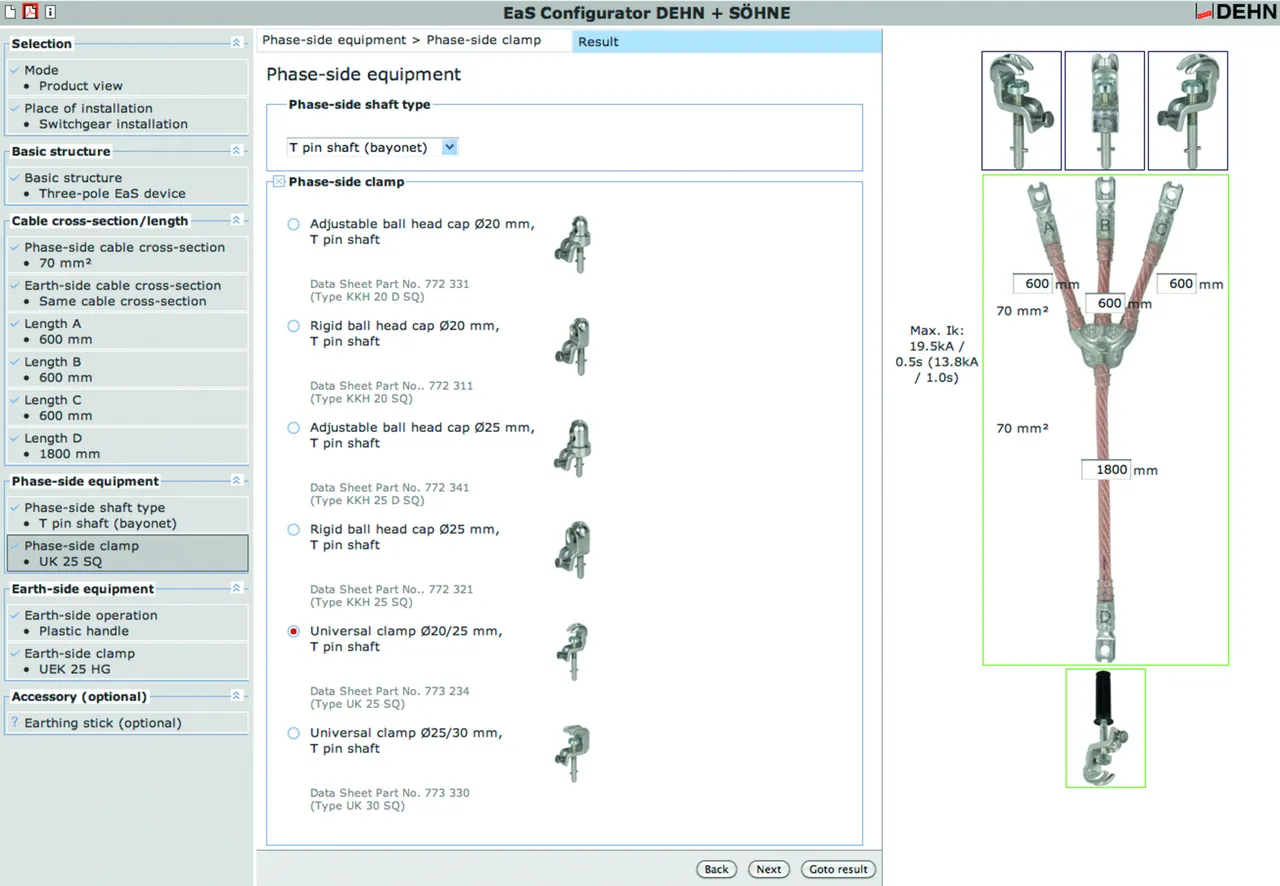

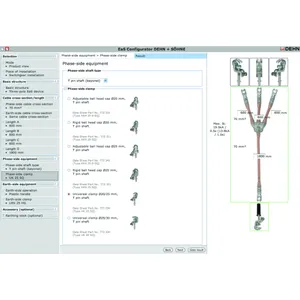

EaS Configurator: Easy online configuration

Details

??store.product.family.furtherInformations_de??

Three-pole, same Cable Cross-Section with Ball Head Caps

??store.product.number.short_de?? VGJD2QX EKV3+1 16 G VGJD2QX

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VRDSN66 EKV3+1 25 G VRDSN66

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? V3WJMYY EKV3+1 35 G V3WJMYY

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VU8P6LE EKV3+1 50 G VU8P6LE

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VCEY1U6 EKV3+1 70 G VCEY1U6

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VA3926U EKV3+1 95 G VA3926U

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VAB3PJV EKV3+1 120 G VAB3PJV

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? V1KPXFR EKV3+1 150 G V1KPXFR

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

Three-pole, reduced Cable Cross-Section with Ball Head Caps

??store.product.number.short_de?? VD28FAD EKV3+1 50 R VD28FAD

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VQYP8B2 EKV3+1 70 R VQYP8B2

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? V5SVXPH EKV3+1 95 R V5SVXPH

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VTSY9XH EKV3+1 120 R VTSY9XH

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VHBWUNH EKV3+1 150 R VHBWUNH

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

Three-pole, same Cable Cross-Section with Universal Clamp

??store.product.number.short_de?? V8MCNWM EKV3+1 16 G V8MCNWM

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? V8VF7CP EKV3+1 25 G V8VF7CP

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? V5VN56Z EKV3+1 35 G V5VN56Z

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VPH98CT EKV3+1 50 G VPH98CT

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VMLM2BZ EKV3+1 70 G VMLM2BZ

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VE9HQHJ EKV3+1 95 G VE9HQHJ

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VKZLVU3 EKV3+1 120 G VKZLVU3

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

Three-pole, reduced Cable Cross-Section with Universal Clamp

??store.product.number.short_de?? VMBDCM1 EKV3+1 50 R VMBDCM1

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? V4RJ7A2 EKV3+1 70 R V4RJ7A2

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VRAB9WB EKV3+1 95 R VRAB9WB

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VACNLP8 EKV3+1 120 R VACNLP8

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

Single-pole with Phase Screw Clamp
