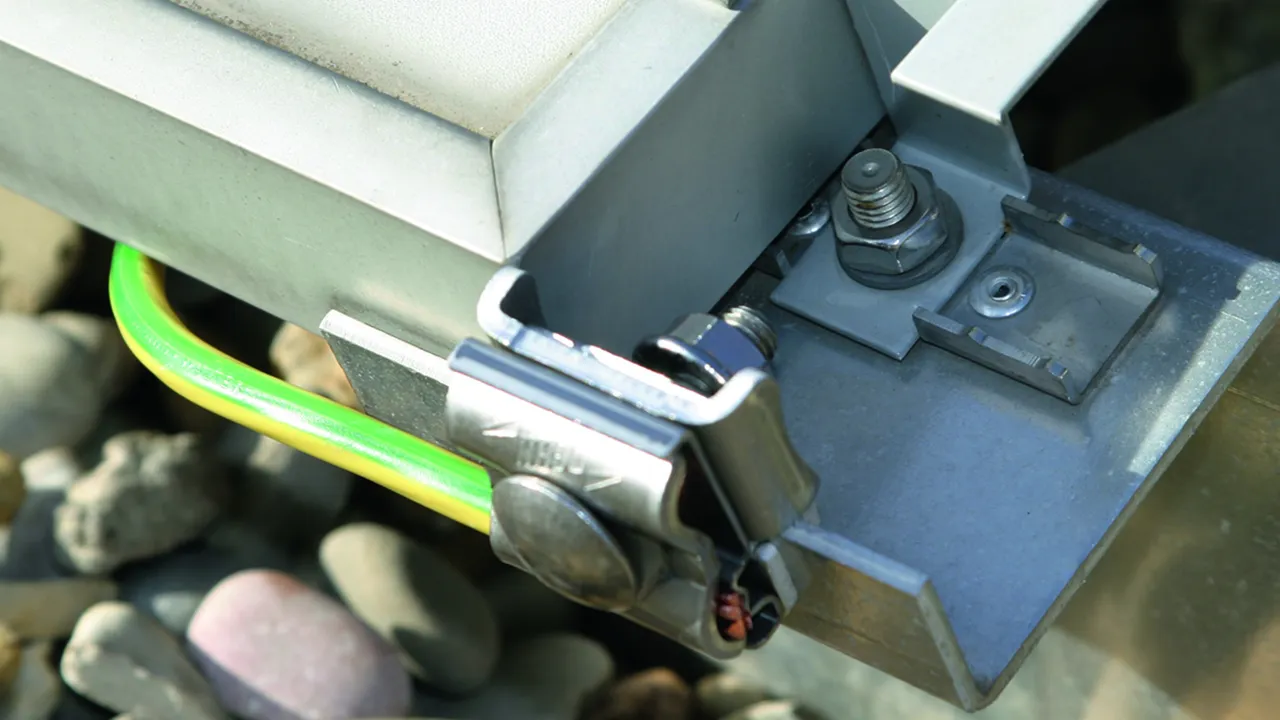

UNI Saddle Clamp

For integrating mounting systems, e.g. of PV installations, in the functional equipotential bonding / functional earthing ( black conductor possible) and lightning equipotential bonding according to IEC/EN 62305-3.

The StSt contact plate (intermediate element) allows different conductor materials (Cu, Al, St/tZn and StSt) to be connected to the normal mounting systems, e.g. to aluminium, without the risk of contact corrosion.
The double clamp design allows easy and quick interconnection of the profiles, e.g. by feed-through wiring.

With M8 screw and self-locking nut

1 ??store.product_de??

??store.product.number.short_de?? 365250 UNI FK 8.10 KBF0.7 8 AL V2A

??store.product.gtin_de?? 4013364148307, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 85.00 g, ??store.product.packaging_de??: 50.00 pc(s)
