Strips

According to EN 62561-2, for use in earth-termination and lightning protection systems as well as for ring equipotential bonding.

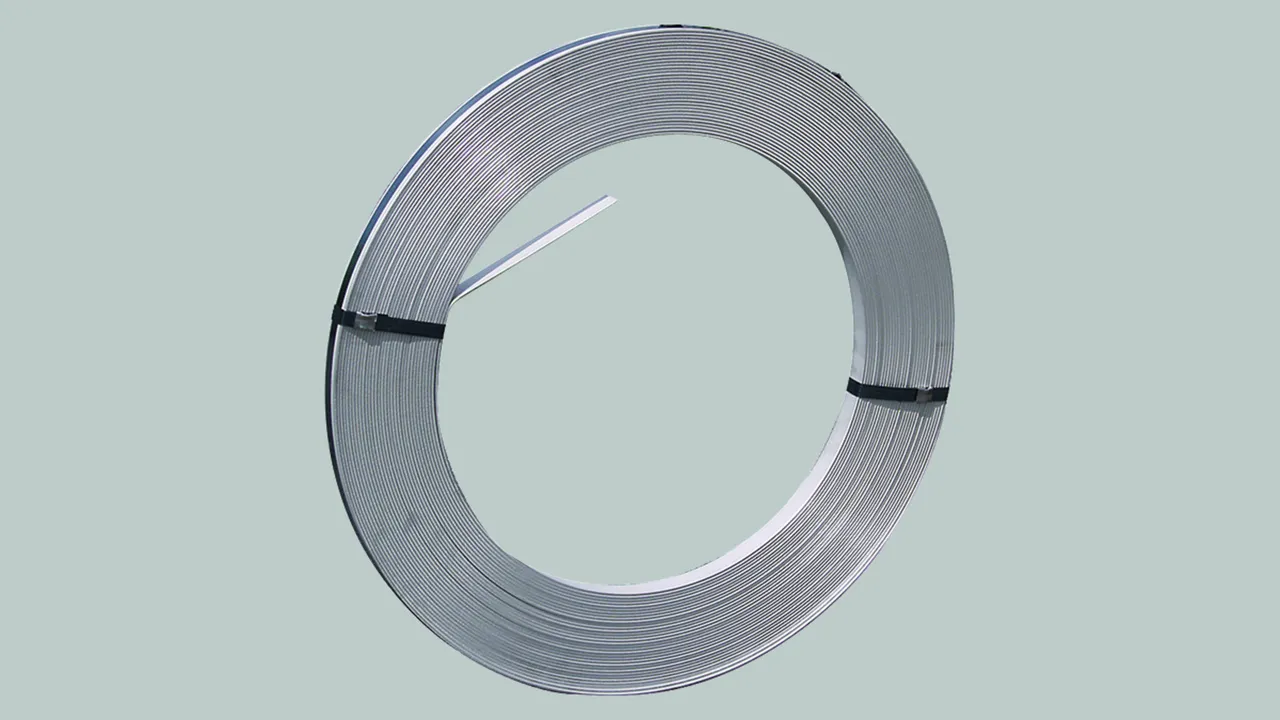

HDG steel strip

Zinc coating ≥ 70 µm on average (approx. 500 g/m2).

9 ??store.products_de??

??store.product.number.short_de?? 810225 BA 20X2.5 STTZN R100M

??store.product.gtin_de?? 4013364018815, ??store.product.customsTariffNumber_de??: 72123000, ??store.product.grossWeight_de??: 400.00 g/m, ??store.product.packaging_de??: 100.00 m

??store.product.slides_de??

??store.product.additional_de??

Steel strip, 20 mm wide / 50 mm², St/tZn
Strips according to EN 62561-2 for earth-termination and lightning protection systems as well as for ring equipotential bonding.
Width: 20 mm
Thickness: 2.5 mm
Material: St/tZn

Brand: DEHN
Type: BA 20X2.5 STTZN R100M
Part No.: 810225
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Width 20 mm
Thickness 2.5 mm
Cross-section 50 mm2
Material St/tZn
Standard based on EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 3.5 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 810335 BA 30X3.5 STTZN R50M

??store.product.gtin_de?? 4013364032880, ??store.product.customsTariffNumber_de??: 72123000, ??store.product.grossWeight_de??: 840.00 g/m, ??store.product.packaging_de??: 50.00 m

??store.product.slides_de??

??store.product.additional_de??

Steel strip, 30 mm wide / 105 mm², St/tZn
Strips according to EN 62561-2 for earth-termination and lightning protection systems as well as for ring equipotential bonding.
Width: 30 mm
Thickness: 3.5 mm
Material: St/tZn

Brand: DEHN
Type: BA 30X3.5 STTZN R50M
Part No.: 810335
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material St/tZn
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.4 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 852335 BA 30X3.5 STTZN R25M

??store.product.gtin_de?? 4013364031067, ??store.product.customsTariffNumber_de??: 72123000, ??store.product.grossWeight_de??: 840.00 g/m, ??store.product.packaging_de??: 25.00 m

??store.product.slides_de??

??store.product.additional_de??

Steel strip, 30 mm wide / 105 mm², St/tZn
Strips according to EN 62561-2 for earth-termination and lightning protection systems as well as for ring equipotential bonding.
Width: 30 mm
Thickness: 3.5 mm
Material: St/tZn

Brand: DEHN
Type: BA 30X3.5 STTZN R25M
Part No.: 852335
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material St/tZn
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.4 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 854335 BA 30X3.5 STTZN EASY R25M

??store.product.gtin_de?? 4013364439955, ??store.product.customsTariffNumber_de??: 72123000, ??store.product.grossWeight_de??: 840.00 g/m, ??store.product.packaging_de??: 25.00 m

??store.product.slides_de??

??store.product.additional_de??

Steel strip, 30 mm wide / 105 mm², St/tZn
Strips based on DIN EN 62561-2
(VDE 0185 Part 202), for easier
laying in earthing systems,
lightning protection systems and
in ring equipotential bonding.
Used in concrete
Width: 30 mm
Thickness: 3.5 mm
Material: St/tZn

Brand: DEHN
Type: BA 30X3.5 STTZN EASY R25M
Part No.: 854335
or equivalent.



??store.product.data_de??

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material St/tZn
Standard based on DIN EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.4 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 814335 BA 30X3.5 STTZN EASY R50M

??store.product.gtin_de?? 4013364442979, ??store.product.customsTariffNumber_de??: 72123000, ??store.product.grossWeight_de??: 840.00 g/m, ??store.product.packaging_de??: 50.00 m

??store.product.slides_de??

??store.product.additional_de??

Steel strip, 30 mm wide / 105 mm², St/tZn
Strips based on DIN EN 62561-2
(VDE 0185 Part 202), for easier
laying in earthing systems,
lightning protection systems and
in ring equipotential bonding.
Used in concrete
Width: 30 mm
Thickness: 3.5 mm
Material: St/tZn

Brand: DEHN
Type: BA 30X3.5 STTZN EASY R50M
Part No.: 814335
or equivalent.



??store.product.data_de??

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material St/tZn
Standard based on DIN EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.4 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 810304 BA 30X4 STTZN R52M

??store.product.gtin_de?? 4013364019232, ??store.product.customsTariffNumber_de??: 72123000, ??store.product.grossWeight_de??: 960.00 g/m, ??store.product.packaging_de??: 52.00 m

??store.product.slides_de??

??store.product.additional_de??

Steel strip, 30 mm wide / 120 mm², St/tZn
Strips according to EN 62561-2 for earth-termination and lightning protection systems as well as for ring equipotential bonding.
Width: 30 mm
Thickness: 4 mm
Material: St/tZn

Brand: DEHN
Type: BA 30X4 STTZN R52M
Part No.: 810304
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Width 30 mm
Thickness 4 mm
Cross-section 120 mm2
Material St/tZn
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 8.4 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 810404 BA 40X4 STTZN R40M

??store.product.gtin_de?? 4013364048256, ??store.product.customsTariffNumber_de??: 72123000, ??store.product.grossWeight_de??: 1.28 kg/m, ??store.product.packaging_de??: 40.00 m

??store.product.slides_de??

??store.product.additional_de??

Steel strip, 40 mm wide / 160 mm² St/tZn
Strips according to EN 62561-2 for earth-termination and lightning protection systems as well as for ring equipotential bonding.
Width: 40 mm
Thickness: 4 mm
Material: St/tZn

Brand: DEHN
Type: BA 40X4 STTZN R40M
Part No.: 810404
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Width 40 mm
Thickness 4 mm
Cross-section 160 mm2
Material St/tZn
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 11.2 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 810405 BA 40X5 STTZN R30M

??store.product.gtin_de?? 4013364032897, ??store.product.customsTariffNumber_de??: 72123000, ??store.product.grossWeight_de??: 1.60 kg/m, ??store.product.packaging_de??: 30.00 m

??store.product.slides_de??

??store.product.additional_de??

Steel strip, 40 mm wide / 200 mm², St/tZn
Strips according to EN 62561-2 for earth-termination and lightning protection systems as well as for ring equipotential bonding.
Width: 40 mm
Thickness: 5 mm
Material: St/tZn

Brand: DEHN
Type: BA 40X5 STTZN R30M
Part No.: 810405
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Width 40 mm
Thickness 5 mm
Cross-section 200 mm2
Material St/tZn
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 14 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 810504 BA 50X4 STTZN R30M

??store.product.gtin_de?? 4013364456303, ??store.product.customsTariffNumber_de??: 72123000, ??store.product.grossWeight_de??: 1.60 kg/m, ??store.product.packaging_de??: 30.00 m

??store.product.slides_de??

??store.product.additional_de??

Steel strip, 50 mm wide / 200 mm², St/tZn
Strips according to EN 62561-2
for earth-termination and lightning protection systems
as well as for ring equipotential bonding.
Width: 50 mm
Thickness: 4 mm
Material: St/tZn

Brand: DEHN
Type: BA 50X4 STTZN R30M
Part No.: 810504
or equivalent.



??store.product.data_de??

Width 50 mm
Thickness 4 mm
Cross-section 200 mm2
Material St/tZn
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 14 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Bare steel strip

1 ??store.product_de??

??store.product.number.short_de?? 810503 BA 50X4 ST R30M

??store.product.gtin_de?? 4013364534421, ??store.product.customsTariffNumber_de??: 72111900, ??store.product.grossWeight_de??: 1.60 kg/m, ??store.product.packaging_de??: 30.00 m

??store.product.slides_de??

??store.product.additional_de??

Bare steel strip 200mm²
for use in earthing systems
for railway systems that are welded
(Ril 997.0205) and as per
DIN EN 62561-2 (VDE 0185-561-2),
for use in lightning protection
and earth-termination systems.
Width: 50 mm
Thickness: 4 mm
Material: St/bare (S235 JR)

Brand: DEHN
Type: BA 50X4 ST R30M
Part No.: 810503
or equivalent.



??store.product.data_de??

Width 50 mm
Thickness 4 mm
Cross-section 200 mm2
Material St/bare (S235 JR)
Short-circuit current > 25 kA
Test current 40 kA / 100 ms
Standard DIN EN 62561-2 (VDE 0185-561-2)
Guideline Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 14 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Copper strip

Manufactured from high conductivity annealed copper (EN / BS EN 13601) for use in lightning protection and earthing systems.

14 ??store.products_de??

??store.product.number.short_de?? 831225 BA 20X2.5 CU R100M

??store.product.gtin_de?? 4013364018891, ??store.product.customsTariffNumber_de??: 74091100, ??store.product.grossWeight_de??: 450.00 g/m, ??store.product.packaging_de??: 100.00 m

??store.product.slides_de??

??store.product.additional_de??

Copper strip, 20 mm wide / 50 mm², Cu
Strips according toEN 62561-2 for use in lightning protection systems as well as for ring equipotential bonding.
Width: 20 mm
Thickness: 2.5 mm
Material: Cu

Brand: DEHN
Type: BA 20X2.5 CU R100M
Part No.: 831225
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Width 20 mm
Thickness 2.5 mm
Cross-section 50 mm2
Material Cu
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 9.7 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128010 TAPE 25X3 CU R50M

??store.product.gtin_de?? 4013364298231, ??store.product.grossWeight_de??: 670.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 3 mm
Material: Cu

Brand: DEHN
Type: TAPE 25X3 CU R50M
Part No.: 128010
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 3 mm
Cross-section 75 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128011 TAPE 25X4 CU R40M

??store.product.gtin_de?? 4013364300316, ??store.product.grossWeight_de??: 890.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 4 mm
Material: Cu

Brand: DEHN
Type: TAPE 25X4 CU R40M
Part No.: 128011
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 4 mm
Cross-section 100 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128012 TAPE 25X6 CU R40M

??store.product.gtin_de?? 4013364300309, ??store.product.grossWeight_de??: 1.34 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 6 mm
Material: Cu

Brand: DEHN
Type: TAPE 25X6 CU R40M
Part No.: 128012
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 6 mm
Cross-section 150 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128018 TAPE 30X2 CU R40M

??store.product.gtin_de?? 4013364492202, ??store.product.grossWeight_de??: 530.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 30 mm
Thickness: 2 mm
Material: Cu

Brand: DEHN
Type: TAPE 30X2 CU R40M
Part No.: 128018
or equivalent.



??store.product.data_de??

Width 30 mm
Thickness 2 mm
Cross-section 60 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128019 TAPE 30X2.5 CU R40M

??store.product.gtin_de?? 4013364492219, ??store.product.grossWeight_de??: 670.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 30 mm
Thickness: 2.5 mm
Material: Cu

Brand: DEHN
Type: TAPE 30X2.5 CU R40M
Part No.: 128019
or equivalent.



??store.product.data_de??

Width 30 mm
Thickness 2.5 mm
Cross-section 75 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128021 TAPE 30X5 CU R30M

??store.product.gtin_de?? 4013364492721, ??store.product.grossWeight_de??: 1.34 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 30 mm
Thickness: 5 mm
Material: Cu

Brand: DEHN
Type: TAPE 30X5 CU R30M
Part No.: 128021
or equivalent.



??store.product.data_de??

Width 30 mm
Thickness 5 mm
Cross-section 150 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128013 TAPE 31X6 CU R30M

??store.product.gtin_de?? 4013364300293, ??store.product.grossWeight_de??: 1.66 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 31 mm
Thickness: 6 mm
Material: Cu

Brand: DEHN
Type: TAPE 31X6 CU R30M
Part No.: 128013
or equivalent.



??store.product.data_de??

Width 31 mm
Thickness 6 mm
Cross-section 186 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128022 TAPE 40X3 CU R20M

??store.product.gtin_de?? 4013364492738, ??store.product.grossWeight_de??: 1.07 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 40 mm
Thickness: 3 mm
Material: Cu

Brand: DEHN
Type: TAPE 40X3 CU R20M
Part No.: 128022
or equivalent.



??store.product.data_de??

Width 40 mm
Thickness 3 mm
Cross-section 120 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128023 TAPE 40X5 CU R20M

??store.product.gtin_de?? 4013364492745, ??store.product.grossWeight_de??: 1.78 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 40 mm
Thickness: 5 mm
Material: Cu

Brand: DEHN
Type: TAPE 40X5 CU R20M
Part No.: 128023
or equivalent.



??store.product.data_de??

Width 40 mm
Thickness 5 mm
Cross-section 200 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128024 TAPE 40X6 CU R20M

??store.product.gtin_de?? 4013364492752, ??store.product.grossWeight_de??: 2.14 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 40 mm
Thickness: 6 mm
Material: Cu

Brand: DEHN
Type: TAPE 40X6 CU R20M
Part No.: 128024
or equivalent.



??store.product.data_de??

Width 40 mm
Thickness 6 mm
Cross-section 240 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128016 TAPE 50X3 CU R20M

??store.product.gtin_de?? 4013364300262, ??store.product.grossWeight_de??: 1.34 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 50 mm
Thickness: 3 mm
Material: Cu

Brand: DEHN
Type: TAPE 50X3 CU R20M
Part No.: 128016
or equivalent.



??store.product.data_de??

Width 50 mm
Thickness 3 mm
Cross-section 150 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128230 TAPE 50X4 CU R20M

??store.product.gtin_de?? 4013364300101, ??store.product.grossWeight_de??: 1.78 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 50 mm
Thickness: 4 mm
Material: Cu

Brand: DEHN
Type: TAPE 50X4 CU R20M
Part No.: 128230
or equivalent.



??store.product.data_de??

Width 50 mm
Thickness 4 mm
Cross-section 200 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128235 TAPE 50X6 CU R20M

??store.product.gtin_de?? 4013364300095, ??store.product.grossWeight_de??: 2.67 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 50 mm
Thickness: 6 mm
Material: Cu

Brand: DEHN
Type: TAPE 50X6 CU R20M
Part No.: 128235
or equivalent.



??store.product.data_de??

Width 50 mm
Thickness 6 mm
Cross-section 300 mm2
Material Cu
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

PVC covered copper strip

PVC covered copper tapes. Manufactured from high conductivity annealed copper (EN / BS EN 13601), for use in lightning protection and earthing systems.

14 ??store.products_de??

??store.product.number.short_de?? 128036 TAPE 25X3 CU PVC WHITE R50M

??store.product.gtin_de?? 4013364298392, ??store.product.grossWeight_de??: 770.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 3 mm
Material: Cu
Type: White

Brand: DEHN
Type: TAPE 25X3 CU PVC WHITE R50M
Part No.: 128036
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 3 mm
Cross-section 75 mm2
Material Cu
Type White
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128031 TAPE 25X3 CU PVC BROWN R50M

??store.product.gtin_de?? 4013364298323, ??store.product.grossWeight_de??: 770.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 3 mm
Material: Cu
Type: Brown

Brand: DEHN
Type: TAPE 25X3 CU PVC BROWN R50M
Part No.: 128031
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 3 mm
Cross-section 75 mm2
Material Cu
Type Brown
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128030 TAPE 25X3 CU PVC BLACK R50M

??store.product.gtin_de?? 4013364298248, ??store.product.grossWeight_de??: 770.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 3 mm
Material: Cu
Type: Black

Brand: DEHN
Type: TAPE 25X3 CU PVC BLACK R50M
Part No.: 128030
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 3 mm
Cross-section 75 mm2
Material Cu
Type Black
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128034 TAPE 25X3 CU PVC GREY R50M

??store.product.gtin_de?? 4013364298378, ??store.product.grossWeight_de??: 770.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 3 mm
Material: Cu
Type: Grey

Brand: DEHN
Type: TAPE 25X3 CU PVC GREY R50M
Part No.: 128034
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 3 mm
Cross-section 75 mm2
Material Cu
Type Grey
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128035 TAPE 25X3 CU PVC STONE R50M

??store.product.gtin_de?? 4013364298385, ??store.product.grossWeight_de??: 770.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 3 mm
Material: Cu
Type: Stone

Brand: DEHN
Type: TAPE 25X3 CU PVC STONE R50M
Part No.: 128035
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 3 mm
Cross-section 75 mm2
Material Cu
Type Stone
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128032 TAPE 25X3 CU PVC GREEN R50M

??store.product.gtin_de?? 4013364298347, ??store.product.grossWeight_de??: 770.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 3 mm
Material: Cu
Type: Green

Brand: DEHN
Type: TAPE 25X3 CU PVC GREEN R50M
Part No.: 128032
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 3 mm
Cross-section 75 mm2
Material Cu
Type Green
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128080 TAPE 25X6 CU PVC WHITE R40M

??store.product.gtin_de?? 4013364493056, ??store.product.grossWeight_de??: 1.53 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 6 mm
Material: Cu
Type: White

Brand: DEHN
Type: TAPE 25X6 CU PVC WHITE R40M
Part No.: 128080
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 6 mm
Cross-section 150 mm2
Material Cu
Type White
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128081 TAPE 25X6 CU PVC GREY R40M

??store.product.gtin_de?? 4013364493063, ??store.product.grossWeight_de??: 1.53 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 6 mm
Material: Cu
Type: Grey

Brand: DEHN
Type: TAPE 25X6 CU PVC GREY R40M
Part No.: 128081
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 6 mm
Cross-section 150 mm2
Material Cu
Type Grey
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128085 TAPE 25X6 CU PVC GREEN R40M

??store.product.gtin_de?? 4013364493070, ??store.product.grossWeight_de??: 1.53 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 6 mm
Material: Cu
Type: Green

Brand: DEHN
Type: TAPE 25X6 CU PVC GREEN R40M
Part No.: 128085
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 6 mm
Cross-section 150 mm2
Material Cu
Type Green
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128090 TAPE 31X6 CU PVC WHITE R30M

??store.product.gtin_de?? 4013364493087, ??store.product.grossWeight_de??: 910.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 31 mm
Thickness: 6 mm
Material: Cu
Type: White

Brand: DEHN
Type: TAPE 31X6 CU PVC WHITE R30M
Part No.: 128090
or equivalent.



??store.product.data_de??

Width 31 mm
Thickness 6 mm
Cross-section 186 mm2
Material Cu
Type White
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128095 TAPE 31X6 CU PVC GREEN R30M

??store.product.gtin_de?? 4013364493094, ??store.product.grossWeight_de??: 910.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 31 mm
Thickness: 6 mm
Material: Cu
Type: Green

Brand: DEHN
Type: TAPE 31X6 CU PVC GREEN R30M
Part No.: 128095
or equivalent.



??store.product.data_de??

Width 31 mm
Thickness 6 mm
Cross-section 186 mm2
Material Cu
Type Green
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128094 TAPE 31X6 CU PVC STONE R30M

??store.product.gtin_de?? 4013364493100, ??store.product.grossWeight_de??: 910.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 31 mm
Thickness: 6 mm
Material: Cu
Type: Stone

Brand: DEHN
Type: TAPE 31X6 CU PVC STONE R30M
Part No.: 128094
or equivalent.



??store.product.data_de??

Width 31 mm
Thickness 6 mm
Cross-section 186 mm2
Material Cu
Type Stone
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128105 TAPE 50X3 CU PVC GREEN R20M

??store.product.gtin_de?? 4013364493117, ??store.product.grossWeight_de??: 1.50 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 50 mm
Thickness: 3 mm
Material: Cu
Type: Green

Brand: DEHN
Type: TAPE 50X3 CU PVC GREEN R20M
Part No.: 128105
or equivalent.



??store.product.data_de??

Width 50 mm
Thickness 3 mm
Cross-section 150 mm2
Material Cu
Type Green
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128115 TAPE 50X6 CU PVC GREEN R20M

??store.product.gtin_de?? 4013364493124, ??store.product.grossWeight_de??: 2.95 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 50 mm
Thickness: 6 mm
Material: Cu
Type: Green

Brand: DEHN
Type: TAPE 50X6 CU PVC GREEN R20M
Part No.: 128115
or equivalent.



??store.product.data_de??

Width 50 mm
Thickness 6 mm
Cross-section 300 mm2
Material Cu
Type Green
Standard IEC / EN IEC / BS EN IEC 62561-2
Covering thickness 1 mm
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Tinned copper strip

Manufactured from high conductivity annealed copper (EN / BS EN 13601) with a Tin coating, for use in lightning protection and earth termination systems.

7 ??store.products_de??

??store.product.number.short_de?? 128250 TAPE 25X3 SNCU R50M

??store.product.gtin_de?? 4013364300088, ??store.product.grossWeight_de??: 670.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 3 mm
Material: Cu / gal Sn

Brand: DEHN
Type: TAPE 25X3 SNCU R50M
Part No.: 128250
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 3 mm
Cross-section 75 mm2
Material Cu / gal Sn
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128251 TAPE 25X4 SNCU R50M

??store.product.gtin_de?? 4013364492776, ??store.product.grossWeight_de??: 890.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 4 mm
Material: Cu / gal Sn

Brand: DEHN
Type: TAPE 25X4 SNCU R50M
Part No.: 128251
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 4 mm
Cross-section 100 mm2
Material Cu / gal Sn
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128252 TAPE 25X6 SNCU R40M

??store.product.gtin_de?? 4013364492783, ??store.product.grossWeight_de??: 1.34 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 25 mm
Thickness: 6 mm
Material: Cu / gal Sn

Brand: DEHN
Type: TAPE 25X6 SNCU R40M
Part No.: 128252
or equivalent.



??store.product.data_de??

Width 25 mm
Thickness 6 mm
Cross-section 150 mm2
Material Cu / gal Sn
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128253 TAPE 40X6 SNCU R20M

??store.product.gtin_de?? 4013364492790, ??store.product.grossWeight_de??: 2.14 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 40 mm
Thickness: 6 mm
Material: Cu / gal Sn

Brand: DEHN
Type: TAPE 40X6 SNCU R20M
Part No.: 128253
or equivalent.



??store.product.data_de??

Width 40 mm
Thickness 6 mm
Cross-section 240 mm2
Material Cu / gal Sn
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128254 TAPE 50X3 SNCU R20M

??store.product.gtin_de?? 4013364492806, ??store.product.grossWeight_de??: 1.34 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 50 mm
Thickness: 3 mm
Material: Cu / gal Sn

Brand: DEHN
Type: TAPE 50X3 SNCU R20M
Part No.: 128254
or equivalent.



??store.product.data_de??

Width 50 mm
Thickness 3 mm
Cross-section 150 mm2
Material Cu / gal Sn
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128255 TAPE 50X4 SNCU R20M

??store.product.gtin_de?? 4013364492813, ??store.product.grossWeight_de??: 1.78 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 50 mm
Thickness: 4 mm
Material: Cu / gal Sn

Brand: DEHN
Type: TAPE 50X4 SNCU R20M
Part No.: 128255
or equivalent.



??store.product.data_de??

Width 50 mm
Thickness 4 mm
Cross-section 200 mm2
Material Cu / gal Sn
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 128256 TAPE 50X6 SNCU R20M

??store.product.gtin_de?? 4013364492820, ??store.product.grossWeight_de??: 2.67 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??


Width: 50 mm
Thickness: 6 mm
Material: Cu / gal Sn

Brand: DEHN
Type: TAPE 50X6 SNCU R20M
Part No.: 128256
or equivalent.



??store.product.data_de??

Width 50 mm
Thickness 6 mm
Cross-section 300 mm2
Material Cu / gal Sn
Standard IEC / EN IEC / BS EN IEC 62561-2
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Stainless steel strip

6 ??store.products_de??

??store.product.number.short_de?? 860925 BA 30X3.5 V2A R25M

??store.product.gtin_de?? 4013364093140, ??store.product.customsTariffNumber_de??: 72202021, ??store.product.grossWeight_de??: 825.00 g/m, ??store.product.packaging_de??: 25.00 m

??store.product.slides_de??

??store.product.additional_de??

Stainless steel strip, 30 mm wide / 105mm², stainless steel
Strips according to EN 62561-2 for lightning protection
systems as well as ring equipotential bonding.
Width: 30 mm
Thickness: 3.5 mm
Material: StSt
Material No.: 1.4301 / 1.4303

Brand: DEHN
Type: BA 30X3.5 V2A R25M
Part No.: 860925
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material StSt
Material No. 1.4301 / 1.4303
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 3.9 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 860900 BA 30X3.5 V2A R60M

??store.product.gtin_de?? 4013364143395, ??store.product.customsTariffNumber_de??: 72202021, ??store.product.grossWeight_de??: 824.00 g/m, ??store.product.packaging_de??: 60.00 m

??store.product.slides_de??

??store.product.additional_de??

Stainless steel strip, 30 mm wide / 105mm², stainless steel
Strips according to EN 62561-2 for lightning protection
systems as well as ring equipotential bonding.
Width: 30 mm
Thickness: 3.5 mm
Material: StSt
Material No.: 1.4301 / 1.4303

Brand: DEHN
Type: BA 30X3.5 V2A R60M
Part No.: 860900
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material StSt
Material No. 1.4301 / 1.4303
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 3.9 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 860325 BA 30X3.5 V4A R25M

??store.product.gtin_de?? 4013364093157, ??store.product.customsTariffNumber_de??: 72202021, ??store.product.grossWeight_de??: 825.00 g/m, ??store.product.packaging_de??: 25.00 m

??store.product.slides_de??

??store.product.additional_de??

Stainless steel strip, 30 mm wide / 105mm², stainless steel (V4A)
Strips according to EN 62561-2 for earth-termination and lightning
protection systems as well as ring equipotential bonding.
Width: 30 mm
Thickness: 3.5 mm
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L

Brand: DEHN
Type: BA 30X3.5 V4A R25M
Part No.: 860325
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 3.9 kA
Length tolerance +/- 5%

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 860335 BA 30X3.5 V4A R60M

??store.product.gtin_de?? 4013364143388, ??store.product.customsTariffNumber_de??: 72202021, ??store.product.grossWeight_de??: 827.00 g/m, ??store.product.packaging_de??: 60.00 m

??store.product.slides_de??

??store.product.additional_de??
