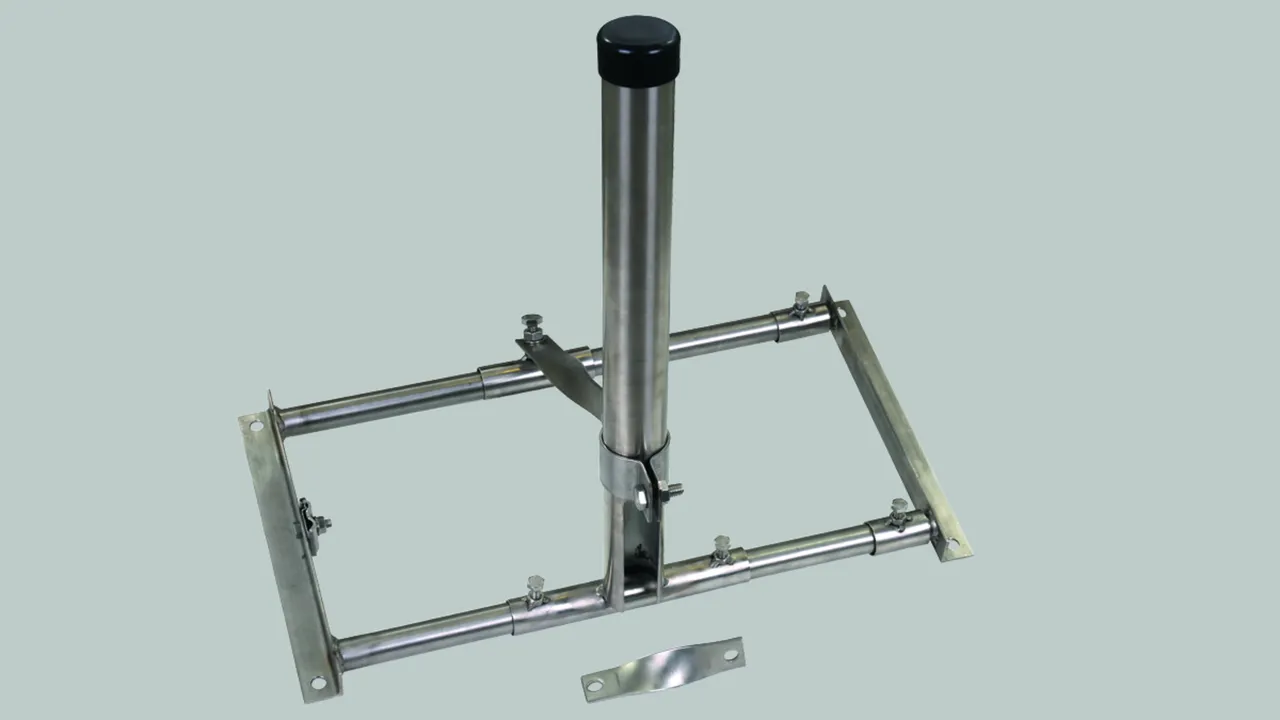

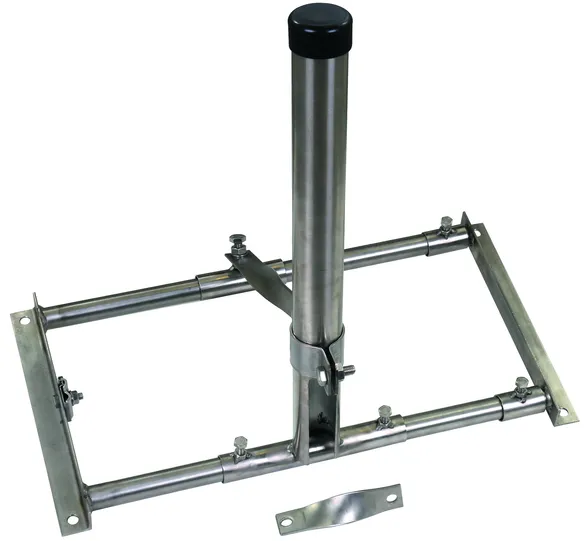

Mounting Bracket for Air-Termination Systems on Metal Roofs

Stainless steel mounting bracket for installing HVI air-termination systems or air-termination rods on metal roofs:

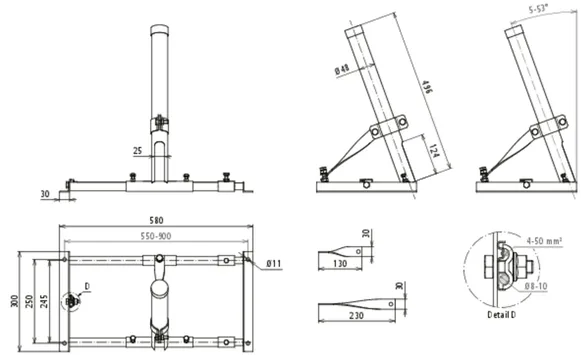

Mounting bracket suitable for vertical mounting of air-termination systems on metal roofs with a max. roof slope of up to 53°.

The mounting bracket for air-termination systems on metal roofs can be mounted on suitable, stable substructures. The mounting bracket for air-termination systems on metal roofs is designed for up to 320 Nm initial torque.

For fixing Ø40 air-termination rods and for top-mounting HVI light plus and HVI supporting tubes with inside conductor routing.

Note: Mounting conditions on site must be clarified with the builder.

1 ??store.product_de??

??store.product.number.short_de?? 105241 MDH D48 VB550.900 V2A

??store.product.gtin_de?? 4013364361225, ??store.product.customsTariffNumber_de??: 73089098, ??store.product.grossWeight_de??: 5.26 kg, ??store.product.packaging_de??: 1.00 pc(s)
