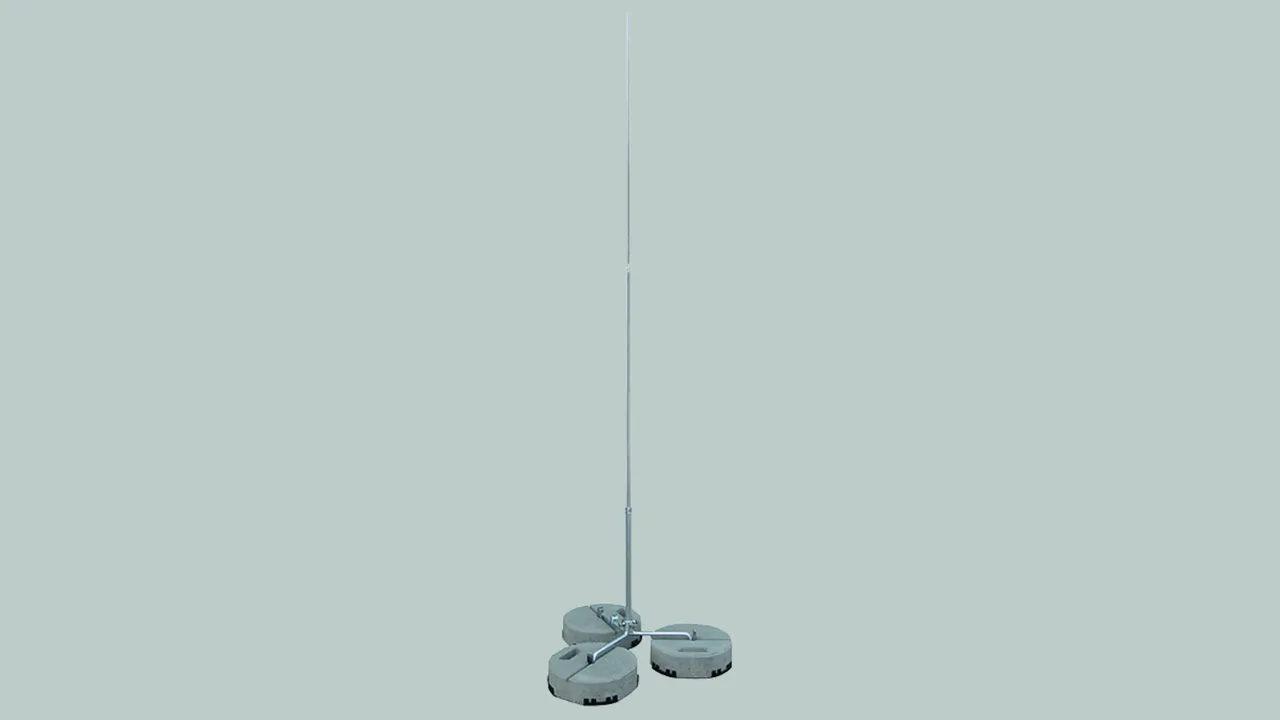

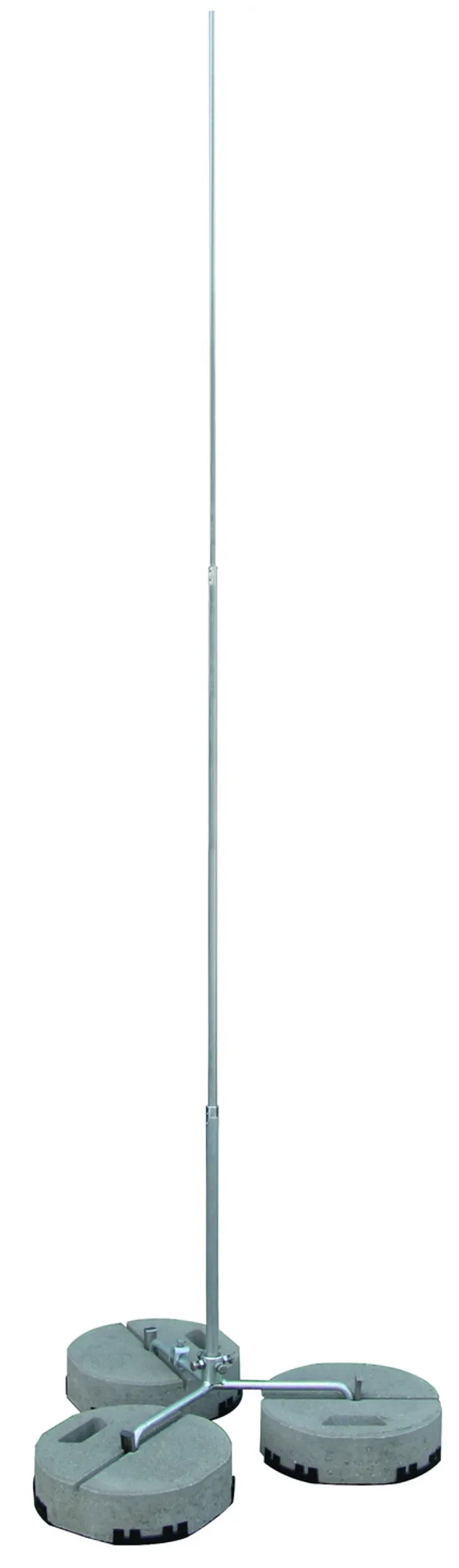

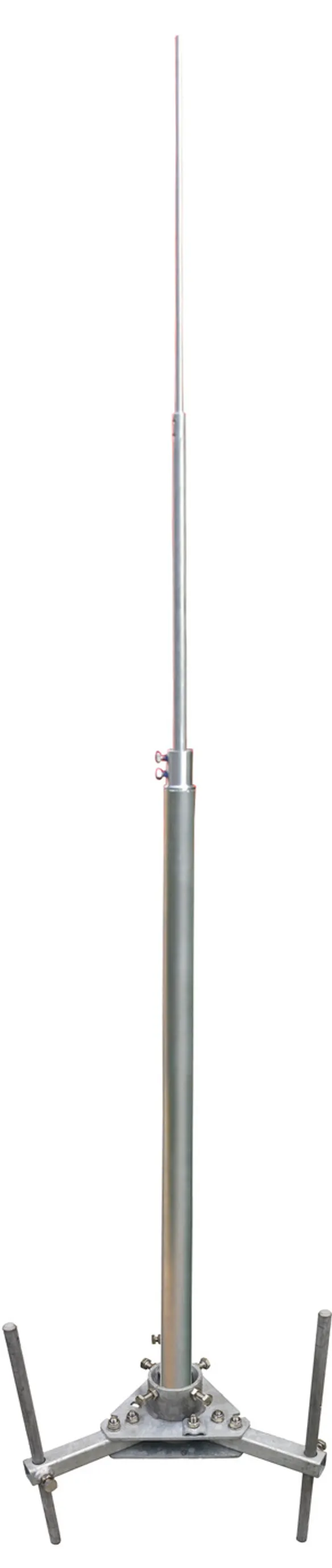

Self-supporting air-termination rods with tripod for protecting roof-mounted structures, adjustable to a roof pitch up to max. 10°.
The concrete base (Part No. 102 075 or 102 010) and the plastic base plate (Part No. 102 060 or 102 050) have to be ordered separately.

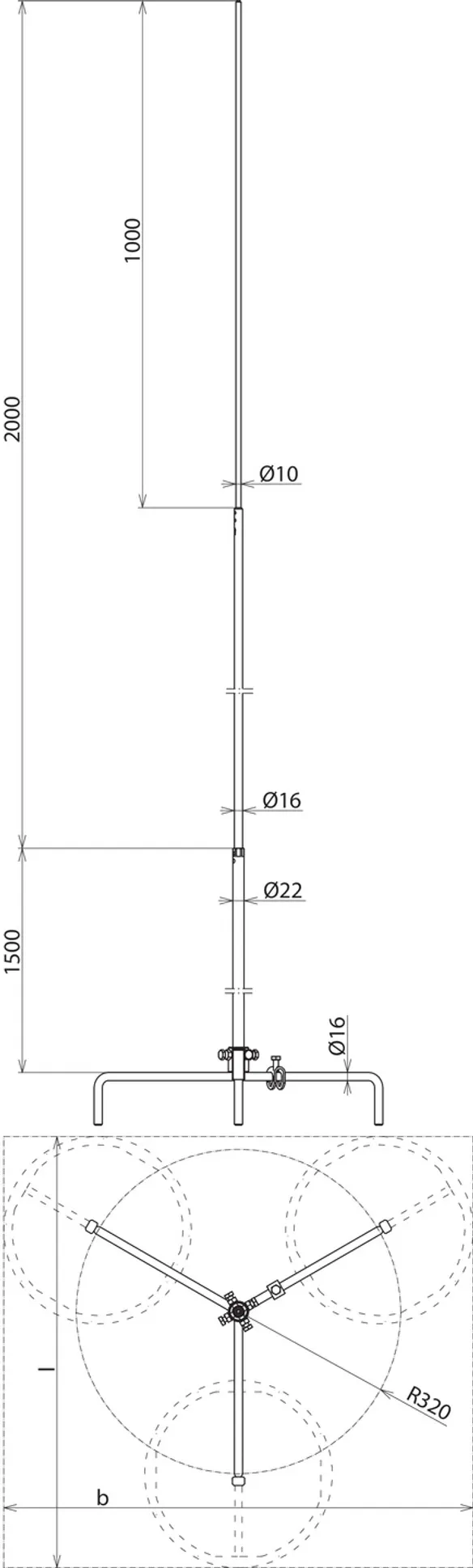

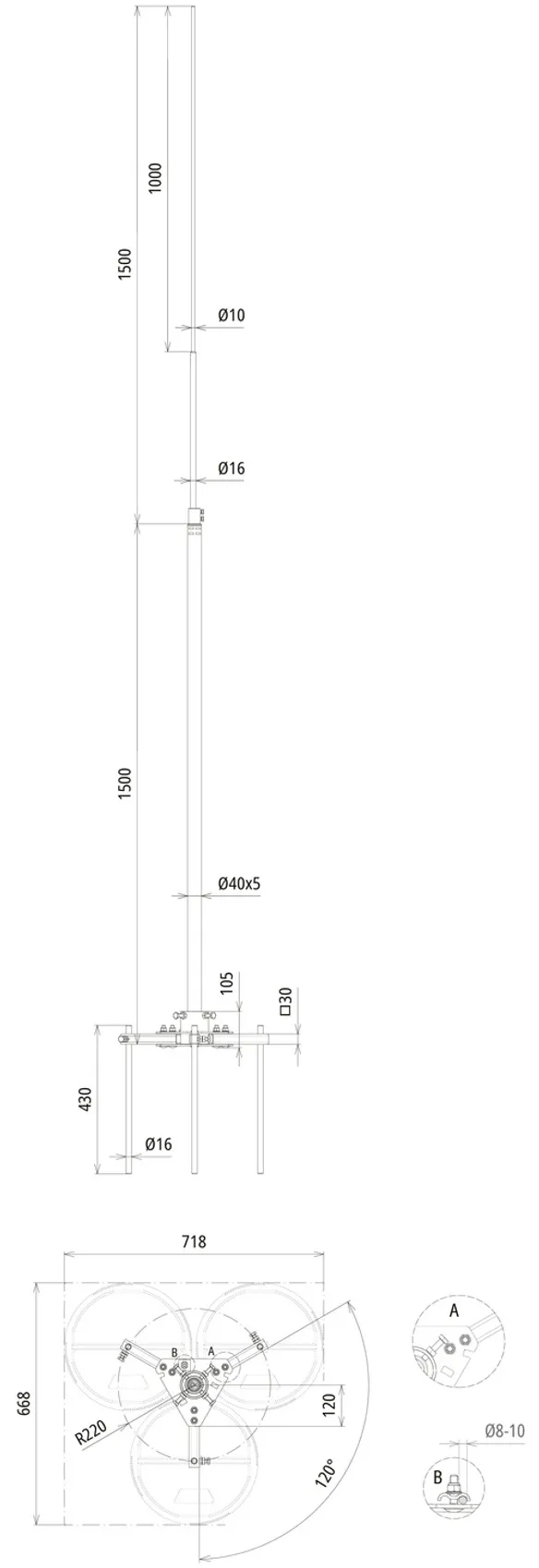

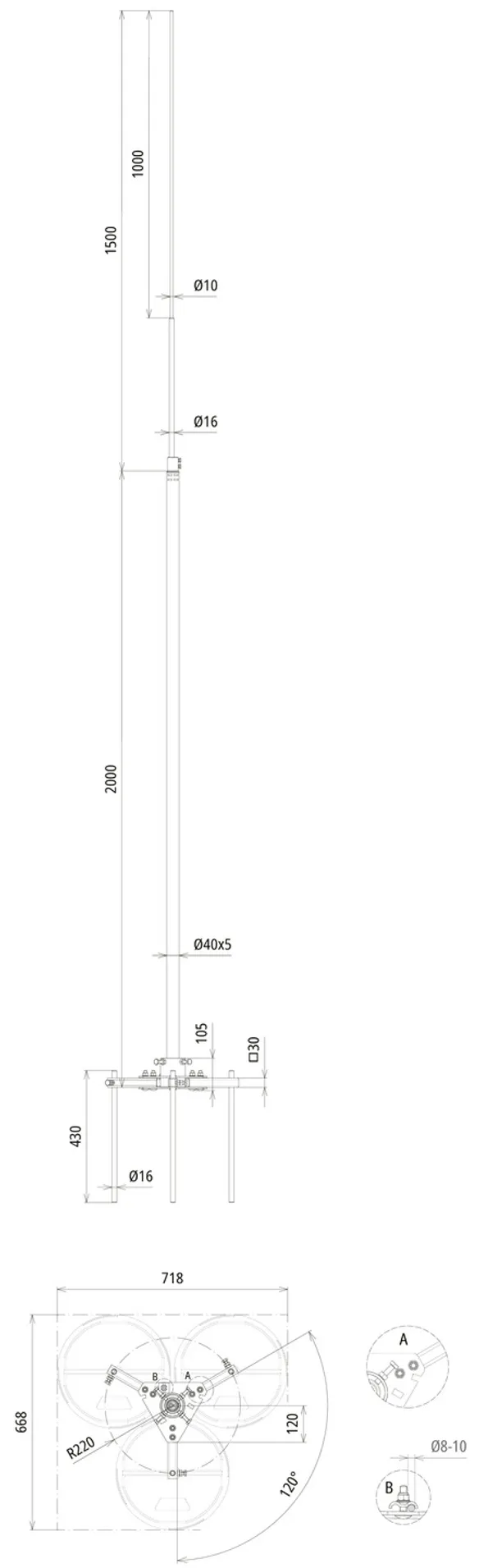

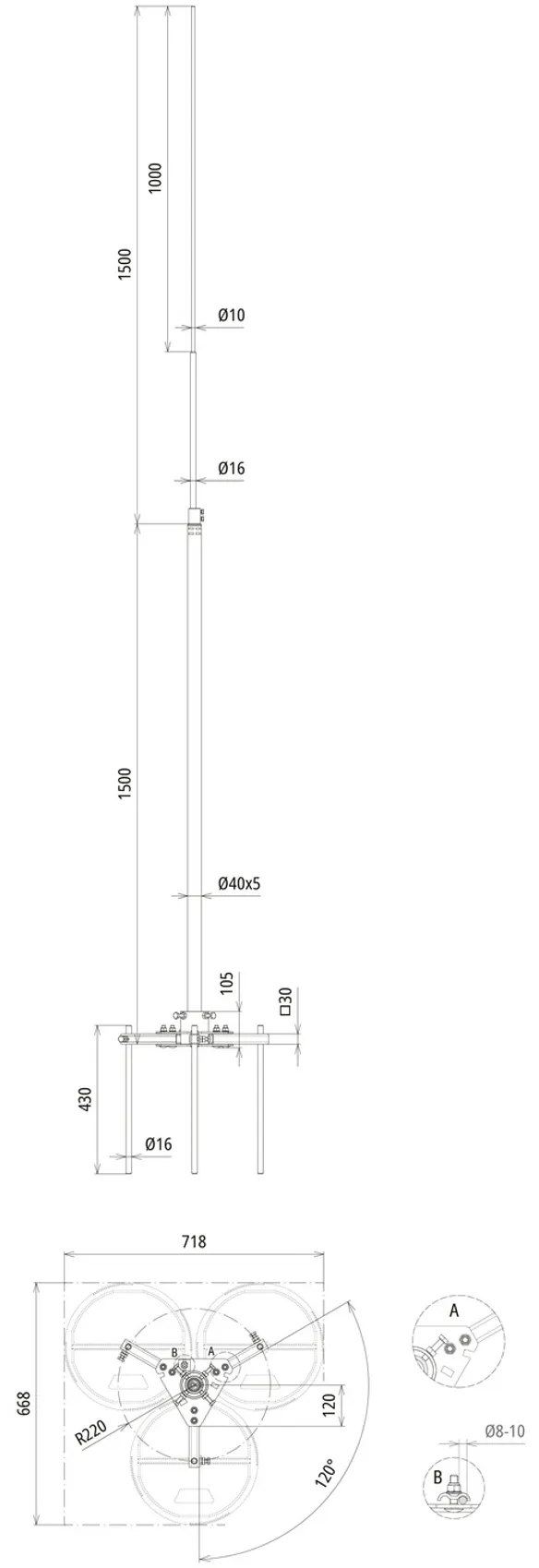

Components: – Tapered tubular air-termination rod Ø40 / 16 / 10 mm and Ø22 / 16 / 10 mm – Connection clamp (rod clamp) for 8–10‑mm round steel – Tripod for concrete base with fixing wedge
Note: Permissible roof loads have to be considered and checked with the constructor where required.
For air-termination rods Ø22 mm
3 ??store.products_de??
??store.product.number.short_de??105525

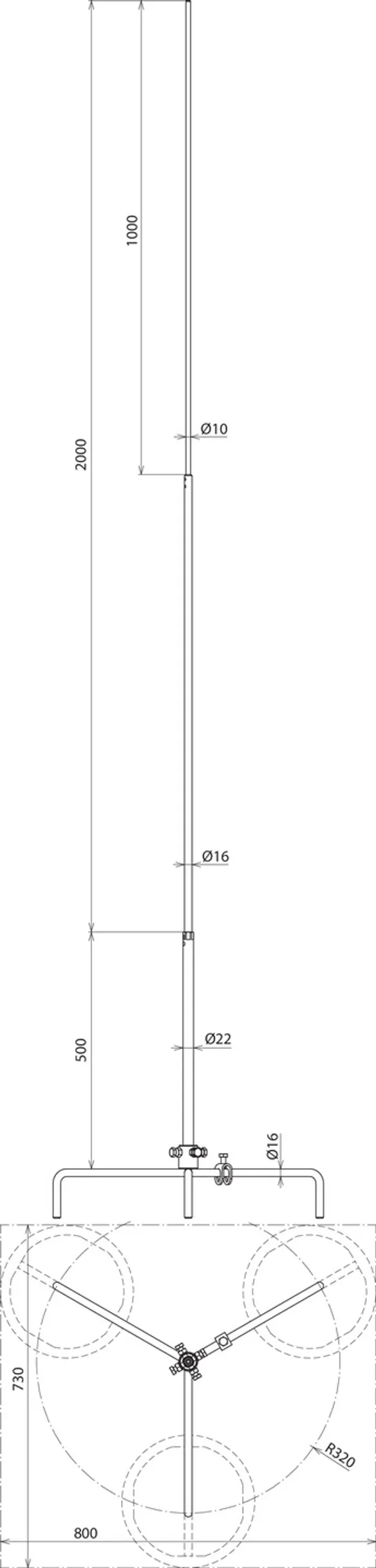

FS 22 16 10 2500 AL DBS R320 STTZN
