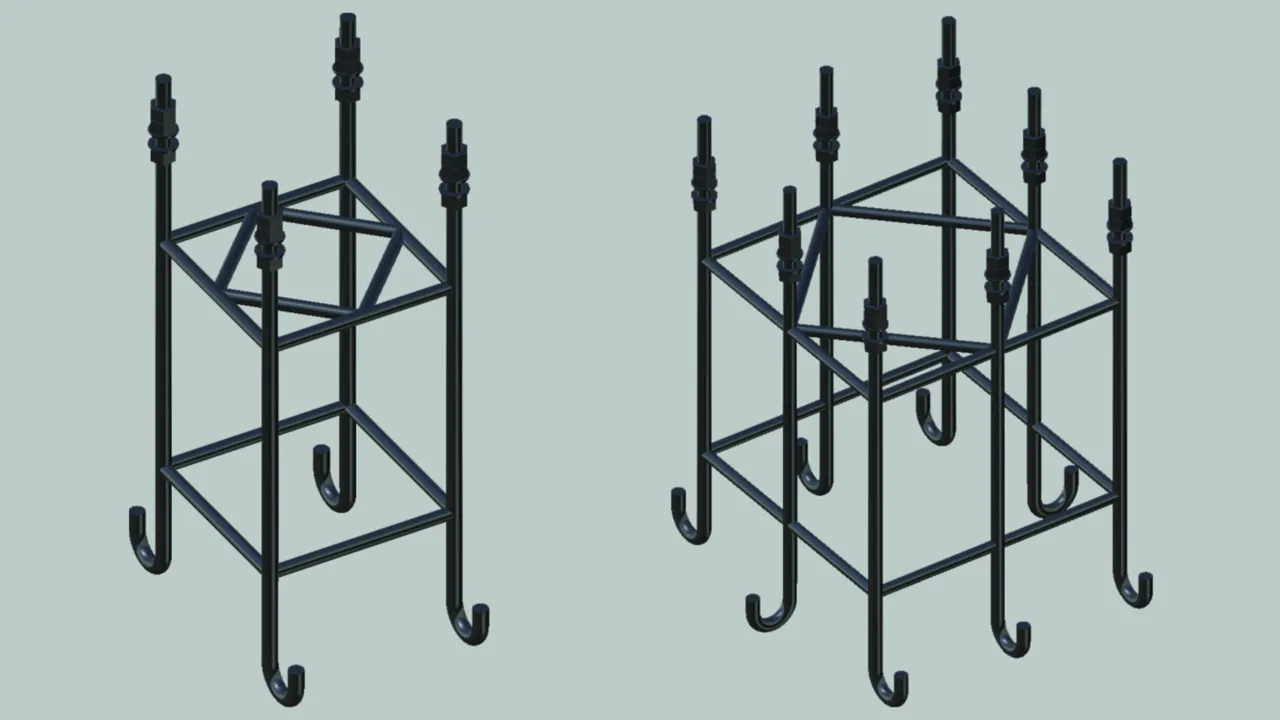

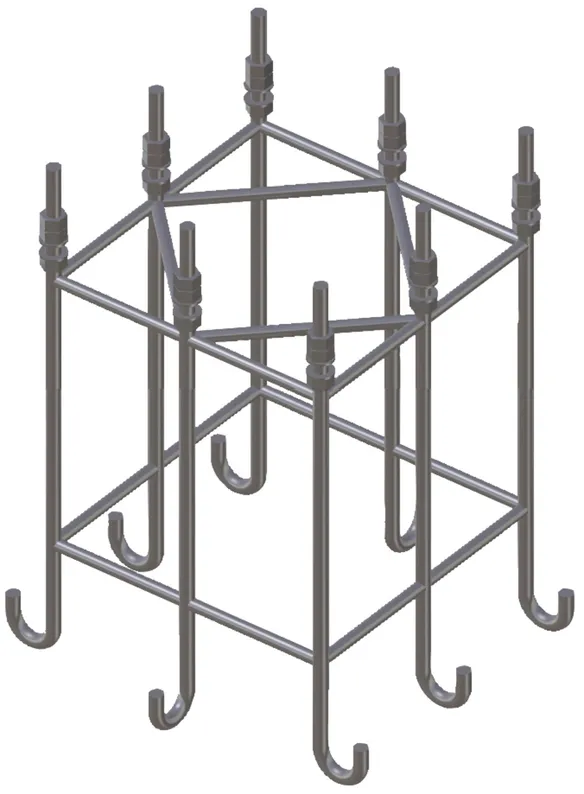

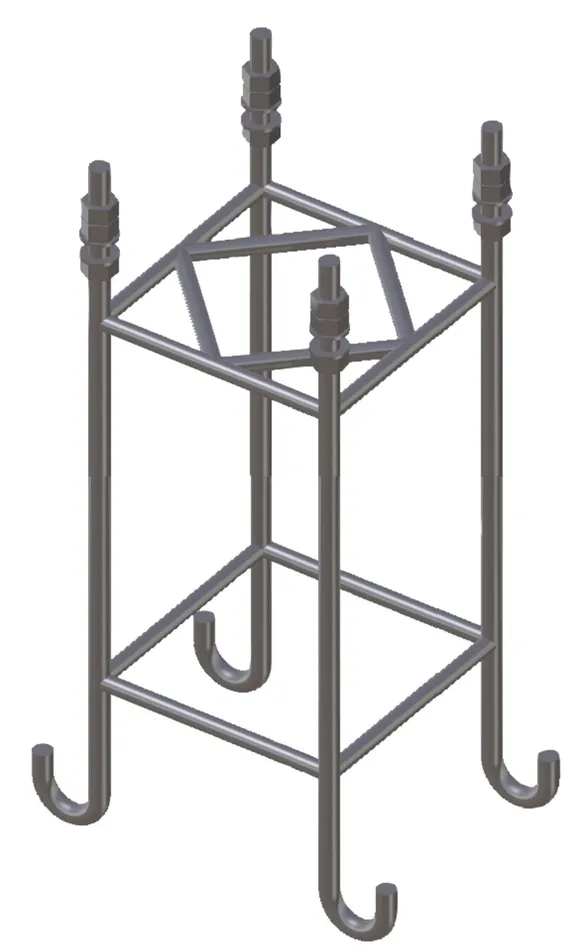

Foundation Basket for On-site Concrete Foundations

With threaded bolts for setting in concrete, suitable for the flange plate of telescopic lightning protection masts.
For detailed information on the telescopic system, foundation and erection, see the installation instructions.

Small design

For masts with a height above ground level from 13.35 m to 19.35 m (Part No. 103 013 / 103 016 / 103 019).

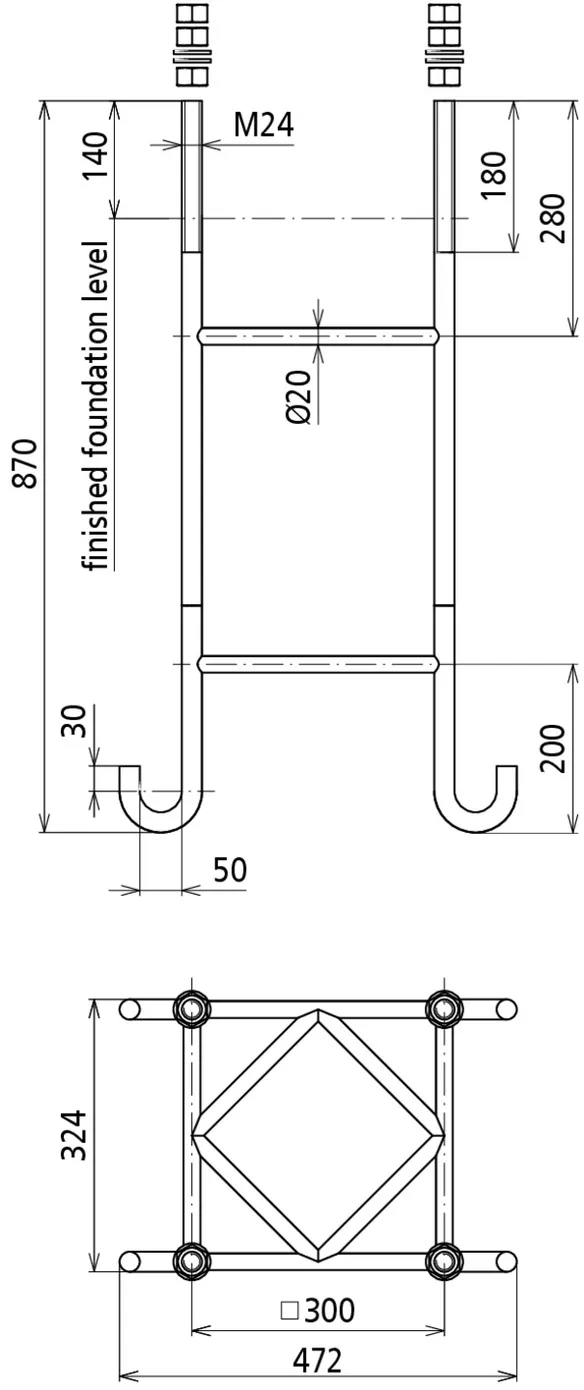

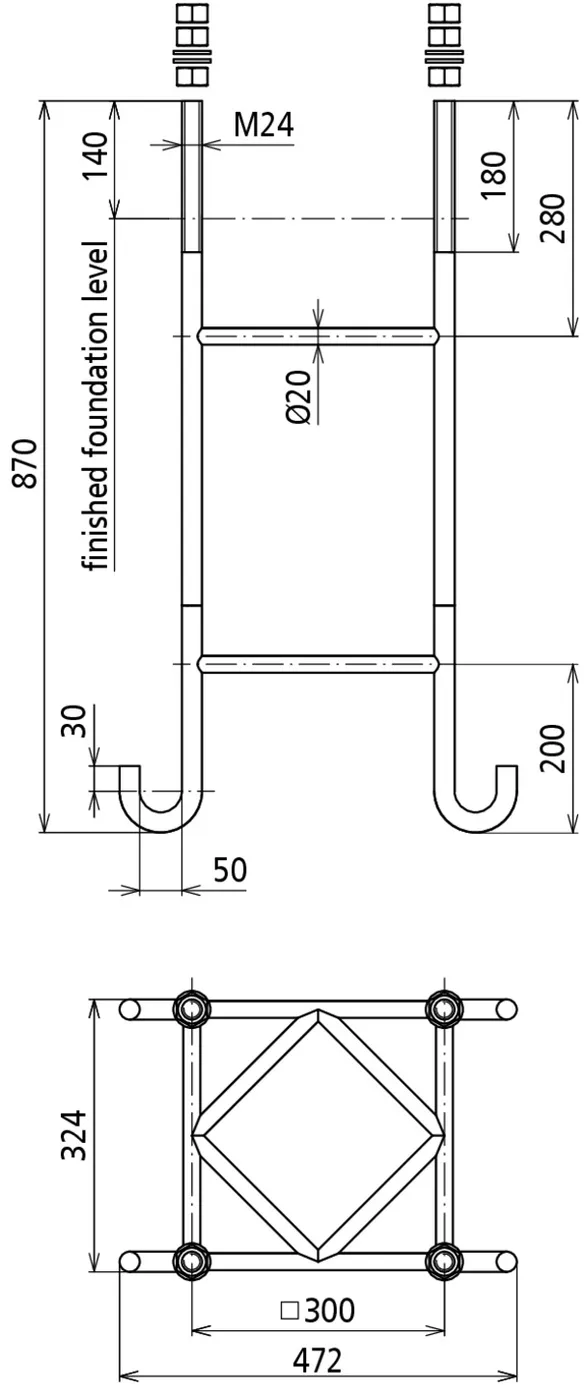

Flange plate 400 x 400 mm.

1 ??store.product_de??

??store.product.number.short_de?? 103040 AKO TBM FP400

??store.product.gtin_de?? 4013364129894, ??store.product.customsTariffNumber_de??: 73089098, ??store.product.grossWeight_de??: 22.90 kg, ??store.product.packaging_de??: 1.00 pc(s)
