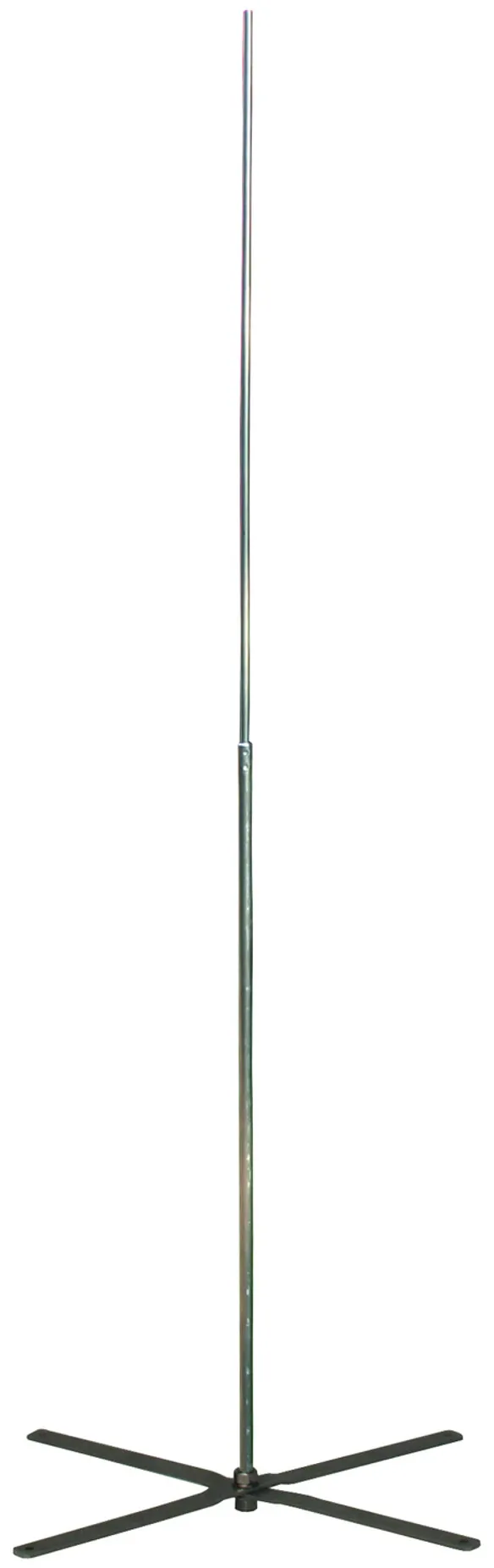

Air-Termination Rods for Metal Roofs

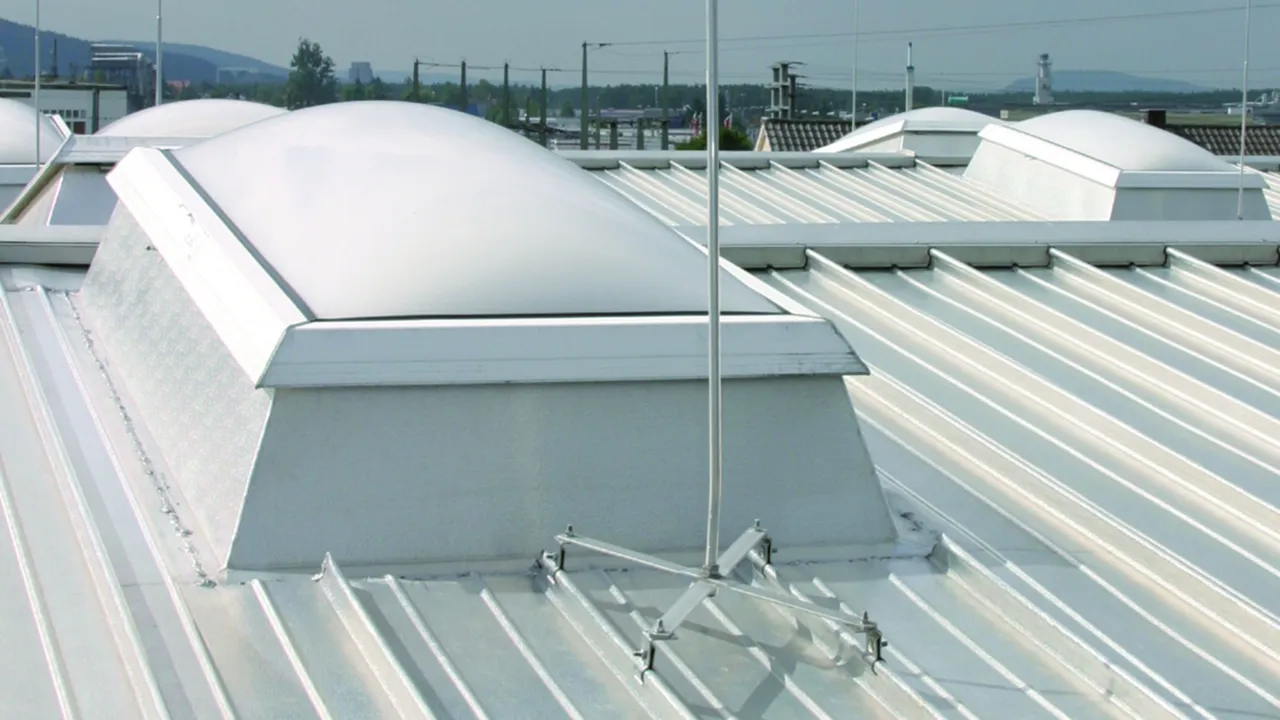

For protecting roof-mounted structures, domelights, etc.
It is fixed at the end of the braces (Ø11-mm holes) by four holders for metal roofs.
The holders must be selected according to the roof profile (round standing seam part no. 123 040, clamping seam part no. 123 041, standing seam 123 042, without seam for riveting or screwing 123 043).

If these four holders for metal roofs (clamps) are used for the relevant roof profile, a lightning current carrying capability of 100 kA (10/350 µs) is ensured.
The air-termination rods are dimensioned to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).

For the continuation of the down conductor, the roof conductor holders for metal roofs must be selected according to the roof profile (e.g. round standing seam part no. 223 010 or standing seam part no. 365 059).

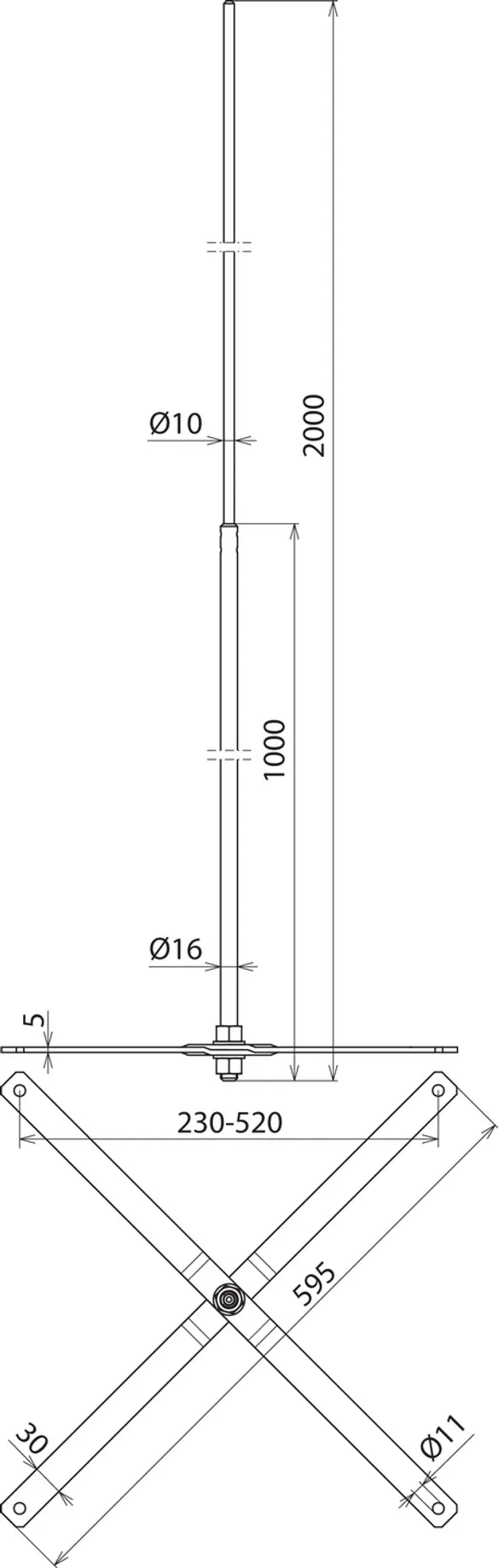

Height 2000 mm

With M16 threaded bolts.

1 ??store.product_de??

??store.product.number.short_de?? 123021 FS 16 10 2000 MD AL V2A

??store.product.gtin_de?? 4013364092822, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 2.20 kg, ??store.product.packaging_de??: 1.00 pc(s)
