BLITZDUCTOR XT – Protection Modules

Combined lightning current and surge arrester

Maximum discharge capacity for two-pole, three-pole or four-pole interfaces
Capable of carrying lightning currents up to 10 kA (10/350 µs)
Low voltage protection level, capable of protecting terminal equipment

With integrated LifeCheck monitoring

Arrester testing during operation
Detection of pre-damaged arresters
High signal availability thanks to preventive replacement of arresters

SPD consists of a protection module and a base part

Vibration and shock-tested for safe operation
All protection components integrated in the protection module
Two universal base parts with / without signal disconnection

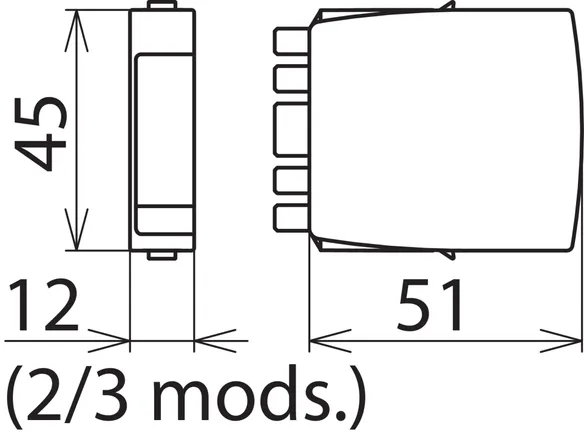

Minimum space requirements, 4 single lines or 2 pairs over a width of 12 mm

Details

All protection elements are integrated in the plug-in module and are monitored by means of LifeCheck.

lorem ipsum — All protection elements are integrated in the plug-in module and are monitored by means of LifeCheck.

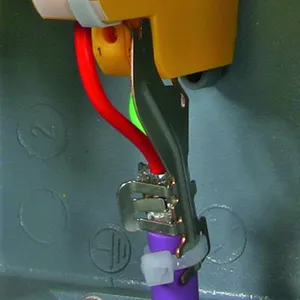

EMC spring terminal (accessory) for permanent low-impedance shield contact.

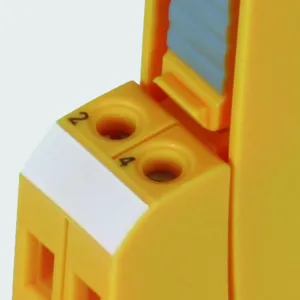

The module locking mechanism ensures that the module is vibration-proof and protected against polarity reversal.

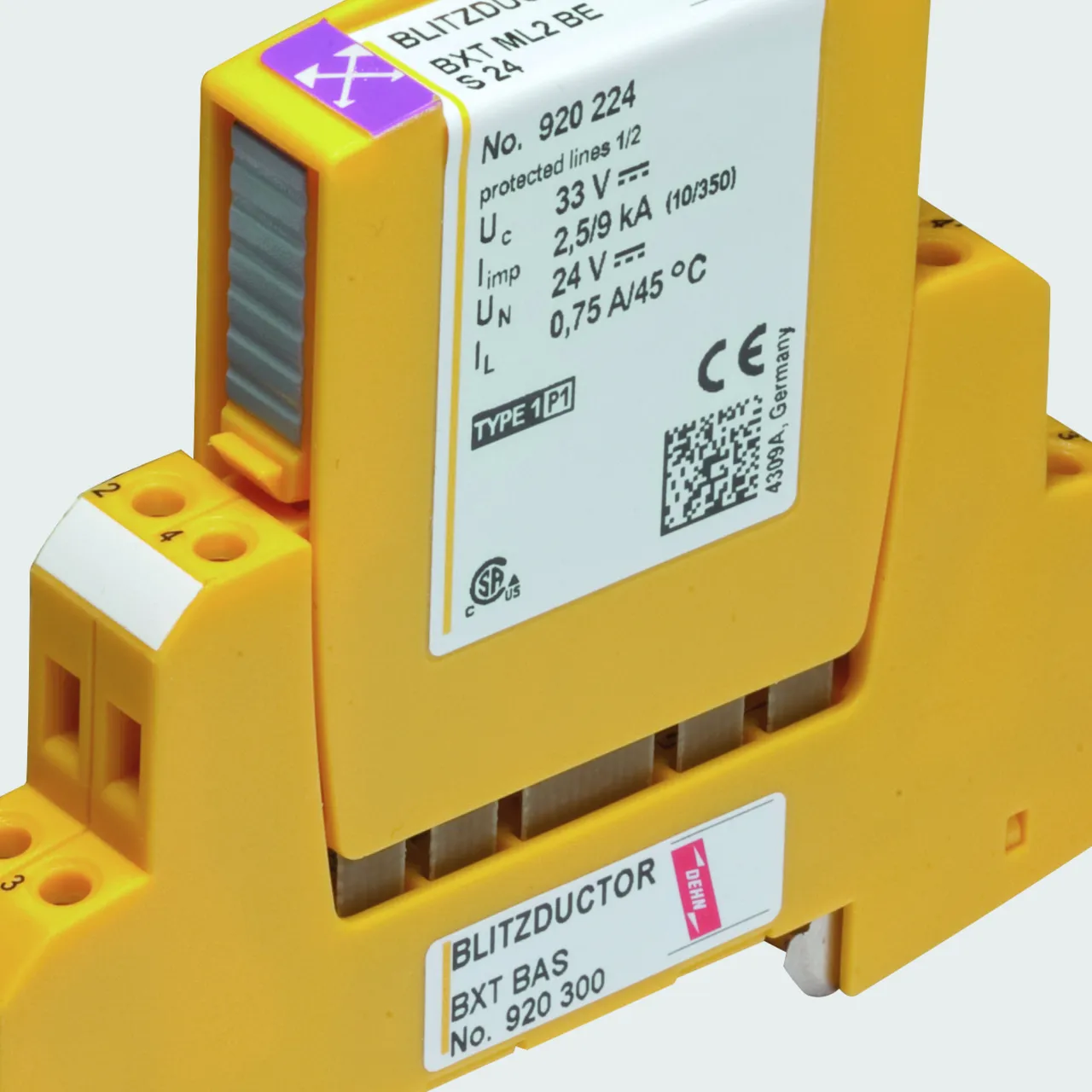

Two-part design with universal base part and application-specific protection module.

??store.filter.button.open_de??

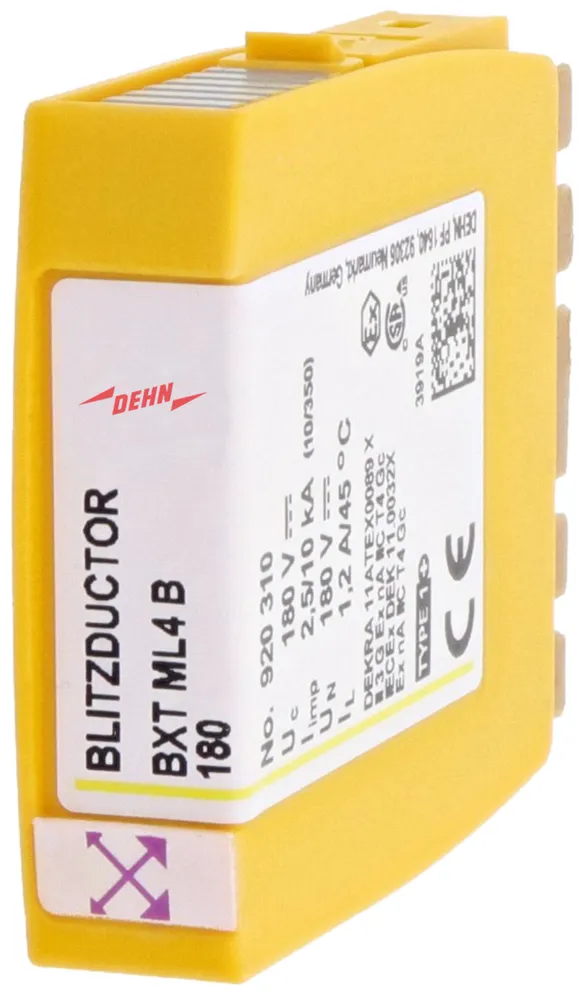

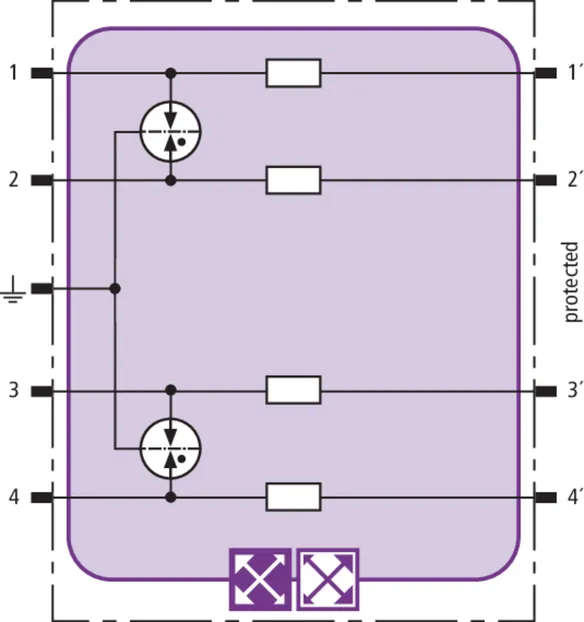

BXT ML4 B 180

Space-savings four-pole lightning current arrester module with RFID LifeCheck feature for almost all applications. For use in connection with downstream Q surge arresters or combined lightning current and surge arresters with a lower or equal voltage level. If LifeCheck detects thermal or electrical overload, the arrester has to be replaced. This status is indicated contactlessly by the DEHNrecord LC / SCM / MCM reader.

1 ??store.product_de??

??store.product.number.short_de?? 920310 BXT ML4 B 180

??store.product.gtin_de?? 4013364109124, ??store.product.customsTariffNumber_de??: 85363010, ??store.product.grossWeight_de??: 31.60 g, ??store.product.packaging_de??: 1.00 pc(s)
