DEHNrapid LSA – Lightning Current / Surge Arrester

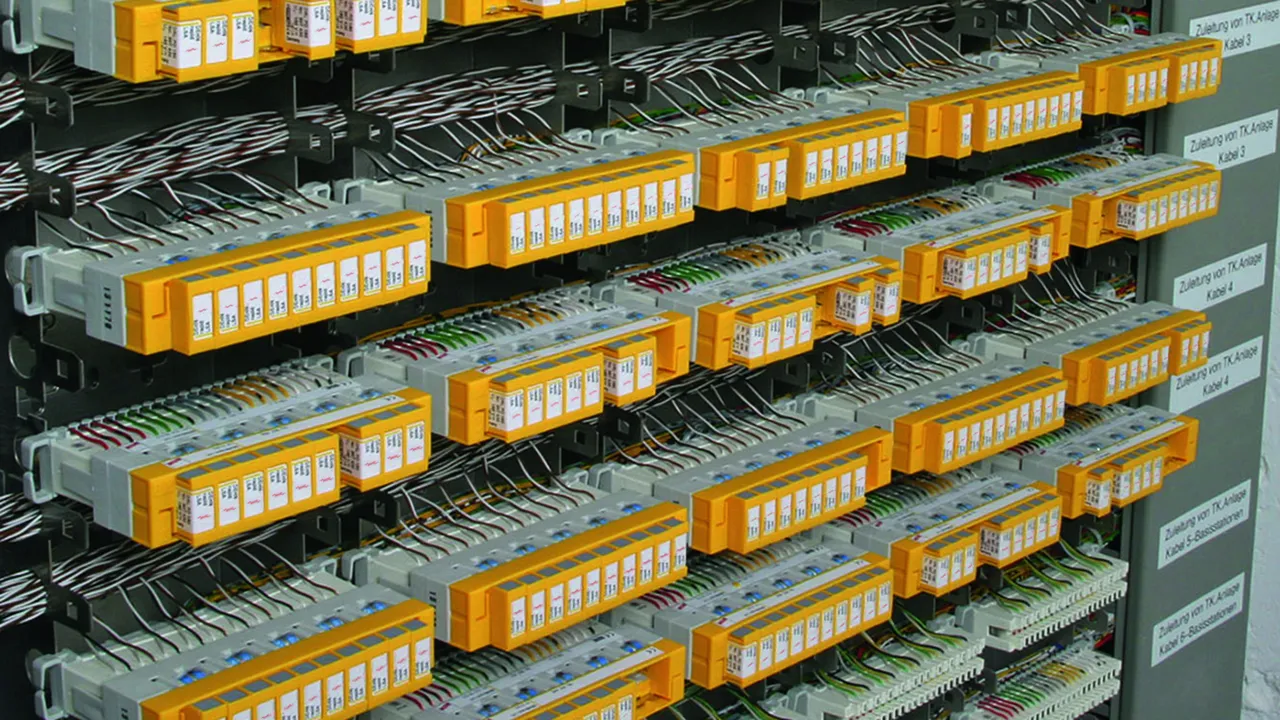

Variable protection for 1 to 10 pairs in LSA systems of the 2/10 series
LSA disconnection block function integrated in the lightning current arrester allows protected testing, disconnecting and patching
Modular system of lightning current and surge arresters can be combined to a single combined arrester

Details

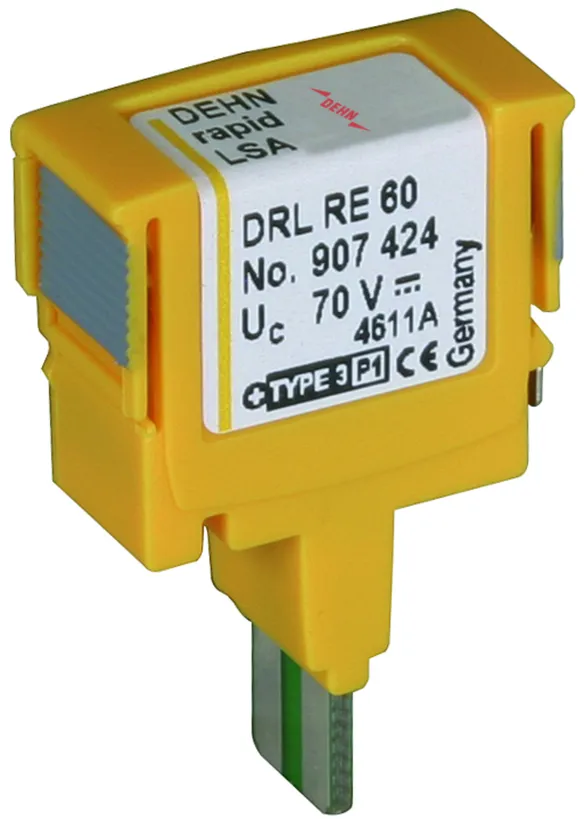

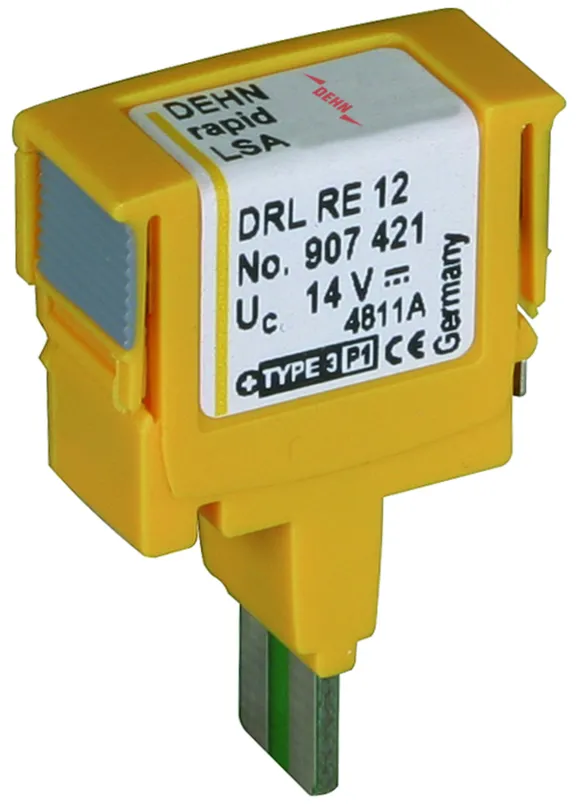

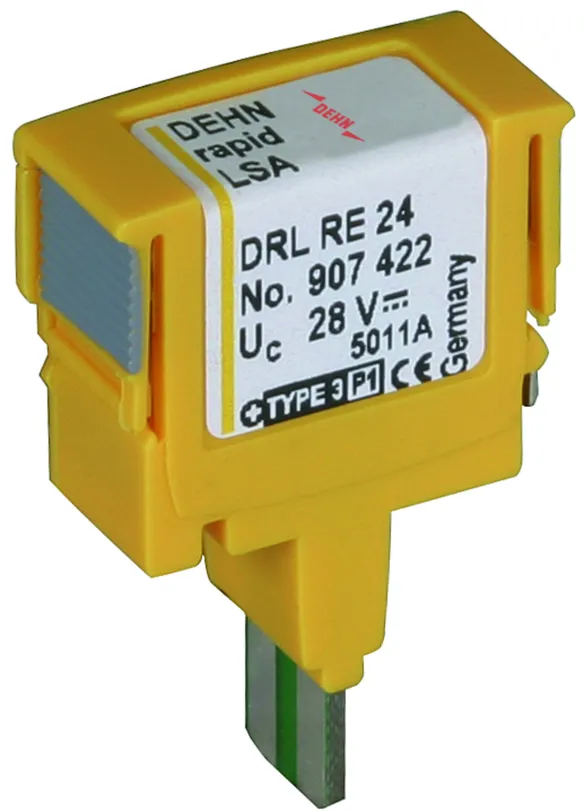

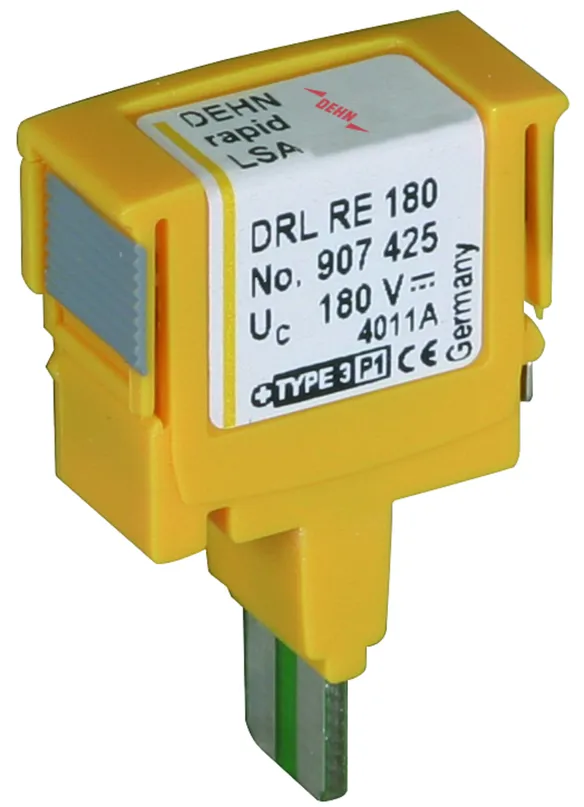

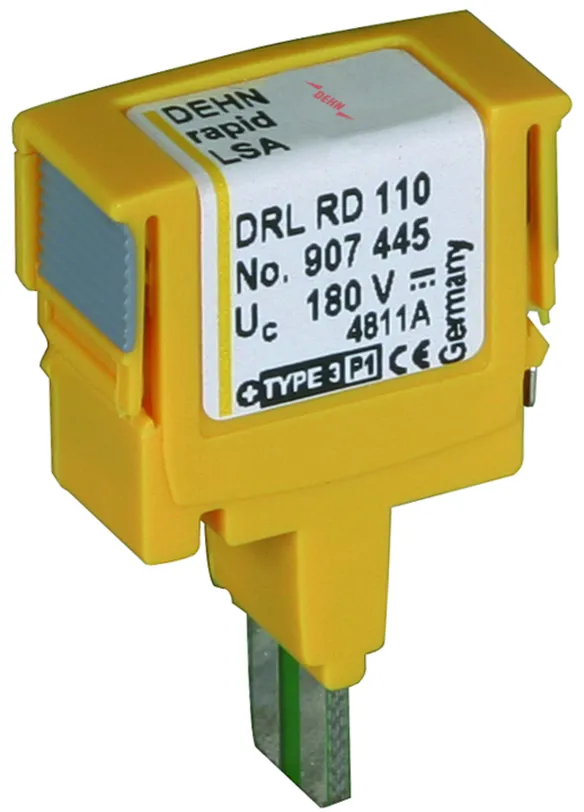

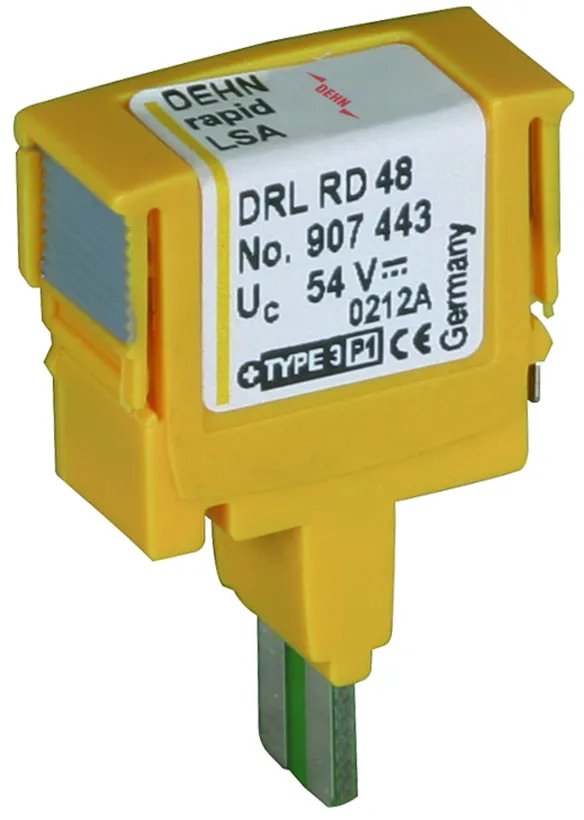

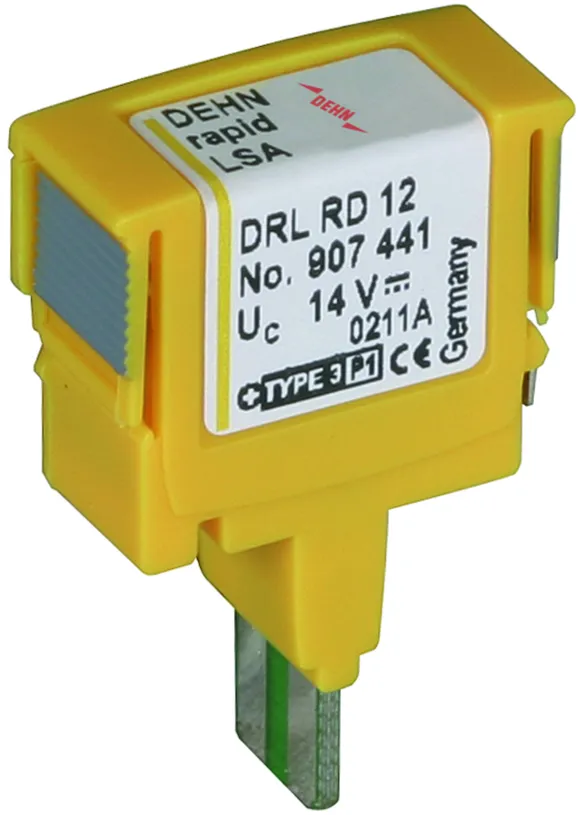

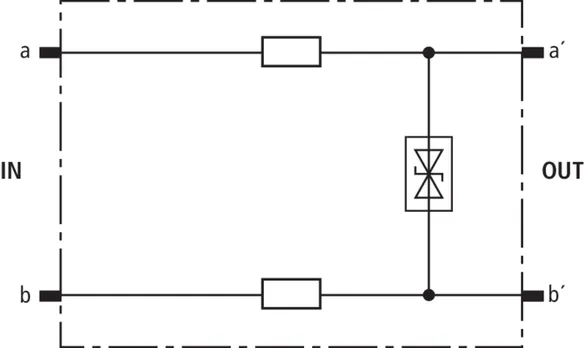

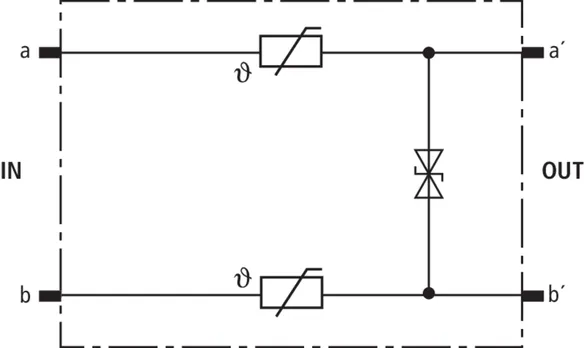

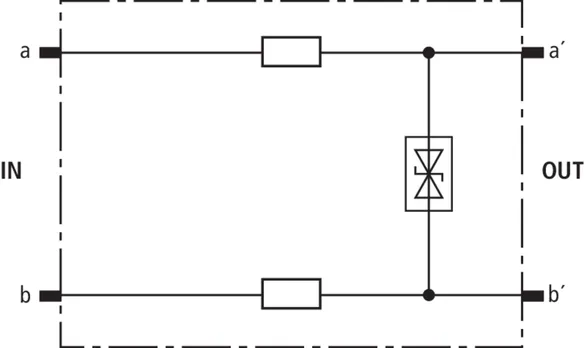

Application-specific surge protection modules for protecting terminal equipment.

lorem ipsum — Application-specific surge protection modules for protecting terminal equipment.

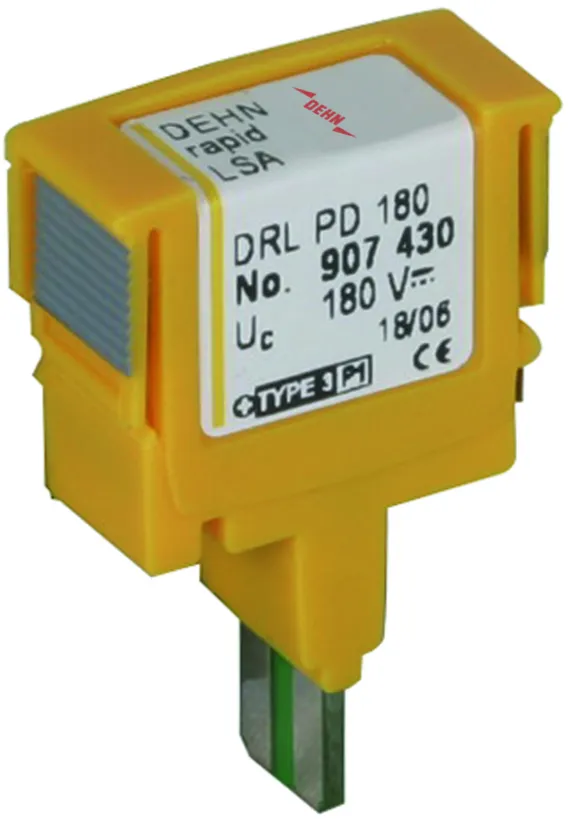

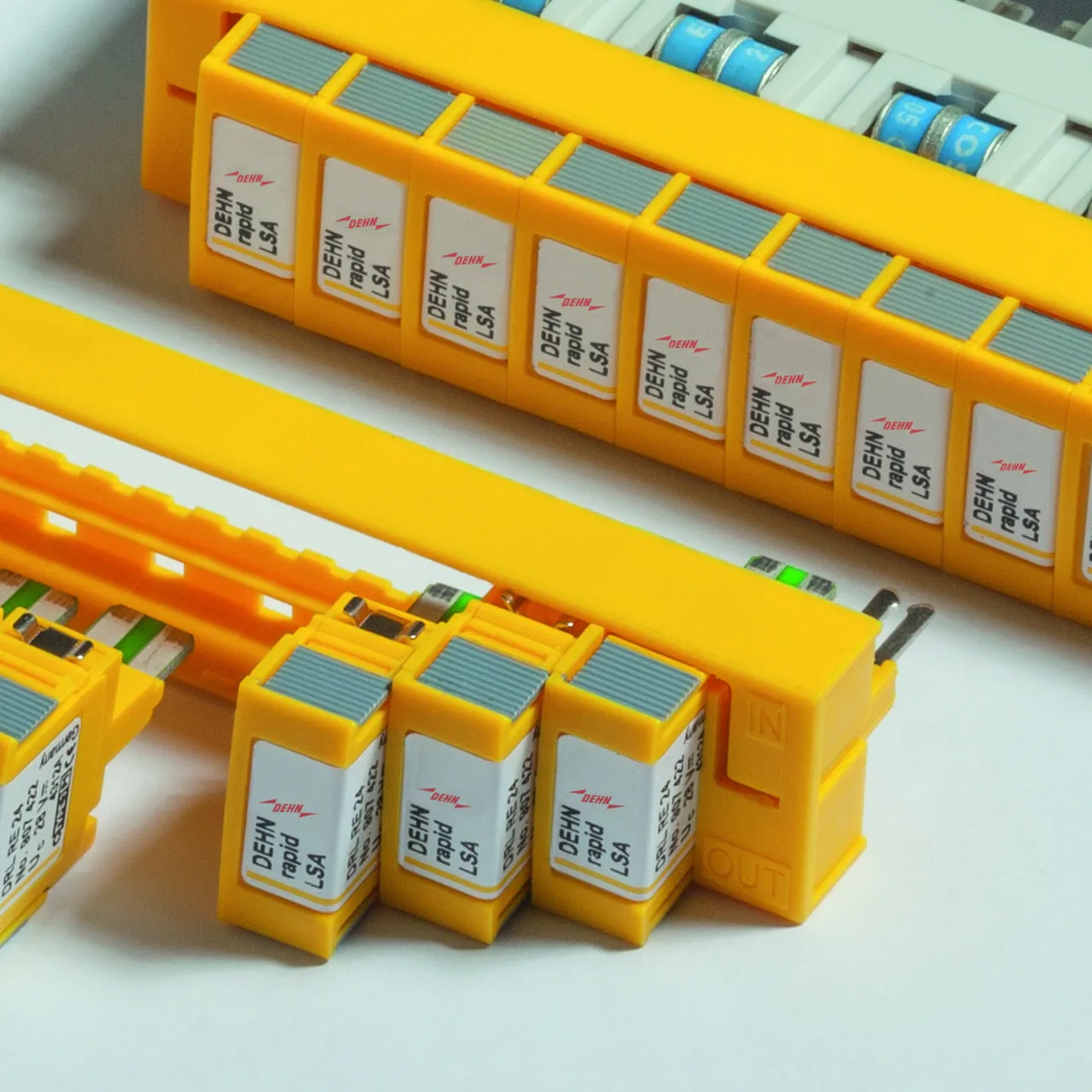

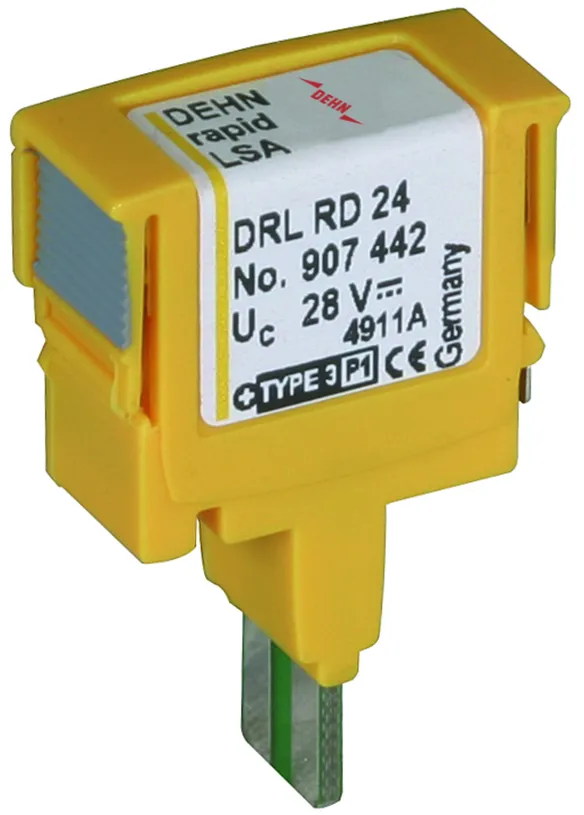

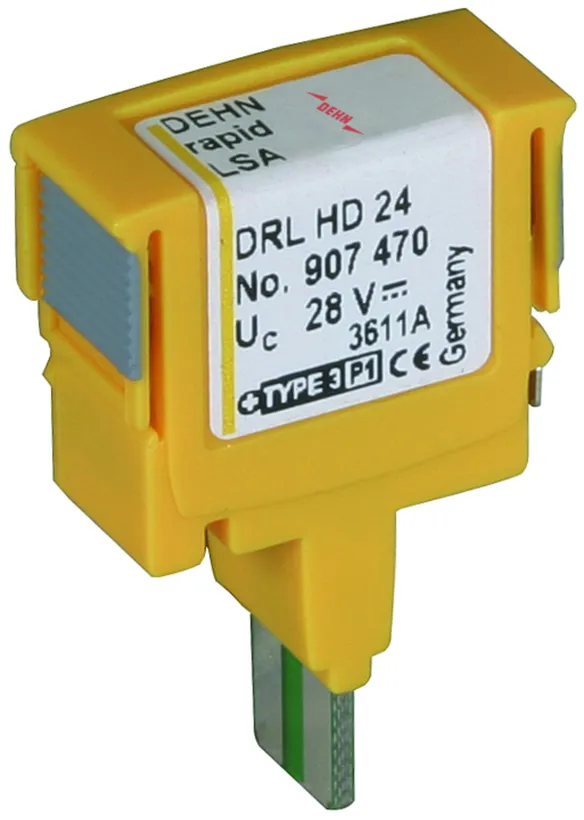

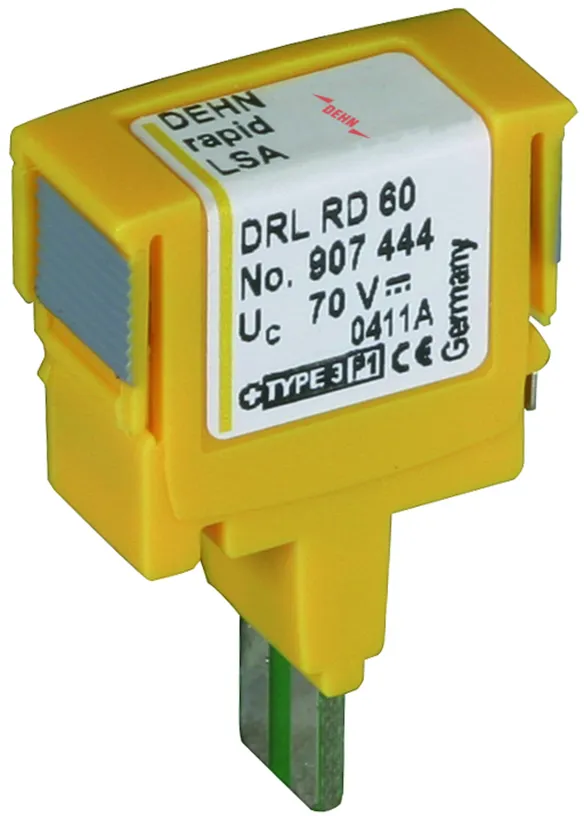

Pluggable surge arresters in the form of protection magazines can be plugged into terminal or disconnection blocks.

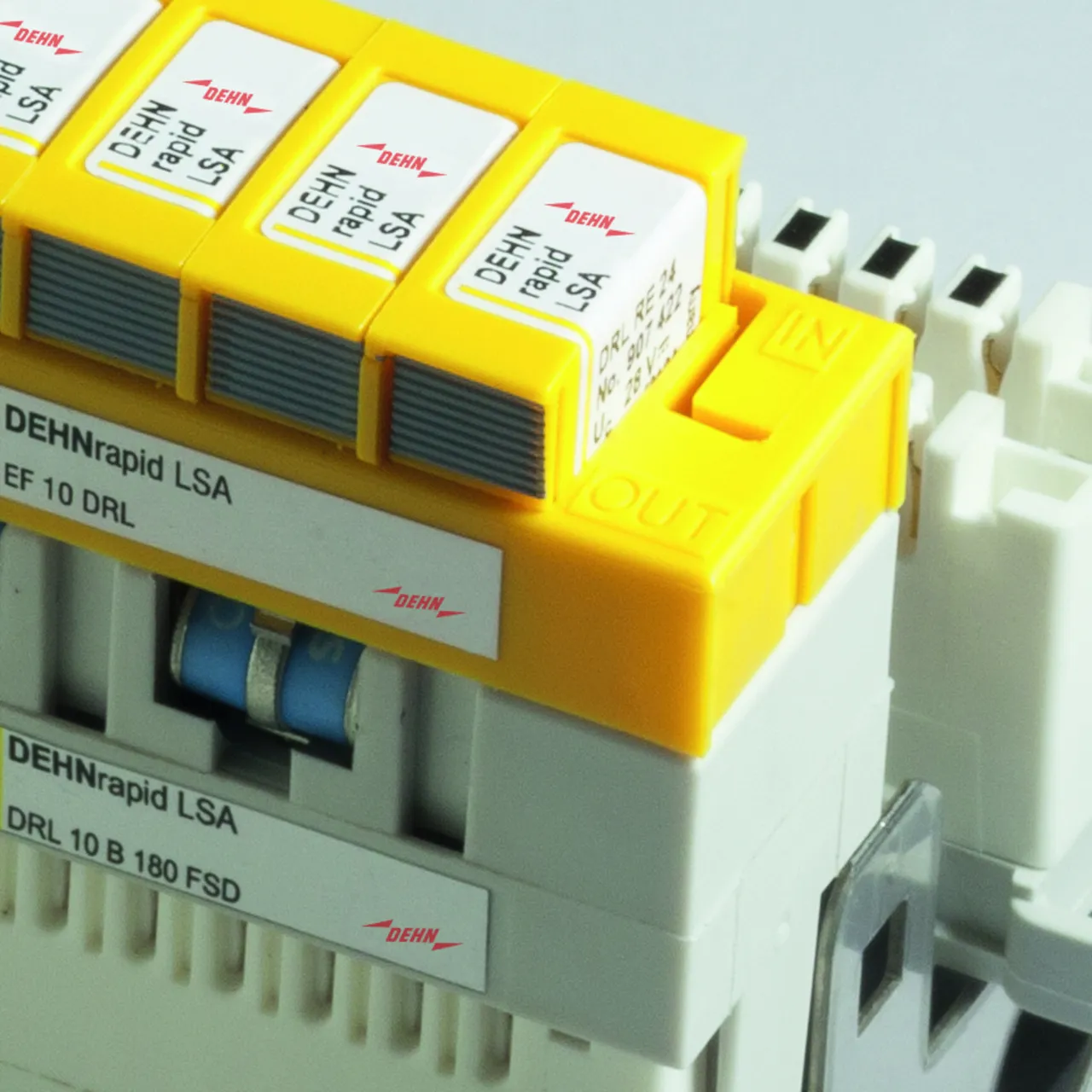

Combined lightning current and surge arrester for LSA terminal blocks.

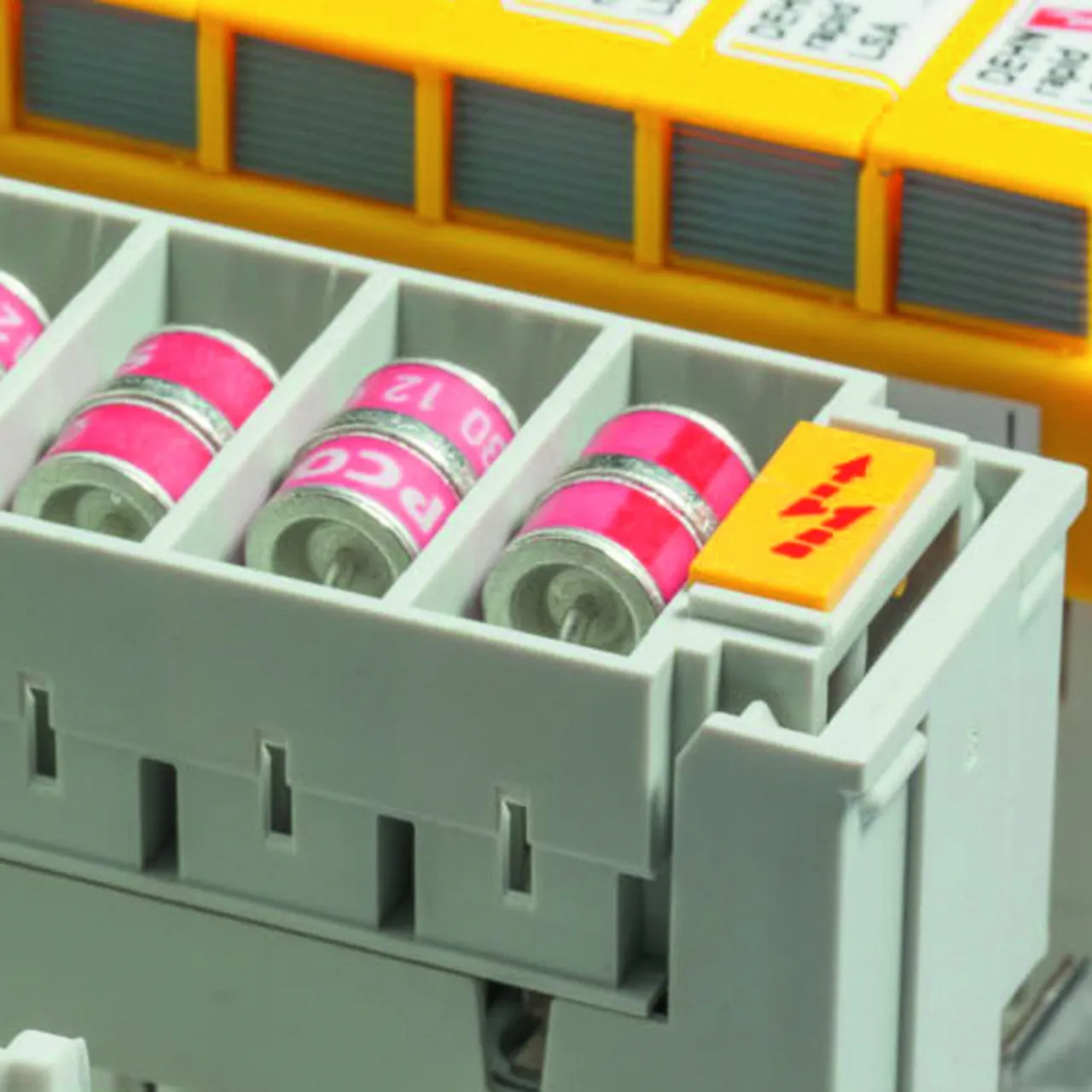

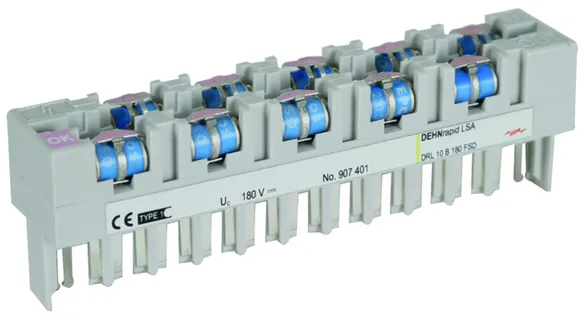

Lightning current carrying SPD block with gas discharge tubes optionally available with visual fault indication and fail-safe function.

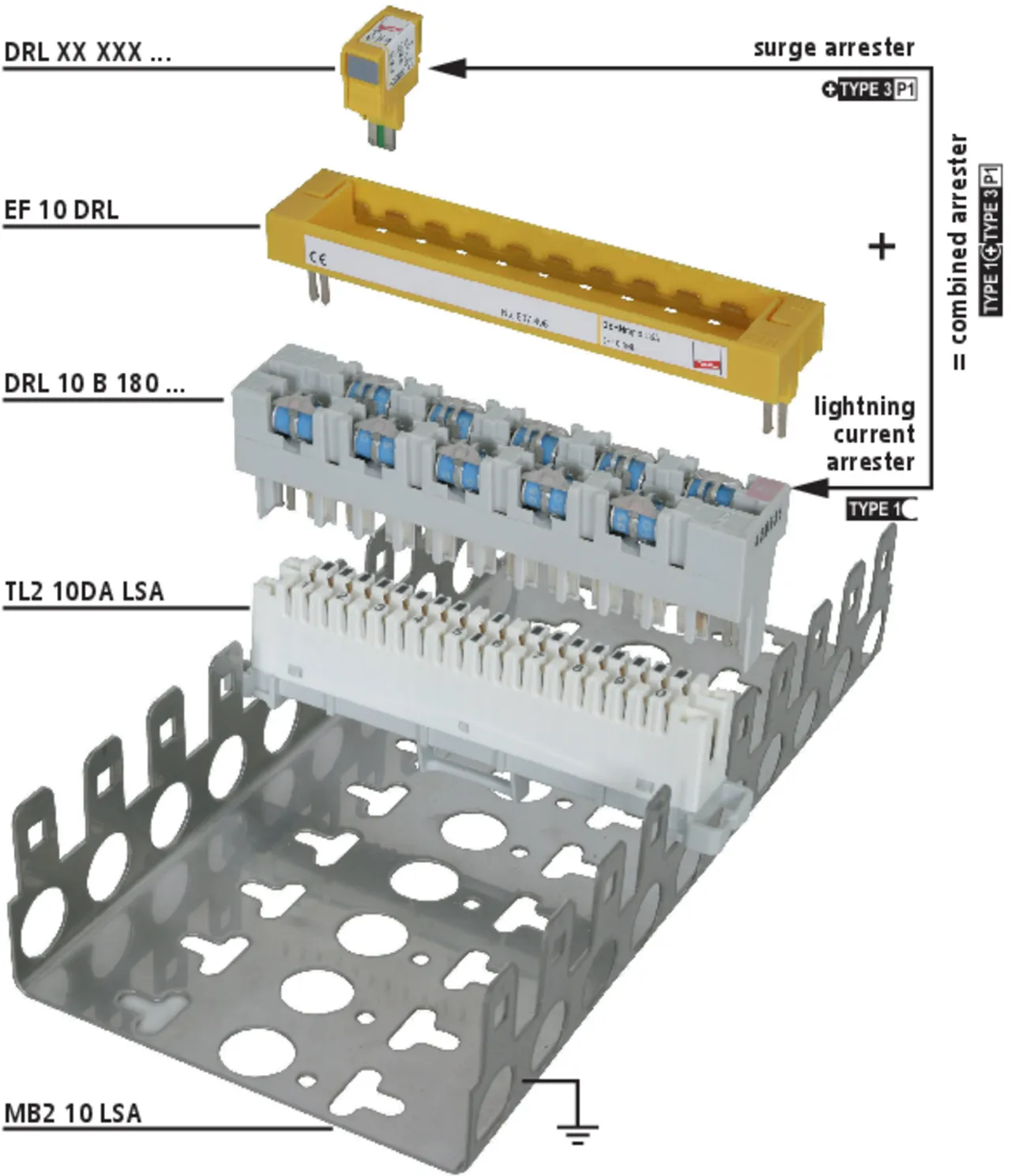

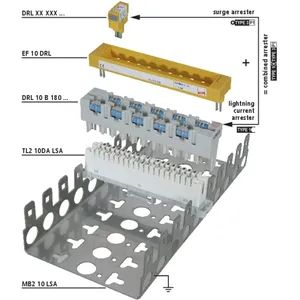

Modular design consisting of a plug-in SPD block with gas discharge tubes, earthing frame and application-specific protection modules.

??store.filter.button.open_de??

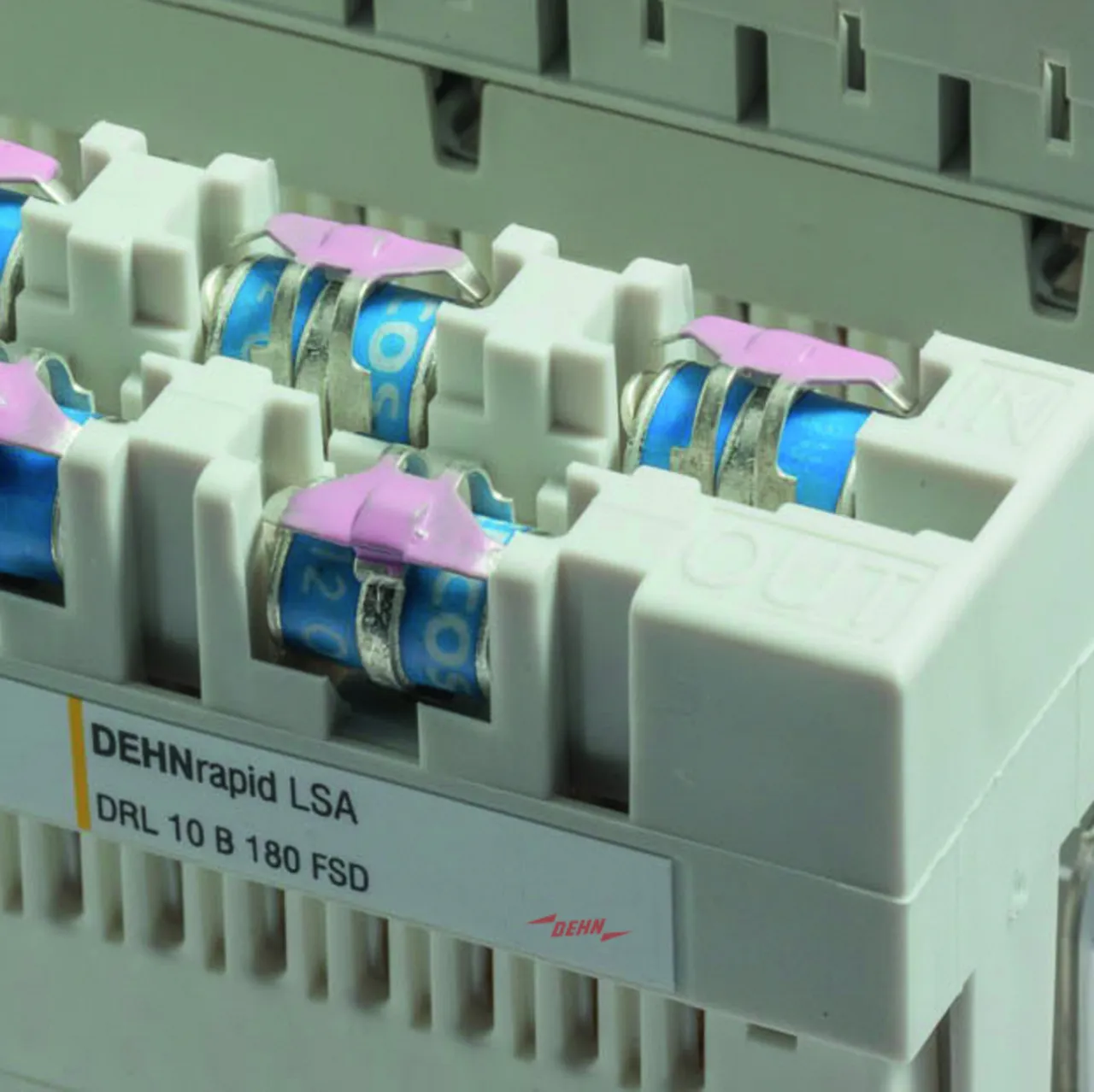

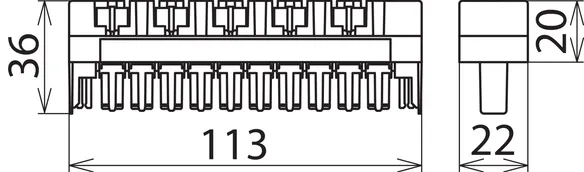

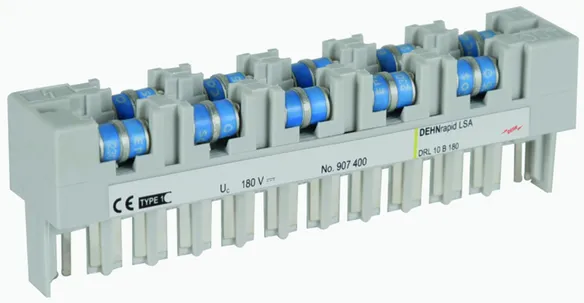

DRL 10 B

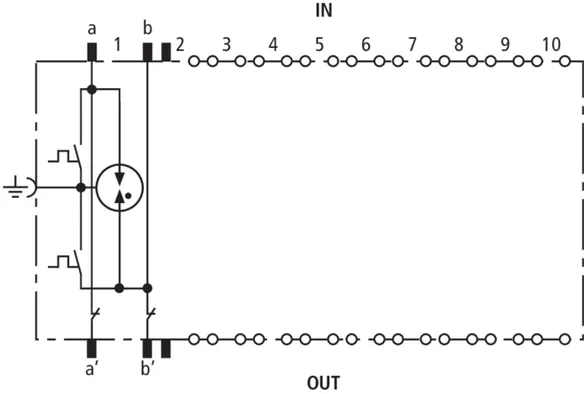

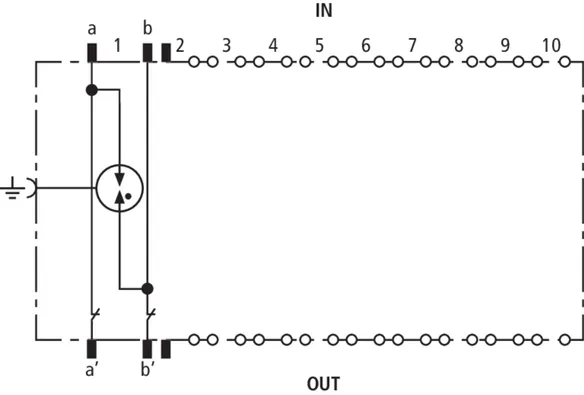

Lightning current carrying DRL plug-in SPD block (10 pairs) with three-pole gas discharge tubes for almost all applications. Expandable to a combined lightning current and surge arrester by means of a DRL protective plug. The integrated disconnection block contacts allow testing, measuring and patching with plugged-in protection.

1 ??store.product_de??

??store.product.number.short_de?? 907400 DRL 10 B 180

??store.product.gtin_de?? 4013364107557, ??store.product.customsTariffNumber_de??: 85363010, ??store.product.grossWeight_de??: 69.90 g, ??store.product.packaging_de??: 1.00 pc(s)
