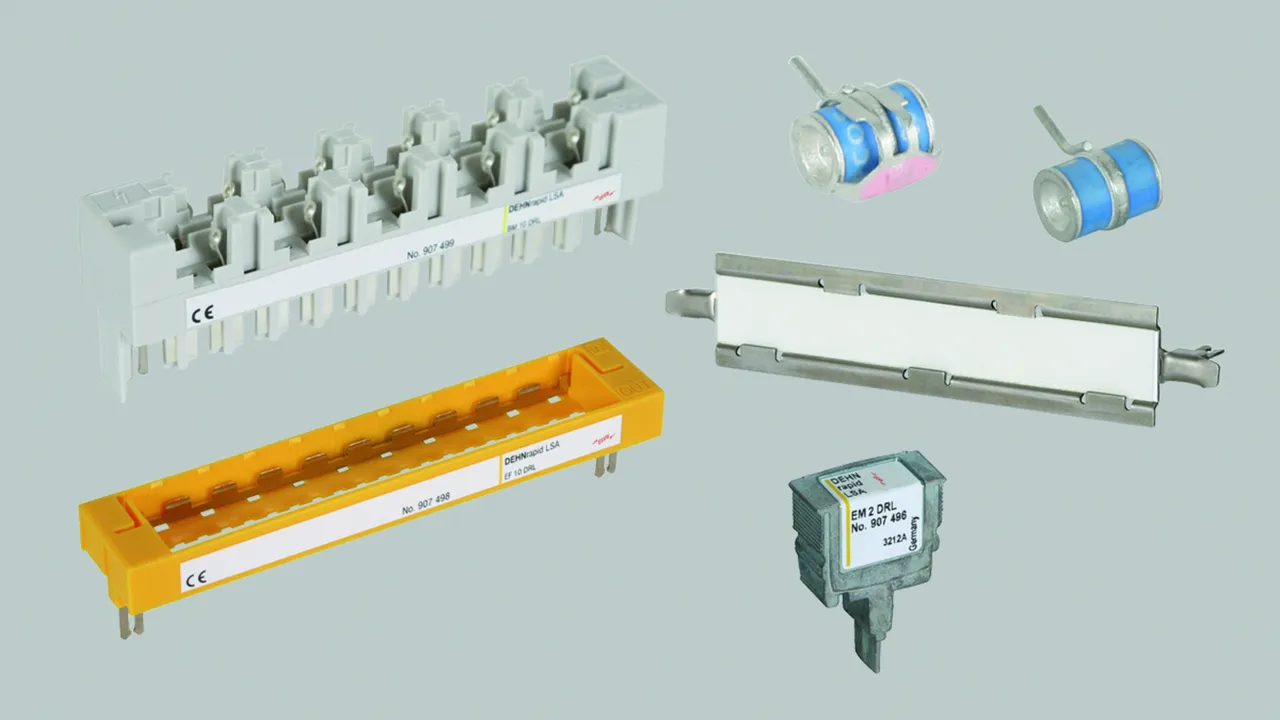

Accessories for DEHNrapid LSA

Plug-in SPD Block (without SPDs)

Plug-in SPD block (without SPDs) for 1 to max. 10 three-pole GDT 230 B3 ... gas discharge tubes. Also suitable for DRL protective plugs with earthing frame.

1 ??store.product_de??

??store.product.number.short_de?? 907499 BM 10 DRL

??store.product.gtin_de?? 4013364107533, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 50.40 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

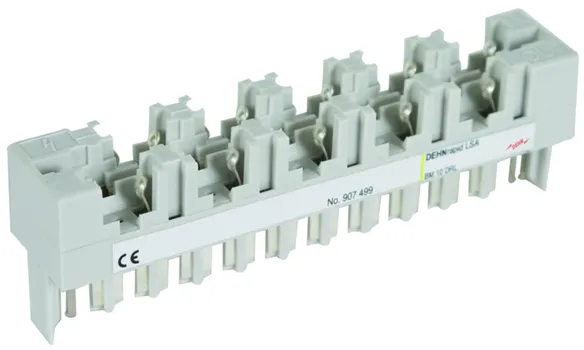

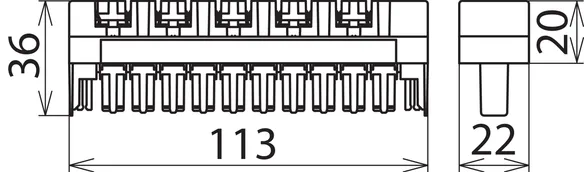

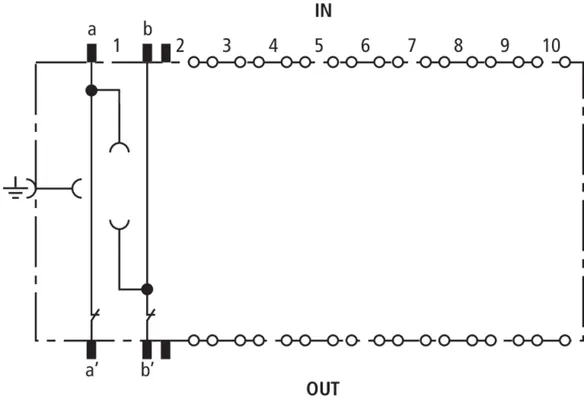

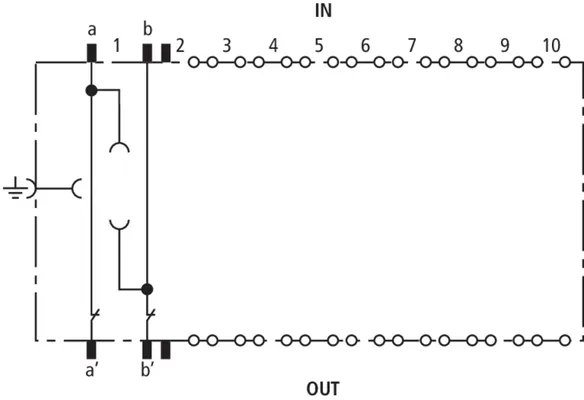

BM 10 DRL plug-in SPD block (unequipped)
Arrester plug-in SPD block with lightning current
carrying capacity with LSA disconnection block
function, for the protection of 10 pairs and for
supporting 10 3-pole gas discharge tubes,
extendible with DRL protective plug to a combined
lightning current and surge arrester, integrated
disconnection block contacts allow for testing,
measuring and patching at plugged-in protection

Brand: DEHN
Type: BM 10 DRL
Part No.: 907499
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Plugs into LSA disconnection blocks
Earthing via mounting frame

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Gas Discharge Tube

High-capacity replacement gas discharge tube for DRL 10 or BM 10 DRL. Three-pole version with common arcing chamber for a constant voltage protection level line-line and line-ground.

1 ??store.product_de??

??store.product.number.short_de?? 907219 GDT 230 B3 FSD

??store.product.gtin_de?? 4013364107595, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 2.10 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

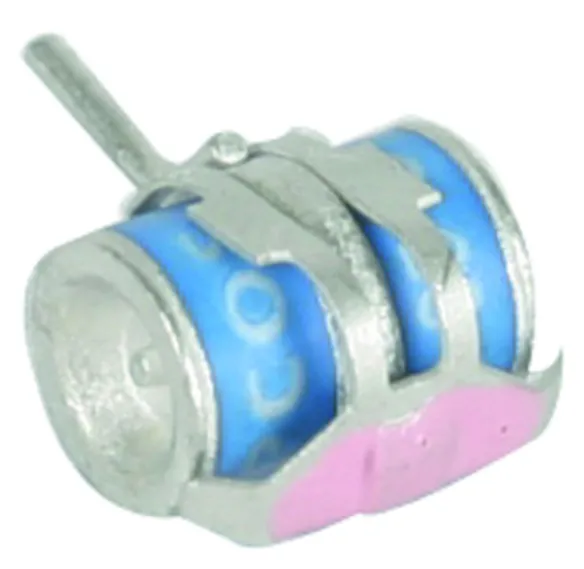

Powerful GDT 230 B3 FSD replacement gas discharge tube
Gas discharge tube for DRL 10 B 180, 3-pole
single chamber device with fail-safe spring,
visual fault indicator by colour change
D1 Total lightning impulse current (10/350 µs): 5 kA

Brand: DEHN
Type: GDT 230 B3 FSD
Part No.: 907219
or equivalent.



??store.product.data_de??

Integrated into Part No. 907 401
Visual fault indication yes
Fail-safe spring yes
D1 Total lightning impulse current (10/350 µs) (Iimp ) 5 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Gas Discharge Tube

High-capacity replacement gas discharge tubes for DRL 10 or BM 10 DRL. Three-pole version with common arcing chamber for a constant voltage protection level line-line and line-ground.

1 ??store.product_de??

??store.product.number.short_de?? 907218 GDT 230 B3

??store.product.gtin_de?? 4013364107588, ??store.product.customsTariffNumber_de??: 85363090, ??store.product.grossWeight_de??: 2.20 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

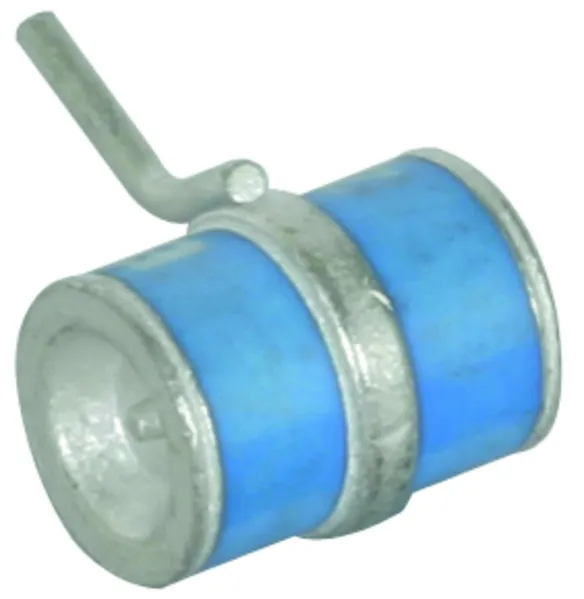

Powerful GDT 230 B3 replacement gas discharge tube
Gas discharge tube for DRL 10 B 180, 3-pole
single chamber device
D1 Total lightning impulse current (10/350 µs): 5 kA

Brand: DEHN
Type: GDT 230 B3
Part No.: 907218
or equivalent.



??store.product.data_de??

Integrated into Part No. 907 400
D1 Total lightning impulse current (10/350 µs) (Iimp ) 5 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

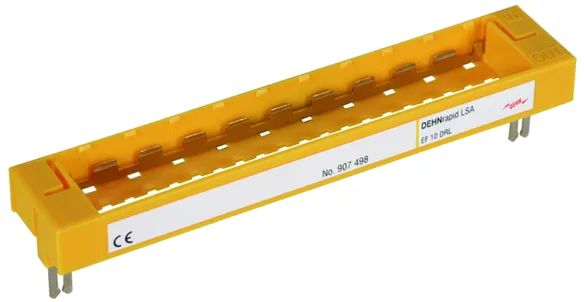

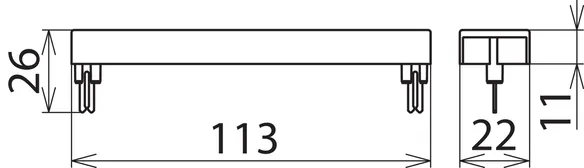

Earthing Frame

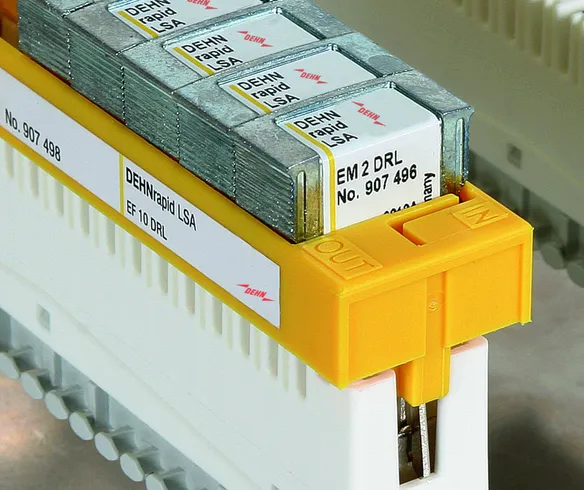

Snap-on earthing frame for earthing and installation of max. 10 DRL protection modules. Plugs into a 10-pair disconnection block or DRL plug-in SPD block.

1 ??store.product_de??

??store.product.number.short_de?? 907498 EF 10 DRL

??store.product.gtin_de?? 4013364107540, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 10.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??
