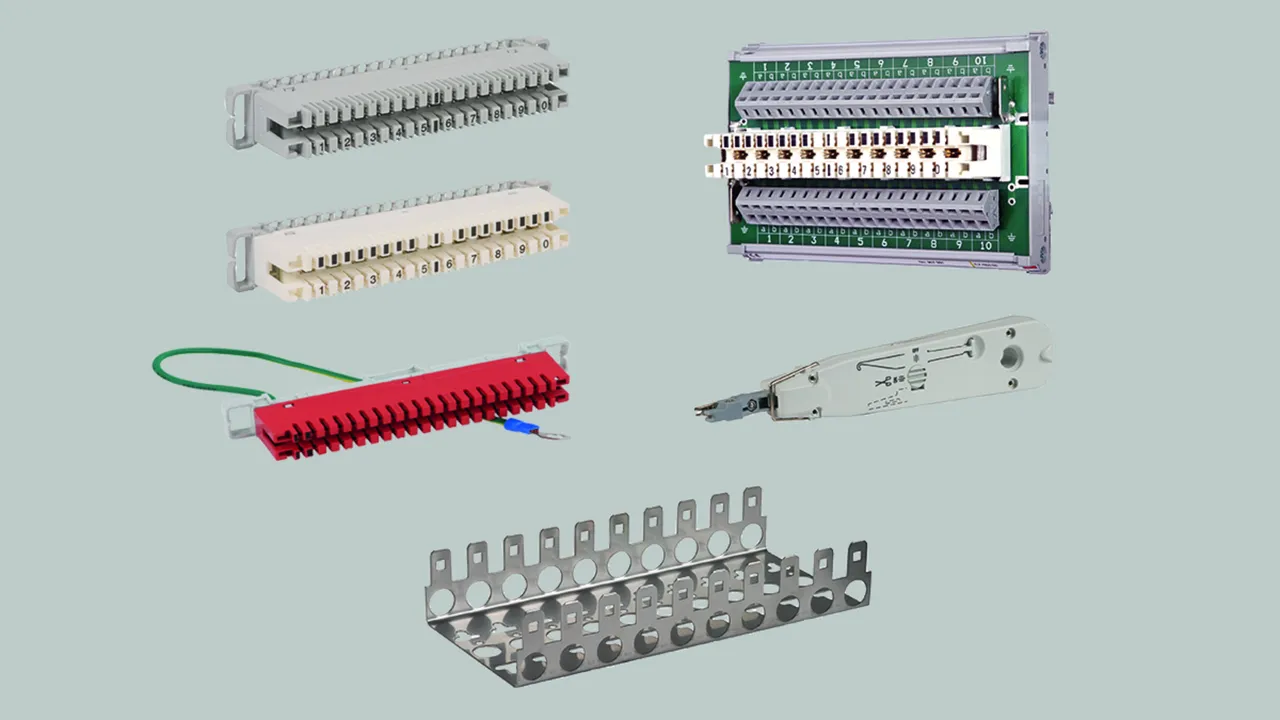

Accessories for LSA Technology

  • Proven insulation displacement method
  • 45° angled blades in the disconnection block ensure a minimum change in cross-section
  • Enhanced stability of the conductor
  • Enhanced corrosion resistance
  • Further accessories available on request

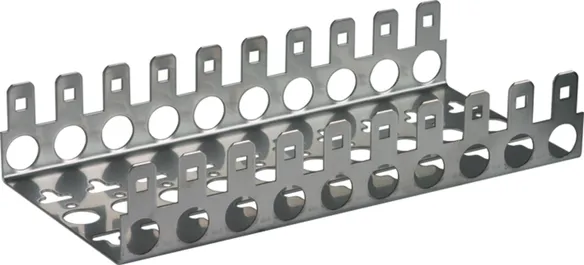

Mounting Frame

Mounting frame for 10 LSA blocks of the 2/10 series, total width: 104.5 mm

1 ??store.product_de??

??store.product.number.short_de?? 907995 MB2 10 LSA

??store.product.gtin_de?? 4013364033528, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 228.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

MB2 10 LSA mounting bracket for 10 LSA blocks
Mounting frame LSA, type series 2/10,
out of stainless steel, for supporting 10 LSA
blocks 2/10 for surge protective components
DEHNrapid LSA and DPL 10 G3...

Brand: DEHN
Type: MB2 10 LSA
Part No.: 907995
or equivalent.



??store.product.data_de??

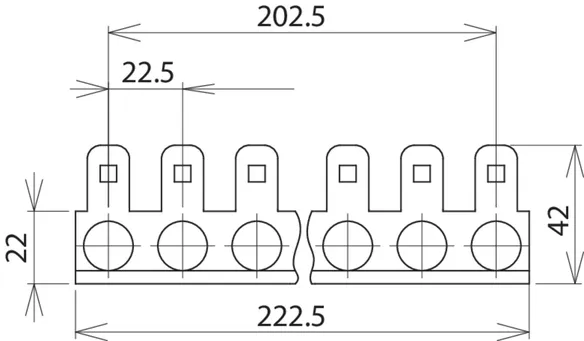

Dimensions 223 x 105 x 42 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

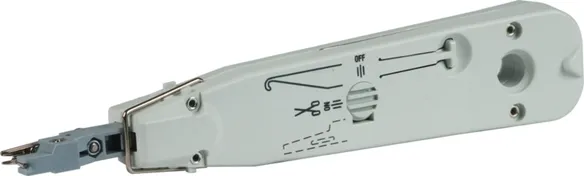

Insertion Tool

Insertion tool with sensor for LSA technology for connecting the wires and simultaneously cutting them to the required length. With fold-out extraction hook and blade.

1 ??store.product_de??

??store.product.number.short_de?? 907994 AW2 LSA

??store.product.gtin_de?? 4013364033511, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 105.20 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

AW2 LSA insertion tool for LSA technology
Insertion tool for LSA terminal blocks, series 2/10,
with sensor, for connecting the wires and
simultaneous cutting of residual lengths,
with extractor hook and unlatching blade

Brand: DEHN
Type: AW2 LSA
Part No.: 907994
or equivalent.



??store.product.data_de??

Colour white ○

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

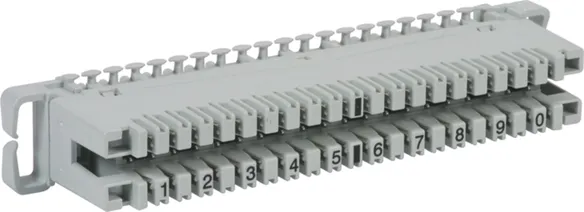

Terminal Block

Series 2 for LSA technology for inseparably connecting 10 pairs each on the cable and routing side. Accommodates DPL 10 G3 arresters. Parallel protective circuit only.

1 ??store.product_de??

??store.product.number.short_de?? 907997 AL2 10DA LSA

??store.product.gtin_de?? 4013364033542, ??store.product.customsTariffNumber_de??: 85369010, ??store.product.grossWeight_de??: 51.40 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

AL2 10DA LSA terminal block for LSA technology
Terminal block LSA, type series 2/10,
for connecting 10 pairs each - on the cable and
routing side, conductor diameter 0,4 – 0,8 mm,
also for plugging of surge protective components
DPL 10 G3...

Brand: DEHN
Type: AL2 10DA LSA
Part No.: 907997
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Test standards DIN 47608-1, -2
Diameter of solid conductors 0.40-0.80 mm
Conductor diameter with insulation 0.70-1.50 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

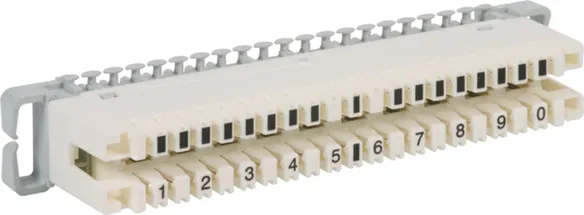

Disconnection Block

Series 2 for LSA technology for connecting 10 pairs each on the cable and routing side. Protection is provided between the disconnection contacts as soon as DRL components are plugged in. DPL 10 G3 arresters can also be plugged into the disconnection block.

1 ??store.product_de??

??store.product.number.short_de?? 907996 TL2 10DA LSA

??store.product.gtin_de?? 4013364033535, ??store.product.customsTariffNumber_de??: 85369010, ??store.product.grossWeight_de??: 60.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

TL2 10DA LSA disconnection block for LSA technology
Disconnection block LSA, type series 2/10,
for connecting 10 pairs each - on the cable and
routing side, conductor diameter 0,4 – 0,8 mm,
also for plugging of surge protective components
DEHNrapid LSA

Brand: DEHN
Type: TL2 10DA LSA
Part No.: 907996
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Test standards DIN 47608-1, -2
Approvals compliance with DTAG TS 0272/96
Diameter of solid conductors 0.40-0.80 mm
Conductor diameter with insulation 0.70-1.50 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

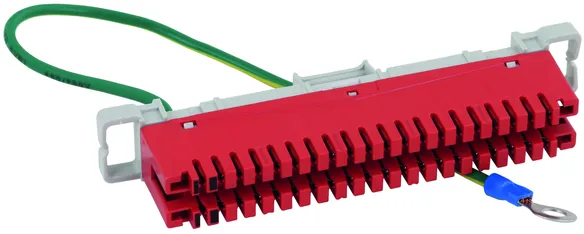

Earthing Plug

Series 2 for LSA technology for connecting up to 38 earth drain wires or unused signal cores. With earth wire and M4 ring cable lug.

1 ??store.product_de??

??store.product.number.short_de?? 907993 EL2 38EA LSA

??store.product.gtin_de?? 4013364048584, ??store.product.customsTariffNumber_de??: 85369010, ??store.product.grossWeight_de??: 59.80 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Earthing plug for LSA technology
Earth wire block LSA, type series 2,
for connecting 38 earth wires,
wire diameter 0.4 – 0.8 mm

Brand: DEHN
Type: EL2 38EA LSA
Part No.: 907993
or equivalent.

??store.product.certs_de??



??store.product.data_de??

Earthing via earthing conductor with M4 ring cable lug
Diameter of solid conductors 0.40 - 0.80 mm
Conductor diameter with insulation 0.70 - 1.50 mm
Colour red ●

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

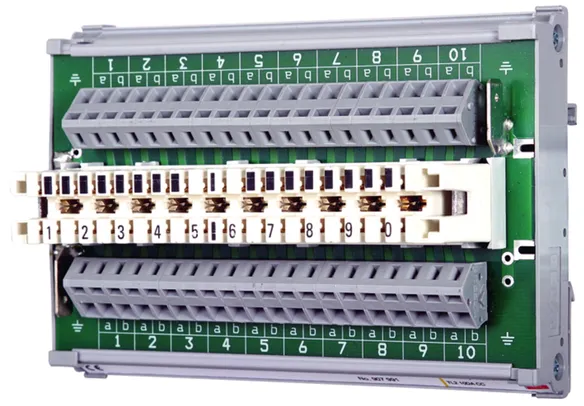

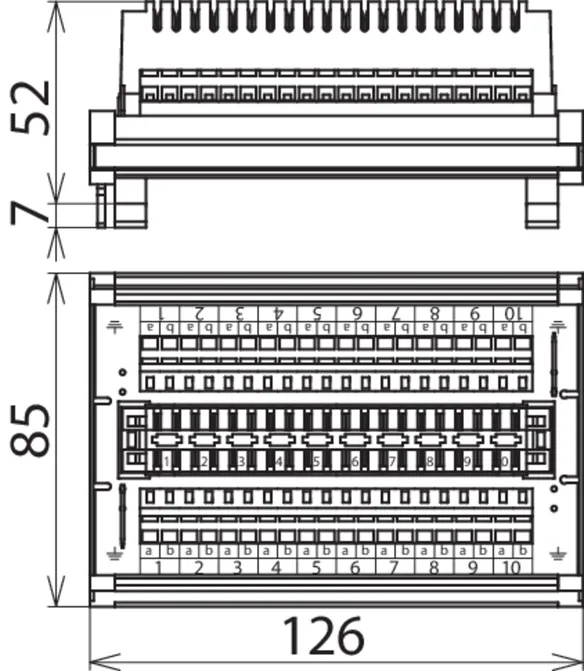

Routing Module for Disconnection Blocks with LSA Spring-Loaded Terminal

DIN rail mounted routing module with LSA disconnection block of the 2/10 series as well as spring-loaded terminals for variable wire connection. DPL and DEHNrapid LSA surge arresters can be plugged into the routing module.

1 ??store.product_de??

??store.product.number.short_de?? 907991 TL2 10DA CC

??store.product.gtin_de?? 4013364112988, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 213.20 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??
